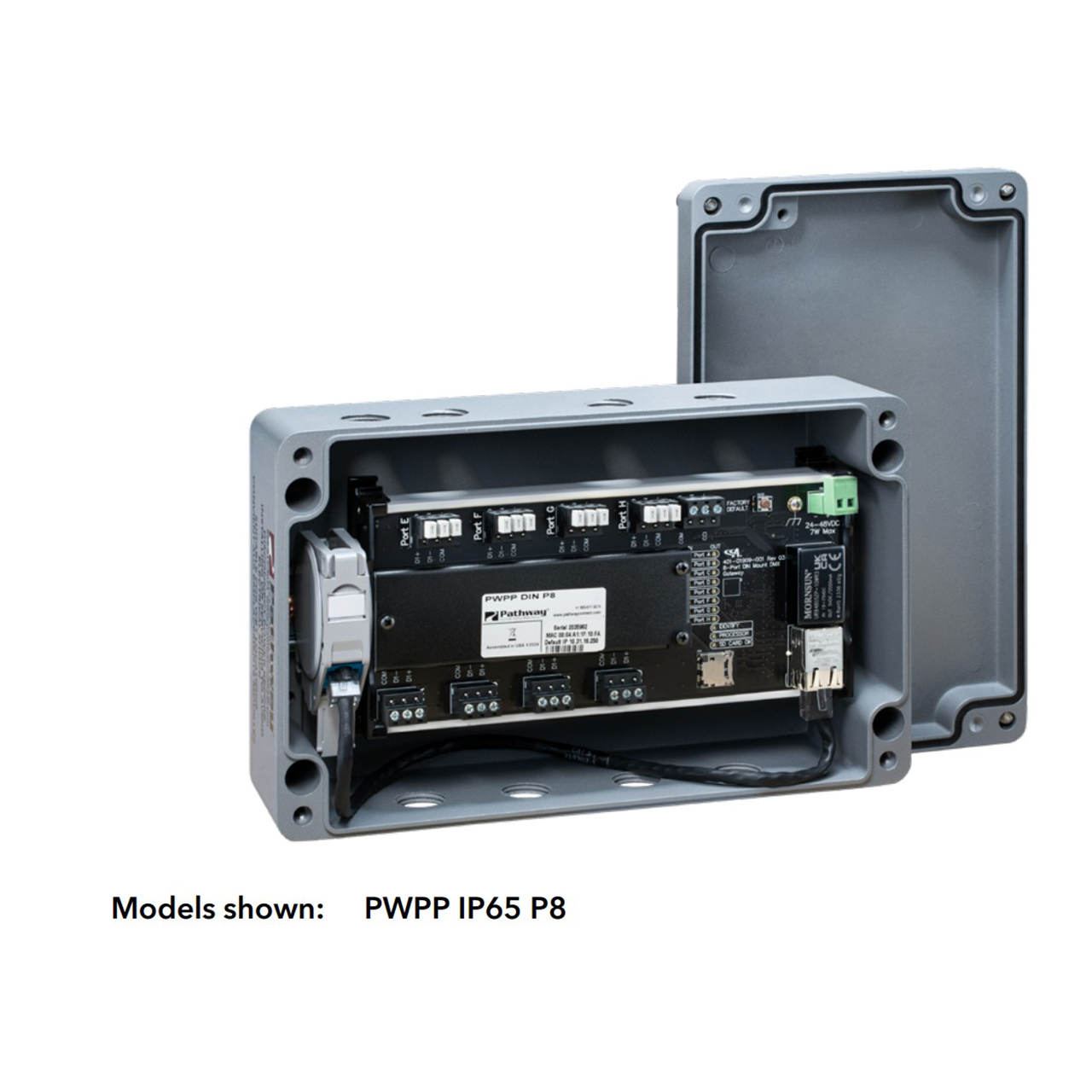

The Pathport series of DMX/RDM Ethernet Gateways are the heart of DMX distribution. Connect DMX512 control devices and send data over an Ethernet network to DMX512-capable end-devices such as intelligent lighting fixtures, LEDs, dimmers, and more. Each port can be configured as an Input or Output as needed. The IP65 DMX Gateway, a 2, 4, or 8-port PoE Pathport, in a water resistant IP65 rated enclosure designed for permanent installation. Suitable for venues with fountains, water displays, and any outdoor applications like marquees, Facades, and parking garages.They are configured using the free downloadable software, Pathscape.Advanced features include extensive protocol support, slot-by-slot patching using multiple sources, cross-fading on priority change, and signal loss behavior. Different
Ethernet protocols may be merged together and prioritized. Status LEDs provide instant confirmation of port activity.
Please Note: Image is for reference only.
