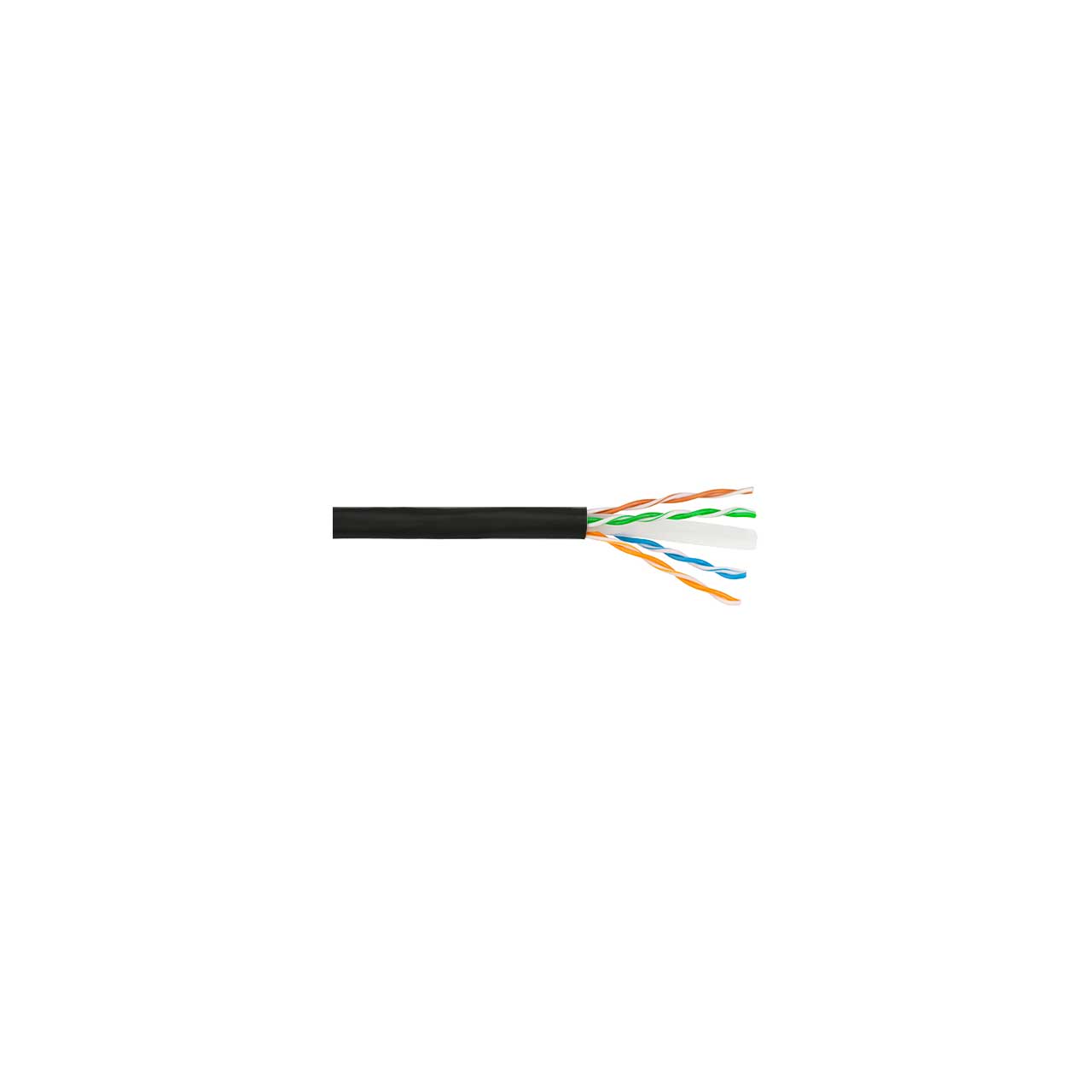

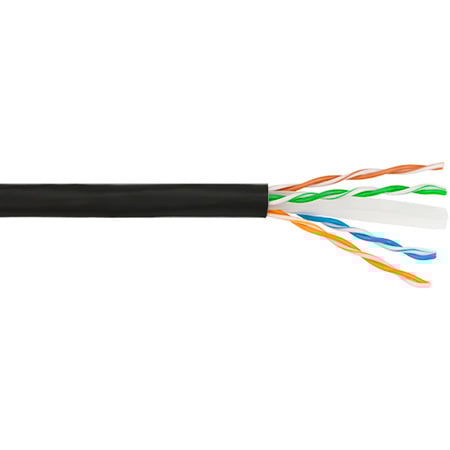

Clark Wire CN423C6S Riser Rated Shielded Cat6 550MHz STP Cable - Black - 1000 Feet

CN423C6S-BLACK - Overview

• Features:

  • Enhanced 550 MHz Bandwidth - provides addtional bandwidth for high data rate applications
  • ETL Verified to TIA-568-C.2 - verified to meet or exceed TIA standards for Cat6 cable
  • ETL Verified to ISO/IEC 11801 - verified to meet or exceed ISO/IEC standards for Cat6 cable
  • 1000 Mbps Gigabit Ethernet - delivers precision electrical performance for 10Gbs data transmission
  • Overall Foil Shield - provides additional RF/EMI protection from external interference
  • UL Riser Rated CMR - UL and CSA rated for installation in most non-plenum environments


• Specifications:

  • Conductors: (8) 23AWG Solid BC (configured as four pairs)
  • Insulation: Polyethylene, .009" wall

    Insulation Color Code
  • Pair 1: Blue & White w/ Blue Stripe
  • Pair 2: Orange & White w/ Orange Stripe
  • Pair 3: Green & White w/ Green Stripe
  • Pair 4: Brown & White w/ Brown Stripe


  • Separator: Cross-Web PVC
  • Shield: 100% Foil w/ 26AWG Solid TC Drain Wire
  • Jacket: PVC
  • Overall Diameter: .244"

    Mechanical Characteristics
  • Operating Temperature: 0degC to +60degC
  • Weight: 42 lbs/Mft
  • Agency Listing: CMR C(ETL) FT-4 / ETL Listed & Verified

    Electrical
  • DCR: 9.38 Ω/100m
  • DCR Unbalance: 5%
  • Characteristic Impedance: 100 Ω (+/-15)
  • Skew: 45 ms/100m (max.)
  • Capacitance: 5.6 nF/100m (mutual), 330 pF/100m (pair-to-pair ground unblanced)


• Item Includes:

  • 1x Clark CN423C6S Riser Rated Shielded Cat6 550MHz STP Cable - Black - 1000 Feet
