DBX ZC-4 Wall-Mounted Zone Controller w/ Program Change/Source & Scene Selection/Page Steering For DriveRack & ZonePRO

ITEM #: DBX-ZC-4 MFG #: ZC-4

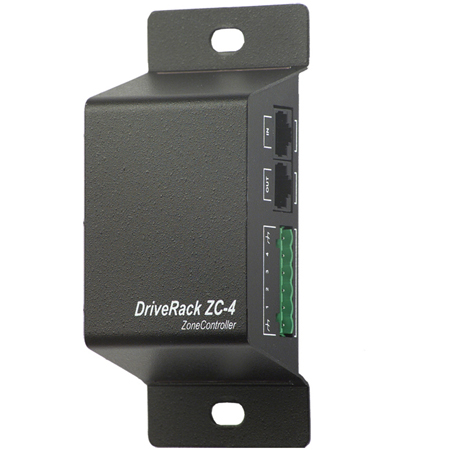

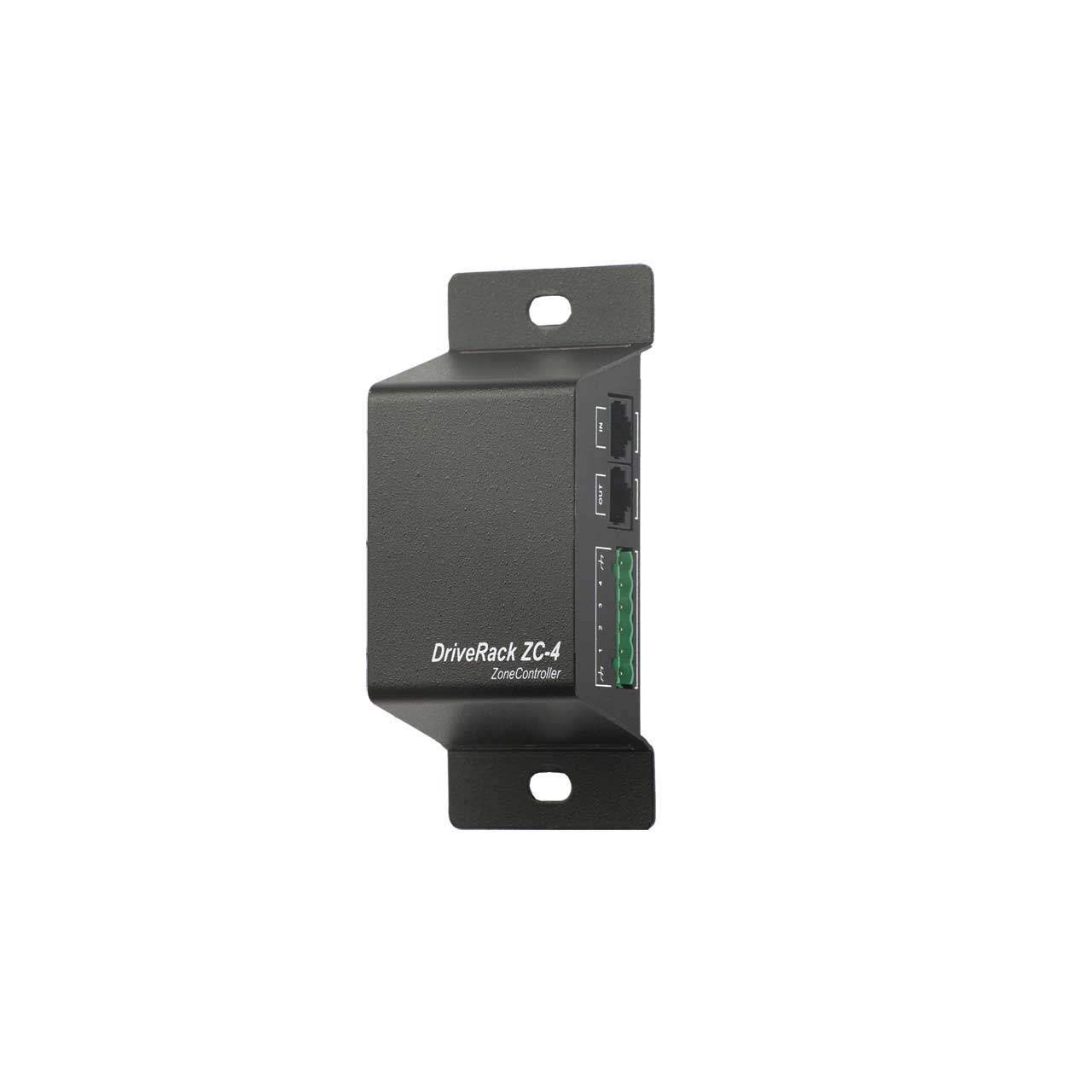

Primary Image
DBX Professional Products
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$124.42

Our Price:

$105.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    ZC-4 - Overview

    The dbx ZC4 Wall-Mounted Zone Controller offers programmable program selection via contact closures for the dbx DriveRack 220i and 260 devices. The remote device shall also provide contact closure programmable source selection, page assignment, or scene selection for the dbx ZonePro devices. The remote device shall have DIP switches allowing identification with connection to the processing device via CAT 5 cable on RJ-45 connectors.

    • Features:

      • Program or Scene selection
      • Programmable Source selection
      • Programmable contact closure interface
      • Up to 1000ft on CAT 5 cable


    • Specifications:

      • Connectors: 2x RJ-45, 1x 6-pin Phoenix
      • Series Wiring: Maximum Cable Length varies with number of Zone Controllers. For Example,Three Zone Controllers: 600ft. Six Zone Controllers: 300ft.
      • Parallel Wiring using ZC-BOB: Up to Six Zone Controllers: 1000ft
      • Parallel Wiring Cable: CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000ft.) nominal DCR and rated VW-1 or higher


    • GTIN:

      0691991400698
