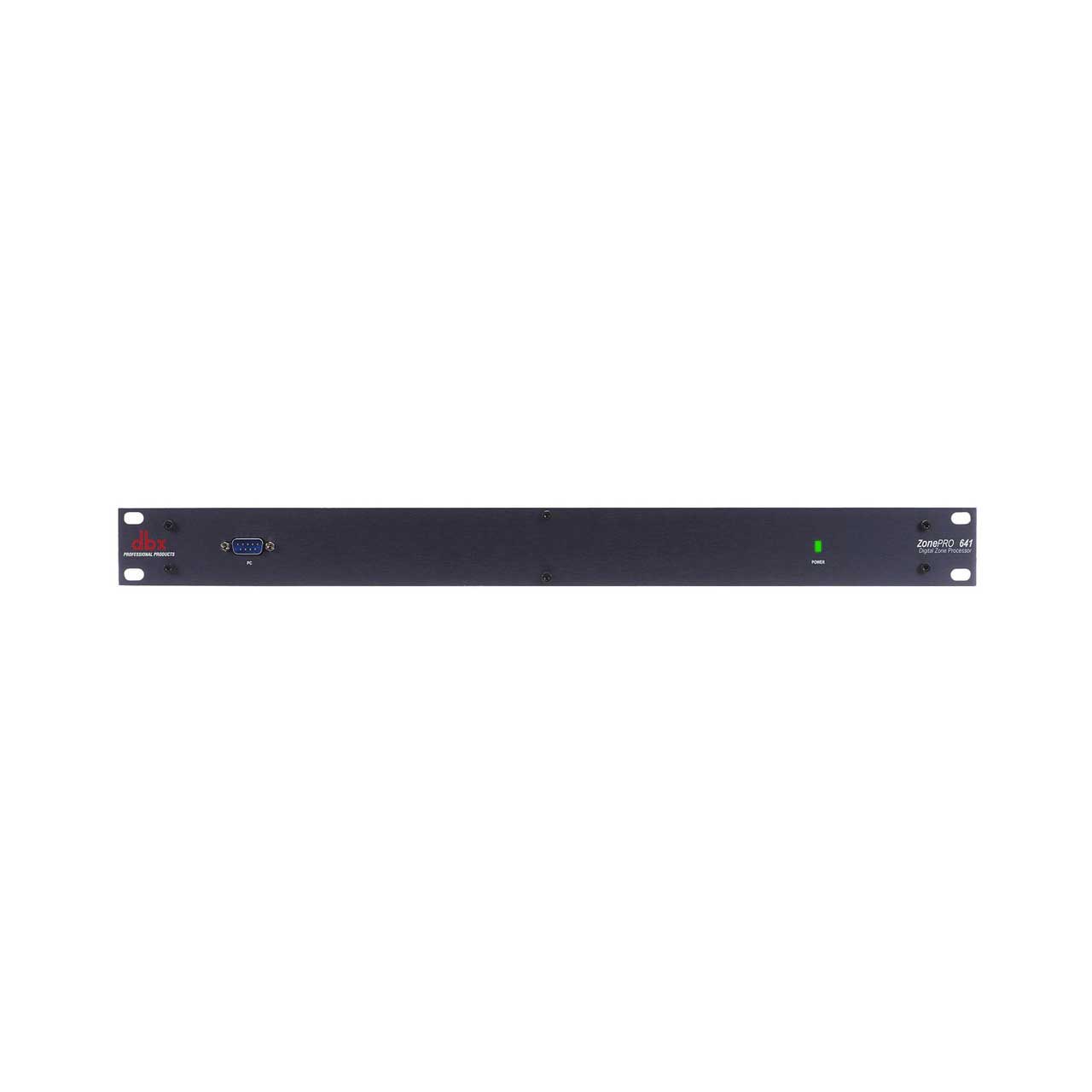

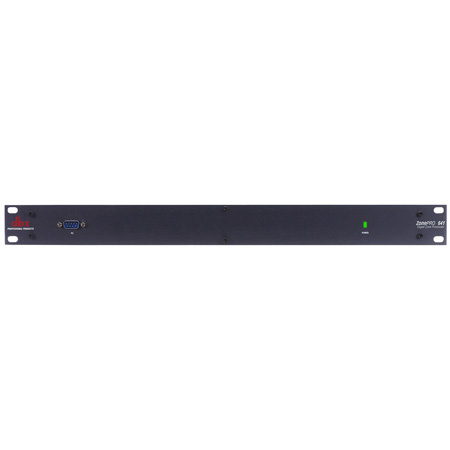

DBX DBX641V 6x4 Digital Zone Processor

ITEM #: DBX-DBX641V MFG #: DBX641V

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$708.14

Our Price:

$635.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    DBX641V - Overview

    With 6 inputs and 4 outputs the dbx DBX641V ZonePROr 641 provides flexible signal routing, powerful DSP processing and multiple control interfaces for Commercial Audio applications. Designed to offer superior system sonic performance and flexibility, the 641/641 deliver the highest quality tools available. Even the input and outputs connectors were chosen for their standard usage and reliability. The ZonePRO products offer Euroblock connectors for balanced signals and RCA connectors for interfacing with consumer equipment often used in commercial applications; there is also a simple analog input buss that allows inputs to be sent from one unit to the next for unit and job scalability. The 641 and 641 provide every necessary processing tool, from the input processing like gain control and EQ available on all inputs to highly sophisticated and specific functions such as selectable paging microphone processing including Gating, De-Essing, Auto Gain Control, Compression and Feedback Suppression. The heart of the ZonePRO products is the Routing module that provides of course Primary Source Selection but also Source Ducking for Paging and Priority Override. The outputs also offer a wealth of processing designed for commercial applications like our patent-pending AutoWarmthr function that was co-developed with JBL to provide natural low frequency extension at any signal level. Each output also offers EQ, Bandpass and Crossover filters, Limiting and Delay for system optimization. With the ZonePROr every tool is at your disposal to maximize the response of your system.

    Beyond processing, the ZonePROr products offer multiple forms of control to further extend the versatility of your system. From easy-to-use wall panel Zone Controllers for standard end-user functions like source select and volume control to advanced system control including a built-in Real Time Clock that can provide programmable system changes throughout the day or week. For system setup and monitoring the ZonePRO Designer software provides an intuitive interface and a speedy setup Wizard for configuring and editing all system parameters. The ZonePROr 641 will take your Commercial Audio system to the next level with advanced processing, versatility and control.

    • Features:

      • Advanced Feedback Suppression (AFS™)
      • Autowarmth®
      • Auto Gain Control
      • Compression
      • Limiting
      • Noise Gating
      • Notch Filtering
      • Bandpass and Crossover Filters
      • Parametric EQ
      • Security Lockout
      • Wall Panel Control
      • RS-232 Control
      • Windows® 2000 and XP GUI
      • IEC, UL and CSA Approvals

    • Specifications:

      • Front Panel LED Indicators: Power

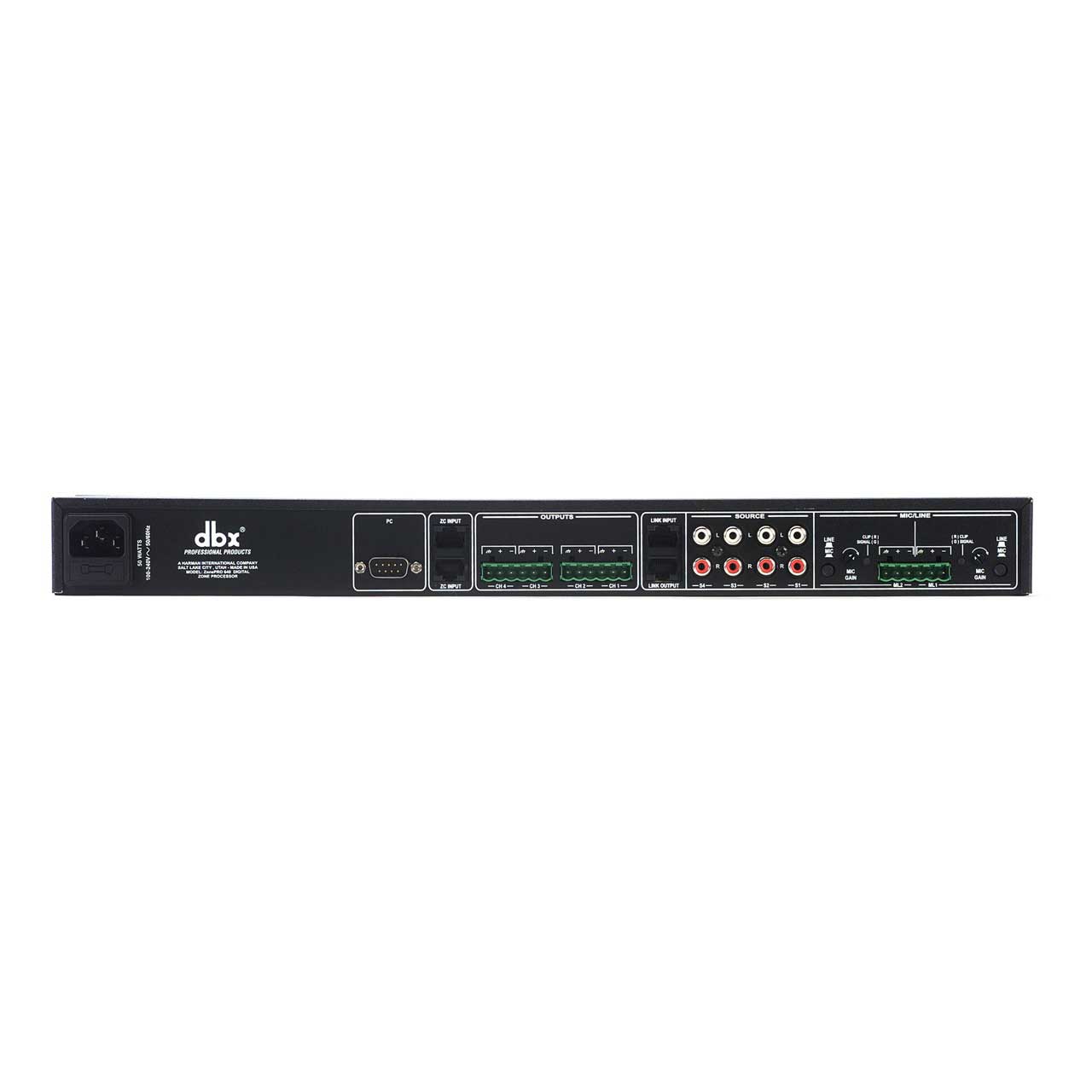

      • Analog Inputs: 6 Total (2) Switchable Mic or Line, (4) Unbalanced, Mono-Summed RCA Input Pairs
      • Type: Euroblock (Mic/Line), RCA (Source)
      • Impedance (Euroblock): >50kΩ Balanced, >25kO Unbalanced, RF Filtered
      • Impedance (RCA): >25kΩ Unbalanced, RF Filtered
      • Max. Input Line Level: +20dBu Mic/Line, +12dBu RCA
      • CMRR: >40dB, typically >55dB @ 1kHz
      • Mic Pre Gain: 30 to 60dB
      • Mic Input Noise (E.I.N.): <-118dBu, 22Hz-22kHz, 150O Source Impedance
      • Mic Phantom Power: +15VDC
      • Analog Outputs: 4 Total
      • Type: Electronically Balanced, RF Filtered Euroblock
      • Impedance: 120Ω Balanced, 60Ω Unbalanced
      • Max. Output Level: +20dBu

        A/D Performance
      • Type: dbx Type IVT Conversion System
      • Dynamic Range Line: >113dB A-weighted, >110dB unweighted
      • Type IV Dynamic Range: >119dB A-weighted, 22kHz BW: >117dB, unweighted, 22kHz BW
      • Sample Rate: 48kHz

        D/A Performance
      • Dynamic Range: 112dB A-weighted, 109dB unweighted, 22kHz BW
      • System Performance:
      • Dynamic Range: >109dB A-weighted, >106dB unweighted, 22kHz BW
      • THD+N: 0.003% typical at +4dBu, 1kHz, 0dB gain
      • Frequency Response: 20Hz - 20kHz, +/- 0.5dB
      • Interchannel Crosstalk: >80dB typical
      • Crosstalk input to output: >80dB
      • Propagation Delay: 0.6 msec
      • Operating voltage: 100 VAC, 50/60Hz, 120 VAC, 60Hz, 230VAC 50/60Hz
      • Power Requirements: 29 Watts
      • BTU Rating: <92.13 BTU

        Physical Dimensions
      • Weight: 6.8 lbs / 3.1 kg Shipping Weight 8.8 lbs / 4 kg
      • Dimensions (H(U) x W x D): 1.75" (1U) x 19" x 7.75" (45mm x 483mm x 197mm)

    • Item Includes:

      • ZonePRO Processor
      • Power Cable
      • RS-232 Null Modem Cable
      • Rack Mount Screw Kit

    • GTIN:

      0691991400735
