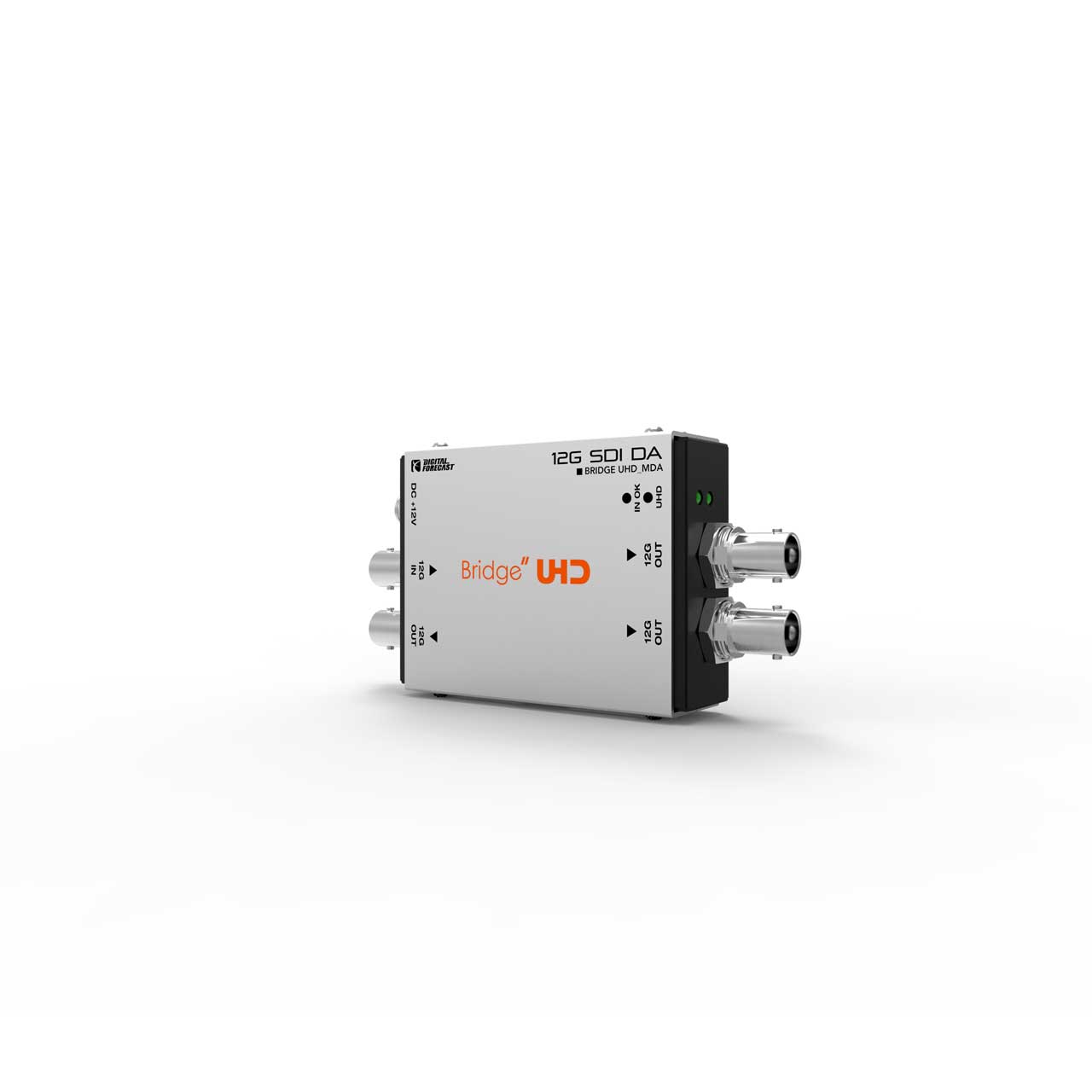

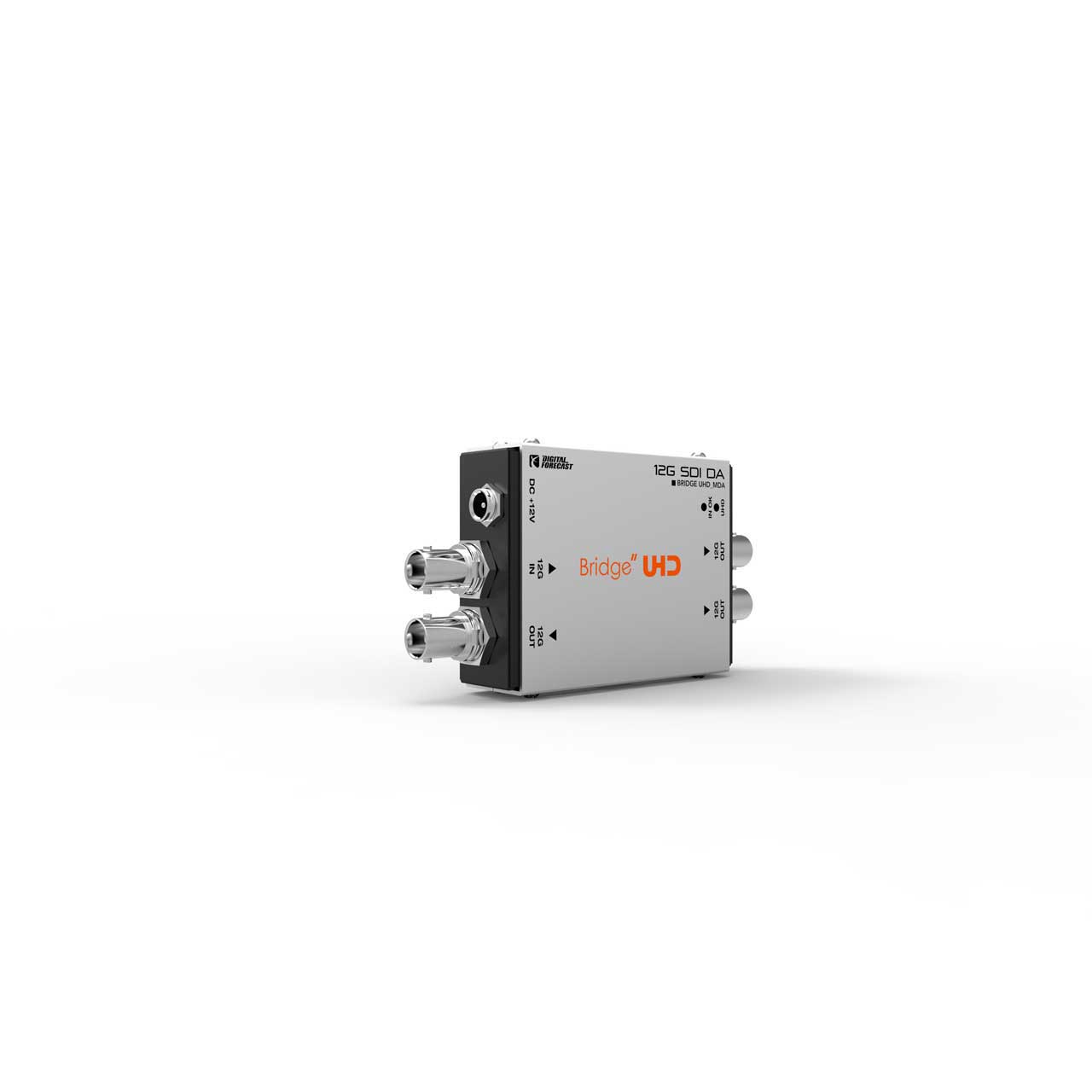

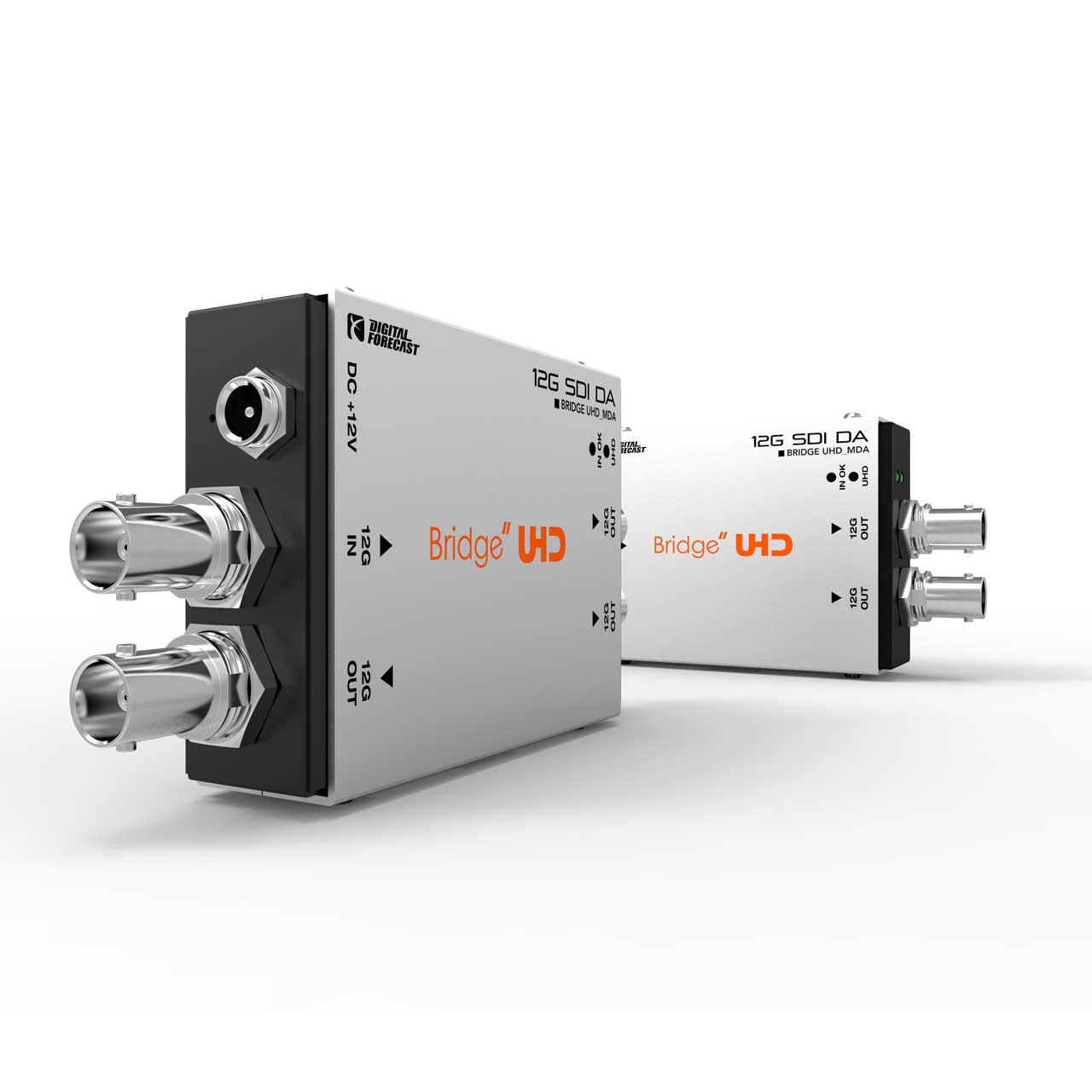

Digital Forecast UHD M-DA 12G SDI Distribution Amplifier (1 Input x 3 Output) SD/HD/FHD/6G/12G Standard Format

ITEM #: DF-UHD-M-DA MFG #: UHD M_DA

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:

$389.00

Our Price:

$369.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    UHD M_DA - Overview

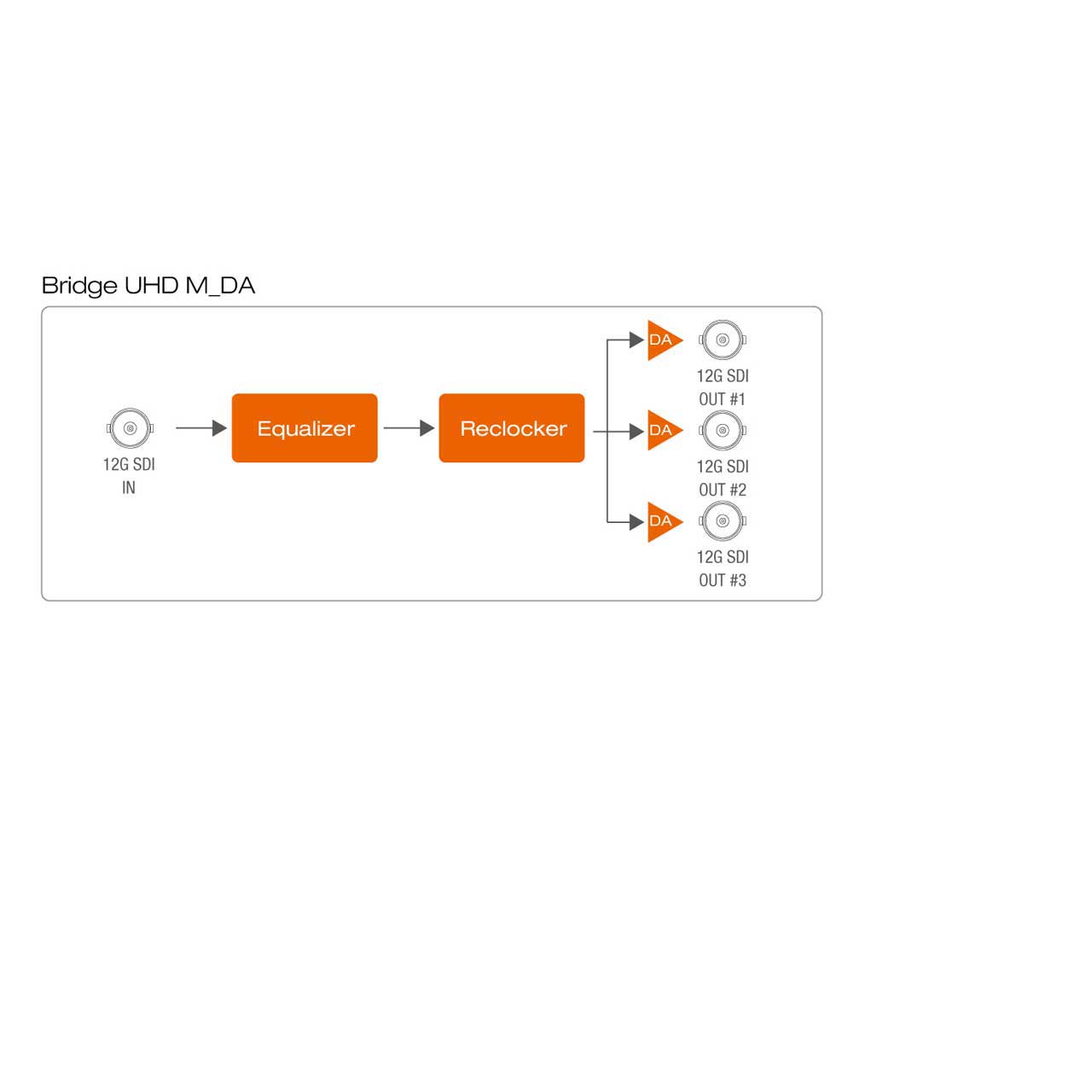

    The Digital Forecast Bridge UHD M_DA is a device that distributes SDI signals to SMPTE standards. The supported format is from 480i to UHD and a Re-clocker and equalizer are built-in enabling the UHD-M-DA to also be used as a repeater.

    • Features:

      • SDI distribution amplifier
      • Onboard12G cable equalizer & re-clocker
      • 1 - SDI input (SD/HD/FHD/6G/12G all standard format)
      • 3 - SDI output (SD/HD/FHD/6G/12G all standard format)
      • 12V DC Power supply (Operational Voltage Range : 7 ~ 17V DC)

    • Specifications:

      • Physical:
      • Dimension (W x H x D): 80 x 59.4 x 22.5 (mm)
      • Weight: 95g
      • Power Level: 7V ~ 16 VDC
      • Power Consumption: 2.6 Watts (Max: 3 Watts)
      • Operating Temperature: 0°C ~ 55°C
      • Humidity: 0 to 95% RH, non-condensing
      • Data Rate: Max 600Mhz
      • Signal Level: 800mVp-p +/- 50m

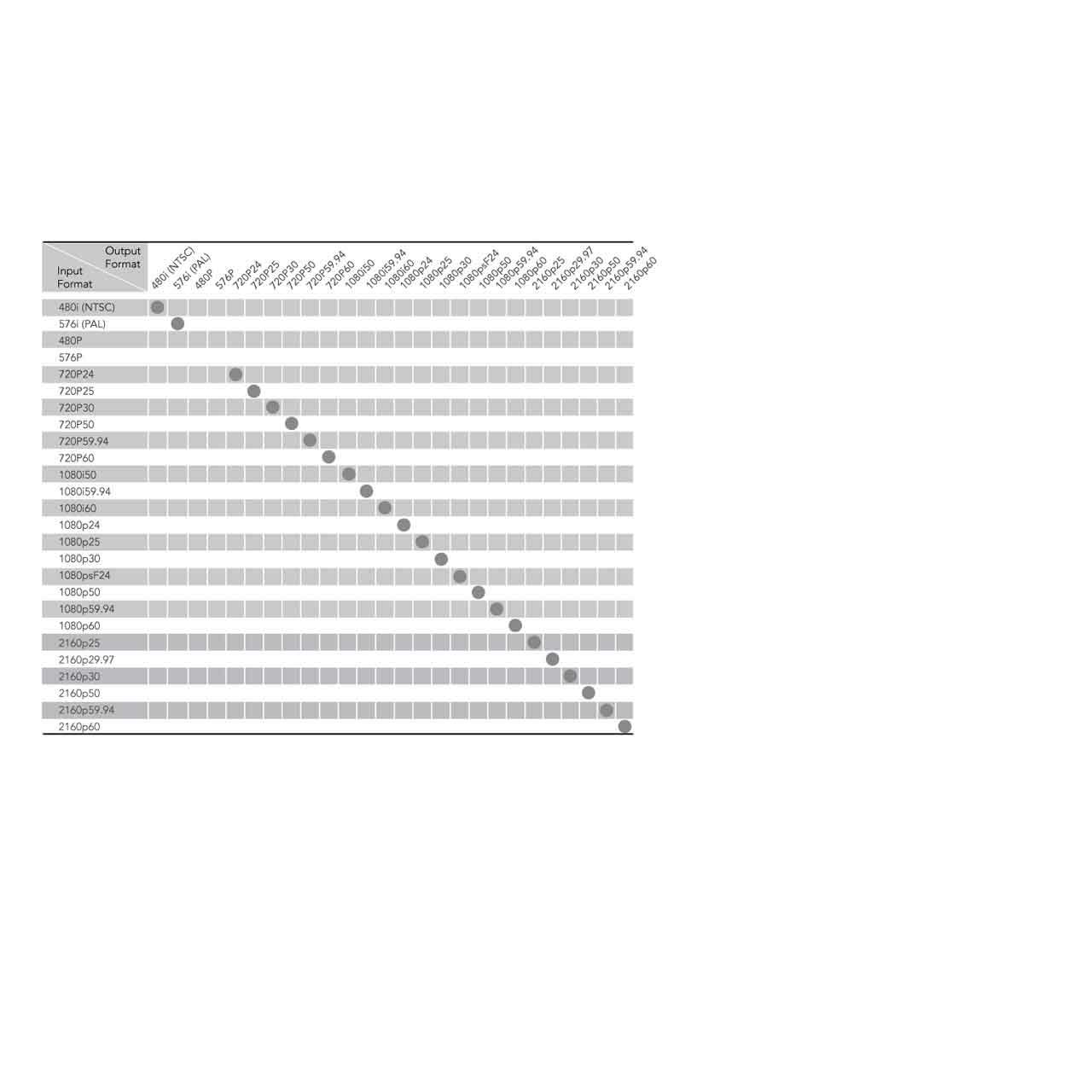

        Digital Video Specs:
      • SMPTE-296M : 720P (60/59.94/50)
      • SMPTE-274M, SMPTE-292M : 1080i (60/59.94/50)
      • MPTE-424M : 1080p (60/59.94/50) 3G
      • SMPTE-ST2081 : 2160p (30/29.97/25) 6G
      • SMPTE-ST2082 : 2160p (60/59.94/50) 12G

    • Warranty:

      • 2 Year Warranty
