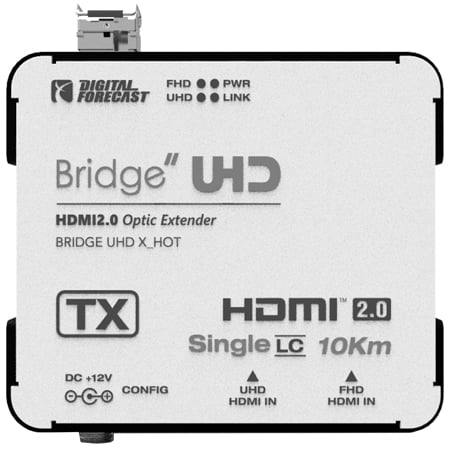

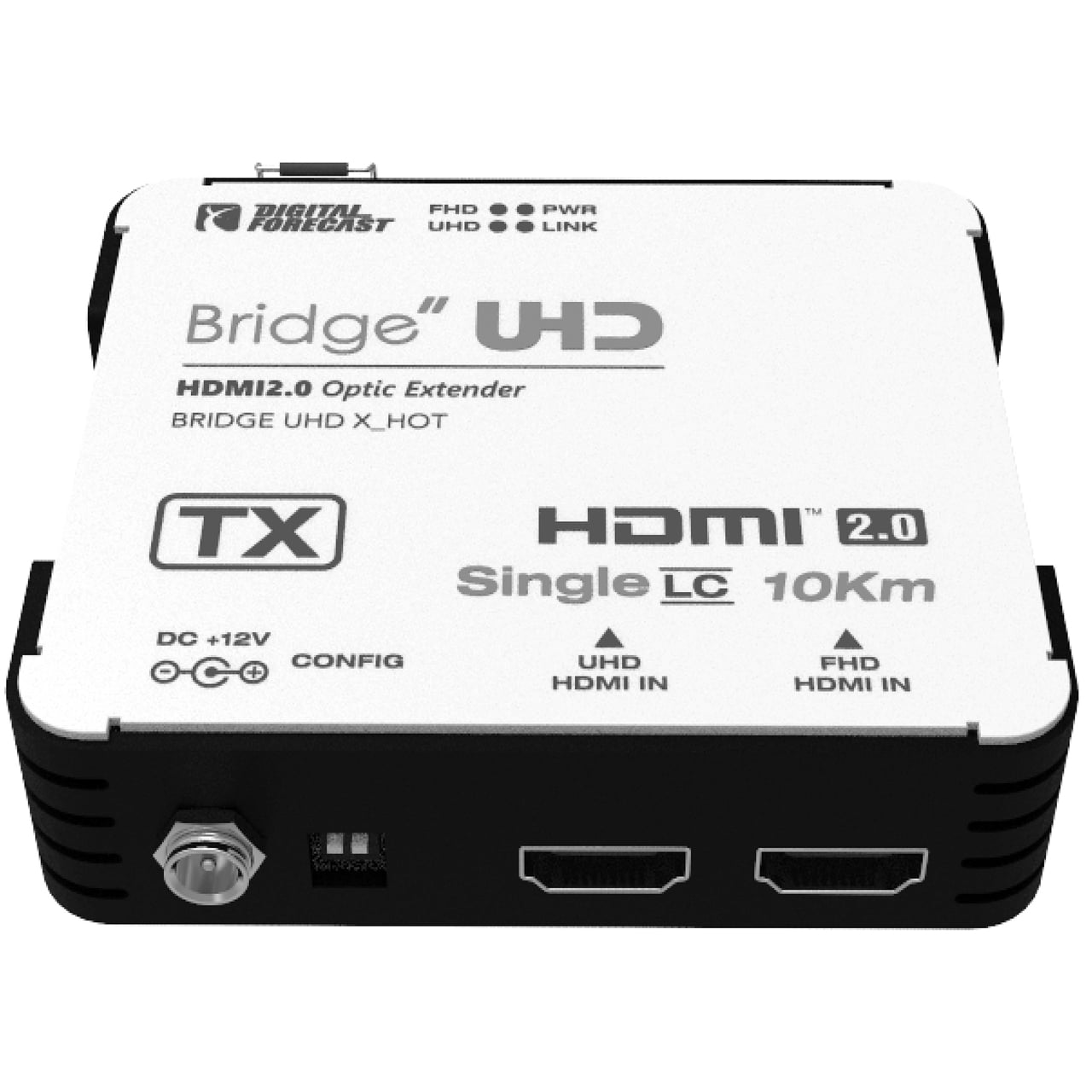

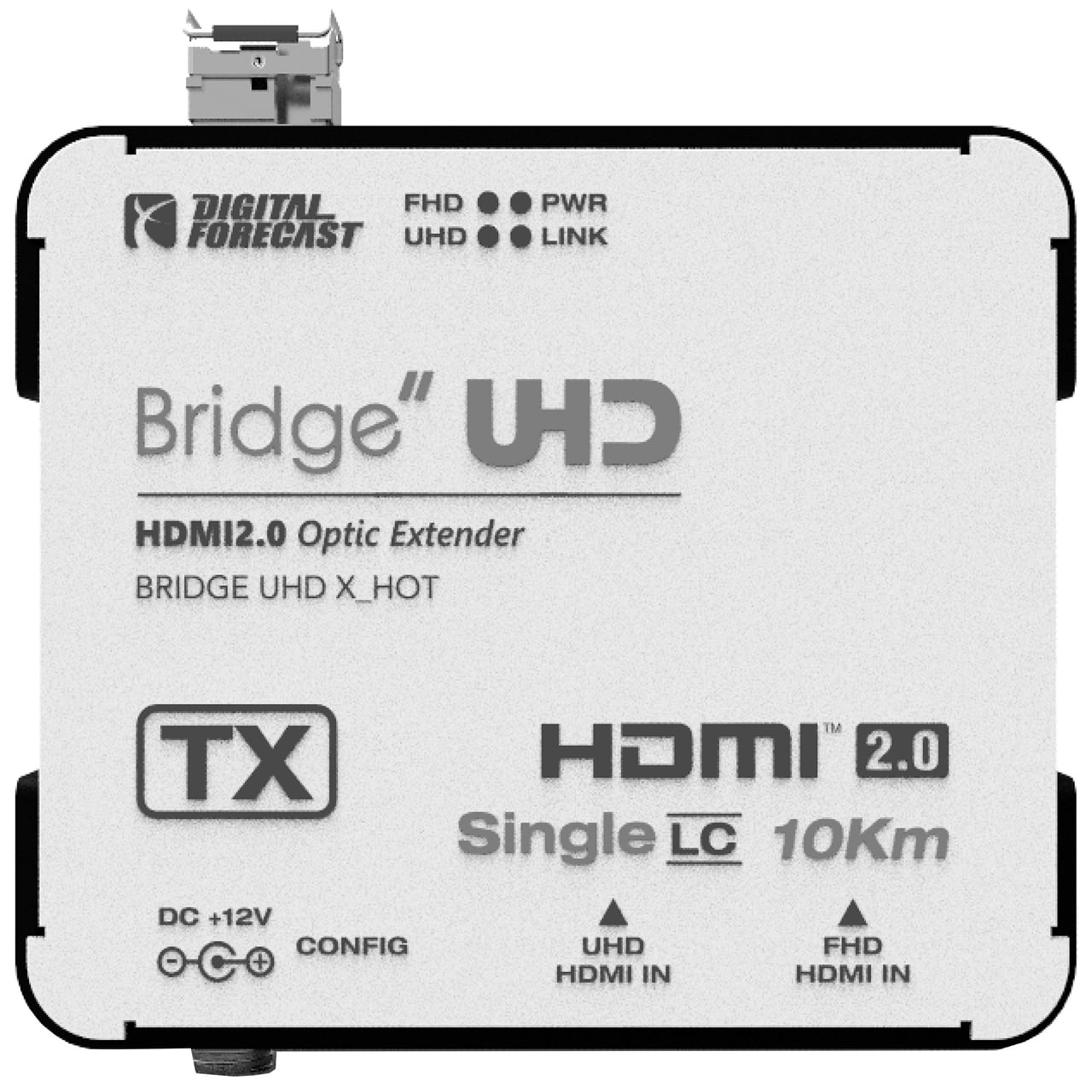

Digital Forecast UHD X HOT HDMI 2.0 to Optic Transmitter - HDMI1.3 FHD - HDMI2.0 UHD - LC Singlemode up to 6.2 Miles

UHD X HOT - Overview

• Features:

  • Optima technology applied
  • HDMI 1.3 FHD input, HDMI2.0 UHD input
  • UHD 4K Optic output (1 Core) LC Single-mode
  • Chroma Format RGB, YCbCr444, YCbCr422 Support
  • LC single mode, max 6.2 miles/10Km


• Specifications:

  • Type: Small Form-Factor Pluggable (SFP)
  • Power: 3.3 V
  • Data Rate: max 6G dual
  • Wavelength: 1310 nm, 1490 nm
  • Receiver Sensitivity: -14 dBm
  • Power Level: 7V ~ 16VDC
  • Humidity: 0 to 95% RH, non-condensing
  • Data Rate: Max 600Mhz
  • Signal Level: 800mVp-p +/- 80mV
  • Operating Temperature: 32°F to 131°F (0°C to 55°C)
  • Dimension (W x H x D): 3.85" x 3.22" x 1.02" (98 x 82 x 26 mm)
  • Weight: 0.40lbs (180g)


• Item Includes:

  • 1x Digital Forecast X_HOT
  • 1x Power Adapter


• Warranty:

  • Limited 2-Year


• GTIN:

  0704006294486
