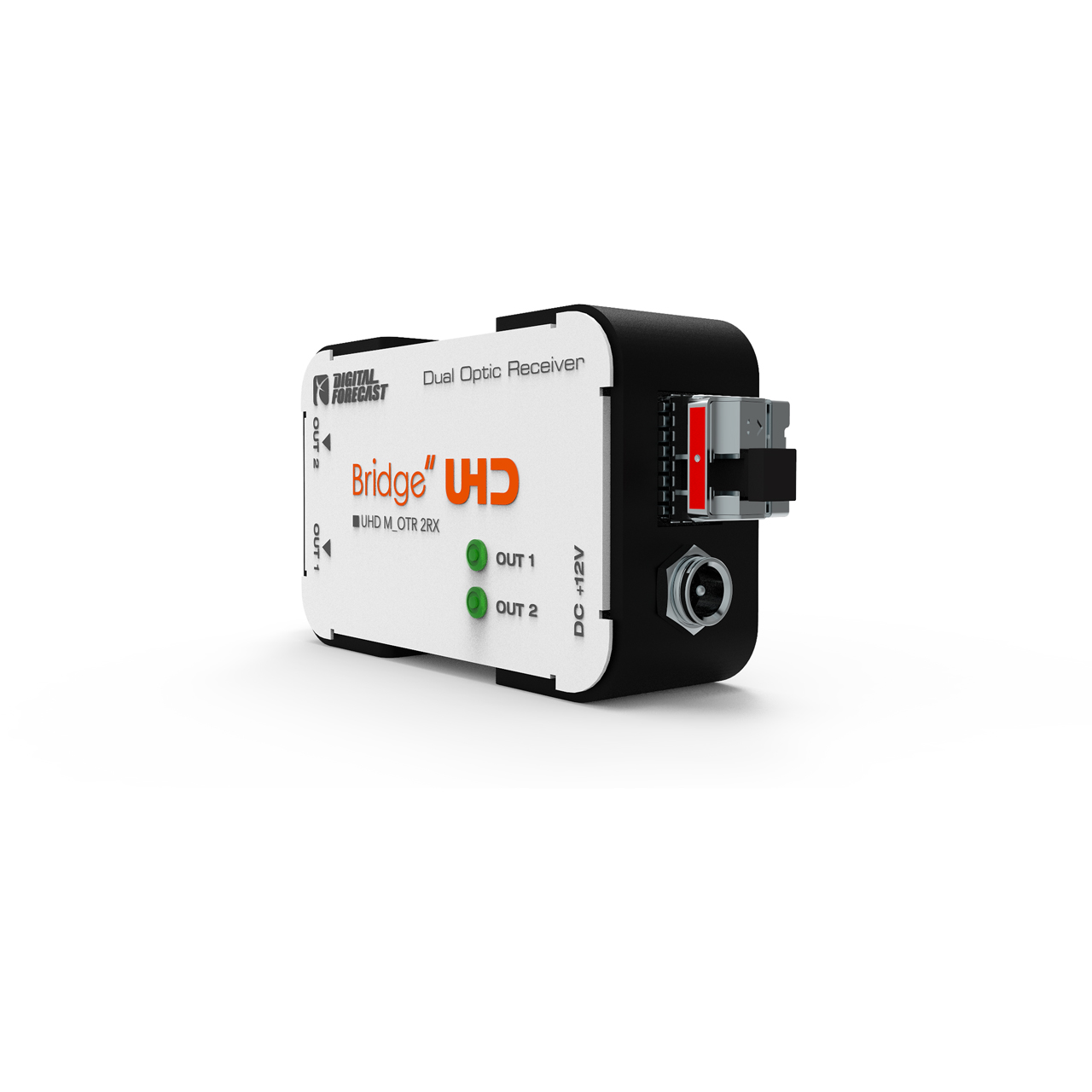

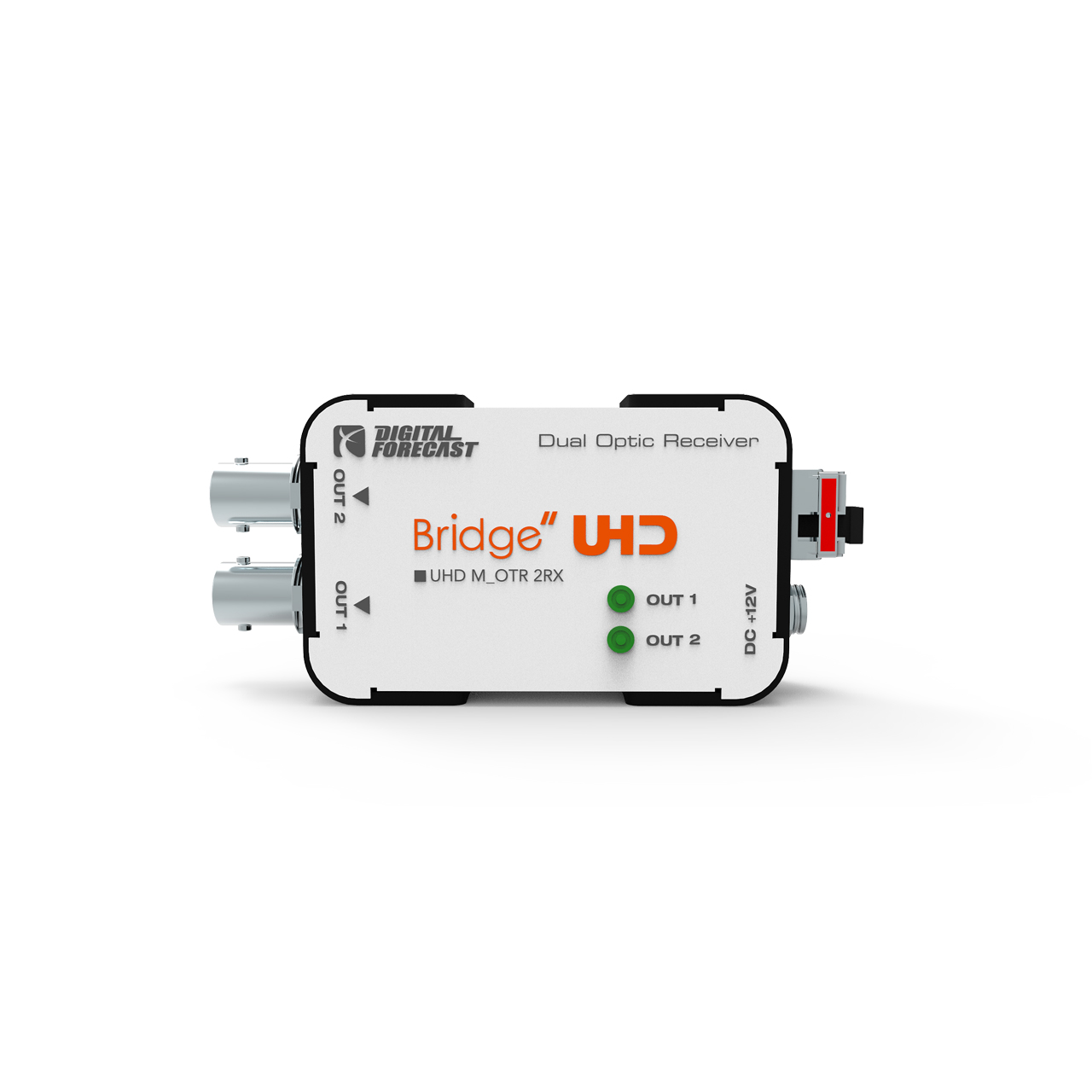

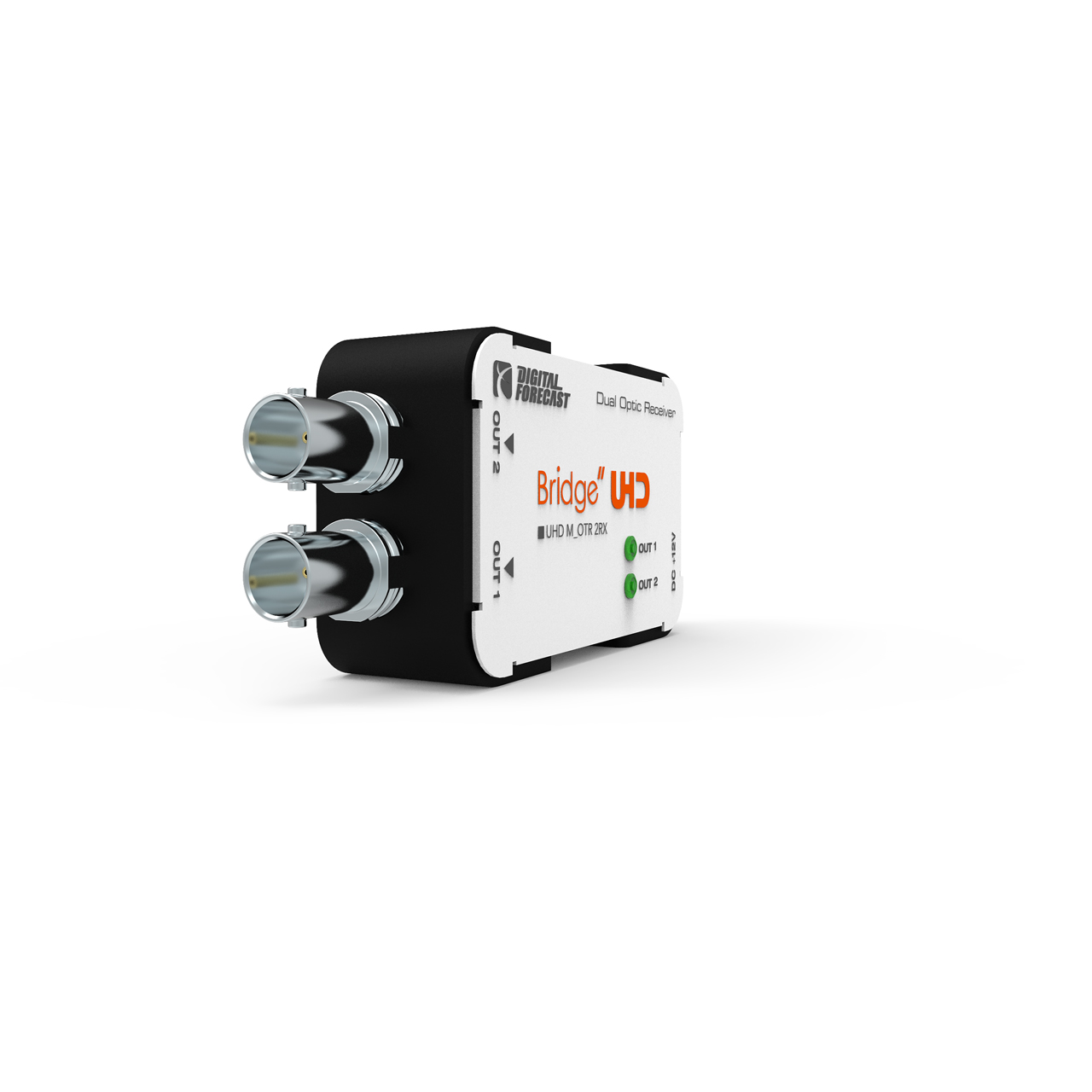

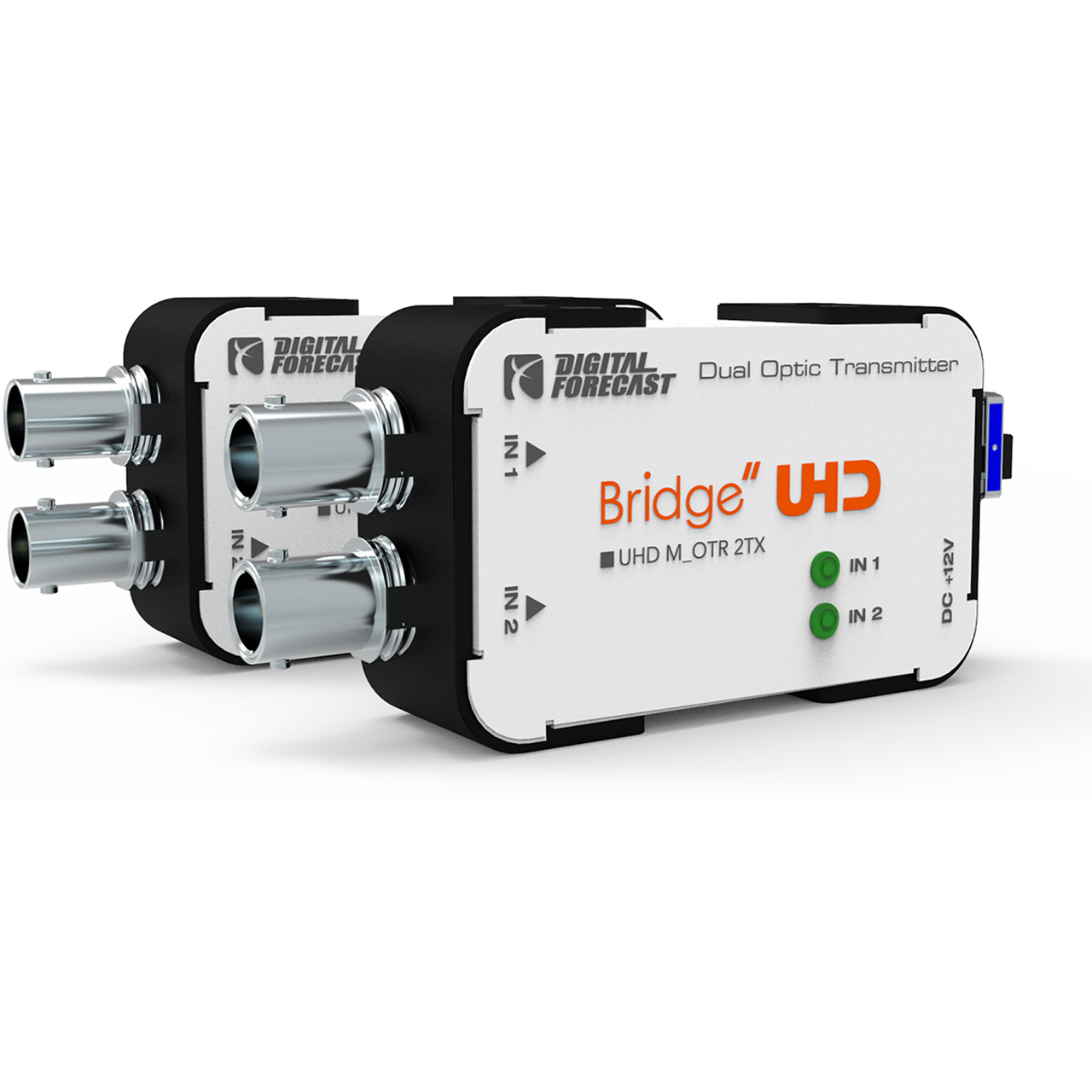

Digital Forecast UHD M-OTR 2TX/2RX 3G 2-Channel Fiber Optic Transmitter & Receiver Set w/ SFP - LC Singlemode - 10km

UHD M-OTR 2TX/2RX - Overview

• Features:

  • Micro-Compact Size
  • 2x 3G-SDI Input
  • 2x 3G-SDI Output
  • LC Single Mode
  • Single Core (One LC fiber strands)
  • 3G SFP module INCLUDED
  • 3G Max. 6.2miles (10km)


• Specifications:

  Digital Video Specs
  • HD: 720P (60/59.94/50), 1080i (60/59.94/50), 1080P (23.98/24/25/29.98/30)
  • FHD: 1080P (60/59.94/50)


  • Power Level: 7V - 16VDC
  • Power Consumption: 3.1 Watts (Max 4 Watts)
  • Operating Temperature: 0°F - 131°F (0°C - 55°C)
  • Humidity: 0% - 95% RH, Non-condensing
  • Signal Level: 800mVp-p ±80mV
  • Dimension: 3.15" x 2.34" x 0.89" (80.0mm x 59.4mm x 22.5mm)
  • Weight: 0.23lbs (105g)


• Item Includes:

  • 1x Digital Forecast UHD M OTR 2TX 3G
  • 1x Digital Forecast UHD M OTR 2RX 3G
  • 2x Power Adapter


• Warranty:

  • 2-Year Limited Warranty


• GTIN:

  0704006294905
