Jensen Transformers DIN-2MS-2P Dual Mic Splitter Module

ITEM #: DIN-2MS-2P MFG #: DIN-2MS-2P

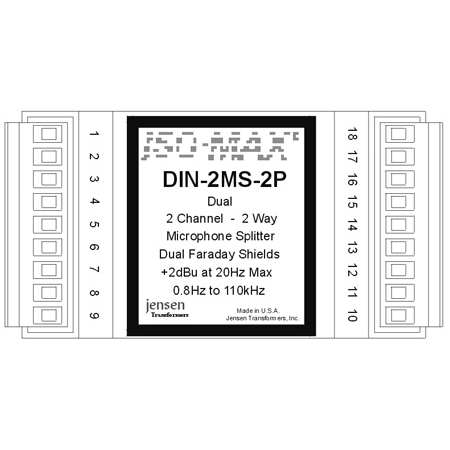

  • Product Image Thumbnail 1 of 2

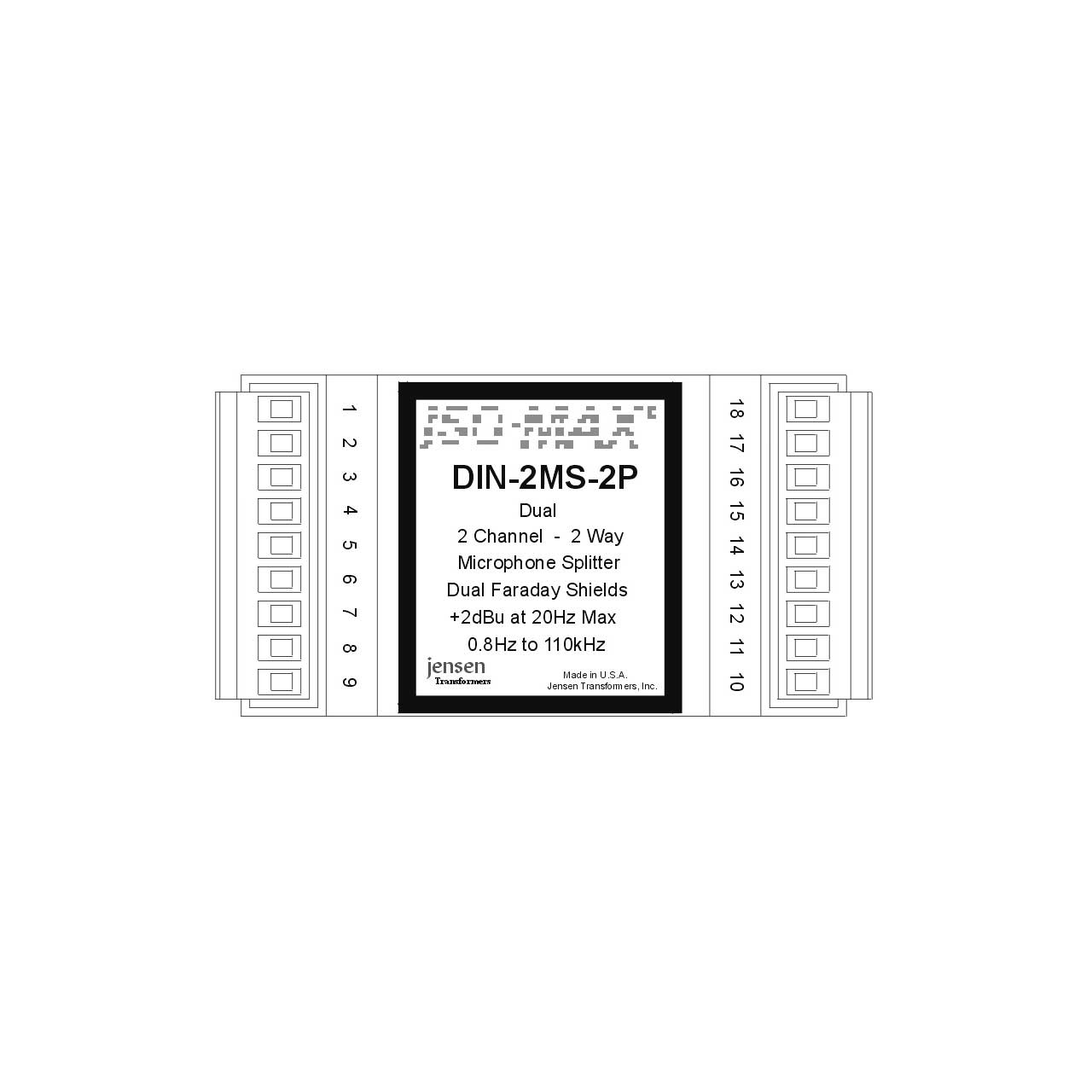

  • Product Image Thumbnail 2 of 2
free ship

List Price:

$351.99

Our Price:

$319.99

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    DIN-2MS-2P - Overview

    2 CHANNEL 2 WAY with DUAL FARADAY SHIELDS

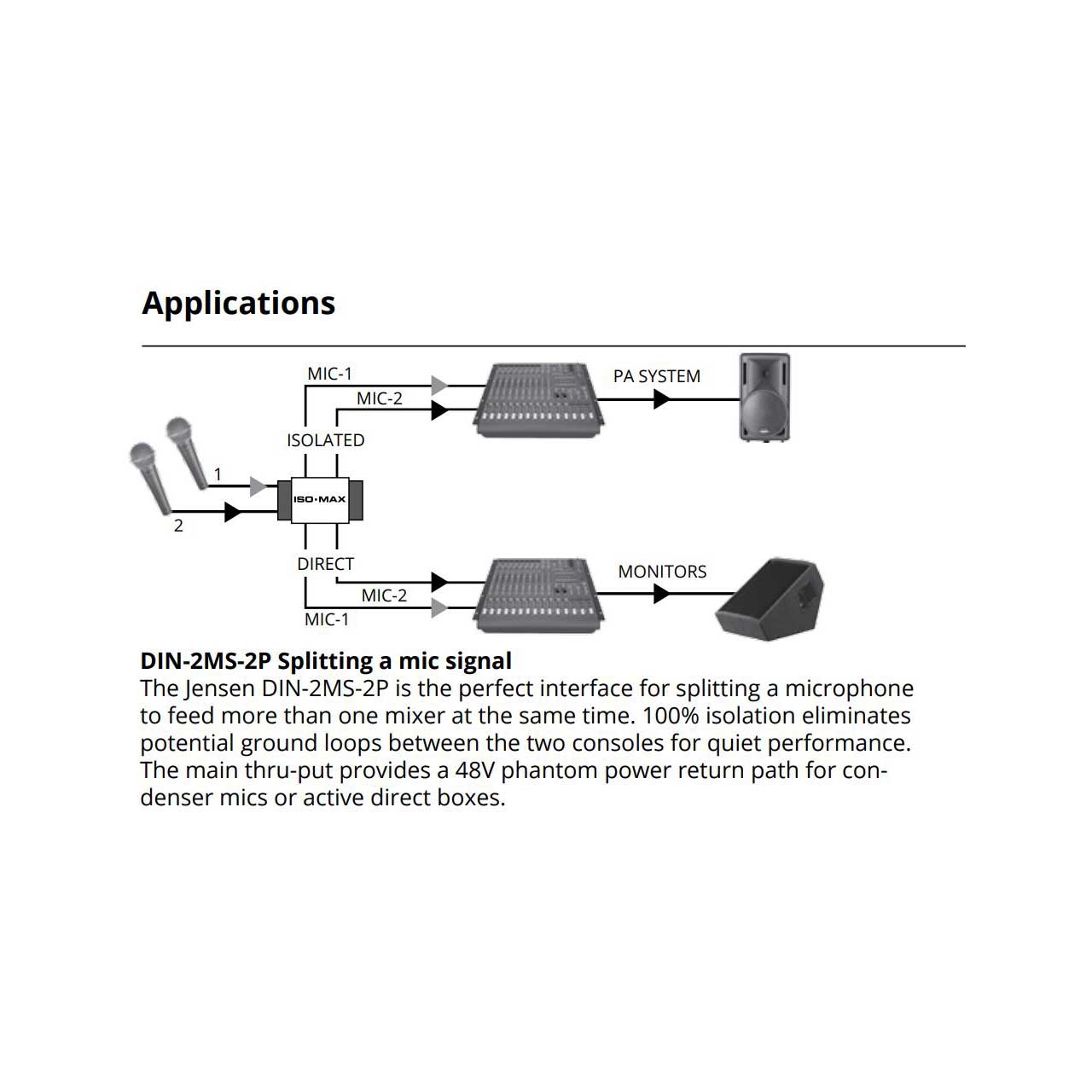

    Provides additional, isolated balanced output as mic "splitter"
    Solves "transformerless" preamp RFI and CMRR problems
    High common-mode rejection: 130 dB at 60 Hz
    Excellent frequency response and time domain performance
    Provides support circuitry for phantom powered microphones

    This module is designed to be driven from a 150 S microphone source and loaded by the typical 1 kS input impedance of microphone preamplifiers. It can be used with balanced or unbalanced sources and/or loads since both primary and secondary are fully balanced. A 30 dB magnetic shield package is standard.

    DIN-2MS-2P - Required Accessories

      DIN-2MS-2P - Recommended Accessories
