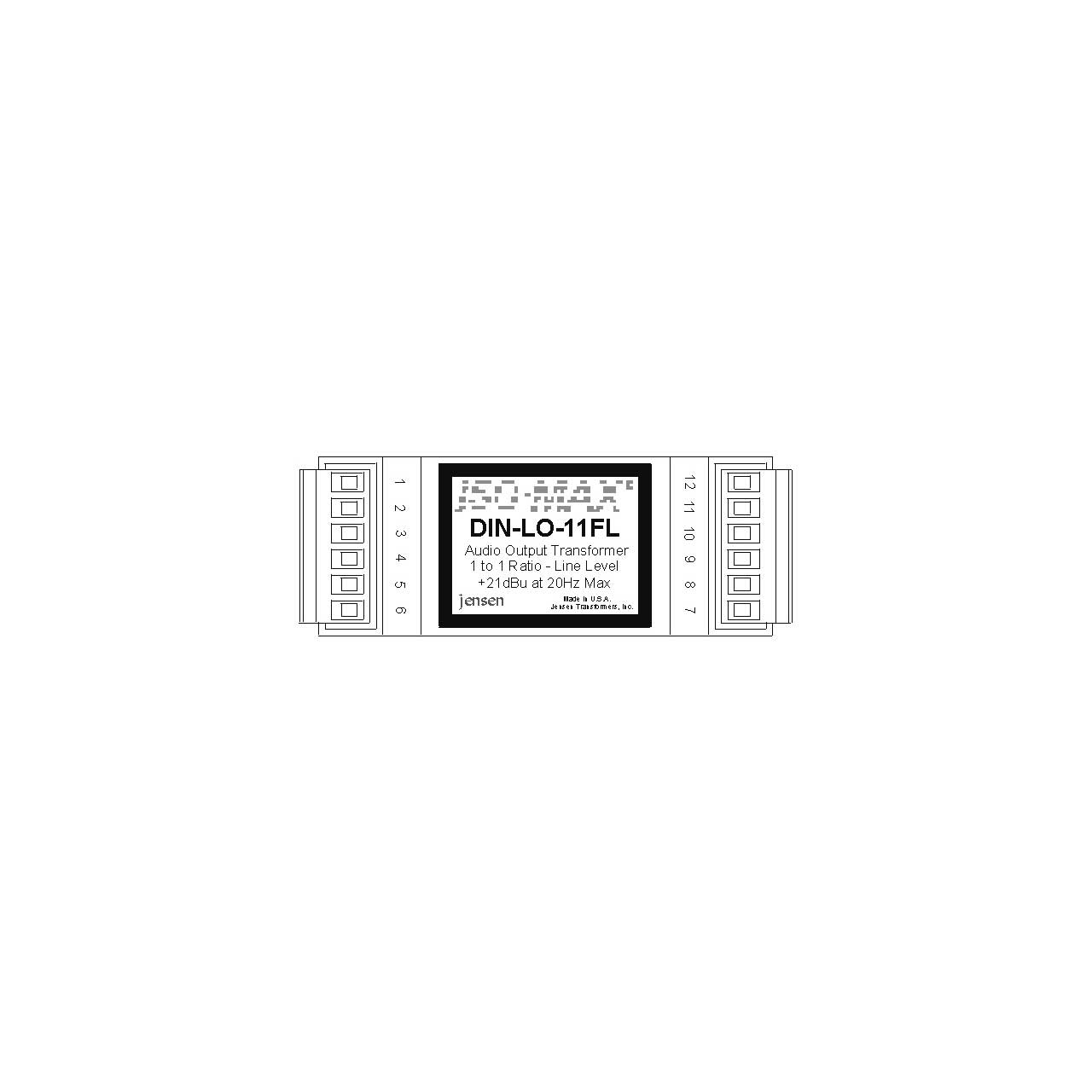

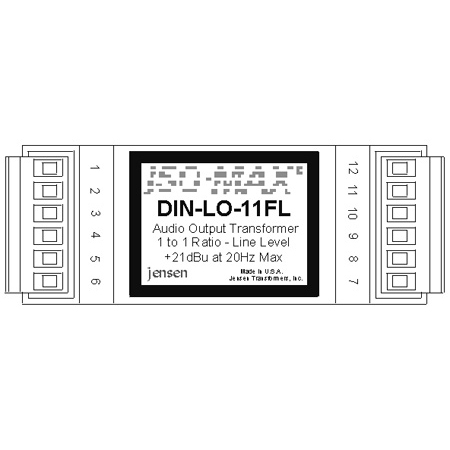

Jensen DIN-LO-11FL 600 to 600 1:1 Line Output Module

ITEM #: DIN-LO-11FL MFG #: DIN-LO-11FL

Primary Image

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the DIN-LO-11FL

DIN-LO-11FL - Overview

+21dBu Level Handling, 0.035% THD

This module is designed for high performance line output stages. The 50% nickel alloy core gives it excellent distortion and level handling at a cost allowing many applications to enjoy the advantages of an output transformer. Driving signals should be free of DC and source impedance kept as low as possible.

  • Specifications:

    • Distortion 0.035% typ at 20 Hz and +4 dBu output level
    • Wide bandwidth: !3 dB at 0.2 Hz and 15 MHz
    • Drives 600 S loads to levels up to +21 dBu at 20 Hz
    • Excellent time domain performance: DLP 0.3E typ 20 Hz to 20 kHz
    • Insertion loss only 1.6 dB when driving 600 S load
