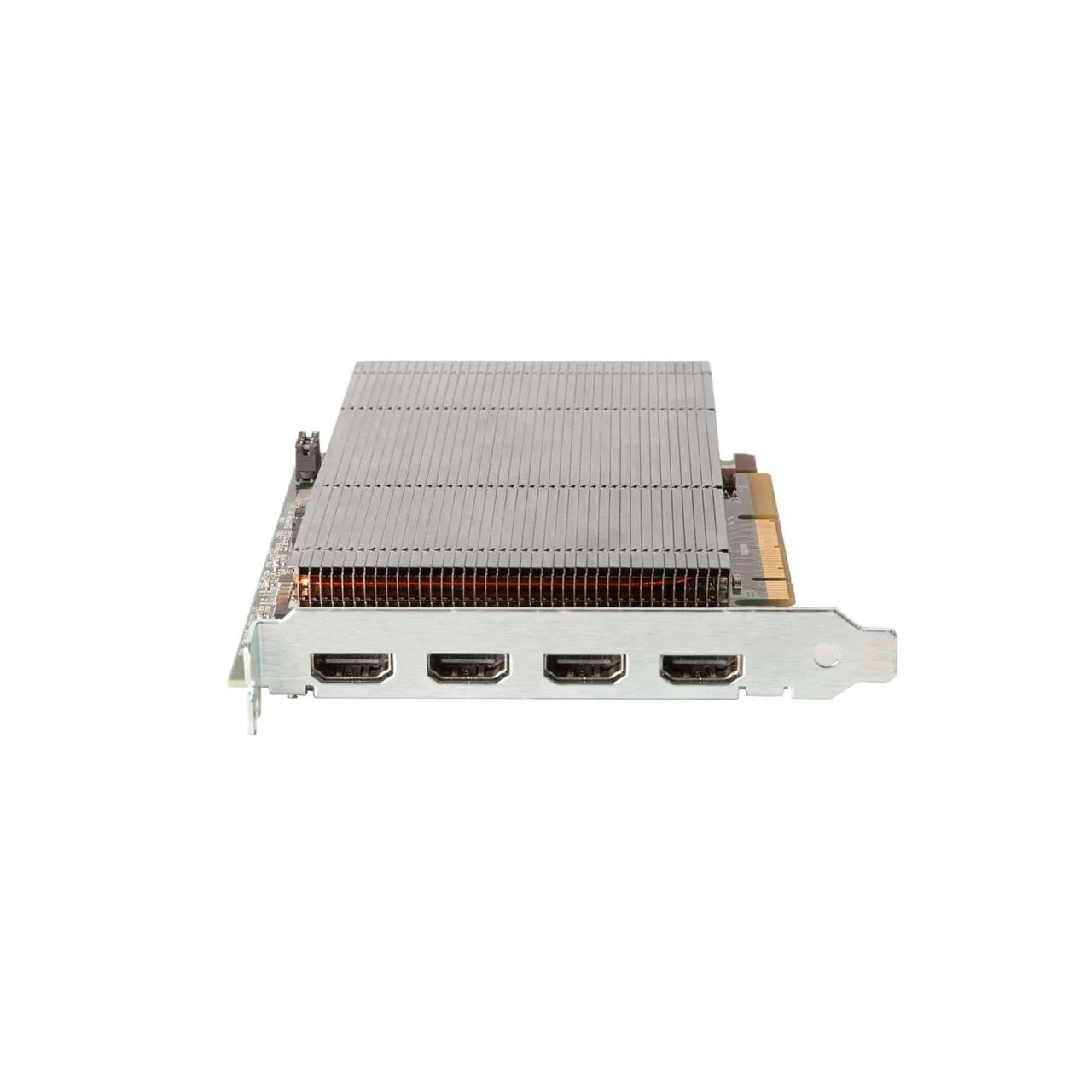

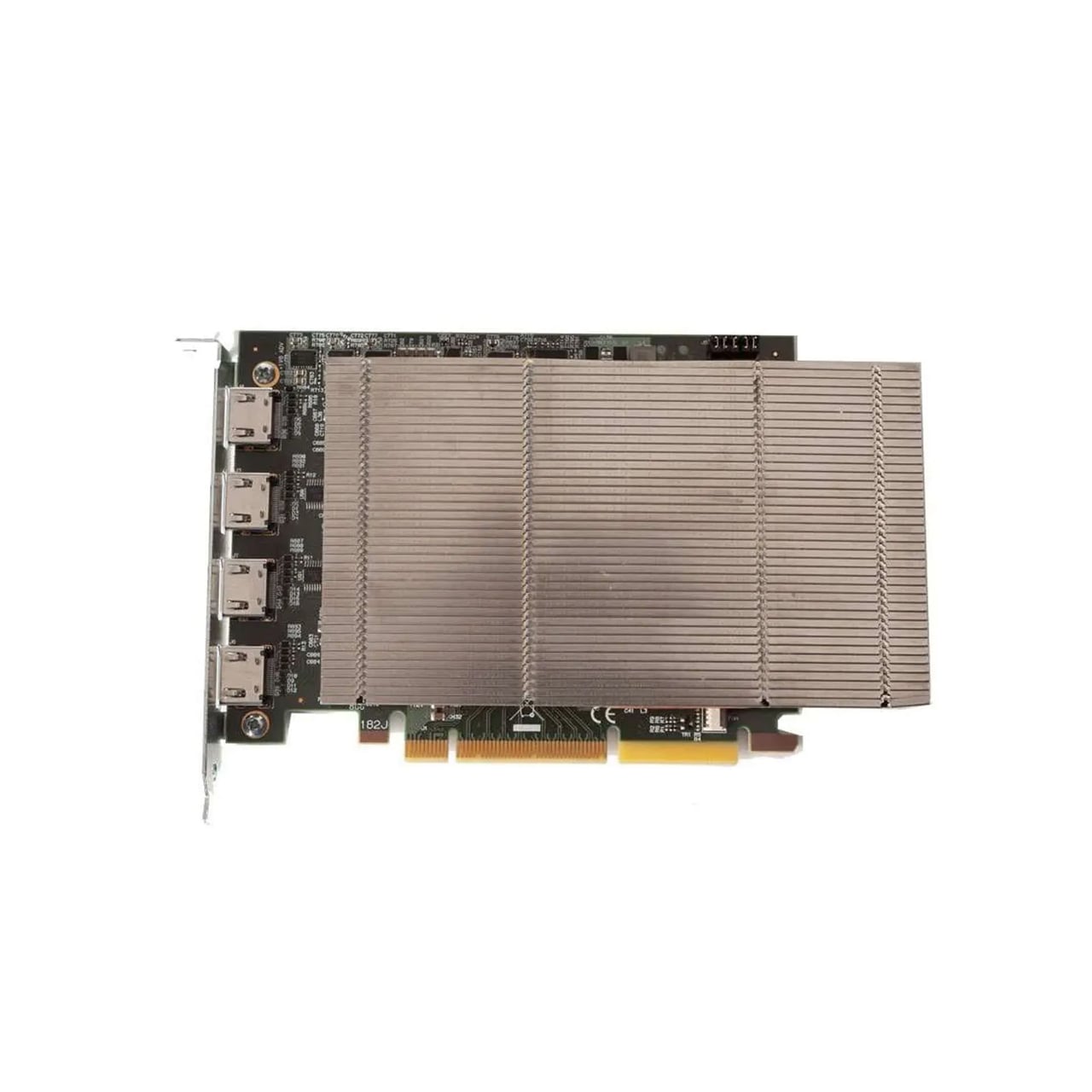

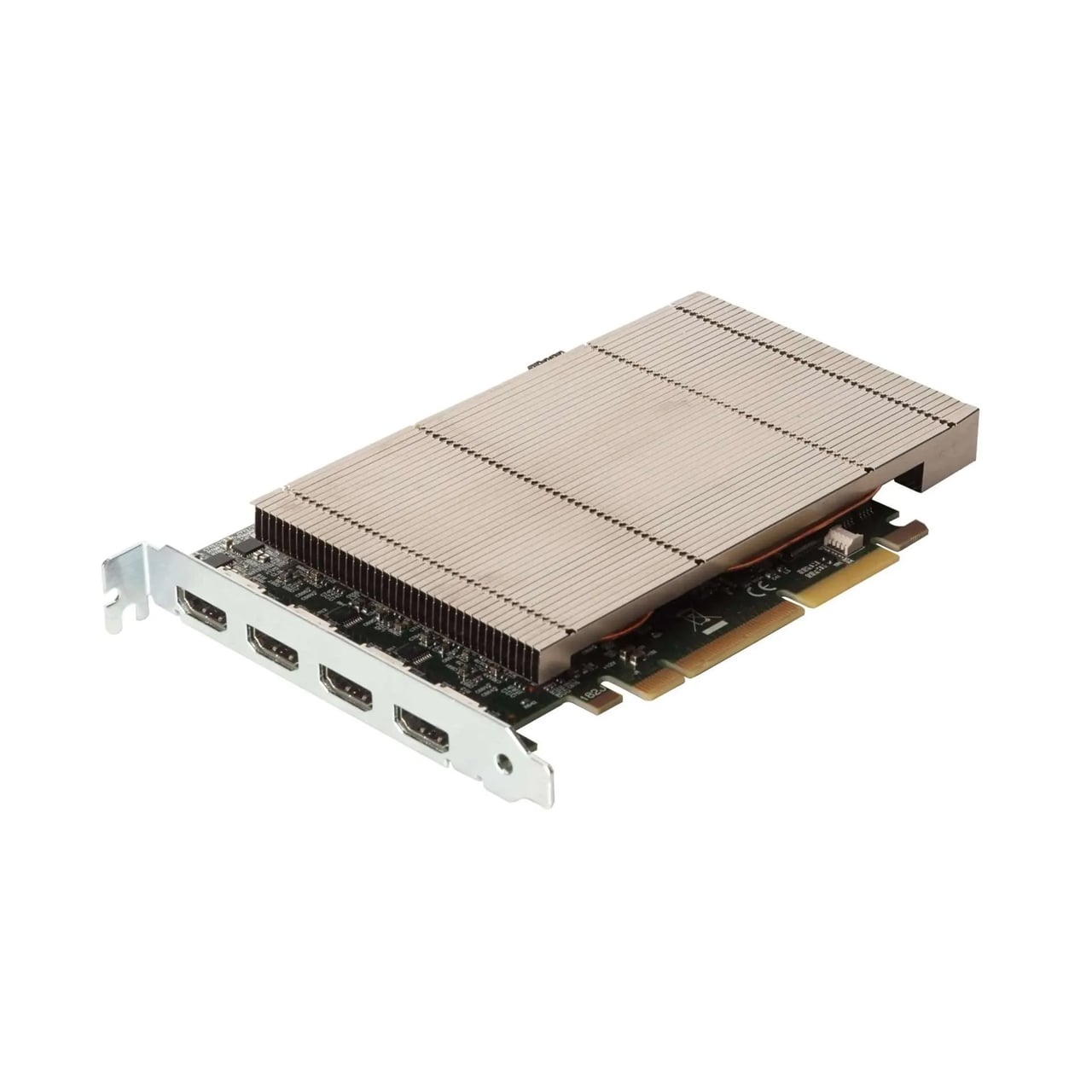

Datapath VISIONSCHD4+H 4 Channel HDMI 1.4 PCIE Capture Card

VISIONSCHD4+H - Overview

• Features:

  • LiveStream Technology: Low latency video and audio capture minimizes the delay prior to post processing
  • MultiStream: Open and independently control multiple instances of the same capture from a single input source
  • Powerful hardware scaler: Adjust the incoming video size to your requirements
  • Text and bitmap overlay: Overlay text and images onto the capture buffer
  • Automatic video signal detection: Accurate signal detection for all signal sources


• Specifications:

  • Board Format: PCIe x8 plug-in card
  • Connectors: 4x HDMI connectors, with optional DVI adapters
  • Maximum capture resolution:
    - Channels 1 & 3: 2x3840x2160p @60 fps
    - Channels 2 & 4: 2x1920x1080p @60 fps
  • Dimensions: 110mm a 177mm (incl heat sink)
  • Frame buffer memory: 768 MB
  • Pixel transfer formats:
    - RGB: 4:4:4, 5-5-5, 5-6-5 or 8-8-8 (24 bit/32 bit)
    - YUV: 4:2:2, 4:2:0
    - MONO: 8 bit
  • Video Modes: HDMI 1.4, HDMI 1.3, DVI
  • Operating system support: Linux, Microsoft Windows 10, Windows 11, Windows Server 2019 / 2022 *
  • Power Requirements:
    - Max current at +3.3 - 0.45A.
    - Max current at +12V - 0.85A
    - Max power ~ 18W
  • Operating Temperature: 32°F - 96°F (0°C to 35°C)
  • Storage Temperature: -4°F to 158°F (-20°C to 70°C)
  • Relative Humidity: 5% to 90% non-condensing


• Item Includes:

  • 1x VisionSC-HD4+
  • 2x HDMI splitter cables


• Warranty:

  • 3 Year Limited Warranty
