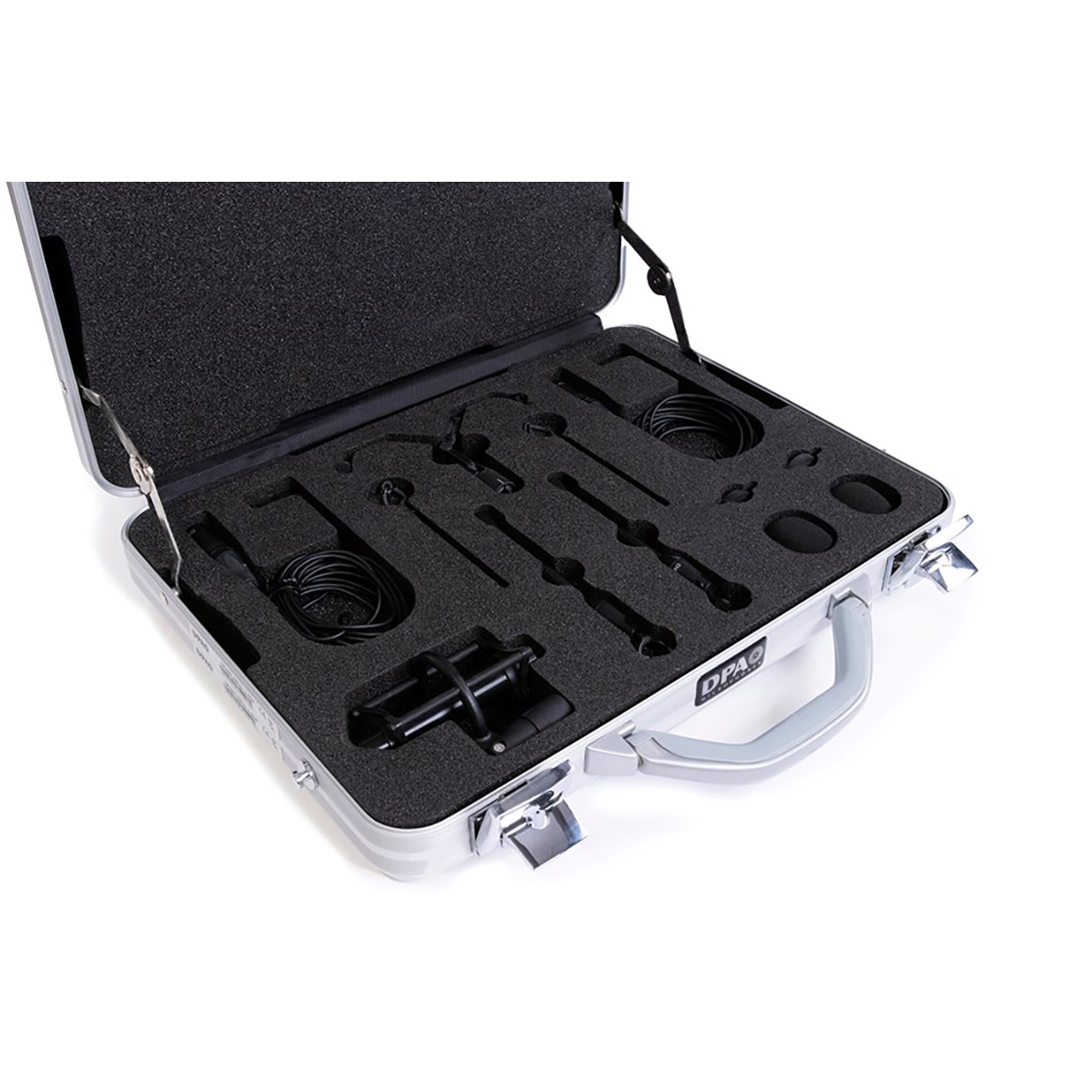

DPA DPK4011 Piano Stereo Kit with two 4011ES Pencil Microphones and Accessories

ITEM #: DPA-DPK4011 MFG #: DPK4011

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$5,795.00

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup


DPK4011 - Overview

The DPA microphones DPK4011 Piano Stereo Kit is a versatile, compact piano kit, which is tailored specifically to accommodate the need for clean sound and limitless creativity.

DPA has collected its award-winning pencil mics - 4011 Cardioid Microphones, renowned in recording studios and live applications around the world. This specialized stereo kit holds the mics and accessories you need to capture fantastic sound, no matter what you need. The microphones are matched within ±1dB.

This is a complete stereo kit with two compact 4011ES Cardioid Microphones with active side cables. The mics are carefully factory-matched within ±1dB on frequency response and sensitivity in the microphone's entire frequency bandwidth.

The DPK4011 kit is widely described by industry professionals as a natural, warm, and detailed option that offers a classic "listener perspective" and a balanced top-bottom response. This makes it a preferred choice for high-fidelity piano recordings in studio or live situations and for solo or in ensemble settings. In addition to being one of the best piano kits available on the market, the DPK 4011 is ideal for unobtrusive spot miking, such as hanging or table use. The mic has a length of only 1.4" (3.5cm) and a low-key appearance. It features an integrated cable solution allowing it to be hung from the ceiling to create precise and repeatable positions and angles when spot-miking orchestra sections or ambience atmospheres.

  • Features:

    • Modularity - interchangable capsules and preamplifiers
    • Up to 120dB dynamic range
    • RF rejection between >60dB and >40dB
    • Linear frequency response
    • High SPL
    • Superior gain before feedback

  • Specifications:

    • Directional Pattern: Cardioid
    • Principle of Operation: Pressure Gradient
    • Cartridge Type: Pre-polarized Condenser
    • Frequency Response: 20Hz - 20kHz
    • Effective Frequency Range; ±2dB at 11.8" (30cm)
    • Sensitivity, Nominal, ±2dB at 1 kHz: 10mV/Pa; -40dB re. 1V/Pa
    • Equivalent Noise Level, A-weighted: Typ. 18dB(A) re. 20μPa (max. 20dB(A))
    • Equivalent Noise Level, ITU-R BS.468-4: Typ. 25dB
    • Distortion, THD < 1%: 136dB SPL RMS, 139dB SPL peak
    • Dynamic Range: Typ. 121dB Max. SPL
    • THD 10%: 144dB SPL peak
    • Rated Output Impedance: 100Ω
    • Minimum load impedance: 2
    • Cable Drive Capability: 328ft (100m)
    • Output Balance Principle: Impedance balancing
    • Common Mode Rejection Ratio (CMRR): > 40dB
    • Power Supply (for full performance): P48 (Phantom Power)
    • Maximum Output Voltage, RMS: 2.2V
    • Polarity: +V at pin 2 for positive sound pressure
    • Temperature Range: -40°F - 113°F (-40°C - 45°C)
    • Matching Tolerance (Frequency Response and Sensitivity): ±1dB
    • Phase Deviation for Kit: < 10°
    • Relative Humidity (RH): Up to 90%
    • Current Consumption: 3.5mA
    • Microphone Diameter: 0.75" (19mm)
    • Capsule Diameter: 0.75" (19mm)
    • Microphone Length: 1.38" (35mm)
    • Weight: 0.23lbs (109g)
    • Box Dimensions (LxWxH): 12" x 7.7" x 3.8"
    • Connector:
      - XLR-3M
      - Pin 1: shield
      - Pin 2: signal + phase
      - Pin 3: - phase

  • Item Includes:

    • 2x 4011ES Pencil Microphones (matched stereo pair)

  • Warranty:

    • 2 Year Warranty
