DPA KIT-4097-DP-INK CORE+ Supercardioid Micro Shotgun Interview Kit with Telescoping Boompole - Microlock - Black

ITEM #: DPA-KIT4097DPINK MFG #: KIT-4097-DP-INK

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$745.00

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup


KIT-4097-DP-INK - Overview

Optimized for Speech, CORE+ is a Revolutionary Leap Ahead in Microphone Design

The 4097 CORE+ Interview Kit makes it easy to deliver great sound in challenging situations. It contains a 4097 CORE+ Shotgun Microphone, which shines in outdoor locations, handling inclement weather and limiting intrusive background noises. It's a professional solution for professional broadcasters, who need amazing sound in a lightweight, small-footprint form factor. The MicroLock® connector provides even better stability and flexibility.

With its supercardioid polar plot, the DPA 4097 CORE+ Micro Shotgun Mic offers a highly-directional pick-up pattern as well as low self noise and high sensitivity. The mic is capable of handling high SPLs, which allows it to deliver undistorted natural sound, even when users speak loudly or yell. With a linear response, low distortion and an extremely large dynamic range, it sounds great no matter how challenging the environment. In addition, dialog and background noise off to the side (off-axis) of the microphone preserves the audio quality; it just drops in level. Due to the highly-directional pick-up pattern, it is easy to focus on what the interviewee is saying. While the speaker's voice is captured clearly in front of the mic, background noises are captured at a lower level (off axis), making the entire interview clear and pleasant to listen to.

A Flexible and Light Solution
For a team doing on-location interviews, especially outdoors, it is important to have professional tools that make the entire process easy and flexible enough for any situation. When you're doing distance interviewing inside or out, the 4097 CORE+ Interview Kit gets you up and running quickly and easily. No extra equipment. No complicated setup. No workflow changes. A lighter, more flexible solution lightens your bag and eases your work.

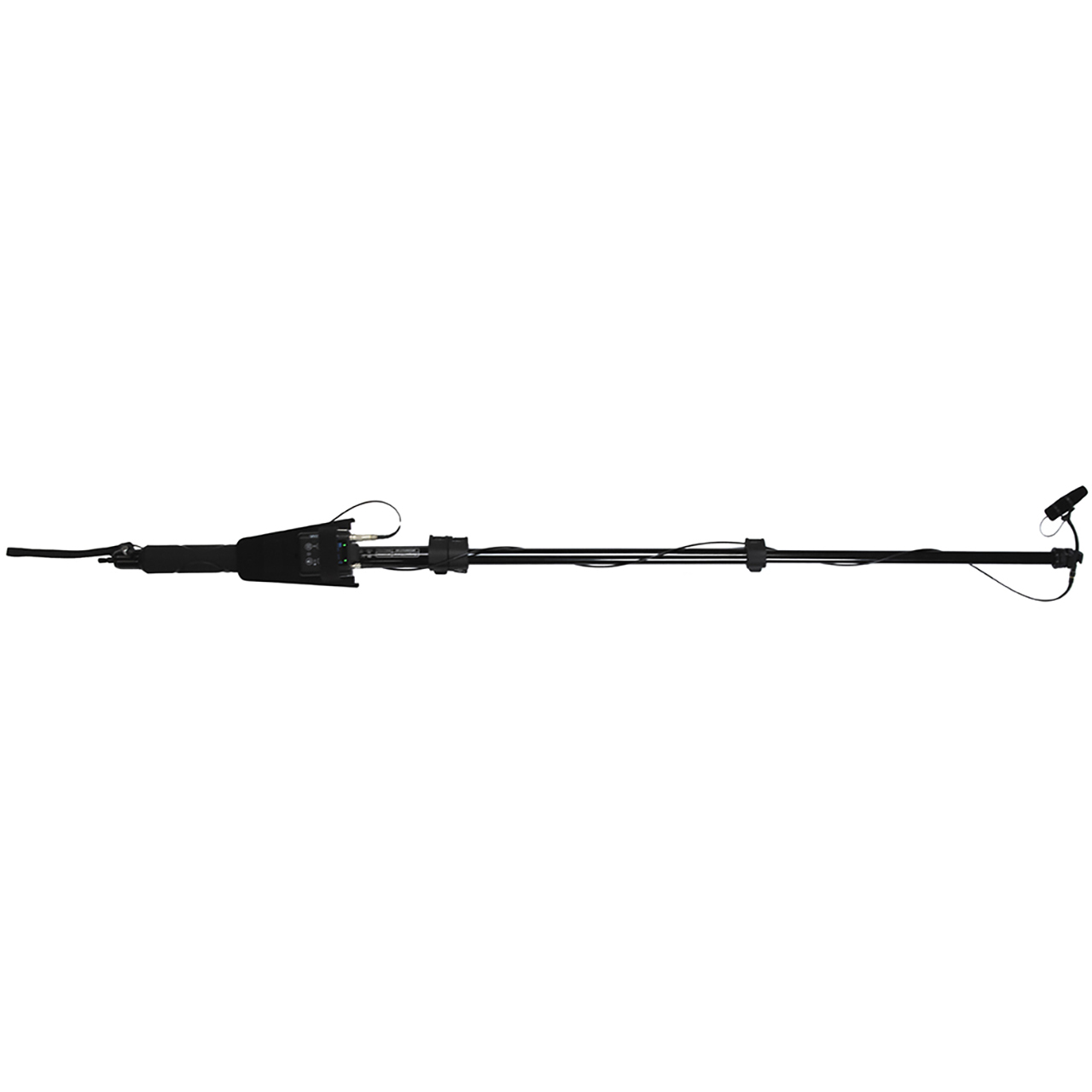

Interview at (more than) arm's length using the 4097 CORE+ Micro Shotgun Mic attached to an extremely lightweight telescoping boom. It doesn't get any easier or lighter 11.6oz (330g) without transmitter. The solution collapses down to only about 16" (40cm) and extends all the way to 55" (140cm).

  • Features:

    • Extremely rugged and reliable
    • Enhances speech intelligibility
    • Resistant to moisture, extreme temperatures and humidity
    • Built-in shock mount for stability even in difficult situations
    • Available with 10+ mounting options for flexibility
    • Modular adapter system fits most professional wireless systems

  • Specifications:

    • Directional Pattern:Supercardioid
    • Principle of Operation: Pressure gradient
    • Cartridge Type: Pre-polarized Condenser
    • Cable Drive Capability: Up to 984ft (300m) with DAD9099 XLR Adapter
    • Common Mode Rejection Ratio (CMRR): > 60dB from 50Hz - 15kHz with DAD9099 XLR Adapter
    • Frequency Response: 20Hz - 20kHz
    • Effective Frequency Range ±2dB, at 7.9" (20cm): 80Hz - 15kHz with 2dB soft boost at 10kHz - 12kHz
    • Sensitivity, Nominal, ±3dB at 1kHz: 16mV/Pa; -36dB re. 1V/Pa
    • Equivalent Noise Level, A-weighted: Typ. 23dB(A) re. 20μPa (max 26dB(A))
    • Equivalent Noise Level, ITU-R BS.468-4: Typ. 35dB (max.38dB)
    • Distortion, THD < 0.5%: 130dB SPL RMS, 133dB SPL peak
    • Distortion, THD < 1%: 131dB SPL RMS, 134dB SPL peak
    • Dynamic Range: Typ. 111dB
    • Max. SPL, THD 10%: 136dB SPL peak
    • Current Consumption: Typ. 1.5mA (microphone), 3.5mA with DAD9099 XLR Adapter
    • Capsule IP Rating: IP58
    • Connector: MicroLock XLR via supplied DAD9099 adapter
    • Color: Black
    • Temperature Range: -40°F - 113°F (-40°C - 45°C)
    • Relative Humidity: Up to 90%
    • Weight: 1.23lbs
    • Dimensions (LxWxH): 24.17" x 4.65" x 2.4"
    • Rated Output Impedance:
      - From MicroLock: 30Ω - 40Ω
      - From DAD9099 XLR Adapter: 100Ω
    • Power Supply (for full performance):
      - For Wireless Systems: 5V min - 10V max through DPA adapter
      - With DAD9099: P48 (Phantom Power), Will work from 12V

  • Item Includes:

    • 1x 4097 CORE+ Micro Shotgun Mic
    • 1x MicroLock® Cable 0.09" (2.2mm), 5.9ft (1.8m) (CM2218B90)
    • 1x Cold Shoe Mount with standard 1/4" thread (CS-Clip)
    • 1x Plate for transmitter
    • 1x Velcro strap 13" (330mm)
    • 1x Windjammer (Rycote 055427, DPA 4099 Mini Windjammer)
    • 1x Telescope Boom (Manfrotto MPCOMPACT-BK)

  • Warranty:

    • 2 Year Limited Warranty
