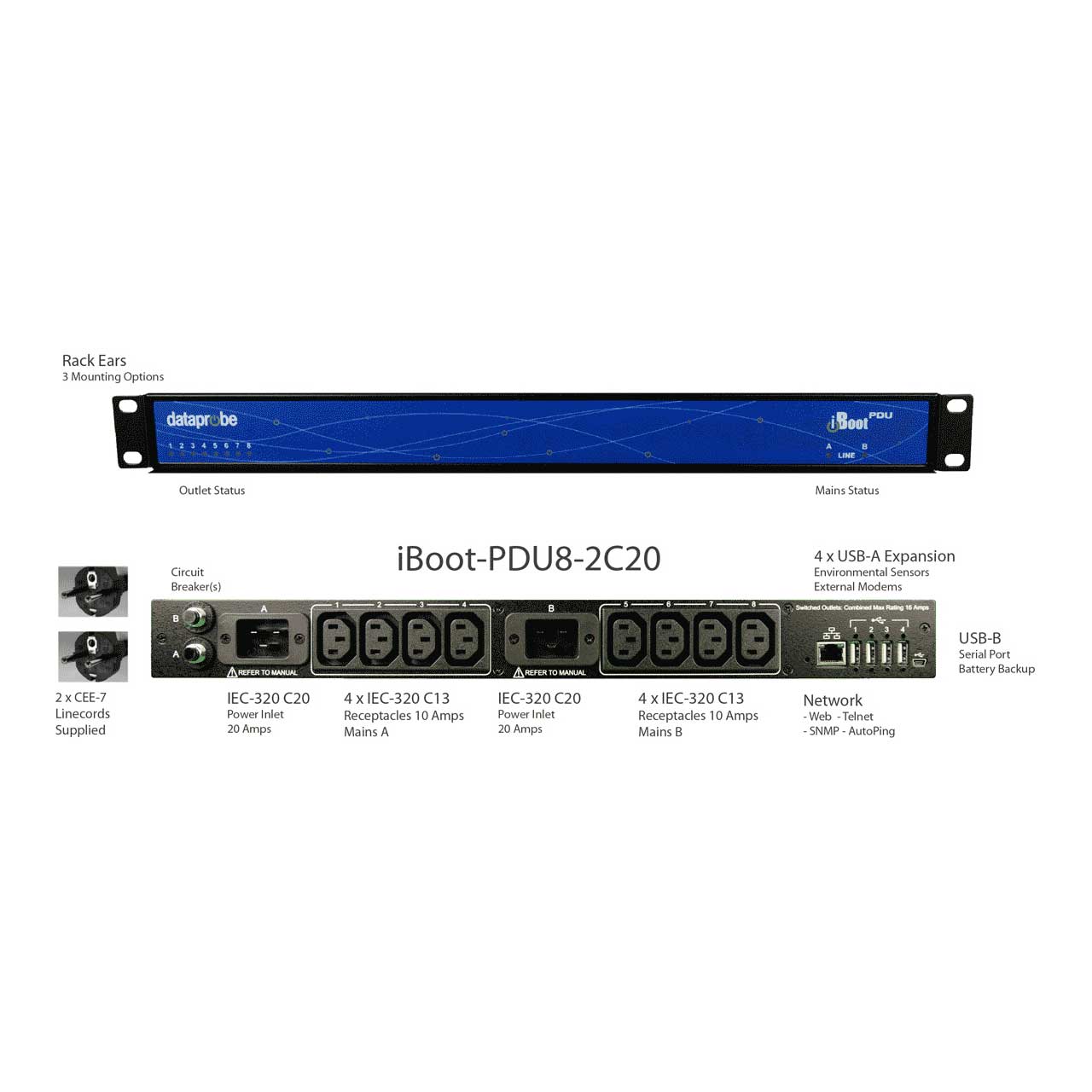

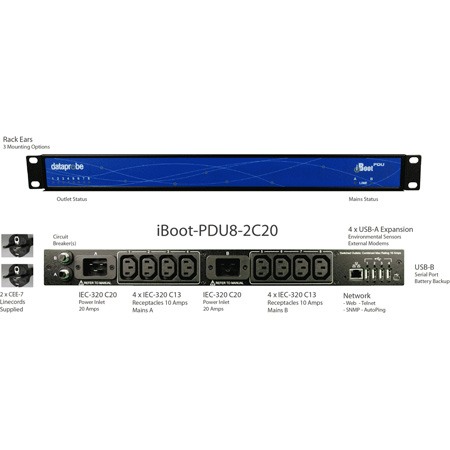

Dataprobe iBoot-PDU8-2C20 Switched PDU 8 Outlet 2xIEC 20A

ITEM #: DTPB-IBOOT-PDU8 MFG #: IBOOT-PDU8-2C20

free ship

List Price:

$565.00

Our Price:

$504.26

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    IBOOT-PDU8-2C20 - Overview

    Dataprobe iBoot-PDU8-2C20 is a Power Distribution Unit with clear easy to use web interface. This rack mounted PDU makes it easy to manage A/C power from any location. This is a switched and managed PDU, each outlet is independently controlled.

    The web page presents a clear status indication of each outlet, current draw across all inputs and the AutoPing monitoring, if implemented. Multiple PDUs can be managed from a single web page.

    Each outlet on this PDU can be individually selected, or multiple outlets can be simultaneously operated. User selectable cycle timer allows single command reboot. Delay timer limits inrush current by staggering power up when multiple devices are simultaneously controlled.

    Monitor critical parameters and take corrective action immediately. Build complex notification and reporting for environmental, power and network faults. Set trigger points and create sequences of responses to keep your network up and running.

    Boot Cloud Service (iBCS) allows customers with this PDU to access and control multiple units in multiple locations from a single portal with a single sign-on.

    iBCS will not only make using the PDU easier, by consolidating all units into one sign-on and interface, it will also enhance the number of situations where a switched PDU can be deployed.

    Customers with Dynamic IP addressing to always be able to access their iBoot from any location.
    Service providers manage multiple customer accounts with diverse security configurations
    Customers that do not allow in-bound connections to access their iBoots.

    • Features:

      • Independently Controllable Outlets
      • Web Browser Control
      • Integrated 1Gig Ethernet Switch
      • Multiple Users
      • Multiple iBoot-PDU Cluster Configuration
      • Real-Time Event Control
      • Network Management
      • Telnet/Serial CLI Control
      • Grouping of Outlets for Simultaneous Management
      • Automation
      • Landline Modem Option

    • Specifications:

      • Physical
      • Height: 1U 1.75" (4.5cm)
      • Width: 11" (27.94cm)
      • Depth: 6" (15.25cm)
      • Weight: 4.5Lbs (2kg)

        Temperature
      • Operating: 32° to 149°F (0° to 65°C)
      • Storage: 14° to 185°F (-10° to 85°C)
      • Relative Humidity: 0 to 95% Non-Condensing
      • Altitude: 2000m Operating

        Network
      • Single or Dual (S Models) 1G Ethernet
      • Web, Telnet, SNMP, SMTP
      • Port Assignable for Web and Telnet.
      • SSL Security on Web control

      • Temperature Module Option
      • USB Dual Temperature Sensors. Sensor 2 on 1m cable.

      • Switched Outlet
      • 4 or 8 IEC 320 C13 Receptacle
      • 10 Amps Max per Receptacle
      • -C10 Models: 15 Amps Max per Linecord
      • -C20 Models: 20 Amps Max per Linecord

      • AC Input
      • 100-240 VAC VAC
      • 10 AMP Models: IEC320 C14 Receptacle
      • 20 AMP Models: IEC320 C20 Receptacle

      • USB Ports
      • 4x USB A ports for accessories, modem, temperature probe, etc.
      • 1x USB B port for serial port and external battery

      • Landline Modem Option
      • 56Kbps V.92 Global Compliance, Data or Tone Dial (DTMF) control

        Compliance
      • UL/cUL Listed 60950-1, 2nd Edition 2014-10-14 (US)
      • CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-10 (Canada)CE Marked
      • RoHS2 Directive 2011/65/EU Compliant / WEEE Compliant
      • ANSI C63.4:2014 & 47 CFR Part 15, Subpart B, Class B
      • ICES-003:2016 Issue 6, Class BFCC Part 15 Class B
