Dataprobe IBOOT-PDU8A-2N15 Switched PDU - 8 Outlet - Dual 15A - No Fan

ITEM #: DTPB-IBOOTPDU8A MFG #: IBOOT-PDU8A-2N15

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$590.00

Our Price:

$559.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    IBOOT-PDU8A-2N15 - Overview

    When you need to reduce costly site visits, ensure business continuity and increase network reliability, iBoot-PDU series gives you peace of mind. iBoot-PDU8A-2N15, a web-accessible, managed PDU with independently controlled outlets, enables multiple users to reboot remotely from anywhere, using any web browser, Telnet client or SNMP manager.

    From servers and webcams to IP PBXes and surveillance systems, iBoot-PDU8A-2N15 keeps your network up and running.

    Simple web browser interface
    The web browser interface provides the easiest means of managing multiple outlets. One master unit can be connected to 15 expansion units, managing 128 outlets from a single web page interface.

    The web page presents a clear status indication of each outlet, current draw across all inputs and the AutoPing monitoring, if implemented.

    Each outlet can be individually selected, or multiple outlets can be simultaneously operated. User selectable cycle timer allows single command reboot. Delay timer limits inrush current by staggering power up when multiple devices are simultaneously controlled.

    Cloud Manageable

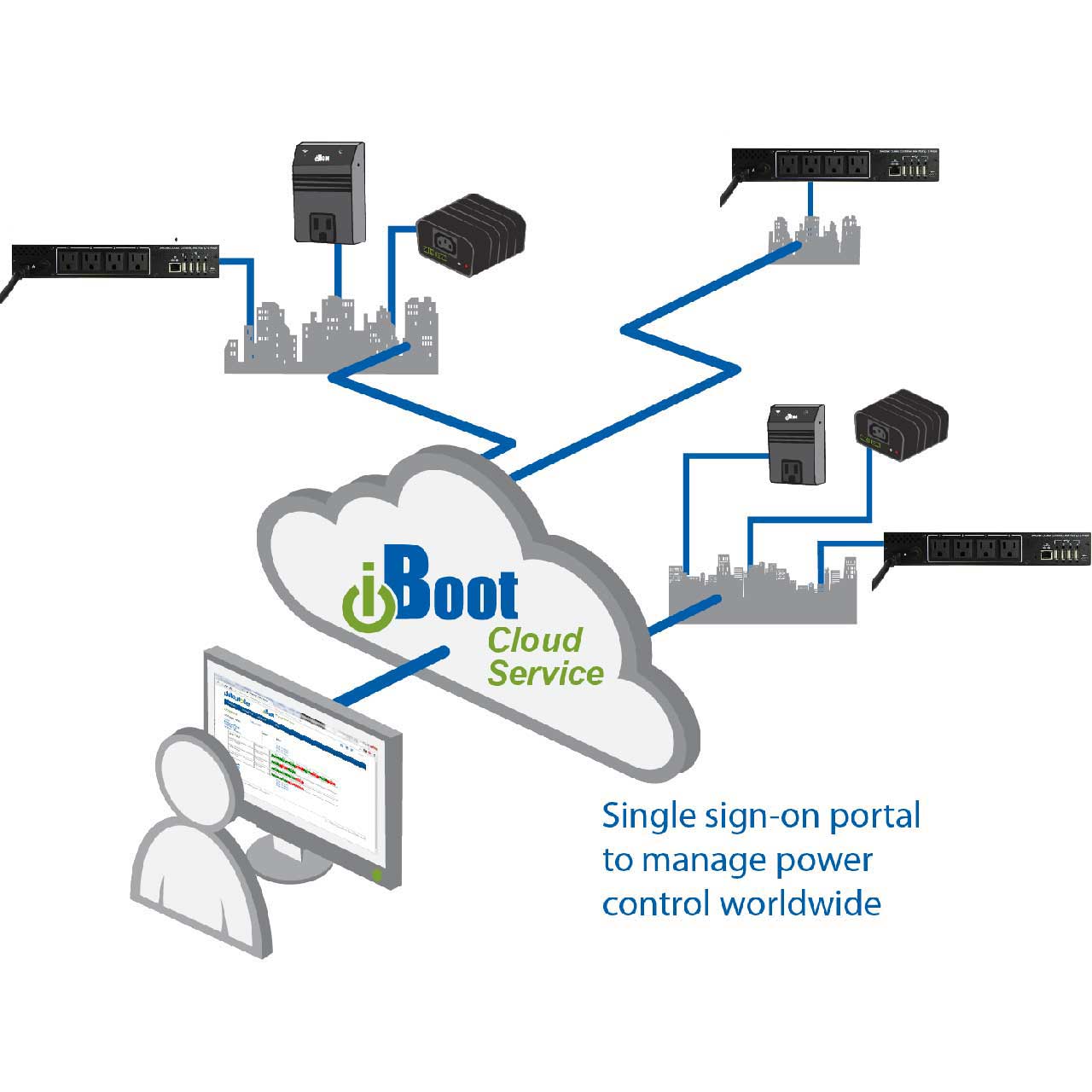

    iBoot Cloud Service (iBCS) allows customers with iBoot-PDU to access and control multiple units in multiple locations from a single portal with a single sign-on.

    iBCS will not only make using iBoots easier, by consolidating all units into one sign-on and interface, it will also enhance the number of situations where iBoot can be deployed.

    • Features:

      • Independently controllable outlets: The iBoot-PDU8A-2N15 is designed to provide power distribution and remote power control. Each iBoot-PDU8A-2N15 allows eight outlets to be independently switched on and off for reboot, energy management and security. The iBoot-PDU8A-2N15 has many features to make the management of power distribution simple and cost effective:
      • Web Browser Control: Simple web browser interface is easy to use and provides complete status information and control of the outlets, and groups.
      • Telnet/Serial CLI control: Telnet and serial access use the same Command Line Interface (CLI) structure and syntax to completely configure the iBoot-PDU8A-2N15, or multiple iBoot-PDUs in a cluster configuration.
      • Multiple Users: Multiple users can be assigned administrator or user only rights, plus access to specific outlets and groups. Users only see the outlets and groups they are assigned to.
      • Grouping of outlets for simultaneous management: Multiple outlets, across multiple iBoot-PDUs in clustered configurations can be linked together in named groups and managed together. This allows for example, power cycling all devices of a certain type together.

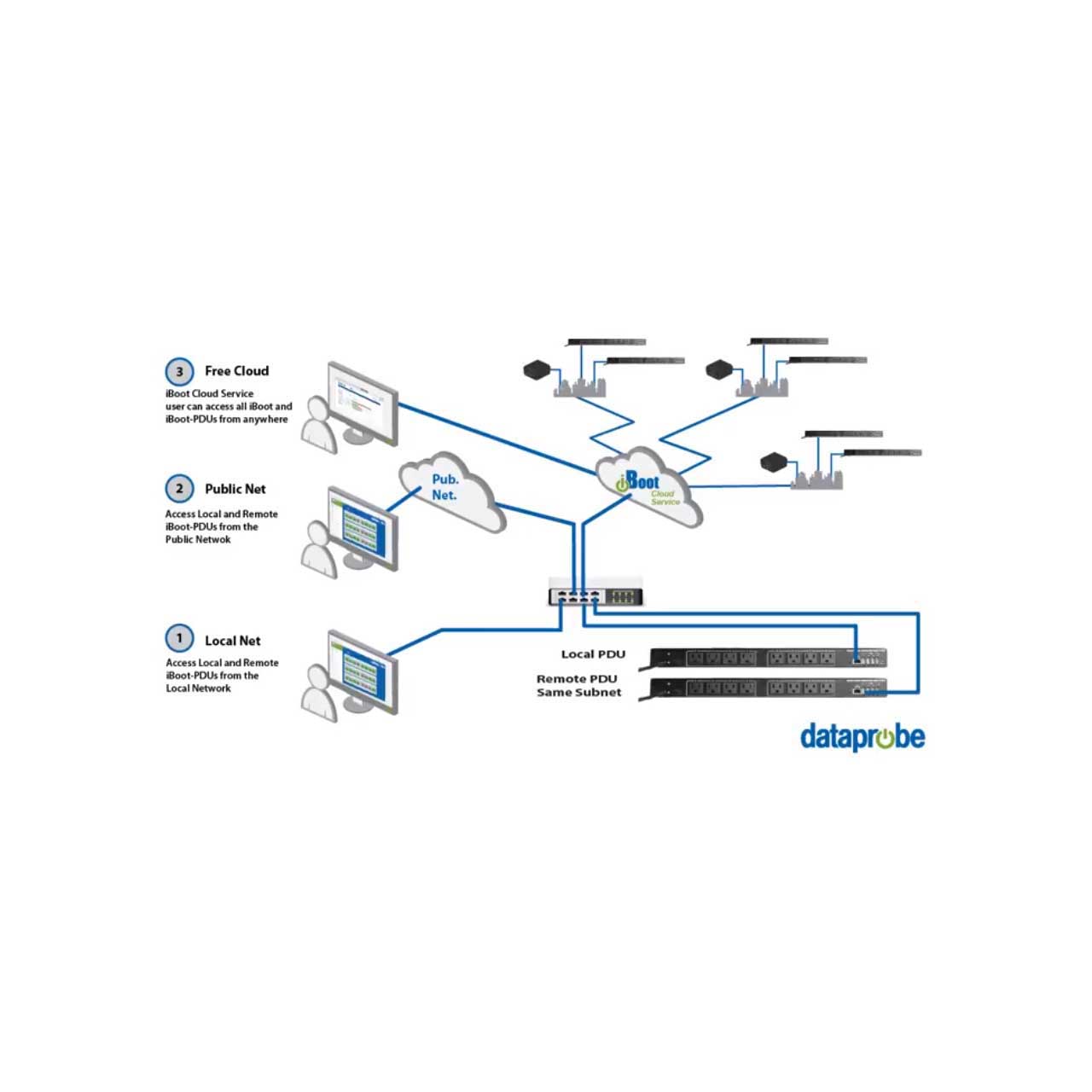

      • Multiple iBoot-PDU Cluster Configuration: Additional iBoot-PDUs can be managed from a single unit. One master iBoot-PDU provides the communication to the users and continuously receives status information from the rest of the iBoot-PDUs in the cluster. Groups can be created across multiple PDUs and controlled simultaneously.

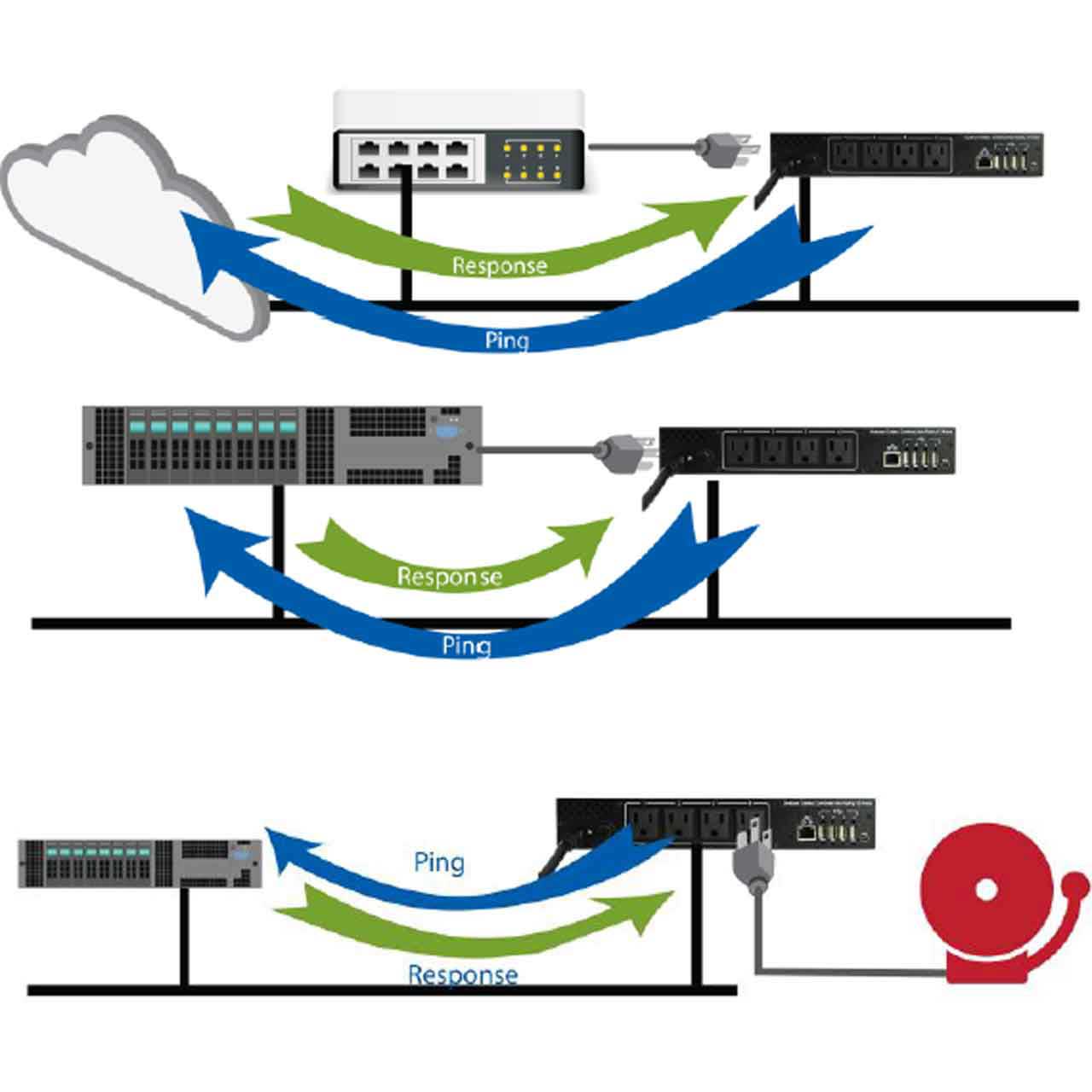

      • Automation: The iBoot-PDU8A-2N15 can monitor voltage, current and temperature to provide automatic response to the physical environment. AutoPing testing monitors network elements. Program complex sequences of outlet actions and notifications to respond instantly to out of normal situations. Temperature monitoring requires add-on probe.
      • Real-Time event control: Set automatic power actions based on your schedule. Restart systems every day to reduce memory bloat. Power up resources only when needed for energy management, lifecycle extension or security.
      • Landline Modem Option: The add-on landline modem supports data calls from terminal devices using the CLI, and direct dial from a tone telephone for simple on/off control when more sophisticated means are not available. Voice modem also allows phone dial tone control with voice response (Basic functions only)
      • Network Management: Setup and Control functions can be linked to any SNMP v2c compatible manager. The iBoot-PDU MIB is downloadable from the iBoot-PDU Support & Downloads page. Reports to syslog server.

    • Specifications:

      • Mechanical
      • Height: 1U 1.75" (4.5cm)
      • Width: 11" (27.94cm)
      • Depth: 6" (15.25cm)
      • Weight: 4.5Lbs (2kg)

        Environmental
      • Operating Temperature: 32° to 149°F (0° to 65°C)
      • Storage Temperature: 14° to 185°F (-10° to 85°C)
      • Relative Humidity: 0 to 95% Non-Condensing
      • Altitude: 2000m Operating

        A/C Power Input
      • 115 VAC
      • 15 AMP Models: NEMA 5-15 Linecord 115VAC
      • 20 AMP Models: NEMA 5-20 Linecord 115VAC

        Network
      • Single or Dual (S Models) 1G Ethernet
      • Web, Telnet, SNMP, SMTP Port Assignable for Web and Telnet
      • SSL Security on Web control

        USB Ports
      • 4x USB A ports for accessories, modem, temperature probe, etc.
      • 1x USB B port for serial port and external battery

        Switched Outlet
      • 4 or 8 NEMA 5-15 Recepticle
      • 12 Amps Max per Receptacle
      • -N15 Models:, 15 Amps Max Total per Linecord
      • -N20 Models , 20 Amps Max Total per Linecord

        Compliance - Safety
      • Complies with UL62638-1, 2nd Edition, 2014-12-01 (US),
      • IEC62638-1:2014 EN 62368-1:2014 + A11:2017
      • Complies with CAN/CSA C22.2 No. 62638-1-14, 2nd Edition, 2014-12-01 (Canada)

        Compliance - Emissions
      • ANSI C63.4:2014 & 47 CFR Part 15, Subpart B, Class B
      • ICES-003:2016 Issue 6, Class BFCC Part 15 Class B

        Compliance - Environmental
      • RoHS 3 Directive (EU) 2015/863Compliant
      • WEEE Compliant
      • Rated Pollution Degree 2 (PD 2) for use in business/laboratory environments with only Non-Conductive pollution present
