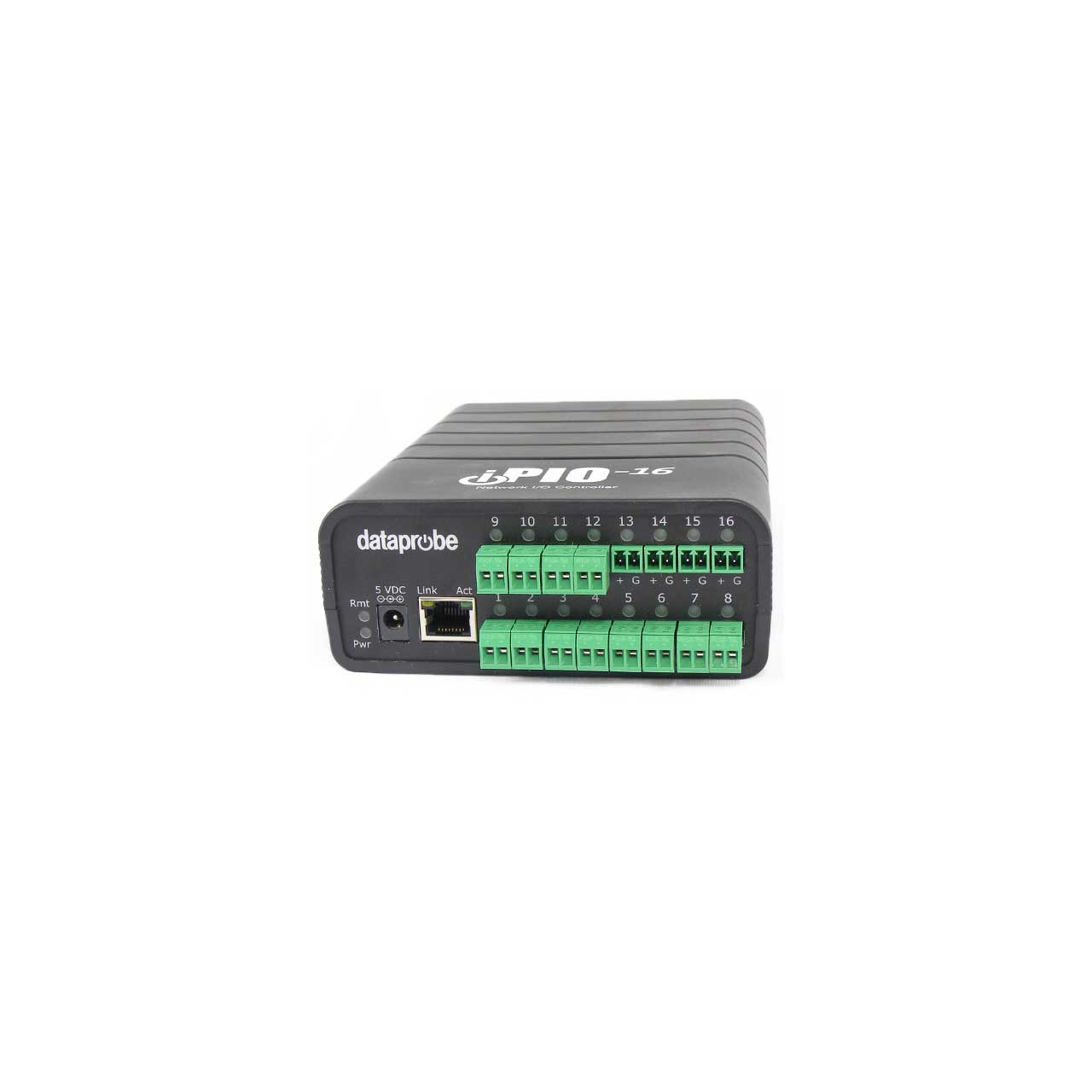

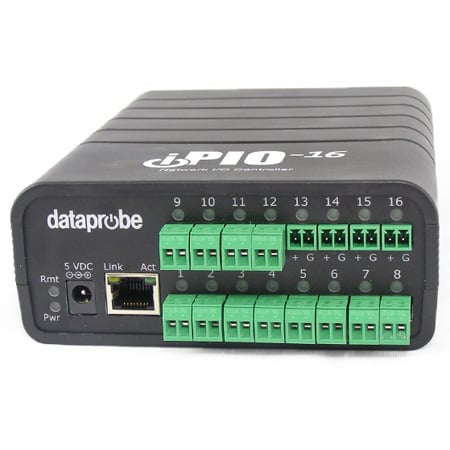

Dataprobe iPIO-16 16 Port Network I/O Controller / GPIO Manager


  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with Minimum Order Banner

List Price:


Our Price:


Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup

    IPIO-16 - Overview

    iPIO - Bidirectional Event Transport
    Dataprobe iPIO gives you the ability to transport digital I/O across Ethernet networks with IP protocols. Multiple iPIO devices can communicate amongst themselves to transport I/O information across your network, and links are bidirectional, so events in either location are reflected at any other site. Any changes in status appear at the other end of the network as relay outputs. 2 Units are required for End-to-End transport. The Dataprobe iPIO-16 offers 16 Inputs, 16 Outputs and Ships with 120/240VAC Power Supply.

    iPIO - Network Monitor and Control
    Get real time status updates on you web browser and click to control any relay. Monitor and control digital I/O worldwide using an SNMP V2 compliant manager. iPIO also sends email when events occur.

    iPIO - Multi Site Event Reporting
    One digital input can trigger relay controls at multiple remote locations. With a Dataprobe iPIO, one alarm can trigger events throughout your network, making it easy to respond to physical events and manage your systems remotely for Climate Control, Industrial Control, Security Alerts, Firehouse Doors, Irrigation Systems.

    iPIO - Event Consolidation
    Events from multiple locations can also be consolidated to a central alarm point. Digital inputs from any Dataprobe iPIO unit can be mapped to the relay output of any other, giving you maximum control for Environmental Alarm Summaries, Storm Warning Systems, Security Alerts and Pump Controls.

    • Features:

      • Web Controlled Relays: One click relay control from clear web browser interface. Set name, qualifying time and color scheme for each relay.
      • Real Time Status Monitoring: Continuous updates of input status. No need for browser refresh. Set name and color scheme for each relay
      • GPIO Transportation Over the Network: Send contact closure information across the network to one or multiple places. Get the information you need, where you need it.
      • Contact Closure via IP: Manage with SNMP or create your own custom programming to operate relays over the network.
      • Link Supervision with Alarm: Continuously monitors data link between each device and alerts you when the network fails.
      • Email Notification: Receive updates on all input and /or output activity.
      • SNMP Management: SNMP V2c compliant MIB. Integrate into you network management scheme.
      • Wet or Dry Input Monitoring: Configurable for +VDC inputs 3-30 volts.
      • Multi-Site Distribution: Get status information from one point to multiple locations simultaneously. Ideal for load-shedding and security alert notifications.
      • Alarm Consolidation: Summarize multiple alarm points to one location.
    • Specifications:

      • Switch: Reset. Hardware Reset
      • Dimensions: Height 2.00" Width 5.00" Depth 7.50"

        Included Power Supply
      • Input: 105 - 240 VAC 50/60Hz
      • Output: +5VDC. 10 Watts
      • Inputs: 16
      • Input Type: Two screw terminals per input. Dry Contact Closure or settable for +3VDC to +30 VDC input, Grounds Common

        Relay Outputs
      • Current Maximums 0.5A @ 120VAC or 1A @ 24VDC
      • Switching Power 60VA Max 50uW Min
      • Switching Voltage 120VAC or 60VDC Max 1VDC Min
      • Switching Current 1A Max 1mA Min
      • Resistance 100 milliohms (initial value)
      • Operations 5 Million, mechanical. 100K at maximum load

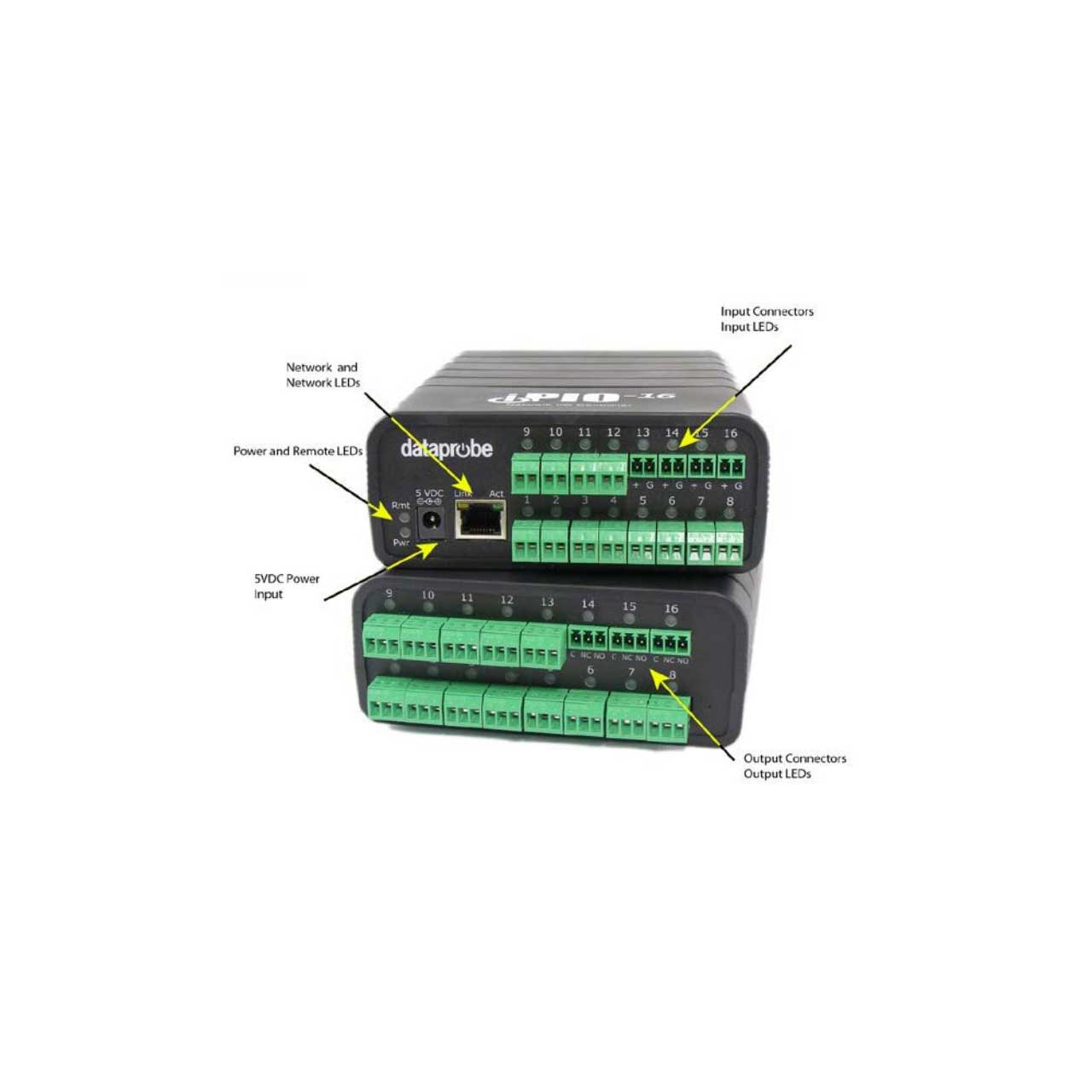

        LED Indictors
      • One LED Indicator for Each Input, Configurable for On or Off state
      • One LED Indicator for each Relay Output. Configurable for ON or Off state
      • Network Link (Link) and Activity (Act).
      • Remote Unit Link Status (Rmt).
      • Power (Pwr)

      • Digital Inputs
      • Dry relay/switch closures or
      • +/-3VDC to +/-30 VDC
      • Grounds common

      • HTTP Web Server
      • DHCP Assigned or Static IP Address
      • Email to SMTP Server
      • SNMP V2 Manageable.
      • Inter Device Communications via DxP Protocol
      • 128 bit AES Encryption optional
      • Selectable Port assignments for Web, and DxP Protocol.

      • Temperature 0 - 50 Deg C Operating
      • Humidity 90 Pct Non Condensing
