ADDERLink ASP-001-US Infinity Manager (AIM) Control Suite - Supports 24 End Points

ITEM #: ADR-ASP-001-US MFG #: ASP-001-US

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    ASP-001-US - Overview

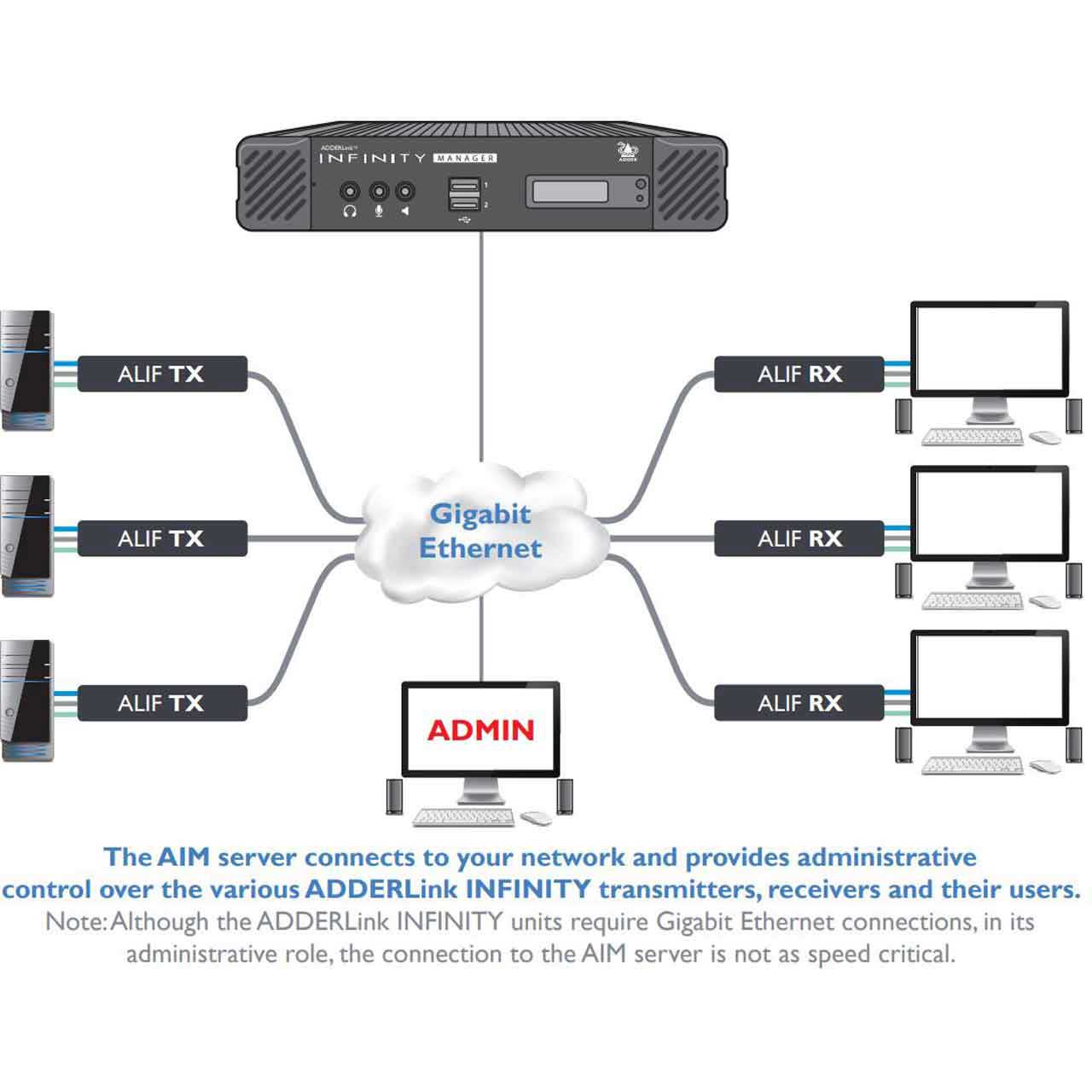

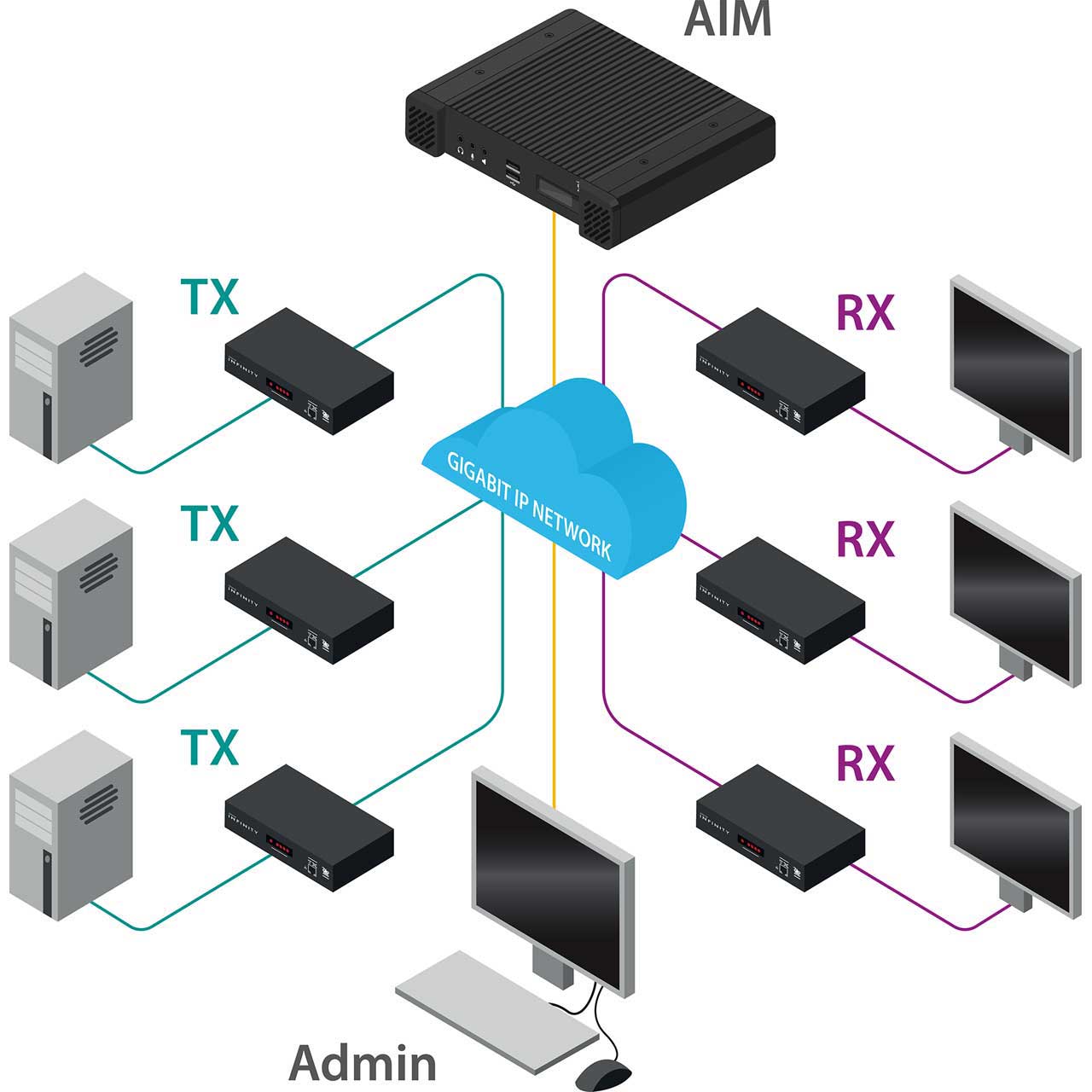

    The ADDERLink™ ASP-001-US INFINITY Manager (AIM) server is a control suite which transforms ADDERLink INFINITY (ALIF) extenders into a digital matrix solution. Using standard IP infrastructure it is possible to route any user station to any computer attached to the network without any compromises to video quality or control. It allows co- operative sharing of computers and multicasting of video to any destination.

    Secure access and communications
    Using TLS (transport layer security) and HTTPS, communications between ADDERLinkT INFINITY (ALIF) units and the ADDERLink INFINITY Manager (AIM), and between AIM and the outside world are all secure.

    Redundant operation
    For 24/7 reliability a second `hot' AIM can be added to ensure constant uptime and with dual NIC interfaces on every ALIF unit, systems can be easily designed for maximum resilience.

    User access rights management and audit trails
    Administrators can manage access rights to each device on a user by user basis either manually through the web browser or automatically using Active Directory. Reports showing the history of devices, user logins and device connections can be viewed and exported to a CSV file or via SYSLOG.

    Easy centralized management

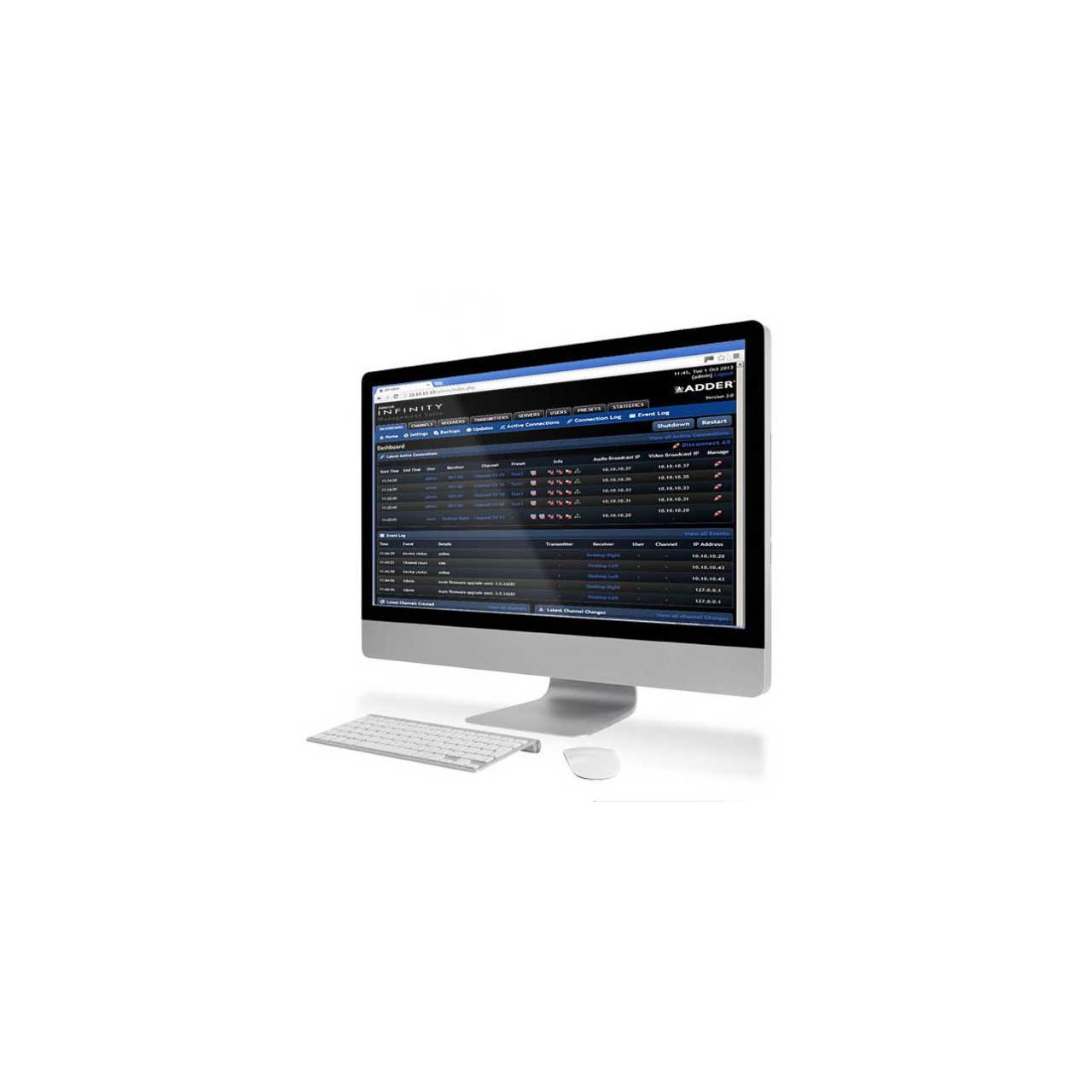

    Accessed via a web browser, the dashboard gives a real-time overview of system connections and users. Tabs enable you to navigate between settings and devices or user sub-menus.

    Control Channel and Presets connections
    AIM can be used to make connections between an individual pair of transmitter and receiver devices centrally from within the management system. Using Presets, a list of pre-defined connections, multiscreen, video wall or signage setups can be `pushed' with a single click.

    The user desks can select different keyboard configurations to suit their requirements and as a global setting select the language for the OSD from a choice of over 14 languages.

    On-screen display at each user station
    Users login and choose channel connections from an intuitive OSD similar to that of a Digital TV. Users can also use Presets to change channels for multiple screens across multiple receivers.

    • Features:

      • Intuitive, multi-lingual user interface
      • Multiple switching methods
      • Configurable user access rights
      • Full audit trail
      • Easy centralized management
      • Open API for 3rd party control
      • Remote OSD
      • Choice of connection modes
      • Fast video and USB switching
      • Multicasting
      • USB sharing
      • Channels
      • Open API for 3rd party control systems
      • LDAP integration
      • SNMP v3 get / walk
      • External NTP server support - NTPv4.2
      • System backups
      • Centralized firmware upgrades
      • Easy matrix setup
    • Specifications:

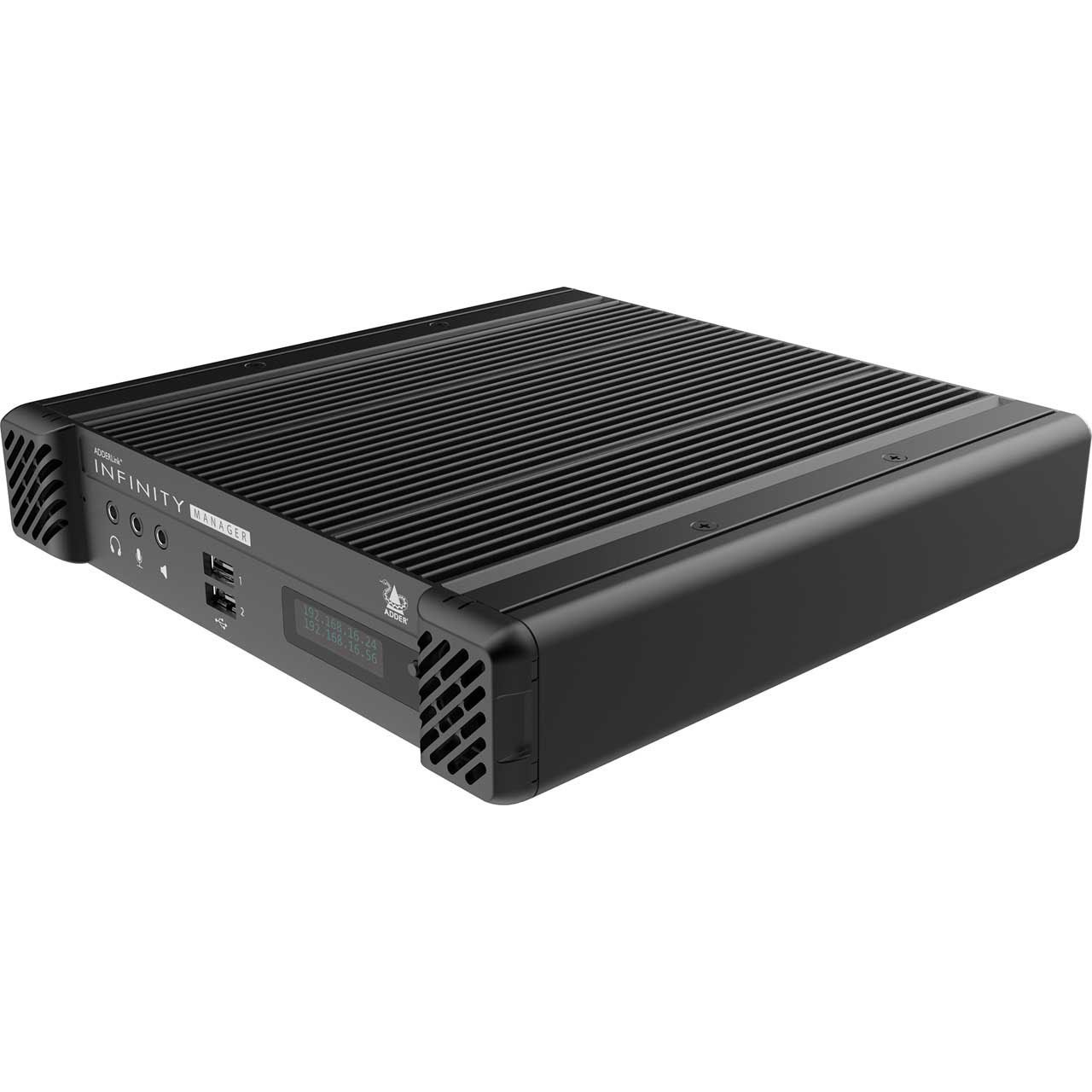

      • Physical Design
      • Robust metal construction
      • Dimensions (LxWxD): 8.3 x 8.5 x 1.6" (210 x 215 x 40mm)
      • Weight: 4Lbs (1.8kg)

      • Power supply
      • External power: 12VDC - 5A
      • Typical power consumption: 20W
      • BTU: 68.24BTU/hr

      • Temperature
      • Operating temperature: 0 to 40°C/32 to 104°F
      • Storage temperature: 0 to 60°C/32 to 140°F
      • Altitude: < 2000m
      • Humidity: 10-90% (non-condensing)

      • Mean Time Between Failure (MTBF)
      • 77,500 hrs
      • Telcordia SR332 Issue 4 March 2016 Calculated @55°C

      • Ethernet
      • 1GbE with 10/100/1000 support via 2x SFP and 1x 8p8c

      • Approvals
      • CE - FCC
    • Item Includes:

      • ASP-001-US Infinity Manager
    • Warranty:

      • 2 Year Limited
    • GTIN:
