Datavideo AD-200 6 Channel Audio Delay Box to Synchronize Video and Audio

ITEM #: DV-AD-200 MFG #: AD-200

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$999.00

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    AD-200 - Overview

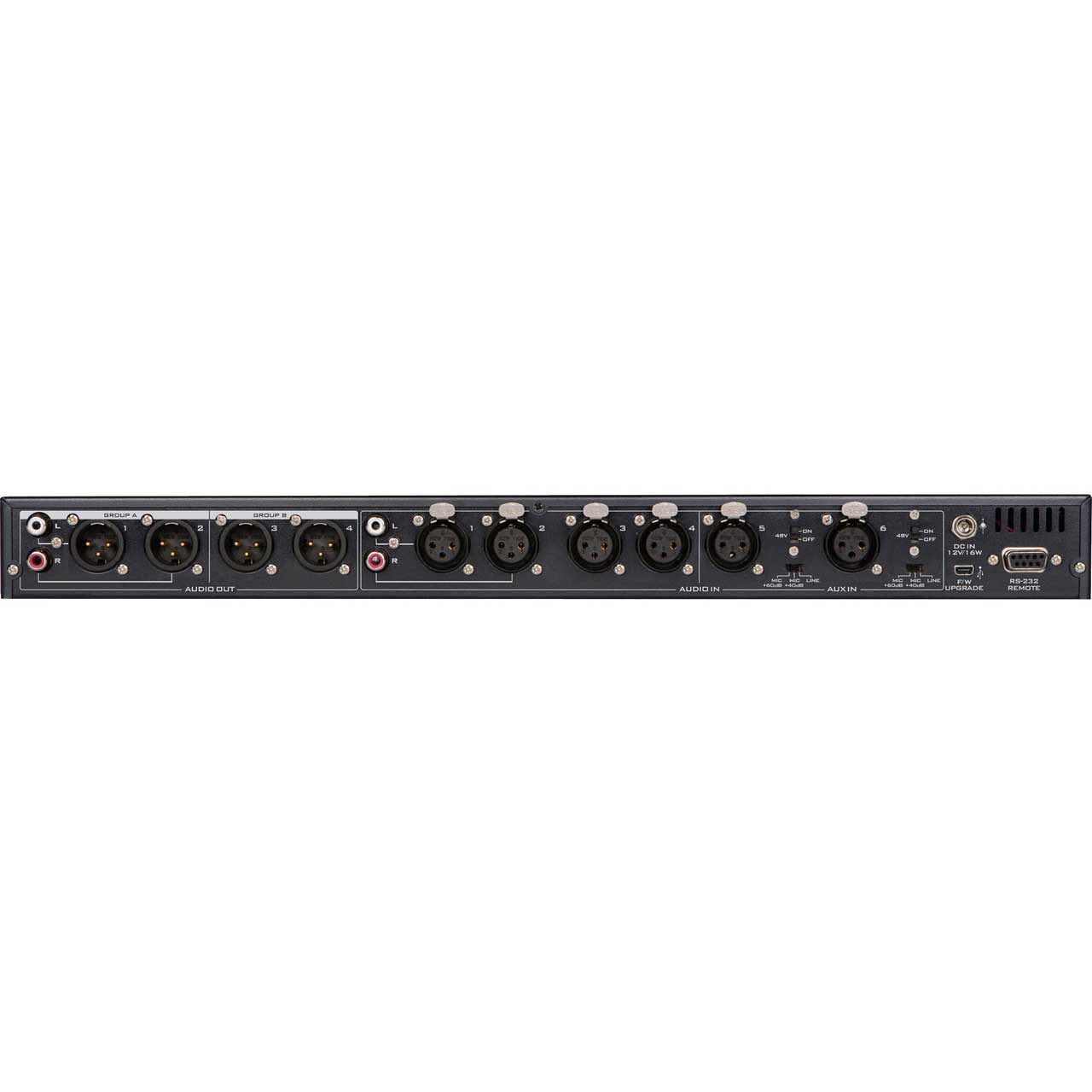

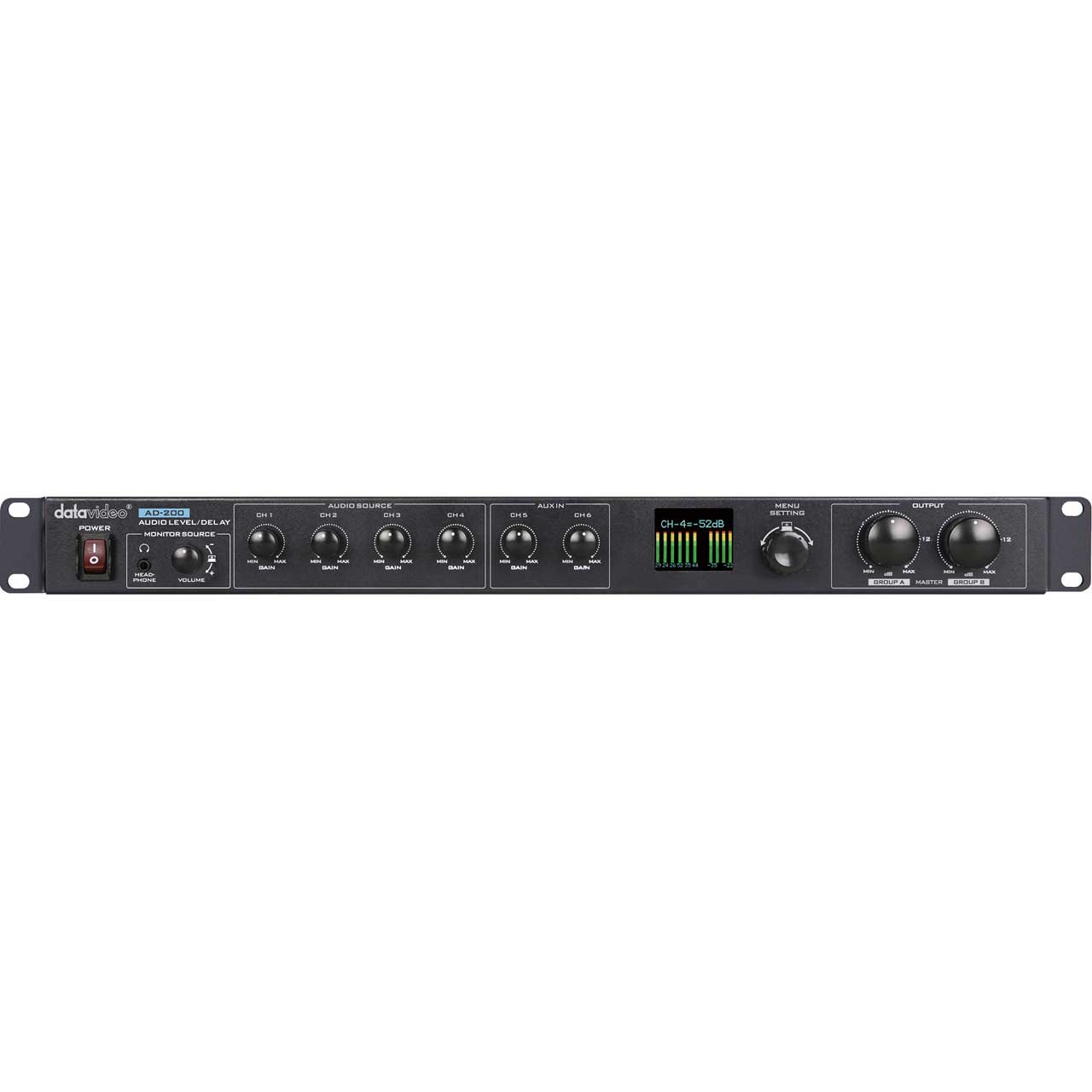

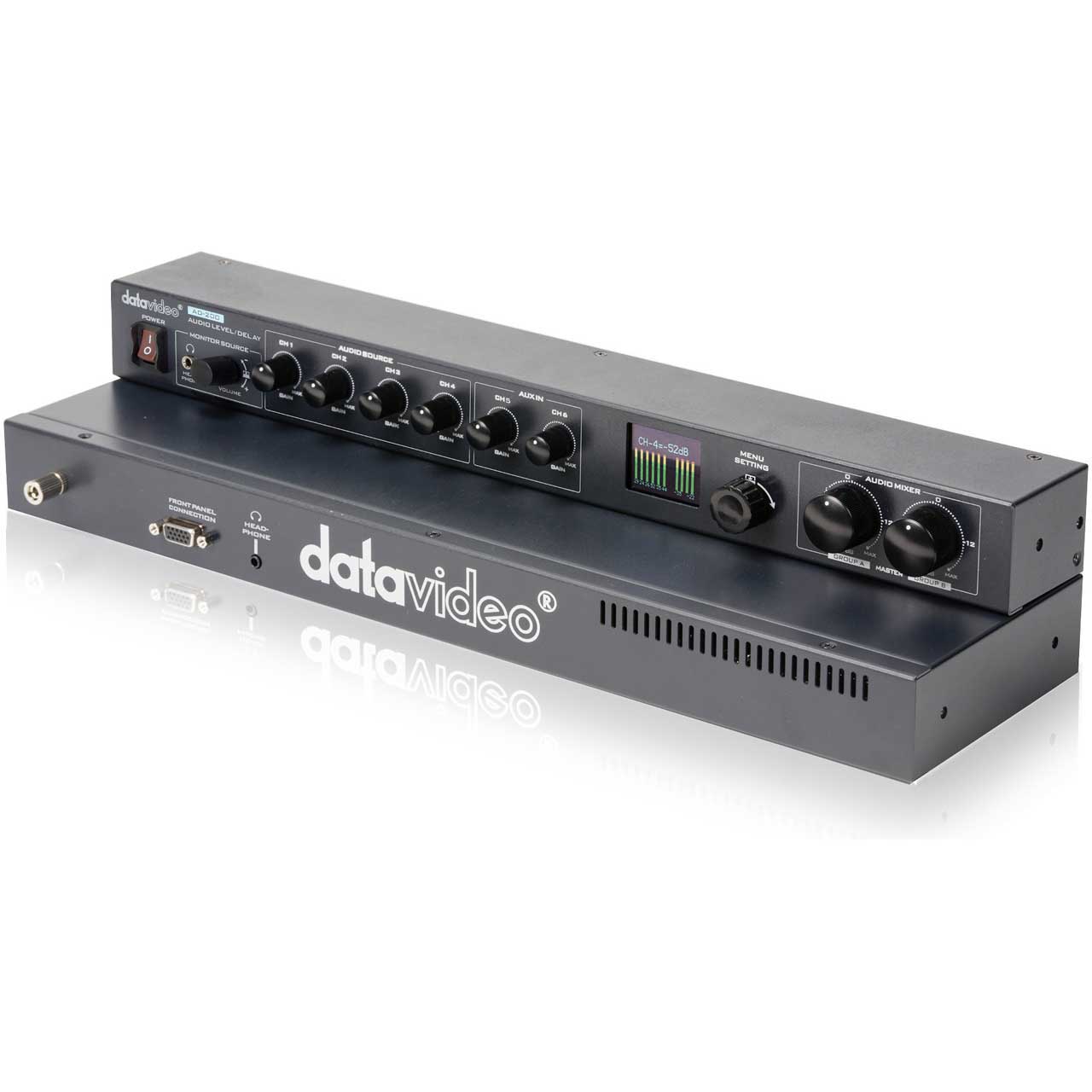

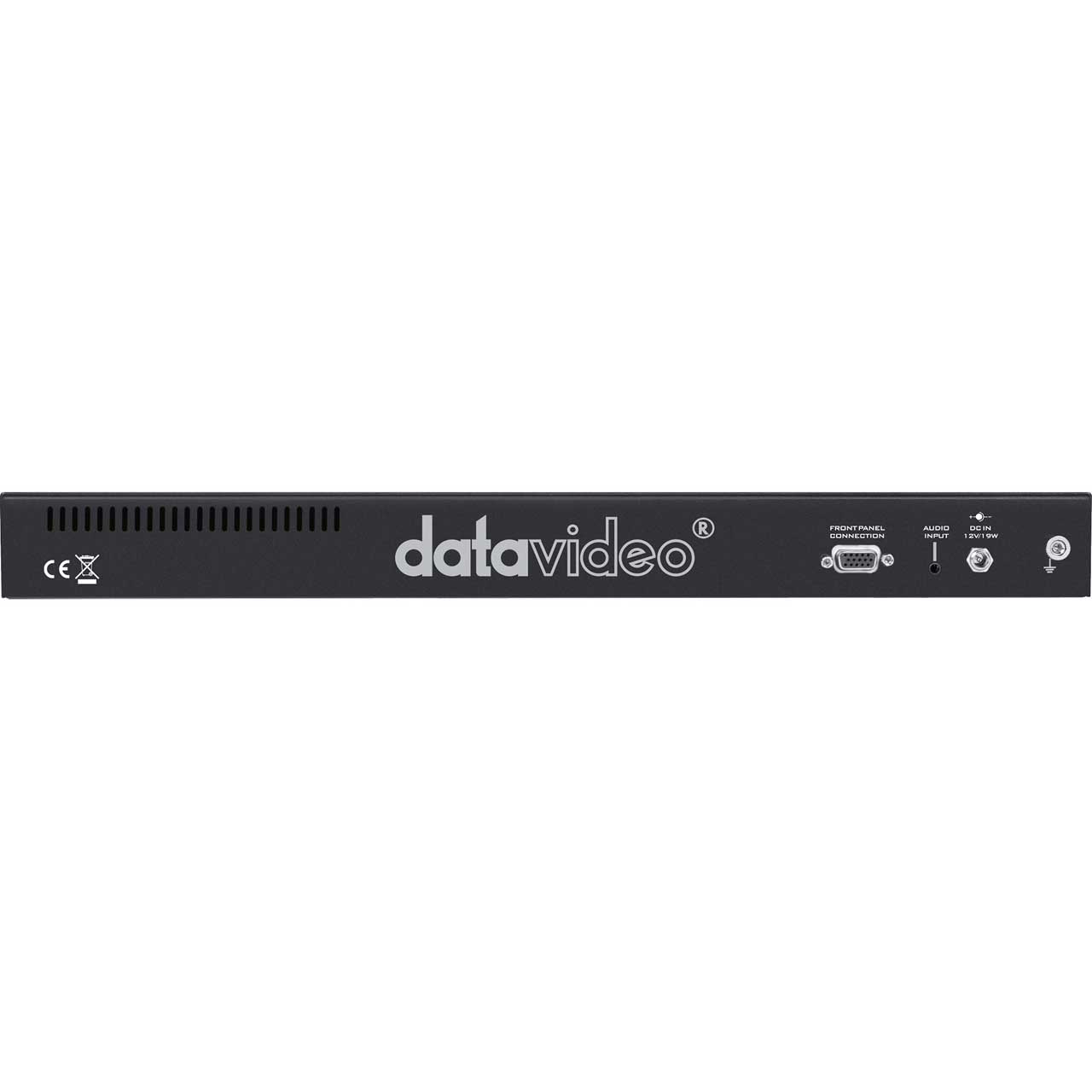

    The 1RU AD-200 6 Channel Audio Delay/Mixer with Level Adjustment from Datavideo is an integration of 6 channel audio delay with a matrix mapping function of 4 channel outputs audio mixer. The AD-200 is comprised of two separate parts: the main unit and the control unit. The two parts are 1RU each and can be easily installed on an OB Van or customized rack.The AD-200 support up to 3-sec audio delay adjustment for each input channel. It features 6-CH Audio mixer and matrix router to 4-CH audio outputs. Audio level adjustment of each input.

    • Specifications:

      • Model Number: AD-200
      • Audio Input: 6x XLR, 2x RCA
      • Audio Output: 4x XLR, 2x RCA, 1x 3.5mm
      • Audio Indicator: 1.77" Color OLED
      • Audio Delay: Up to 3000ms
      • Audio Sample Rates: 48 KHz
      • Special Feature: Audio Delay and Mix, delay by channel
      • Chassis: 2 units, rack-mount mainframe
      • Power: DC 12V 19W (front), DC 12V 16W (rear)
      • Dimension: (LxWxH) 440 x 126 x 42 mm
      • Weight: 1.8 kg
      • Operating Temp. Range: 0~40 °C

    • Item Includes:

      • 1 x AD-200 main unit
      • 1 x AD-200 control unit
      • 1 x AD Switch DC 12V
      • 1 x D-SUB cable, Male to MALE,Cable
      • 1 x 3.5mm Stereo Cable, 1.2m
      • 4 x 1U rack kit
      • 16 x Screws M4 x 8mm
