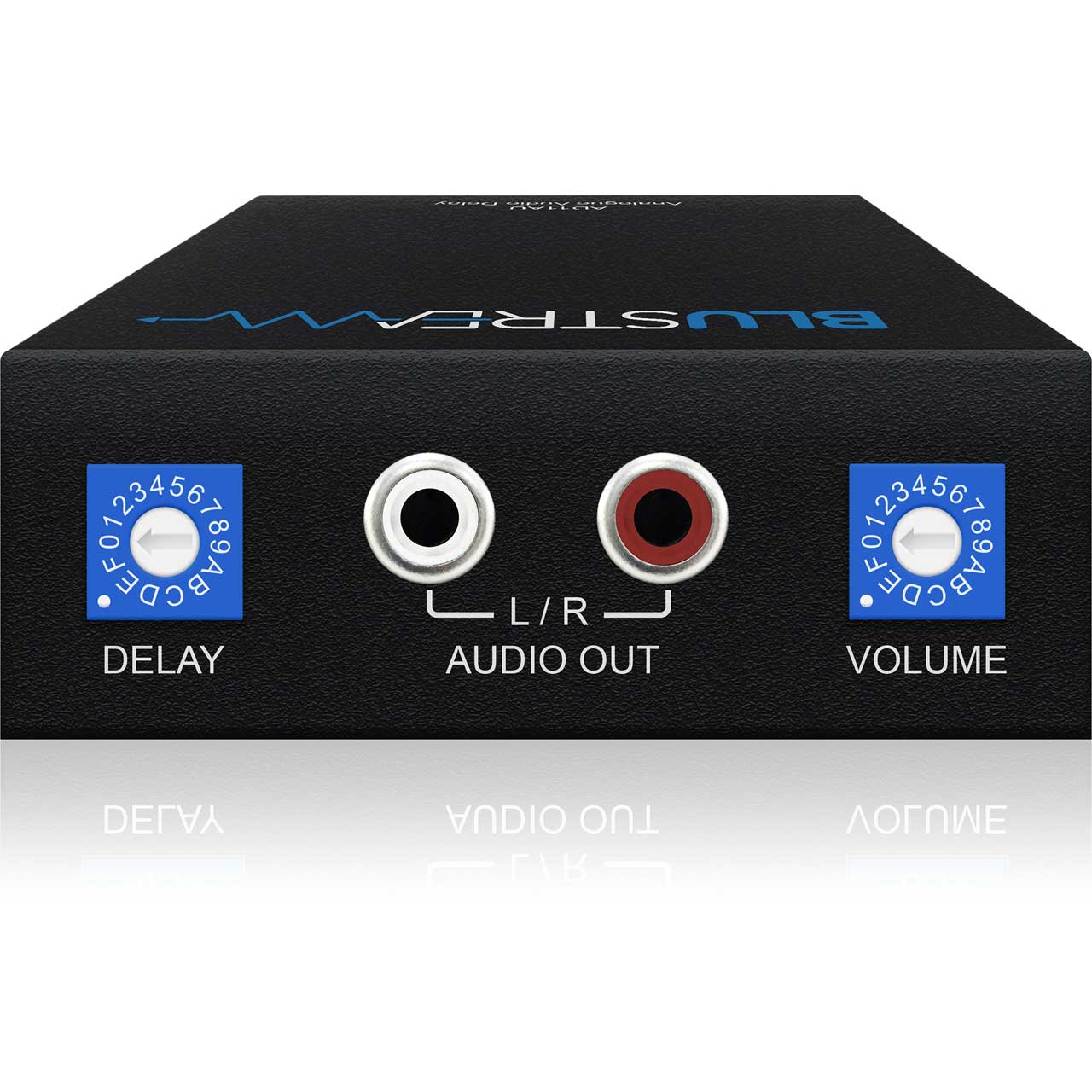

Blustream AD11AU Analog Audio Delay Processor with Volume Control


Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:


Availability: In Stock
iAvailability Description Popup

    AD11AU - Overview

    The Blustream AD11AU has been designed to help correct audio delays incurred when separating audio and video signals in an AV system.

    The AD11AU can add a delay of up to 1 second selectable in 15 increments and has line-level volume adjustment of -75dB to 0dB.

    • Features:

      • In-line 2ch analogue audio delay with line-level volume control
      • Supports 48KHz / 24 bit sample rates
      • Selectable audio delay from 50-1,000ms
      • 0-500ms in steps of 50ms
      • 500-1,000ms in step is of 100ms
      • Adjustable line level volume control from -75dB to 0dB
    • Specifications:

      • Audio Input Connectors: 2 x RCA analogue left/right
      • Audio Output Connectors: 2 x RCA analogue left/right
      • Audio Delay: Rotation switch
      • Volume Control: Rotation switch
      • Casing Dimensions (W x H x D): 70mm x 25mm x 73mm
      • Shipping Weight: 0.4kg
      • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
      • Storage Temperature : -4°F to 140°F (-25°C to +70°C)
      • Power Supply: 5V/1A DC
    • Item Includes:

      • 1x AD11AU
      • 1x 5V/1A DC Power Supply
      • 1x Mounting Kit
      • 1x Quick Reference Guide
    • Warranty:

      • 3 Year Warranty
    • GTIN:
