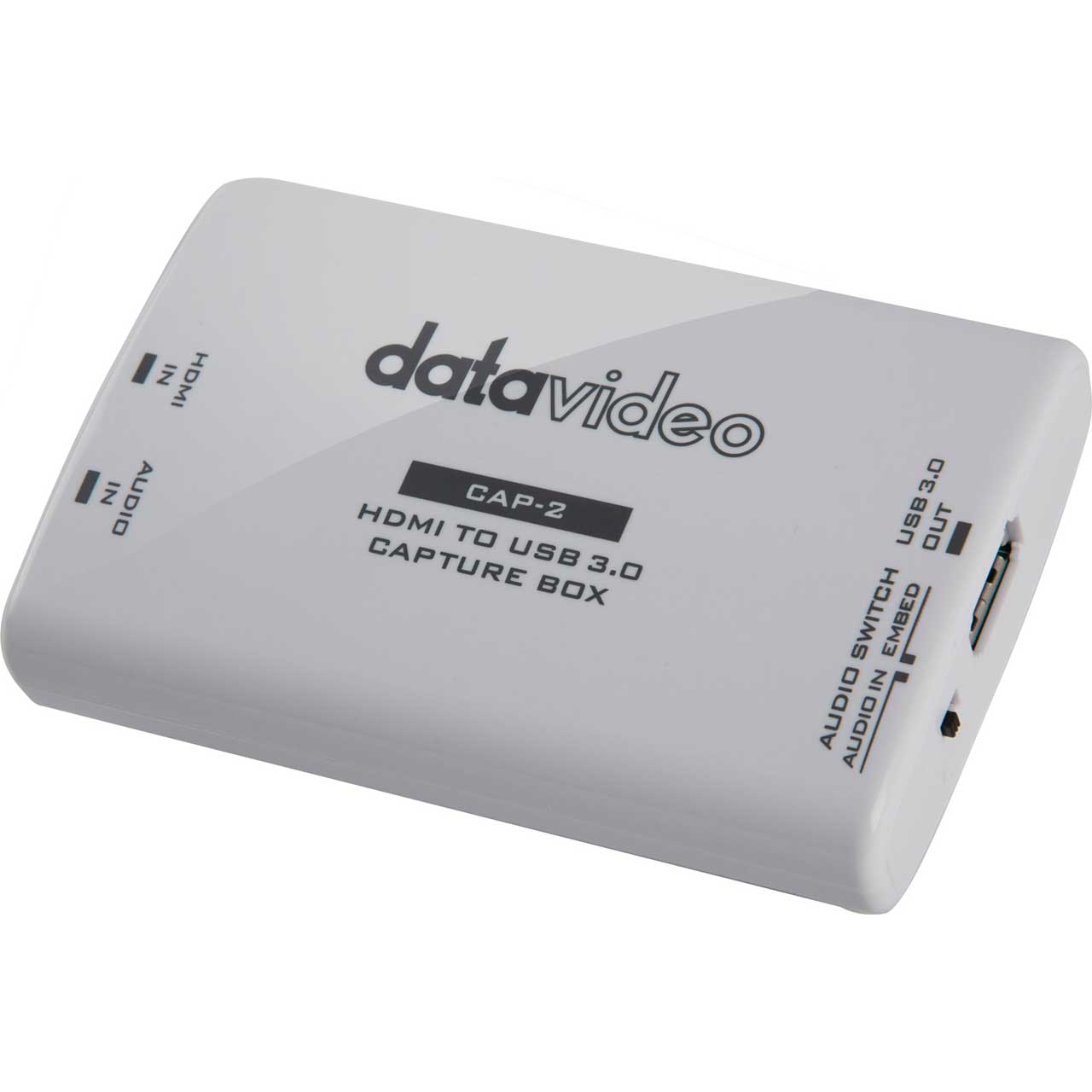

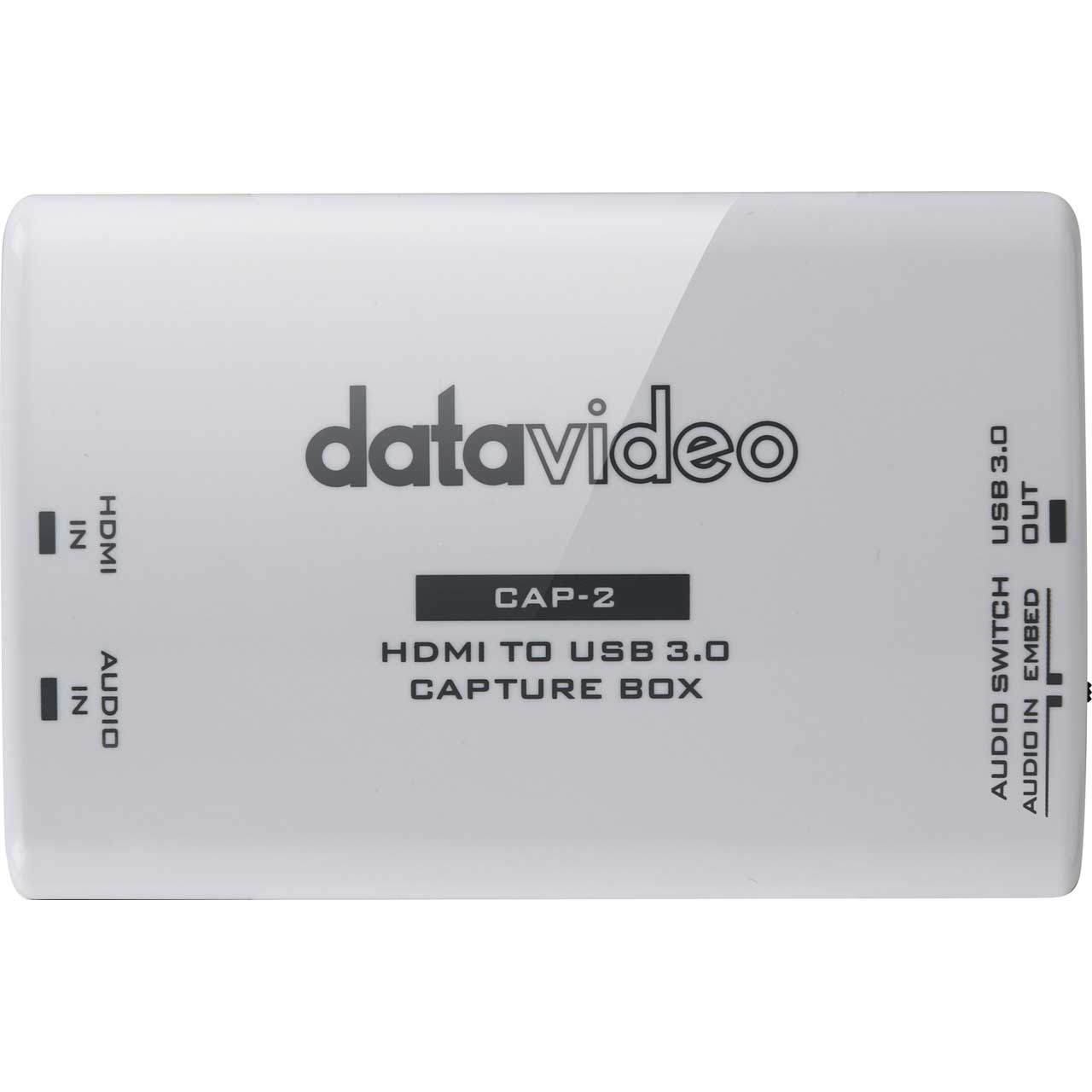

Datavideo CAP-2 HDMI to USB 3.0 Capture Box - Plug-and-Play - Up to 350Mbps (USB)

ITEM #: DV-CAP-2 MFG #: CAP-2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$279.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    CAP-2 - Overview

    Datavideo's CAP-2 HDMI to USB 3.0 Capture Box is an HDMI-USB Capturing device, which supports up to 1080p50/60. Plug and play in the various operating system. It features a stereo line in external audio, which can be switched as HDMI embedded audio or external line-in audio. There are more flexible and powerful settings for capturing.

    • Features:

      • USB 3.0 Interface
      • Plug-and-Play
      • Compatible with various operating systems
      • Stereo line in external audio

    • Specifications:

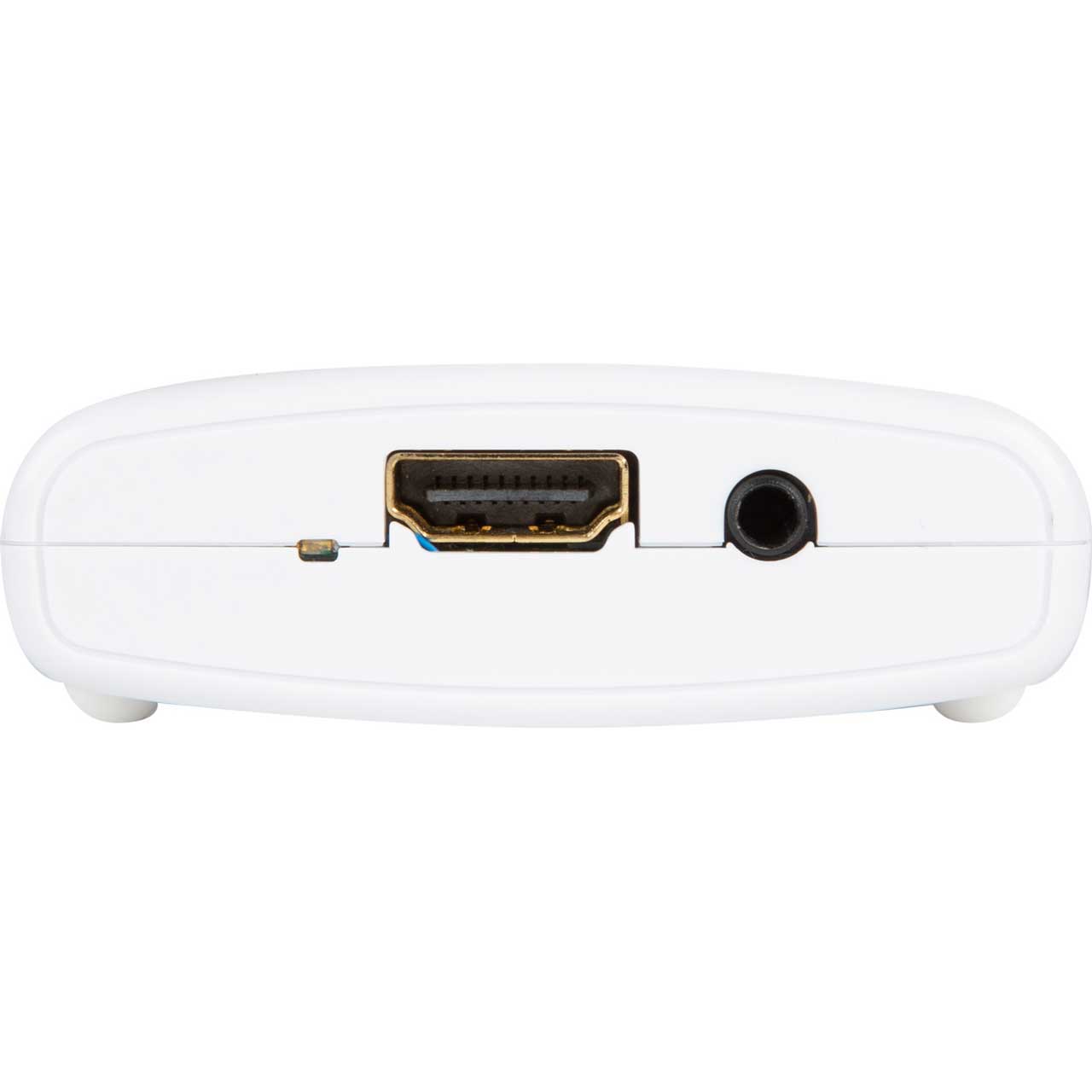

      • Input: 1x HDMI

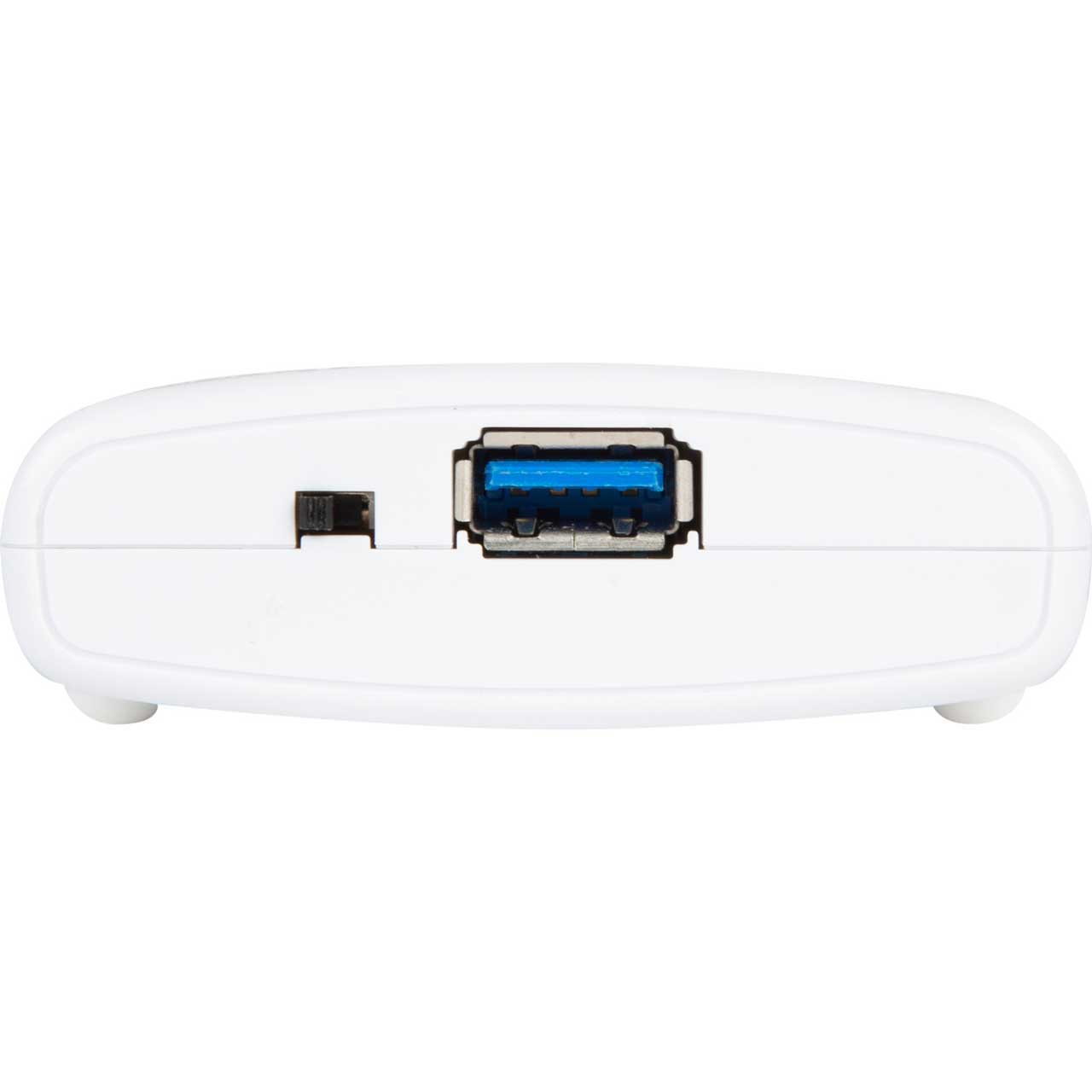

      • Output: 1x USB 3.0 (Micro B)
      • Input Video Bandwidth: 150MHz (pixel clock rate)
      • Output Video Bandwidth: Up to 350Mbps (USB)
      • Supported Input & Output Video Formats
        1920 x 1080p 60/59.94/50/30/29.97/25/24/23.976
        1680 x 1050p 60
        1600 x 1200p 60
        1440 x 900p 75/60
        1400 x 1050p 60
        1366 x 768p 60
        1360 x 768p 60
        1280 x 1024p 75/60
        1280 x 720p 60/59.94/50
        1024 x 768p 75/60
        800 x 600p 75/60
        720 x 576p 50
        720 x 480p 60
        640 x 480p 75/60
      • Supported Output Video Formats
        1920 x 1080p 60/50/30/25/24
        1680 x 1068p 60
        1440 x 1080p 60
        1440 x 896p 60
        1360 x 768p 60
        1280 x 768p 60
        1280 x 720p 60/50
        1024 x 768p 60
        960 x 536p 60
        848 x 480p 60
        768 x 576p 60
        720 x 480p 60/50
        640 x 480p 60
        640 x 360p 60
      • Audio Input: HDMI Embedded Audio & 3.5 mm stereo in
      • Audio Support: 2-Channel, 44.1 and 48KHz sample rate, up to 24-bit PCM
      • Capture Video Format: YUY2 (USB3.0), MJPG (USB2.0/3.0)
      • Firmware Update: Via USB
      • Firmware update: USB Port
      • Power Consumption: 2W
      • Operation Temperature: 32~104°F
      • Storage Temperature: -4~140°F
      • Humidity: 20~90% RH
      • Dimension (LxDxH): 4.13 x 2.67 x 0.9 Inches
      • Weight: 0.15 Lbs
      • Minimum System Requirement:
        Windows® 7(SP1) / Windows 10 / Windows 8.1 / Windows 7
        (x86, x64)
        Note: The driver is required for Windows 7 OS
        OS X (10.10 or above)
        Linux Ubuntu 14.04
        PC: Intel® CoreTM i5-4440 3.10GHz + NVIDIA® GeForce®
        GTX 660 or higher
        Laptop: Intel® Core i7-4810MQ + NVIDIA GeForce GTX 870M or
        higher 4GB RAM or higher

    • GTIN:

      0672255008706
