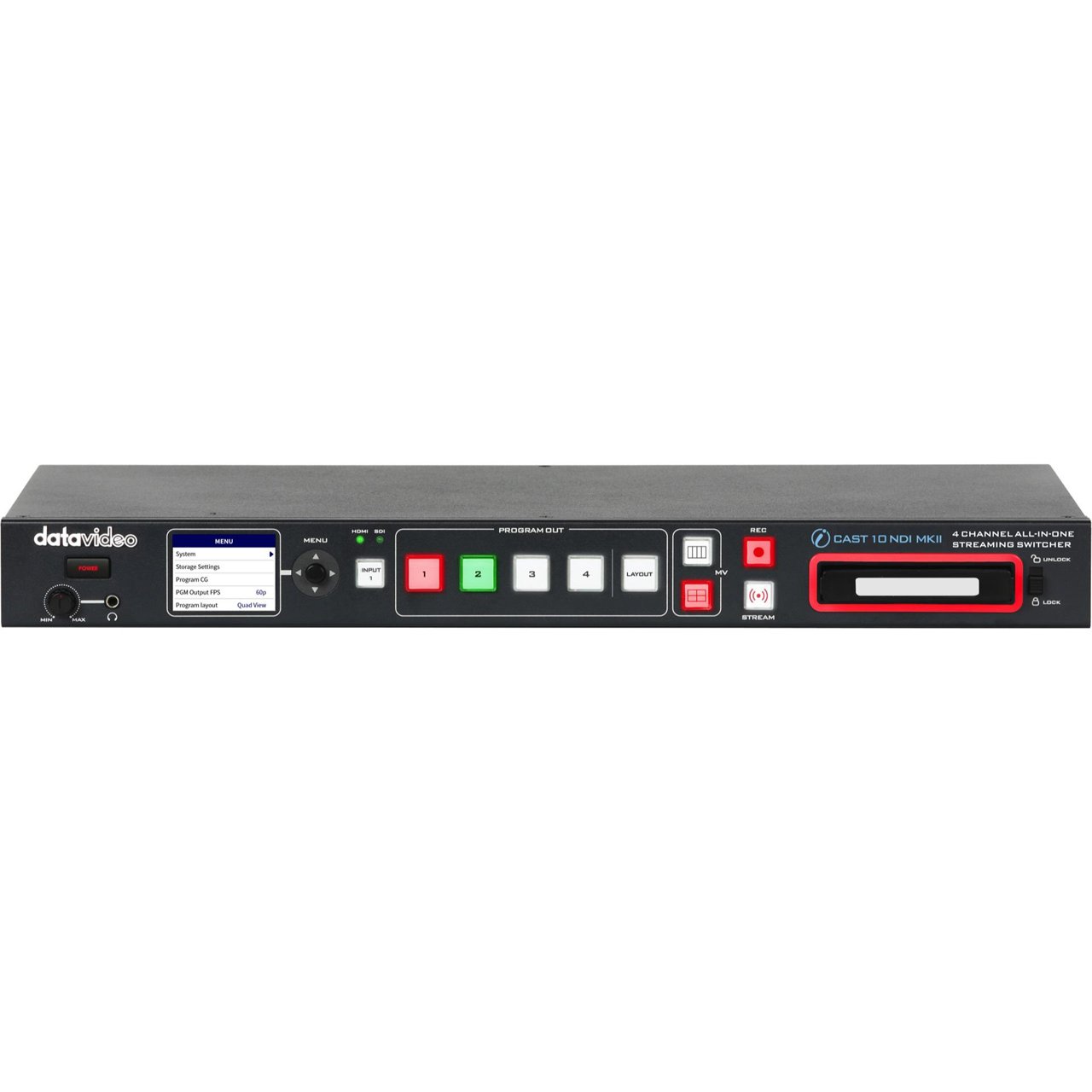

Datavideo ICAST-10NDI MKII 4-Channel 1080p All-In-One Streaming Switcher w/ Streaming Encoder & Recorder/ UVC Output

ITEM #: DV-ICAST-10NDIM2 MFG #: ICAST-10NDIM2

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$3,149.00

Our Price:

$2,914.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ICAST-10NDIM2 - Overview

The Datavideo ICAST-10NDIM2 is a hybrid event switcher designed for classroom, lecture capture, conferencing with all the I/O needed for producing, streaming, recording, and conferencing with Zoom, MS Teams, and other platforms. A 2 Inch LCD screen interface with presets for screen layouts, camera angles, and dedicated buttons for activating event streaming and recording.

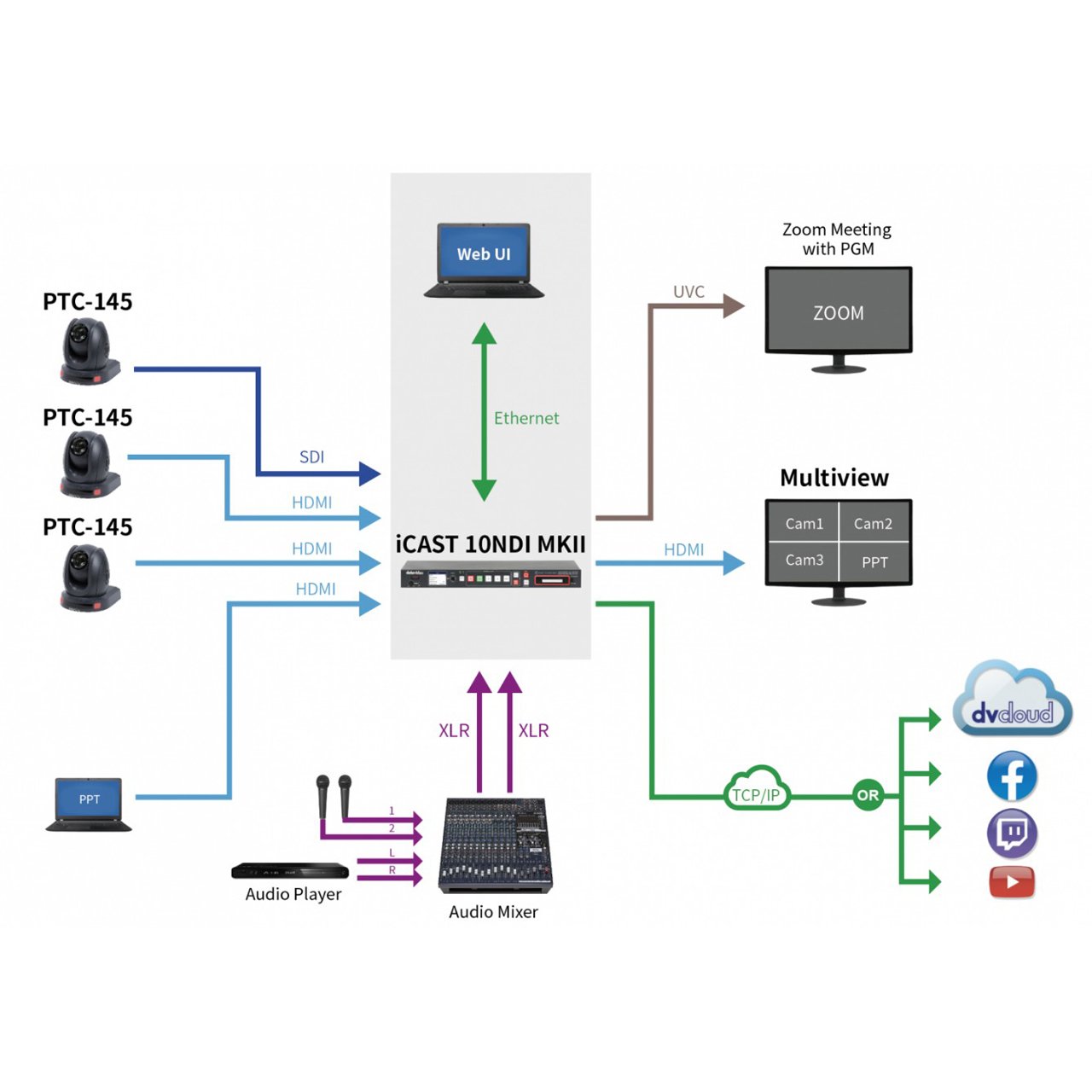

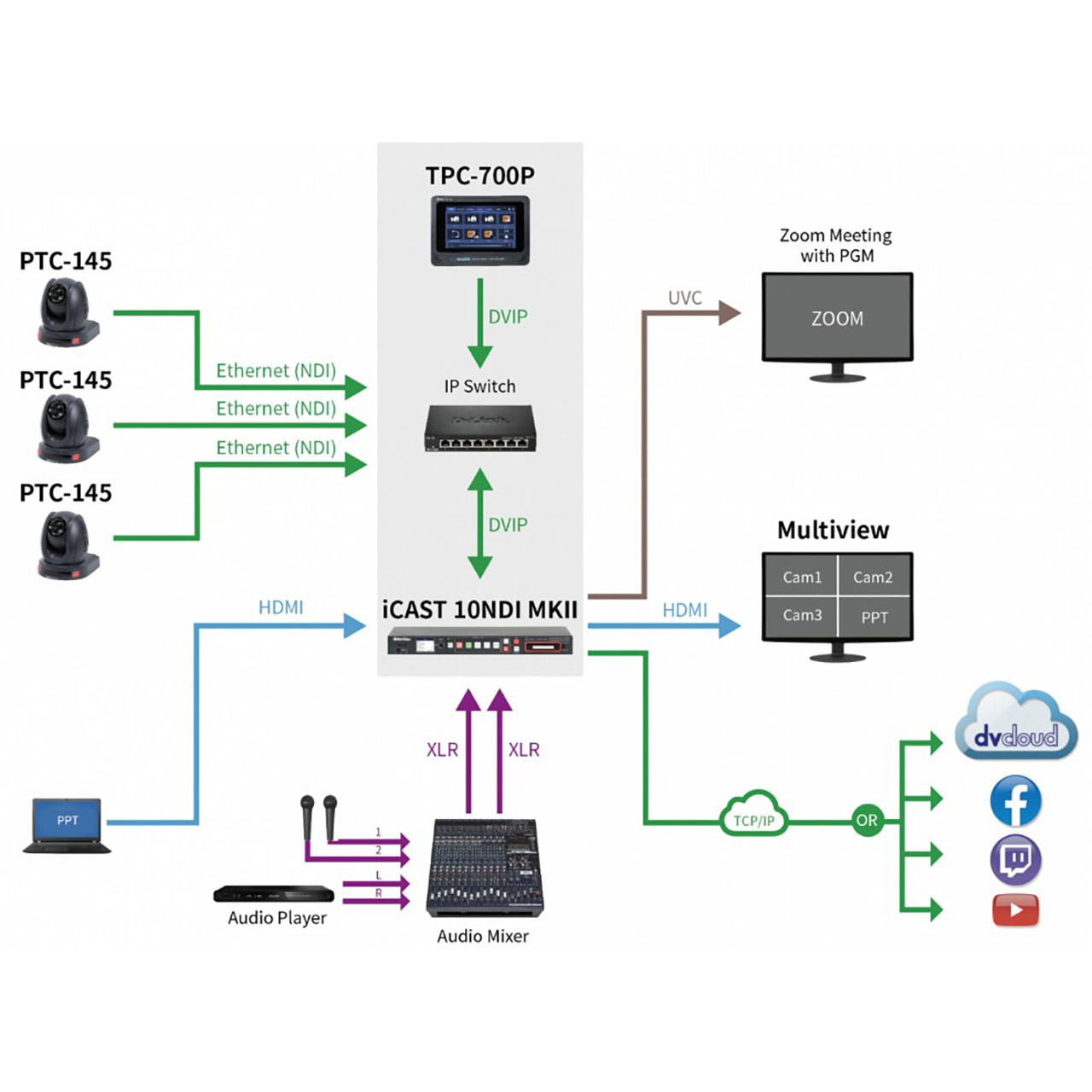

Produce Hybrid Events Using an All-in-one Switcher
iCAST 10NDI MKII is an innovative live production solution that combines a switcher, camera controller, and streaming encoder into a single compact device. Connect various inputs, such as PTZ cameras, and laptops for presentation slides, to effortlessly create visually engaging presentations.With its built-in streaming encoder and recorder, you can conveniently stream your main program (PGM) output to multiple platforms and simultaneously record it onto an SSD card. This ensures your content is readily available for live broadcasting and later use or archiving.iCAST 10NDI MKII is undoubtedly a highly efficient and user-friendly solution for video streaming and recording.

UVC output for Zoom Meeting, Microsoft Teams application
The iCAST 10NDI MKII now supports UVC output, making it even more versatile for video conferencing applications like Zoom Meetings and Microsoft Teams. With this new feature, users can seamlessly connect the iCAST 10NDI MKII to their computers as a webcam, ensuring high-quality video output without additional capture devices. This enhancement provides a simple and efficient workflow for professional virtual meetings and live productions.

Add dvCloud to enhance your streaming experience
DvCloud, a paid service, is a professional streaming platform developed by Datavideo. Once you've logged in, you can manage all the streaming channels that you have created. You can stream your video to at most 25 platforms at the same time without any time limit while backing up the video on the cloud automatically for future downloads. iCAST 10NDI MKII, SRT and dvCloud form a low latency, secure and reliable streaming workflow.

  • Features:

    • Seamless switching
    • Multichannel audio mixing
    • Video Streaming
    • Video Recording
    • Character Generation
    • System Control

  • Specifications:

    • Video Standard: HD & SD
    • Video Input Format:
      - 1080p60/59.94/50
      - 1080p30/29.97/25/24/23.98
      - 1080p60/59.94/50
      - 720p60/59.94/50
    • Output:
      -1080p60/59.94/50→1080p60/59.94/50
      -1080p30/29.97/25/24/23.98→1080p30/29.97/25/24/23.98
      -1080/60/59.94/50→1080p30/29.97/25
      -720p60/59.94/50→/720p60/59.94/50
      -480/59.94, 576p50→/480p29.97, 576p25 (not supporting interlace)
    • Down-Converted Output:1080p output

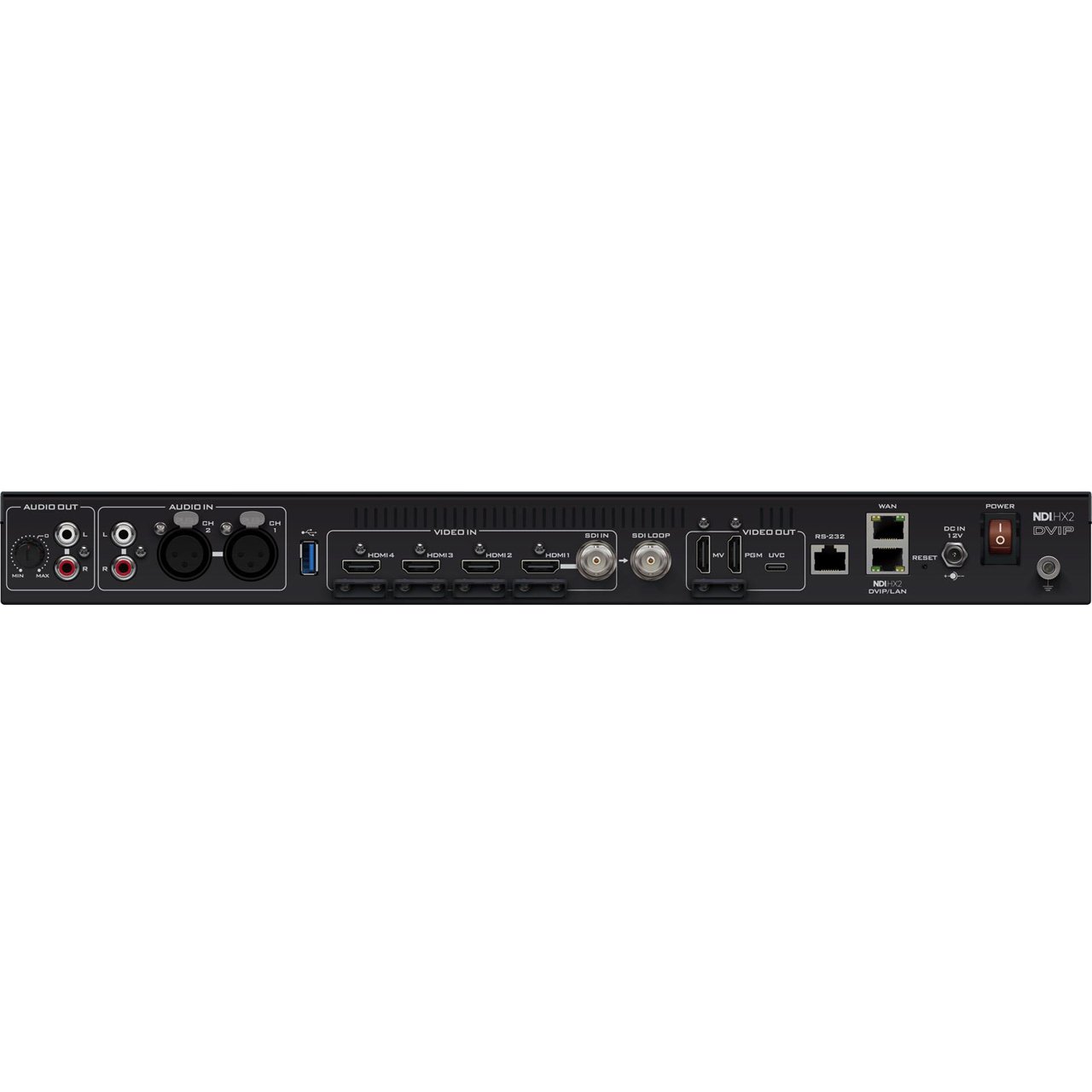

    • Built-In Multi-View Monitoring Out: 1x HDMI
    • Analog Audio Input: 2x XLR Balanced audio
    • RCA Unbalanced Audio: 1 pair, SDI embedded audio, HDMI embedded audio, IP Audio (RTSP AAC-ADTS, PCM) - (External and embedded audio mixable)
    • Analog Audio Output: 1x 3.5mm (headphone, PGM audio monitoring)
    • Audio Delay Calibration: Each channel delay time 0ms - 3000ms
    • Title Creator: Web GUI
    • Picture in Picture: Yes (PGM)
    • Logo Insertion: Yes
    • PC Remote Control: Web UI for system configuration and control
    • Serial Port Control: RS-232 (RJ-45)
    • Built-In Audio Mixer:Yes
    • Storage: SATA (6Gb/s)
    • Recording File System: FAT, exFAT
    • Recording File Format: MP4
    • Video Encode: H.264
    • Audio Encode: AAC-LC 48KHz, 16bit, 128K or 256K or 384K
    • Streaming Protocol: DHCP client, TS over UDP (unicast &multicast)RTSP over HTTP/TCP/UDP, RTMP (Publish)/RTMPS, HLS SRT Caller and Listener, Web RTC (encode/decode)NDI | Hx
    • Firmware Update: Web UI (network)USB 3.0 (phase 2)
    • Special Features: Vertical video: crop or rotate/multiview
    • Chassis: 1U rack mount
    • Dimension (LxWxH):
      - w/o Rack Mount Ear: 17.32" x 11.1" x 1.73" (440mm x 284mm x 44mm)
      - w/ Rack Mount Ear: 19.0" x 11.1" x 1.73" (484mm x 284mm x 44mm)
    • Weight: 6.45lbs (2.92kg)
    • Power: DC 12V 2A 24W
    • Operating Temp Range: 122°F - 104°F (0°C - 40°C)

  • Item Includes:

    • 1 x iCast 10NDI MKII main unit
    • 1 x DC 12V Power Adaptor
    • 2 x 1U Rack Mount Ear
    • 1 x 2.5" Removable HDD/SSD Enclosure
    • 4 x Screws for 2.5 Removable HDD/SSD Enclosure
    • 1 x Blank Label
    • 1 x SATA to USB 3.0 Cable
    • 6 x M4 Screws for Rack Mount Ear
