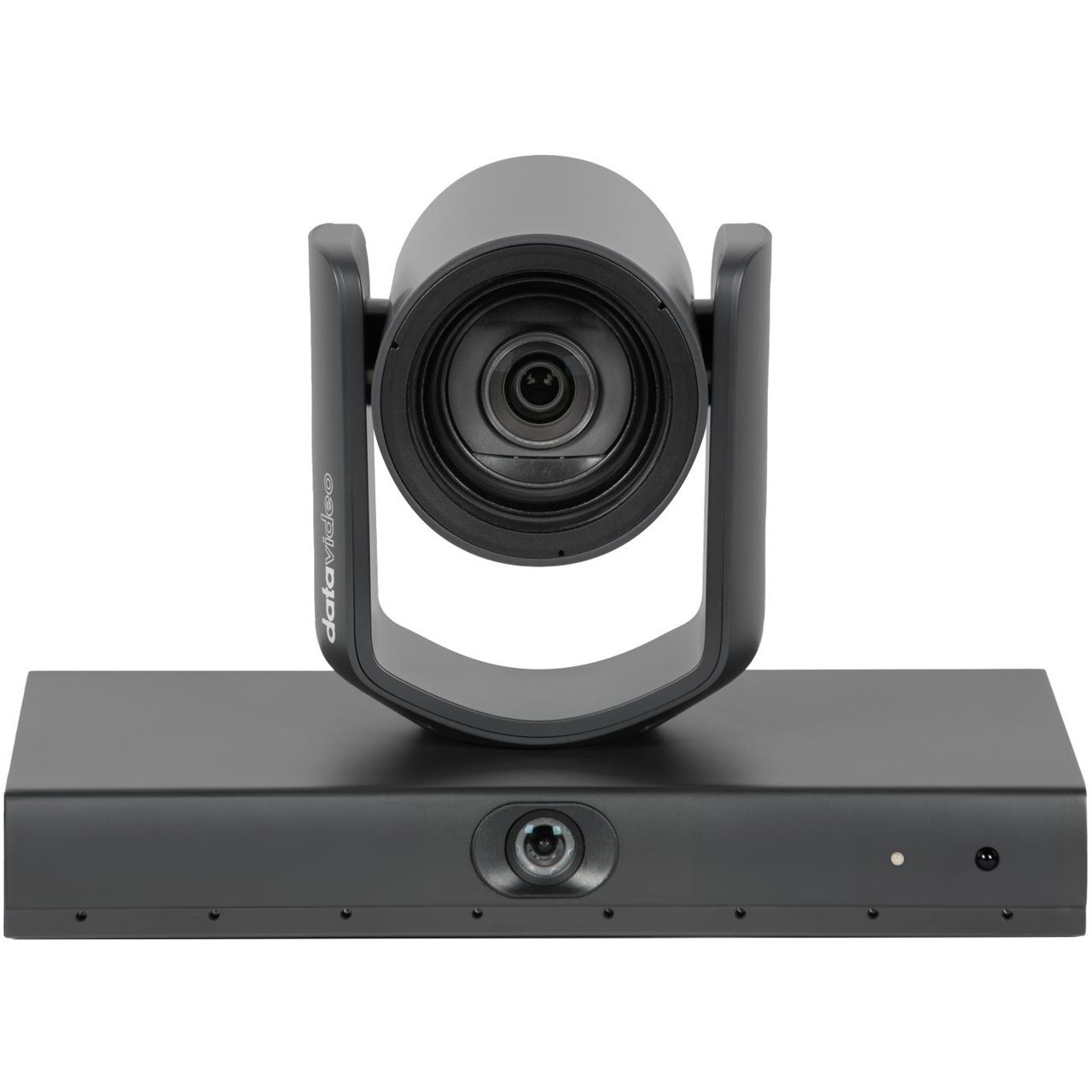

Datavideo VTC-100 12x 1080p AI Voice-Tracking Conferencing PTZ Camera - NDI HX - 3G-SDI - UVC & HDMI Outputs

ITEM #: DV-VTC-100 MFG #: VTC-100

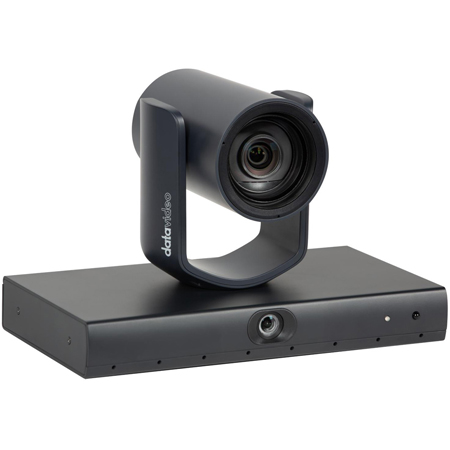

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$2,399.00

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup


VTC-100 - Overview

AI-Enhanced Voice Tracking and Auto-Framing Dual Lens Conferencing Camera

The Datavideo VTC-100 is an AI-powered voice tracking camera with a dual-lens design - combining a wide panoramic view and a close-up PTZ lens. It automatically detects and frames the active speaker in real-time, delivering smooth, professional video without manual control. Ideal for hybrid meetings, classrooms, and live presentations.

Simultaneous Output of Multiple Signal Formats
Supports SDI, HDMI, and UVC video output. Built-in H.264, H.265, and Motion JPEG encoding allows simultaneous live streaming to two platforms, meeting both on-site and online playback requirements.

Adopts High-Quality and Reliable Sony CMOS Sensor
Datavideo PTZ cameras utilize high-quality Sony CMOS sensors to deliver exceptional image quality and reliability. Renowned for their performance in various lighting conditions, Sony CMOS sensors are widely used in broadcast, cinematic, and professional video cameras. Additionally, these sensors offer lower power consumption, which leads to reduced heat generation and a longer camera lifespan.

12x Optical Zoom
The Datavideo VTC-100 is equipped with a 12X optical zoom lens, allowing you to capture crisp, detailed close-ups without sacrificing image quality. Whether you're filming in a studio, classroom, or conference environment, the 12X zoom provides the flexibility to frame your subject perfectly from a distance - ideal for presentations, panel discussions, or huddle room where space and camera placement vary. This professional-grade zoom capability ensures sharp, natural-looking footage even at full zoom, making the VTC-100 a reliable choice for high-quality video conferencing.

Dual-Lens Camera for Precise Tracking and Full Coverage
The dual-lens camera system accurately detects subject position and tracks movement with precision. The 12x optical zoom lens delivers crystal-clear close-ups, while the secondary 110° ultra-wide lens provides a full HD view of the entire scene. Together, they create wide framing and precise tracking that automatically adapts to any space or distance. Even in challenging environments, the system ensures stable and reliable performance.

High Definition Image
The Datavideo VTC-100 is a professional-grade video camera designed to provide crystal-clear high-definition imags. Engineered with precision optics and advanced processing technology, the VTC-100 ensures that every frame is captured with outstanding clarity, vibrant colors, and exceptional detail.

Ideal for conferencing, education, corporate presentations, and live event production, the VTC-100 integrates seamlessly into multi-camera workflows. Its ability to consistently deliver sharp, high-definition video makes it a reliable choice for both professional broadcasters and AV system integrators.

Advanced 8-Microphone Voice Detection
The built-in 8-microphone array accurately detects voice direction. Once a voice is identified, the panoramic lens confirms the speaker's location, and the PTZ lens locks in with fluid, cinematic framing - creating an immersive and lifelike video experience.

  • Features:

    • AI Auto-Tracking - Dual-lens system ensures precise subject tracking
    • Stunning Image Quality - Broadcast-grade 1/2.8" CMOS sensor delivers Full HD at 60fps
    • Versatile Connectivity - SDI, HDMI, UVC, and NDI HX3 support, plus built-in streaming
    • Easy Control - Operate via controllers, apps, switchers, or web UI
    • Built for One-Person Operation - No camera operator or technical team required-perfect for lecturers, trainers, and solo presenters
    • Lightweight & Compact - Fits easily into small conference rooms or desktop setups, yet powerful enough to handle professional broadcast needs

  • Specifications:

    • Video format/Resolutions:
      - 1080p60/59.94/50/30/29.97/25
      - 720p60/59.94/50
    • Image Sensor: Sony 1/2.8" CMOS
    • Effective Pixels (approx.): 2.14MP
    • S/N Ratio: ≥45dB
    • Min. Illumination: 0.5 Lux @ (F1.6, AGC ON)
    • Electronic Shutter: 1/25s ~ 1/10000s
    • Zoom Ratio: 12x Optical Zoom, 16x Digital Zoom
    • Effective Zoom Ratio: 12x
    • Iris Control: Auto / Manual
    • Digital Noise Reductions: 2D/3D
    • On-Screen Display: English/Simplified Chinese/Traditional Chinese
    • White Balance: Auto, OnePush, Manual
    • AGC / Gain Control: Yes
    • HDR/WDR: WDR
    • Mirror / Flip Image: Yes
    • Focus Mode: Auto / Manual
    • Panning / Tilting Range:
      - Pan: ±130°
      - Tilt: +90° to -30°
    • Panning / Tilting Speeds:
      - Pan: 0.2 ~ 90°/Sec
      - Tilt: 0.2 ~ 60°/sec
    • Preset: 254
    • Focal Lengths:
      - f = 4.1 mm (wide) to 49.2 mm (tele)
      - F1.6 (wide)~F2.8 (tele)
    • Field of View (Horizontal, Wide):
      - Main: 70.2°
      - Panorama: 110°
    • Image Compensation: Backlight Compensation

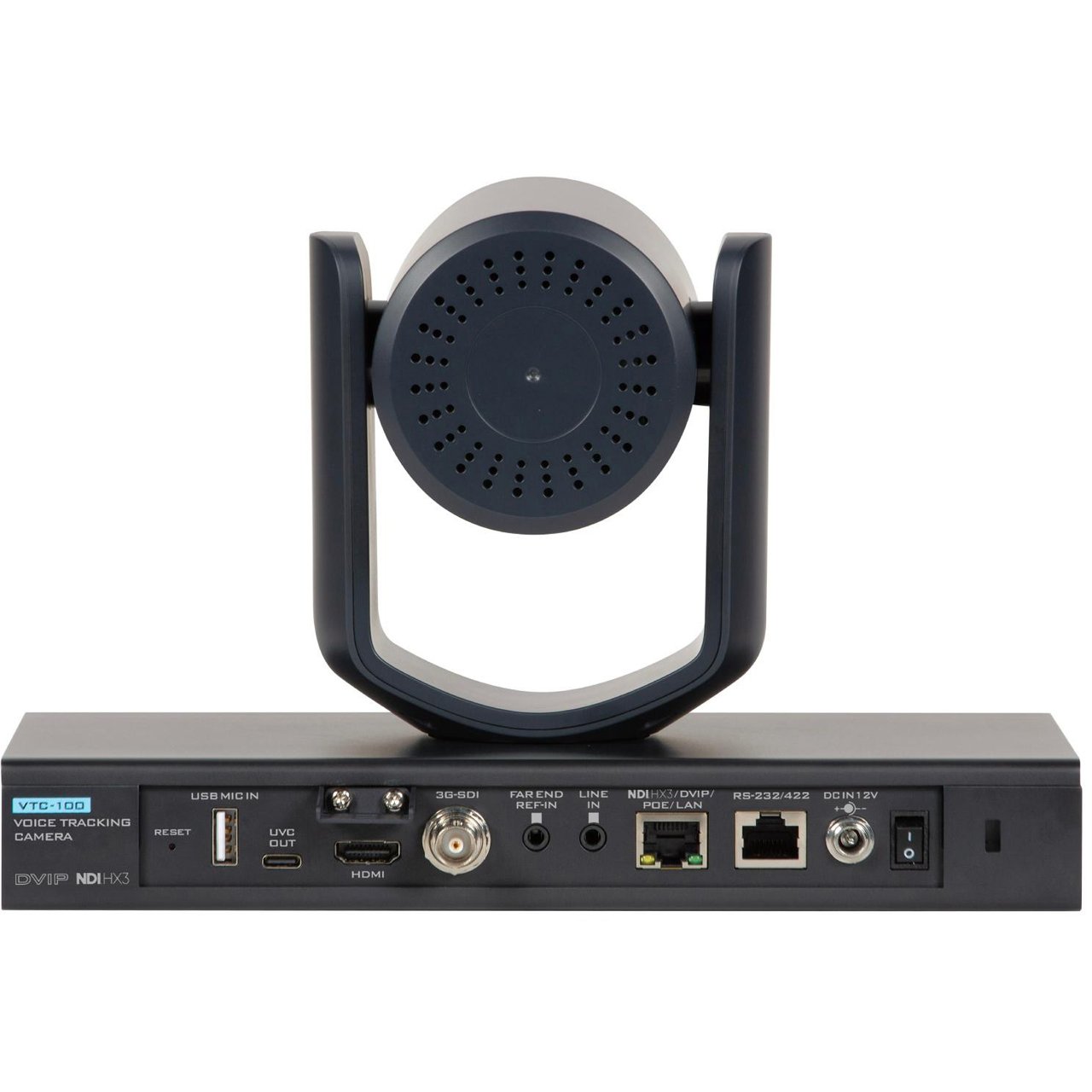

    • Video Outputs:
      - HDMI 1.4b x1
      - 3G-SDI x1
      - UVC output x1
      - 10/100M RJ45 (PoE) x1
    • Audio Inputs:
      - 3.5mm x1 (Line in)
      - USB-A x1 (Mic in)
    • Tally LED: No
    • Control Protocol: Pelco-D, Pelco-P, VISCA, VISCA over IP, NDI, DVIP, ONVIF
    • Remote Control Interface:
      - IR
      - Web UI
      - RS-422/RS-232 (RJ-45)
      - DVIP
      - NDI
    • Video Compression Format: H.264/H.265/MJPEG (UVC only)
    • Audio Compression Format: AAC, PCM(UAC), G711 (Onvif)
    • Audio Bitrate: 48Kbps, 64Kbps, 96Kbps, 128Kbps
    • Streaming Protocols: RTSP, RTMP(S), ONVIF, Multicast, SRT, NDI|Hx3
    • First Stream Supported Resolutions:
      - 1920x1080
      - 1280x720
      - 1024x576
      - 960x540
      - 640x480
      - 640x360
    • Second Stream Supported Resolutions:
      - 720x480
      - 640x360
      - 640x480
      - 320x240
    • Video Bitrates:
      - 32Kbps ~ 20Mbps (First Stream)
      - 32Kbps ~ 5Mbps (Second Stream)
    • Video Bitrate Mode: VBR, CBR
    • Encoding Frame Rates:
      - 50Hz: 1-50fps
      - 60Hz: 1-60fps
    • POE: IEEE 802.3af
    • F/W Update: Via Web UI
    • IR Control: Yes
    • Camera Control Units:
      - RMC-2P
      - RMC-180 series
      - RMC-300 series
      - iCast mini
    • Tripod Mount: 1/4-20 UNC
    • Optional Accessories: VTC-100 Wall Mount
    • Color: Black
    • Dimensions (LxWxH): 9.65" x 6.06" x 6.46" (245 x 154 x 164mm)
    • Weight: 4.4lbs (2Kg)
    • Operating Temp. Range: 32 to 104°F (0 to 40 °C)
    • Power: DC 12V 2A (18W)

  • Item Includes:

    • 1x VTC-100
    • 1x IR remote controller
    • 1x Power Cord
