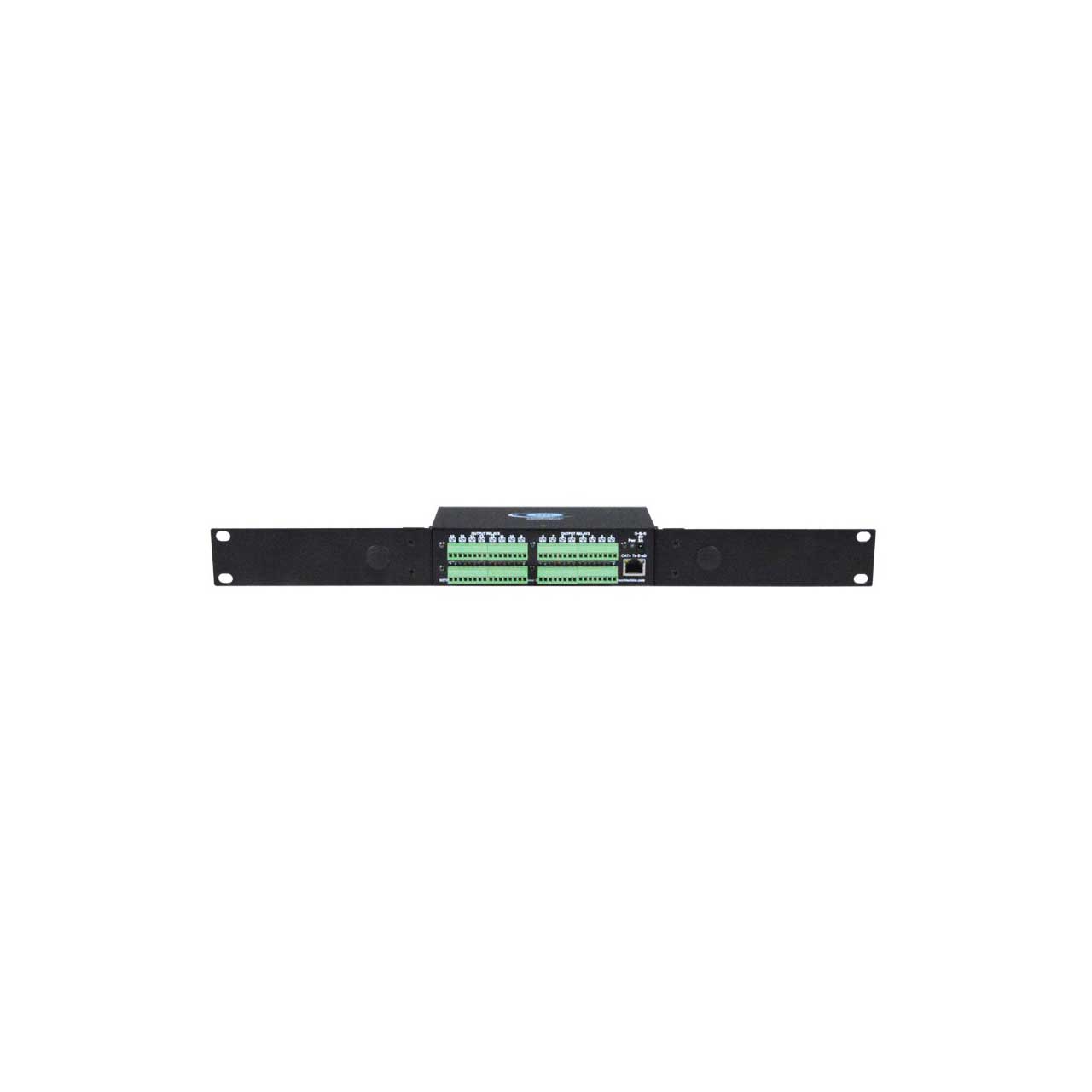

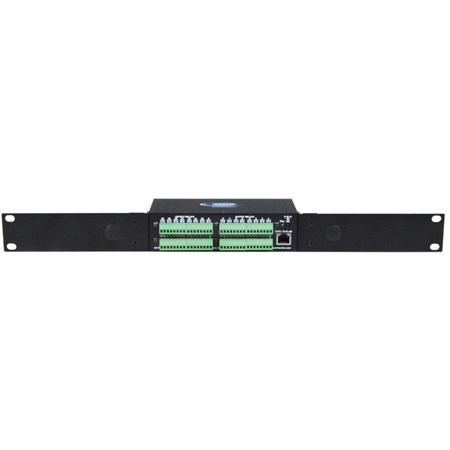

NTI E-DI16DOR16-V2R 1RU Rackmount Digital Input/Output Expander for NTI Environmental Monitoring System

ITEM #: E-DI16DOR16-V2R MFG #: E-DI16DOR16-V2R

Primary Image
Network Technologies Inc
Free Shipping with $49 Minimum Order

Our Price:

$320.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

E-DI16DOR16-V2R - Overview

The NTI E-DI16DOR16-V2R is a 1RU Rackmount Digital Input/Output Expander with Normally-Open Relay Contact Outputs. It adds 16 digital inputs and 16 digital normally-open relay contact outputs to the E-2D/5D/16D Environment Monitoring System (system components sold separately), and interfaces via the RJ45 Sensor Port. The E-DI16DOR16-V2R also includes digital outputs with a normally-open SPST relay design for the control of up to 16 different devices that operate at a maximum 125VAC (0.5A maximum) or maximum 30VDC (1.0A maximum).

Each E-16D supports up to 16 E-DI16DOR16-V2.
Each E-5D supports up to 5 E-DI16DOR16-V2.
Each E-2D supports up to 2 E-DI16DOR16-V2.

  • Features:

    • Supports CAT5/5e/6 cable up to 500 ft. (152.4 m)
    • Over-voltage surge protected
    • Includes 5V/3A power supply
    • Accepts 26 to 16AWG wire


  • Specifications:

    • Digital inputs:
    • 16 screw terminal pairs for connecting dry contact devices
    • One screw terminal pair for tachometer - 0 to 255 Hz
    • Potential free Voltage range - 0 to +36VDC

    • Digital outputs:
    • 16 screw terminal pairs for normally-open relay contact outputs.

    • Potential free Rated switching load:
    • 0.5A @ 125VAC, 1A @ ±30VDC, 0.5A @ ±48VDC.

    • Galvanic isolation:
    • 1kV Fused

    • Control via SNMP:
    • Requires read-write community configuration.
    • Digital inputs are fixed values (not writable) while output relays are writable.
    • Locate OIDS using a MIB browser.

    • Current consumption:
    • 75mA @ 5VDC

    • Regulatory approvals:
    • RoHS

    • MTBF:
    • 650,166 hrs

    • Operating temperature:
    • 32 to 158°F (0 to 70°C)

    • Storage temperature:
    • -4 to 158°F (-20 to 70°C)

    • Compatible with E-FSC Fiber Converter/Extender:
    • Use to extend sensor up to 1.2 miles (2 km) from the ENVIROMUX unit.


  • Item Includes:

    • 1x E-DI16DOR16-V2R 1RU Rackmount Digital Input/Output Expander
    • 1x 5V/3A power supply


  • Warranty:

    • 2 year warranty


  • GTIN:

    0817218394490
