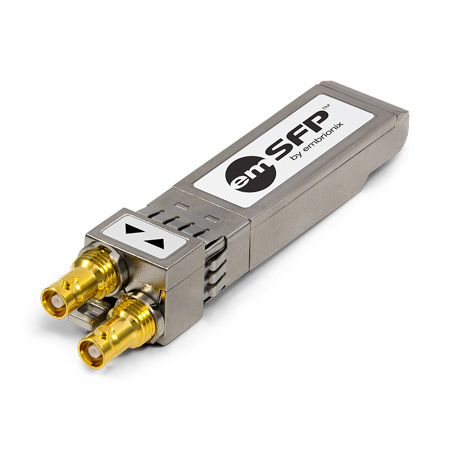

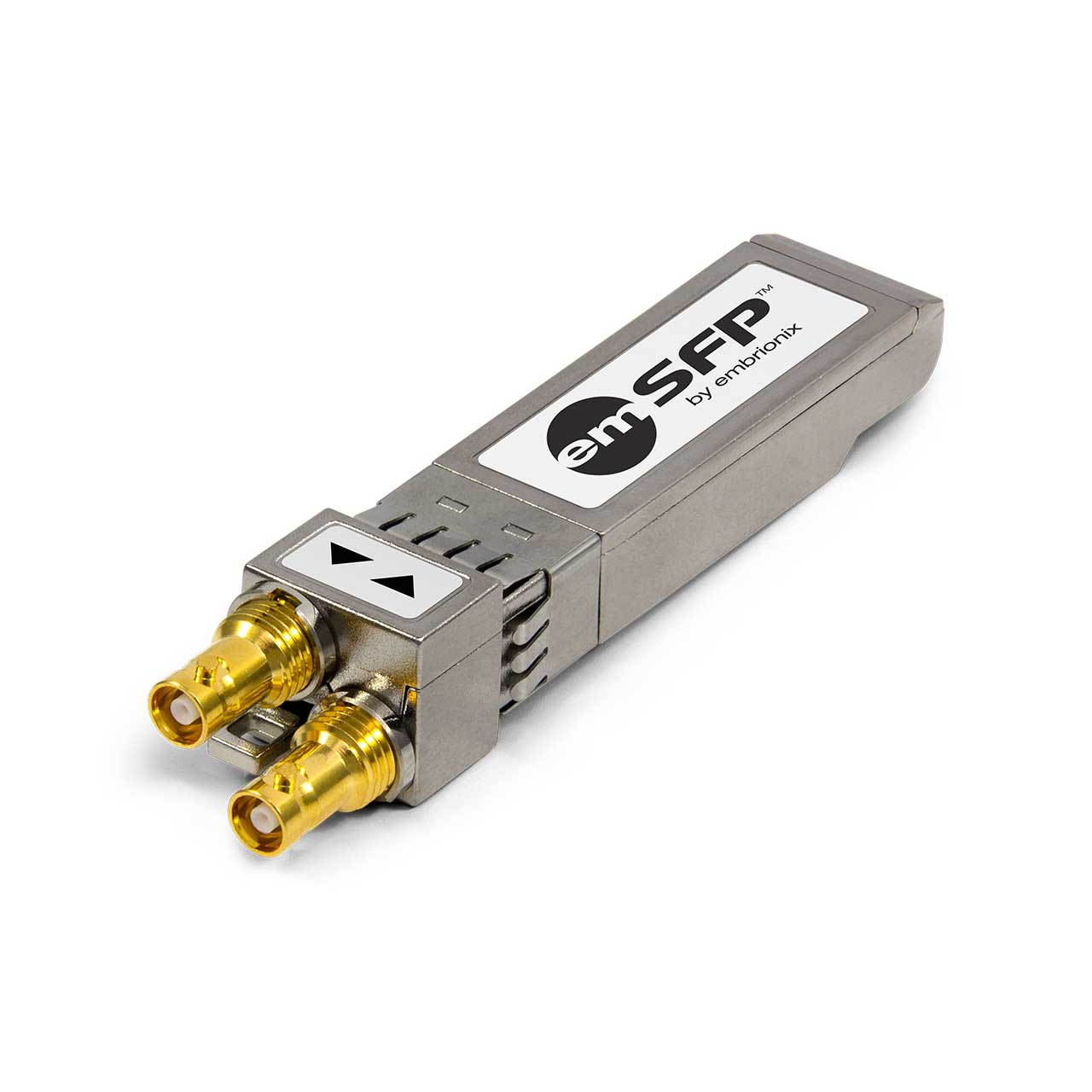

Riedel HD-BNC Encapsulator (2x Sender) emSFP-Gateway MSA - Installed Inside 10GE IP Switches

ITEM #: EB22HDRT-LM-0514 MFG #: EB22HDRT-LM-0514

Primary Image
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    EB22HDRT-LM-0514 - Overview

    The Embrionix EB22HDRT-LM-0514 software-defined SFP (emSFP) is an agile platform that can be used as a gateway converter or many other processing function. The SFP is installed inside an IP switch and can receive two SDI input on the connector side and creates multiple IP streams to the host connection. The platform can run different software defining the functionality of the device. Each software program is available as a separate option via a license program. The SFP can be defined to run ST2022-6, ST2110, ASI to IP and many other functions as they become available.
    Please contact Embrionix team to get the up-to-date list of software.

    • Features:

      • Software defined platform capable of running different programs including ST2110, ST2022-6/7, ST2202-1/2 encapsulation
      • Zero additional footprint
      • Modularity of Gateway process by one channel
      • Future-proof format flexible agility
      • Low power consumption
      • Simplified setup and control
      • Simple Restful API for third party control system

      • Resolves interoperability between multiple formats/standards
      • Supports of ST-2022, AIMS TR-03, AES67 and ASPEN

    • Specifications:

      • High-density and future-proof architecture
      • Small form factor direct utilization in COTS
      • Pathological signal support
      • Monitoring and diagnostics at the edge of your product via API
      • In field updatable
      • Discovery mechanism (NMOS)
      • Automatic assignments of IP addresses (DHCP)
