Riedel EB22HDRT-LM-0516 Software Defined emSFP (2x Receiver) - MSA/HD-BNC - 10GE IP Host

ITEM #: EB22HDRT-LM-0516 MFG #: EB22HDRT-LM-0516

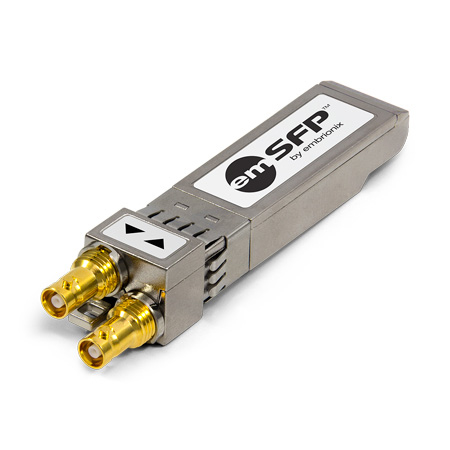

Primary Image
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    EB22HDRT-LM-0516 - Overview

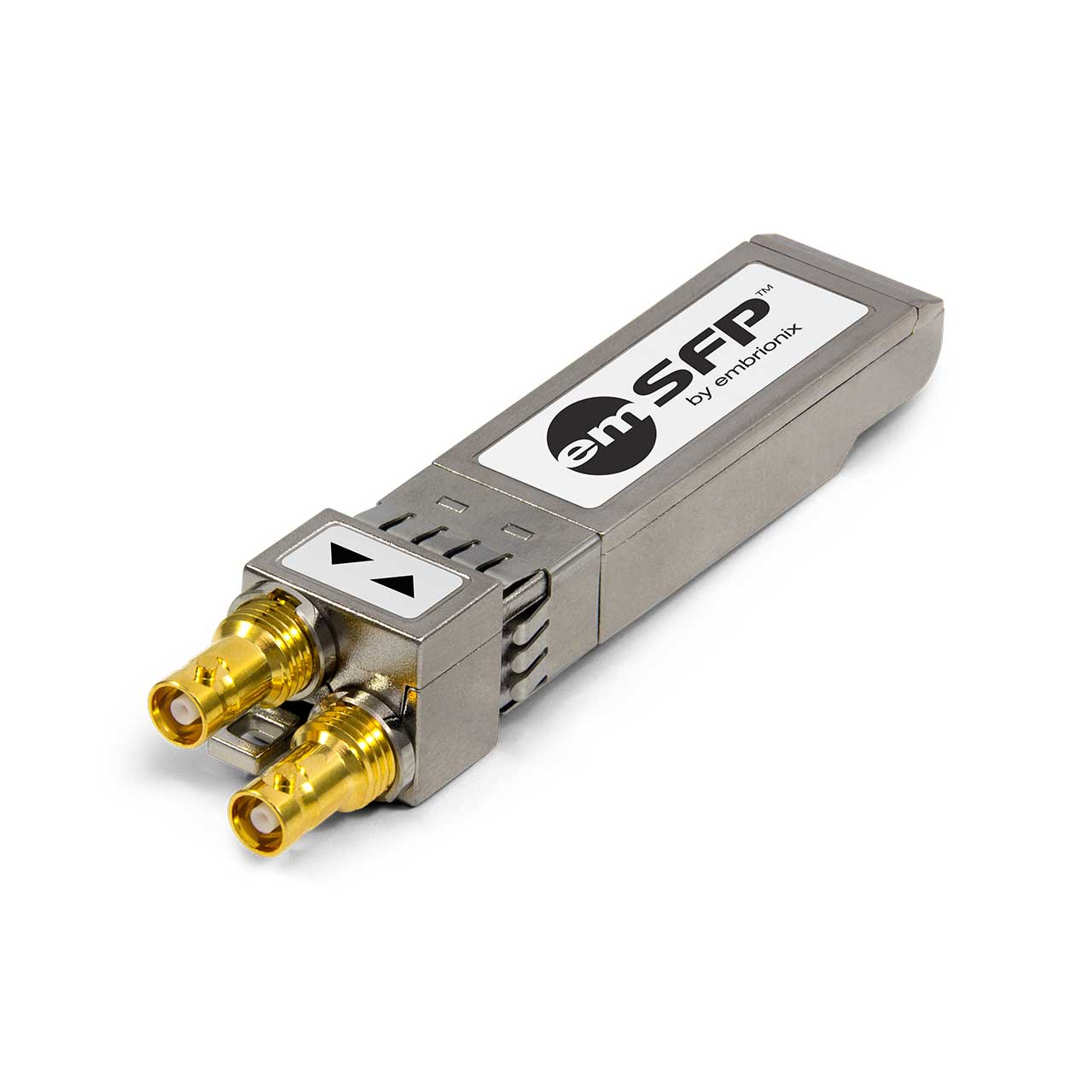

    The Riedel EB22HDRT-LM-0516 is a Software Defined SFP+, 3G-SDI Dual Transmitter (HD-BNC) designed to transmit two SDI signal up to 3Gbps over 75ohms coax as defined in ST424, ST292, ST259, DVB-ASI. The module is carefully designed to support SDI pathological test patterns. The EB22HDRT-LM0516 contains two cable drives. The host interface is option dependant. This Software Defined SFP features a programmable processing unit providing highest achievable versatility.

    The EB22HDRT-LM-0516 provides module identification information and diagnostic through a 2 wire serial interface and the module is controllable by the IP port. It is also hot pluggable/removable solution for in field system upgrade and maintenance. The EB22HDRT-LM-0516 is interchangeable with others MSA datacom pinout emSFP/emSFP+ improving product flexibility. The module is ST424, ST292, ST259, DVBASI compliant resulting in quick time-to-market and reduced development efforts and cost. The EB22HDRT-LM-0516 is Pbfree and RoHS compliant.

    • Features:

      • ST424, ST292, ST259, DVB-ASI compliant
      • HD-BNC connectors
      • Supports video pathological patterns for SD-SDI, HDSDI and 3G-SDI
      • Hot-pluggable
      • Control & Monitoring via serial interface: Alarm reports; Voltage & Temperature monitoring; Module Information
      • Low Power Consumption
      • Pb-free and RoHS compliant
      • Operating temperature range: -20C to 85C
      • Mechanical compliant with SFF-8431 & SFF-8432
      • Ganged Cages & Stacked Cages mounting supported

    • Specifications:

      • High-density and future-proof architecture
      • Small form factor direct utilization in COTS
      • Pathological signal support
      • Monitoring and diagnostics at the edge of your product via API
      • In field updatable
      • Discovery mechanism (NMOS)
      • Automatic assignments of IP addresses (DHCP)
