Eclipse® HX Matrix Intercom Systems, powered by EHX configuration software, deliver a redundant, modular, and scalable communications solution.
Designed as a complete, purpose-built ecosystem operating without external adapters, Eclipse HX systems consist of robust central Frames. These are populated by versatile Interface Cards supporting local connectivity from analog to Dante, AES67, and SMPTE 2110, alongside Clear-Com's patented Instant Voice for global connections.
EHX is unified configuration software managing setup, daily workflows, and system health, delivering effective intercom to User Stations that best fit user requirements, such as V-Series IrisX high-density Keypanels, FreeSpeak wireless beltpacks, and virtual clients like Agent-IC and Station-IC, locally and globally.

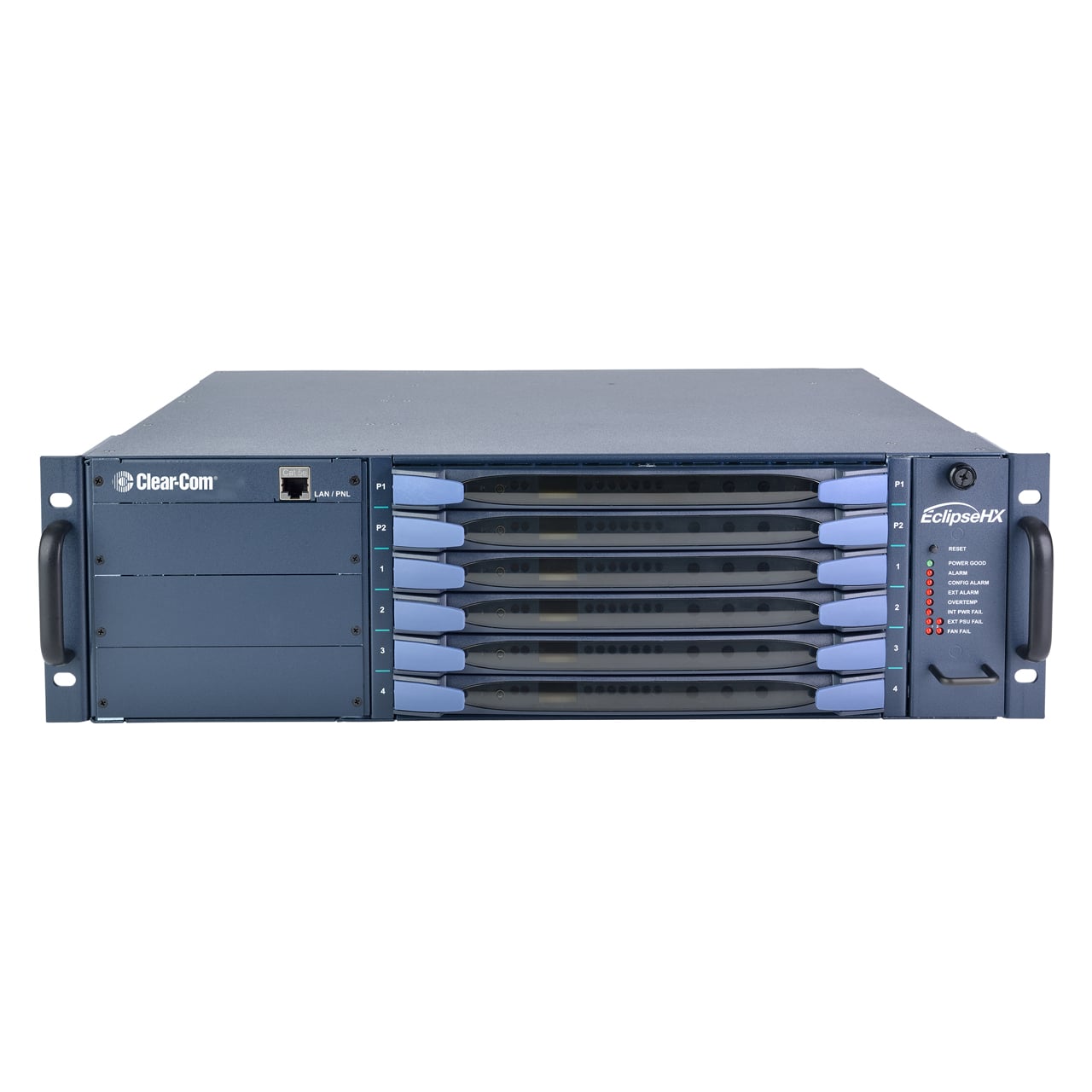

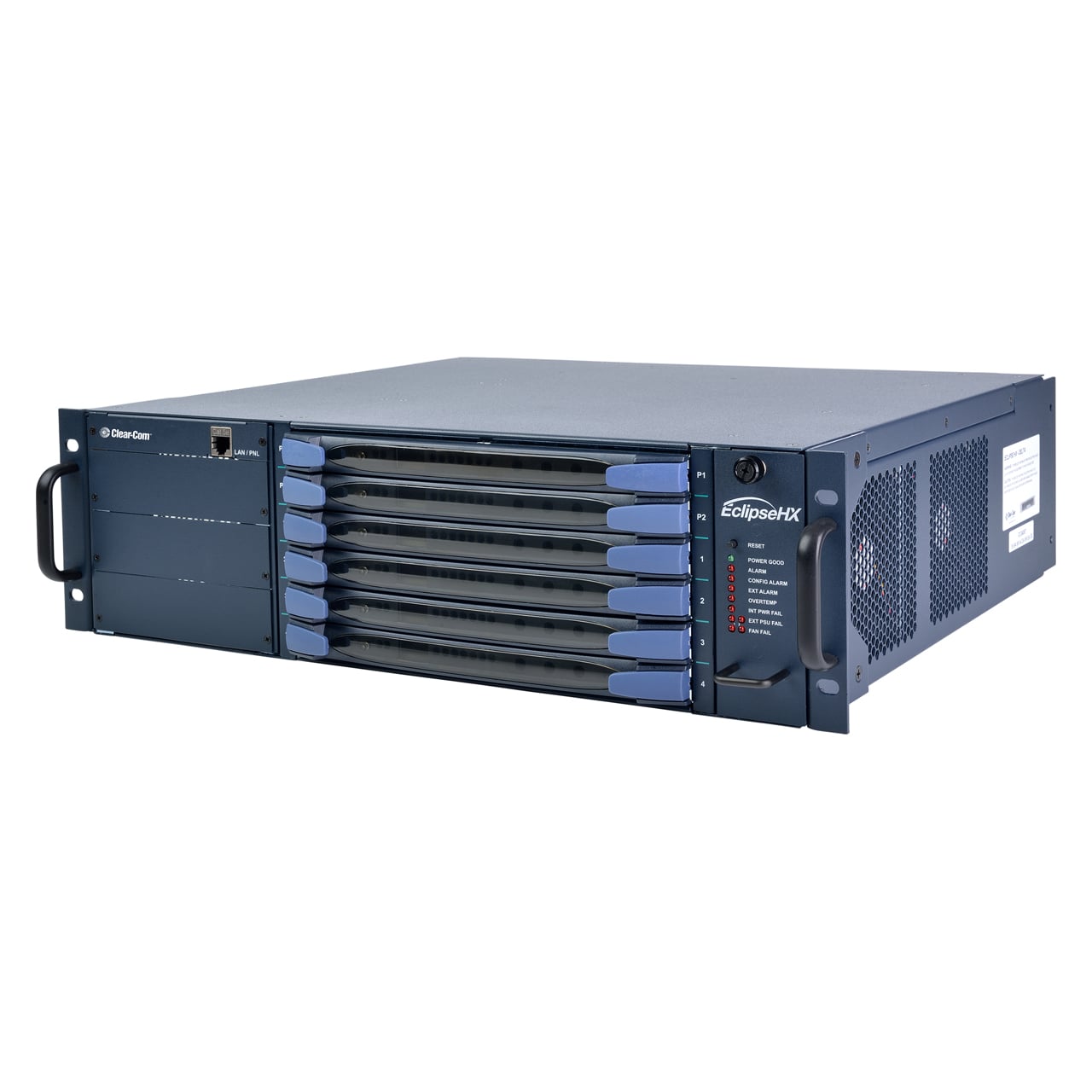

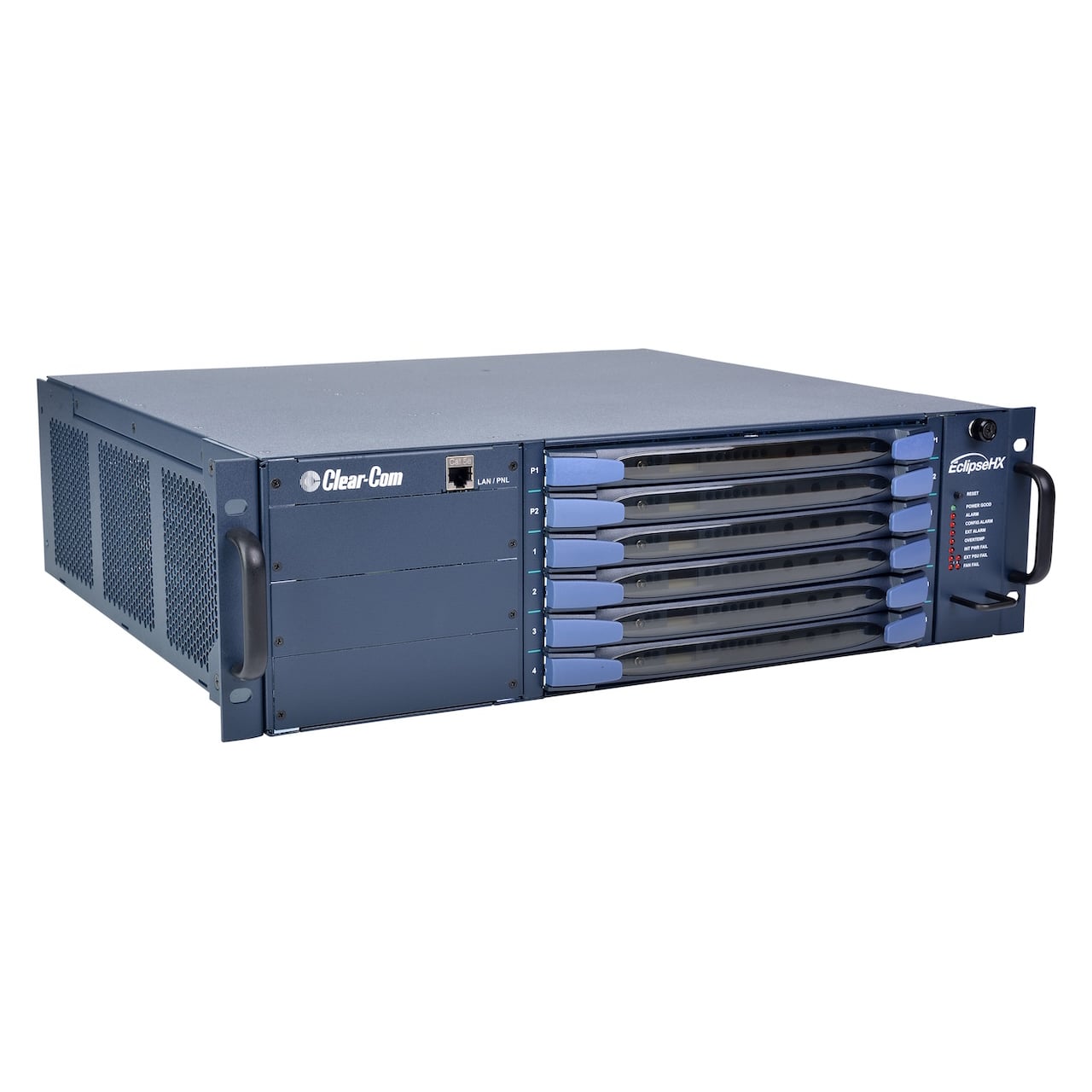

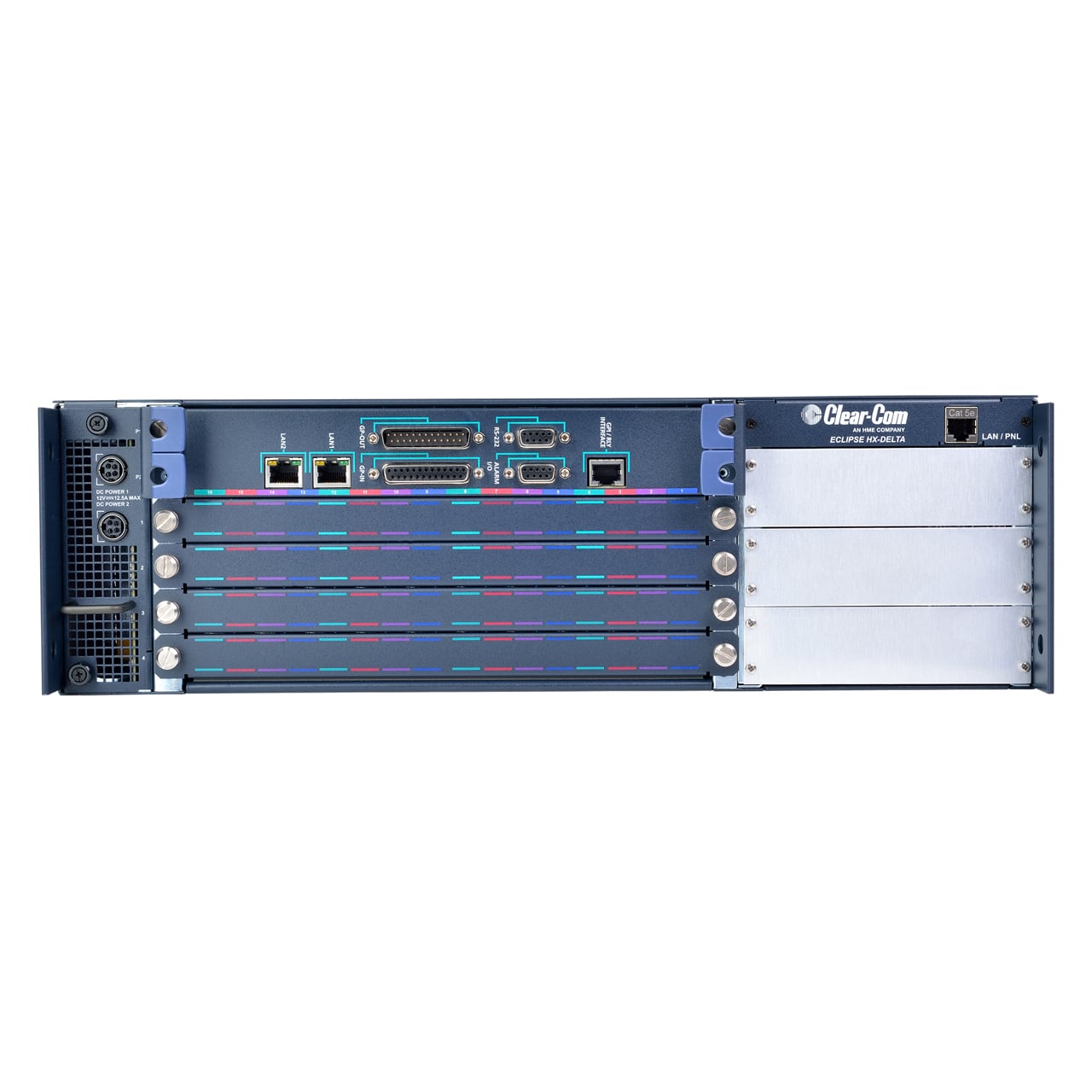

The Clear-Com ECLIPSEHX-DELTALITE16P is a three rack unit (3RU) 16-Port matrix intercom frame with slots for 2 interface cards, 288 timeslots/ports, 3 interface modules, single CPU card and power supplies with the ability to be field upgraded to an Eclipse HX-Delta.
Matrix Frame Architecture
• Eclipse CPU and Audio interface cards communicate on the frame's TDM backplane using a proprietary serial protocol that passes requests and instructions between the cards.
• Eclipse Audio interface cards make its audio inputs available on the frame's TDM backplane using PCM audio and receives from its other card inputs for mixing to its outputs.
• Eclipse CPU controller cards communicate externally to the configuration computer or control system via a network or serial interface.
• Eclipse Audio interface cards communicate externally on their own dedicated interfaces. Externally each card is an individual clock domain and does not bridge to other cards.
• No network connections are shared or bridged between cards.
Interface Card Options (sold separately):
• MVX-16A-HX 16-Port Analog Audio Interface Card
• E-IPA-HX Networked IP Interface Card
• E-DANTE64-HX 64-Channel Dante Interface Card
• E-MADI64-HX 64-Channel MADI Interface Card
• E-FIB-HX Fiber Interface Card
Interface Module Options (sold separately):
• CCI-22 Dual Partyline Ring Interface Module
• FOR-22 Dual 4-wire/2-way Radio Relay Control Interface Module
• RLY-6 6-way Relay Control Interface Module
Licensing Options (sold separately):
• Agent-IC Virtual Mobile Client
• Station-IC Virtual Desktop Client
• Dynam-EC Live Assignment
• HCI Full Automation API
• HCI Crosspoint & Control API
• Site License - Dynam-EC Live Assignment
• Site License - HCI Full Automation API
• Site License - Delta Lite Upgrade
