Clear-Com FSII-SPL FreeSpeak II Antenna Splitter with Fiber Option

ITEM #: CLCM-FSII-SPL MFG #: FSII-SPL

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

Our Price:

$2,250.00

Availability: In Stock
iAvailability Description Popup


    FSII-SPL - Overview

    The ClearCom FSII-SPL is an intercom system antenna splitter that connects multiple FSII transceiver antennas to an Eclipse HX matrix (via E-QUE-HX card) or a FreeSpeak II base station. FreeSpeak II is a high performance wireless solution operating in the 1.9 and 2.4GHz frequency bands designed for extensive communication in large-scale operations.

    The splitter provides up to 5 antenna feeds from one antenna port and has an SFP fiber slot for fiber connectivity. Using the SFP fiber slot, the FSII-SPL provides a fiber link between the FSII-BASE-II base station and splitter (base-to-splitter) or it can be used to connect to legacy FreeSpeak II base stations and the Eclipse HX frames over fiber via the E-QUE-HX interface card (splitter-to-splitter).

    The splitter can be mounted on a flat surface or on a microphone stand. LED indicators are located on the front and back of the unit to show status in any mounted position. Requires an external power supply (included).

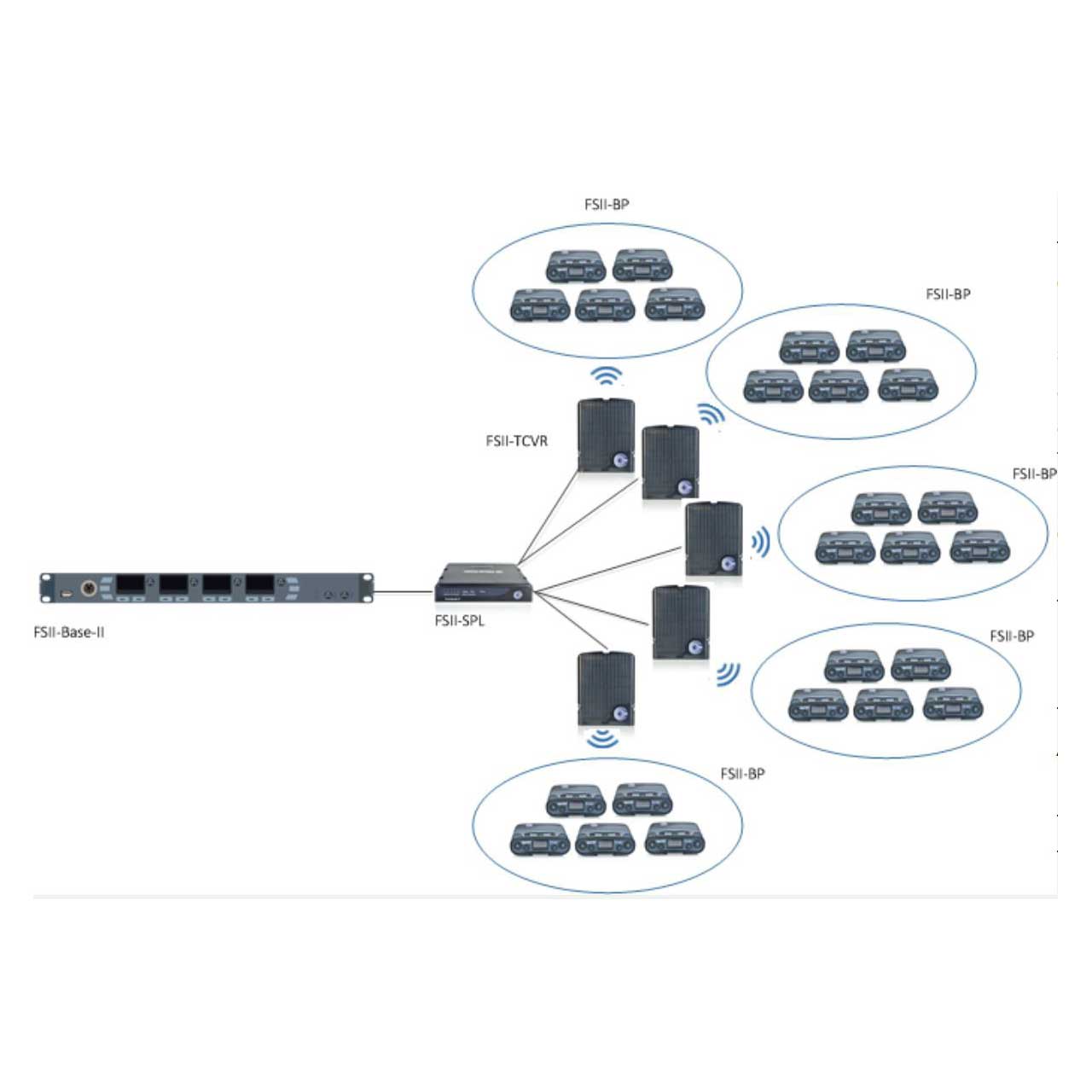

    Please Note! This item is just one component of a larger system. Please refer to the diagram for ideas and recommendations for your Clear-Com intercom system.

    • Features:

      • FreeSpeak II Transceiver Splitter
      • Provides 5 FSII transceiver feeds on one port on FSII base station or E-QUE-HX card
      • SFP fiber slot for fiber link to FSII base station or as a fiber bridge between FSII-BASE-II stations and Eclipse HX frames
      • Supports both multi-mode and single-mode fiber
      • Configure settings using DIP switches
      • IP-63 water resistance for outdoor use

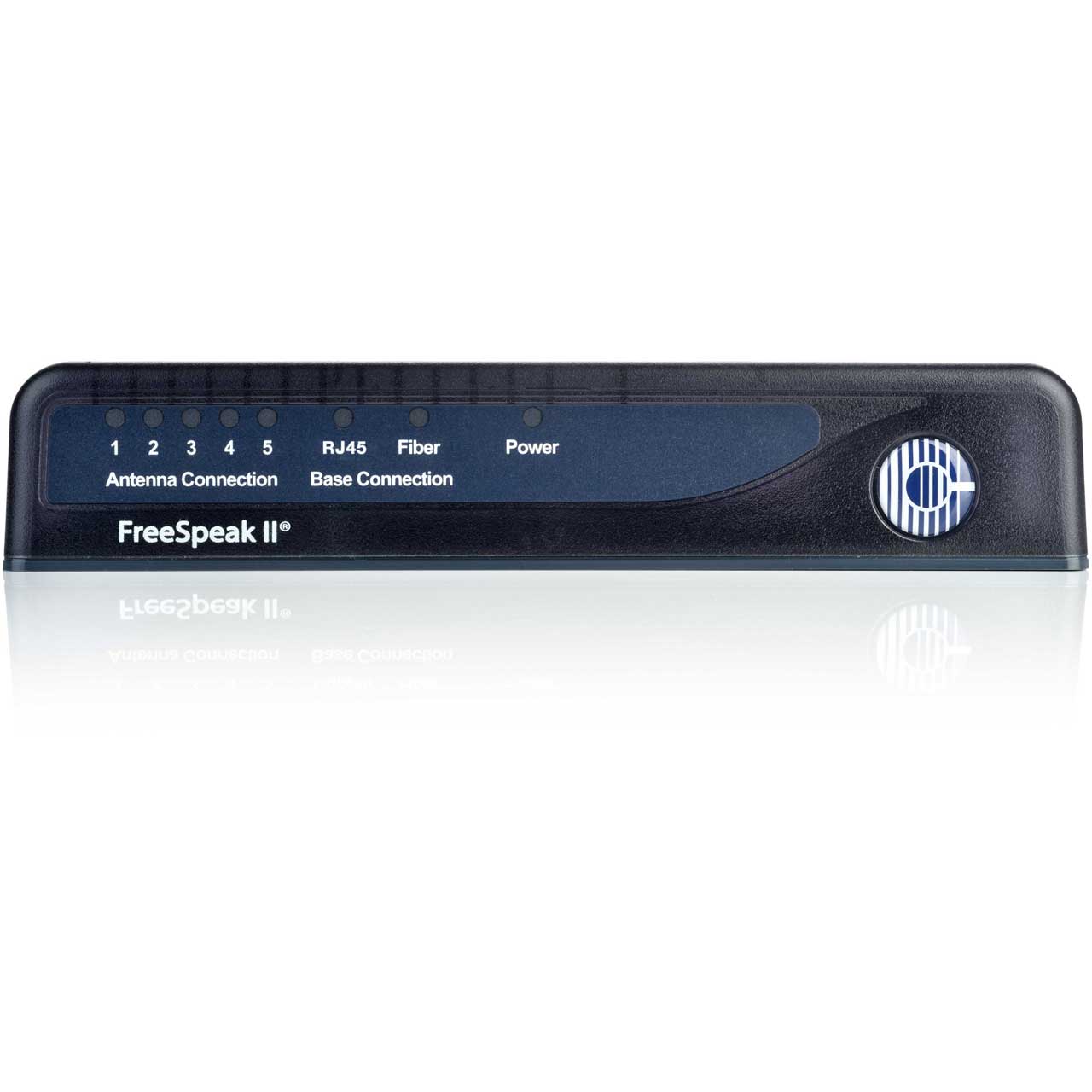

      • LED status indicator on front and back
      • Mic stand or wall mount orientation (metric and imperial threads)

    • Specifications:

      • Connections

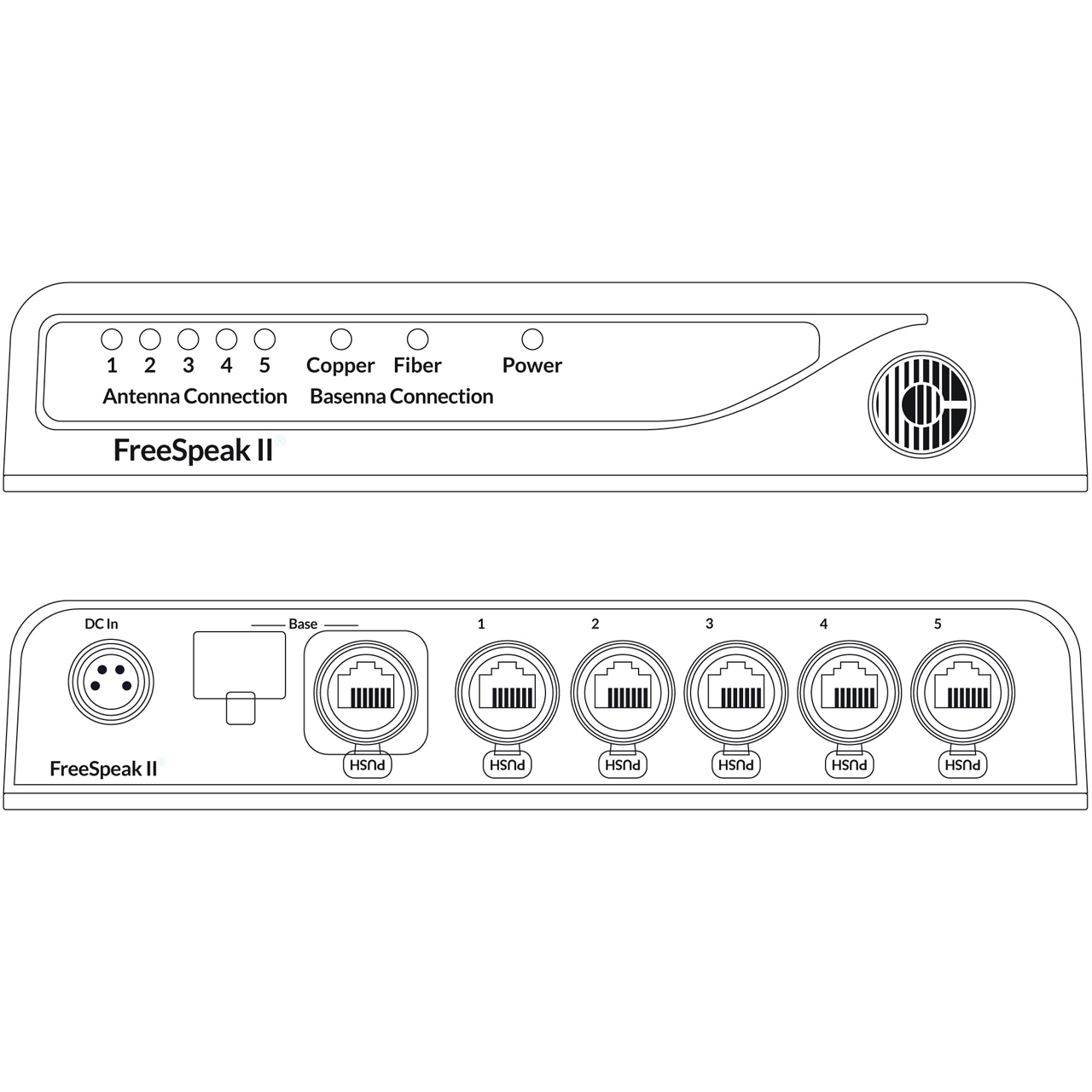

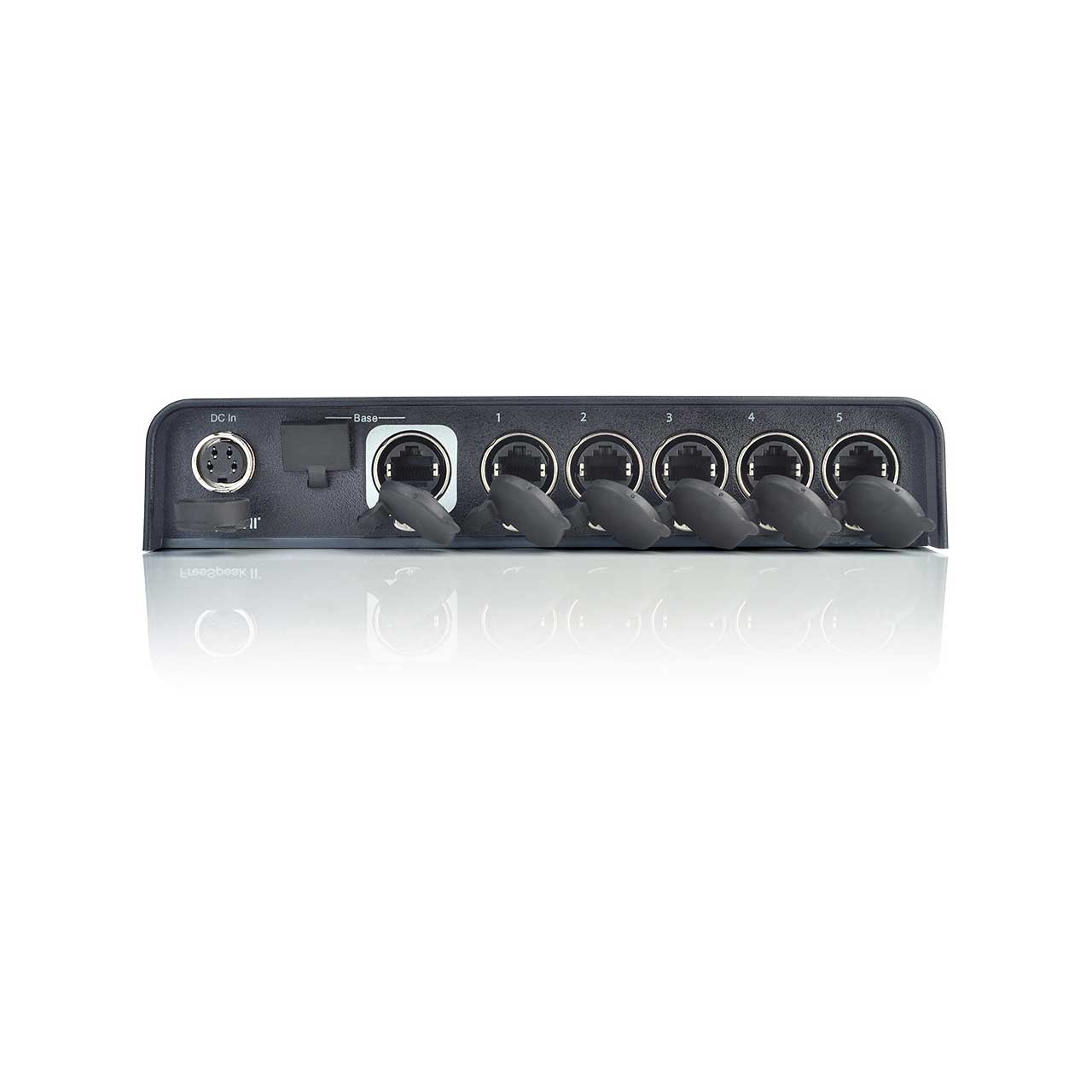

      • Transceiver Antenna: 5 Ethercon RJ-45, each with yellow LED indicators on front and back
      • Matrix: 1 Ethercon RJ-45, with yellow LED indicator on front and back
      • Fiber: 1 SFP port
        Power
      • Splitter: Requires external power supply (included)
      • Transceiver Module: Provides power to modules via RJ-45 connections
        Mounting Options
      • Wall Mount with 4 mounting points
      • Mic Stand Mount (metric and imperial threads)
        Environmental
      • IP-63 water resistance for outdoor use
      • +32°F to +122°F
      • (0°C to +50°C)
        Dimensions
      • 1.65 x 8.75 x 7.73 in (HxWxD)
      • (42 x 223 x 197 mm)
        Weight
      • 24.5 oz (0.69 kg)

    • GTIN:

      0609385519581
