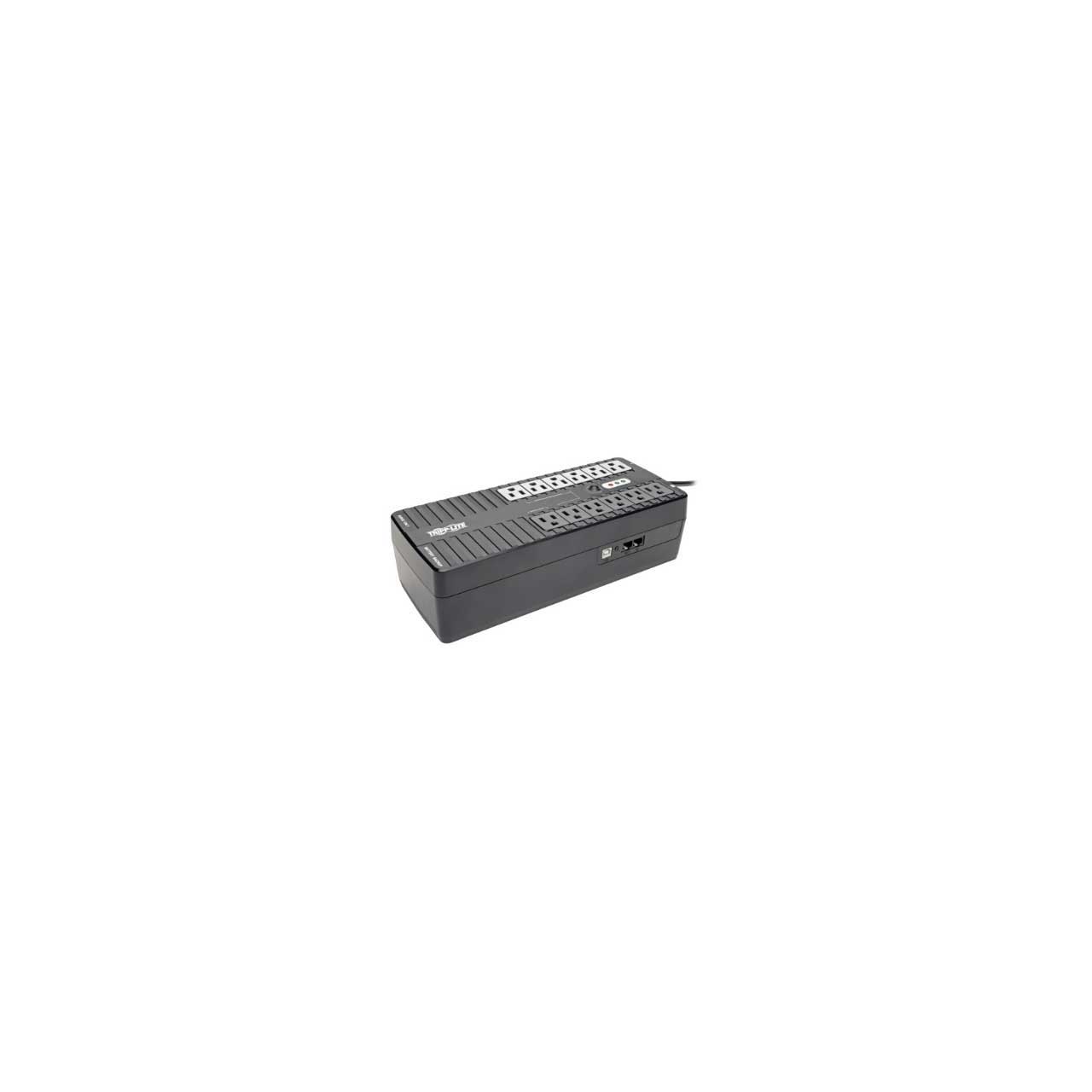

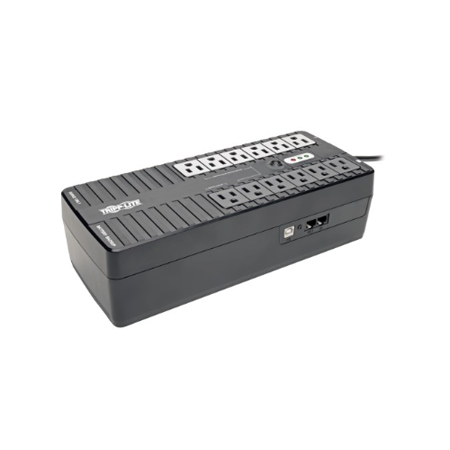

Tripp Lite ECO750UPS 750VA Eco Energy-Saving UPS System

ITEM #: ECO750UPS MFG #: ECO750UPS

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$200.30

Our Price:

$125.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    ECO750UPS - Overview

    Energy-Saving 750VA/450W/120V Battery Backup for PCs, Home Theater and Digital Signage
    The Tripp Lite standby ECO750UPS UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The 12-outlet 120V battery backup is ideal protection for your home office, media center or professional kiosk, security and small-business phone applications, including computers, routers, printers, HDTVs, Blu-ray players, game consoles, ATMs, security systems and digital signage equipment.

    Allows Time to Back Up Critical Files During a Blackout
    Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the ECO750UPS should keep an energy-efficient desktop computer with small LCD monitor powered as long as 36 minutes. During normal operation, incoming utility power keeps the replaceable internal battery fully charged, so backup power will always be available.

    12 NEMA 5-15R Outlets Protect Your Connected Components
    Six 5-15R outlets provide battery backup and surge protection for your computer, monitor and other crucial components. The other six 5-15R outlets provide surge suppression only for printers, speakers and other desktop equipment regarded as non-essential during a blackout.

    Typical Applications:
    Protect your PC and other sensitive electronics against power surges, line noise, brownouts, overvoltages and blackouts
    Operate essential equipment during short-term power outages using battery backup power
    Shut down desktop PCs and other equipment without data loss during long-term power outages
    Turn off outlets connected to printers, desk lamps and other non-essential devices when not in use to save energy
    Extend runtime for DVRs, wireless routers and other low-power home networking equipment

    • Features:

      • Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
      • Keeps AC power running during blackouts to allow time for file saves and safe shutdown
      • 12 NEMA 5-15R outlets power and protect PC, home theater or digital signage equipment
      • Home-friendly alarm remains silent in backup mode, sounding only when imperative
      • ENERGY STAR-certified to save electricity, lower costs, and protect the environment
      • 3-year limited warranty

    • Specifications:

      • Input
      • Rated input current (Maximum Load): 10A
      • Nominal Input Voltage(s) Supported: 120V AC
      • UPS Input Connection Type: 5-15P
      • Input Circuit Breakers: 10A
      • UPS Input Cord Length (ft.): 5
      • Recommended Electrical Service: 15A 120V
      • Input Phase: Single-Phase

        Output
      • Output Volt Amp Capacity (VA): 750
      • Output Watt Capacity (Watts): 450
      • Nominal Voltage Details: 120v nominal output in battery mode
      • Frequency Compatibility: 50 / 60 Hz
      • Output Voltage Regulation (Line Mode): 120V (±20%)
      • Output Voltage Regulation (Battery Mode): 120V (±10%)
      • UPS Output Receptacles (Surge Suppression Only): 6 UPS outlets, 6 surge-only outlets
      • Output AC Waveform (AC Mode): Pure sine wave
      • Output AC Waveform (Battery Mode): PWM sine wave
      • Nominal Output Voltage(s) Supported: 110V; 115V; 120V
      • Output Receptacles: (12) 5-15R
      • Individually Controllable Load Banks: No

        Battery
      • Full Load Runtime (min.): 2 min. (450w)
      • Half Load Runtime (min.): 8.6 min. (225w)
      • DC System Voltage (VDC): 12
      • Battery Recharge Rate (Included Batteries): 6.5 hours (10% to 90%)
      • Internal UPS Replacement Battery Cartridge: RBC51
      • Battery Access: Battery access door
      • Battery Replacement Description: Replaceable internal batteries (see manual)
      • Expandable Runtime: No

        User Interface, Alerts & Controls
      • Switches: Switch controls power off/on status and ECO mode off/on status
      • Audible Alarm: UPS remains silent in battery backup mode; Alarm sounds only to report low-battery, fault, overload and replace-battery conditions
      • LED Indicators: 3 Status LEDs; GREEN #1 LED reports ECO mode off/on status; GREEN #2 LED reports line/battery mode operation, low-battery condition, overload and replace-battery notifications; RED LED reports battery-low, overload, replace-battery and fault conditions (see manual)

        Surge / Noise Suppression
      • UPS AC Suppression Joule Rating: 316
      • UPS AC Suppression Response Time: Instantaneous
      • UPS Dataline Suppression: 1 line TEL/DSL or Ethernet
      • EMI / RFI AC Noise Suppression: Yes

        Physical
      • Installation Form Factors Supported with Included Accessories: Tower; Ultra-compact desktop; Wallmount
      • Primary Form Factor: Desktop
      • Primary UPS Depth (mm): 310
      • Primary UPS Height (mm): 85
      • Primary UPS Width (mm): 130
      • Shipping Dimensions (hwd / in.): 7.83 x 5.98 x 14.92
      • Shipping Weight (lbs.): 7.48

        Environmental
      • Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
      • Storage Temperature Range: +5 to +113 degrees Fahrenheit / -15 to +45 degrees Celsius
      • Relative Humidity: 0 to 90%, non-condensing
      • AC Mode BTU / Hr. (Full Load): 8.3
      • AC Mode Efficiency Rating (100% Load): >98%
      • Operating Elevation (ft.): Up to 10,000 ft.

    • Item Includes:

      • 1x ECO750UPS UPS System
      • 1x USB cables
      • 1x Instruction manual with warranty information

    • GTIN:

      0037332211118
