    EDSS-VCA8MA30BT - Overview

    Classroom Speaker System With Bluetooth
    Pure Resonance Audio EDSS-VCA8MA30BT classroom sound system provides 360° of outstanding audio coverage and easy-to-use Bluetooth connectivity. Easily cover up to 1,000 sq ft with just one speaker. Unlike conventional ceiling speakers that involve cutting ceiling tiles, simply replace a standard 2' x 2' drop tile with the VCA8 ceiling tile speaker.

    Create a better learning experience with this classroom audio system by connecting the audio output from your projector or your Bluetooth device. Connect additional audio sources like an MP3 player or play audio from your USB thumb drive or SD card.

    Are your students having a hard time hearing you? No problem! Just add a microphone to provide crystal clear speech intelligibility while saving your voice. This classroom speaker system is ideal for K-12 learning environments including classrooms, study halls, science labs, music rooms, or any room where high-quality audio is desired.

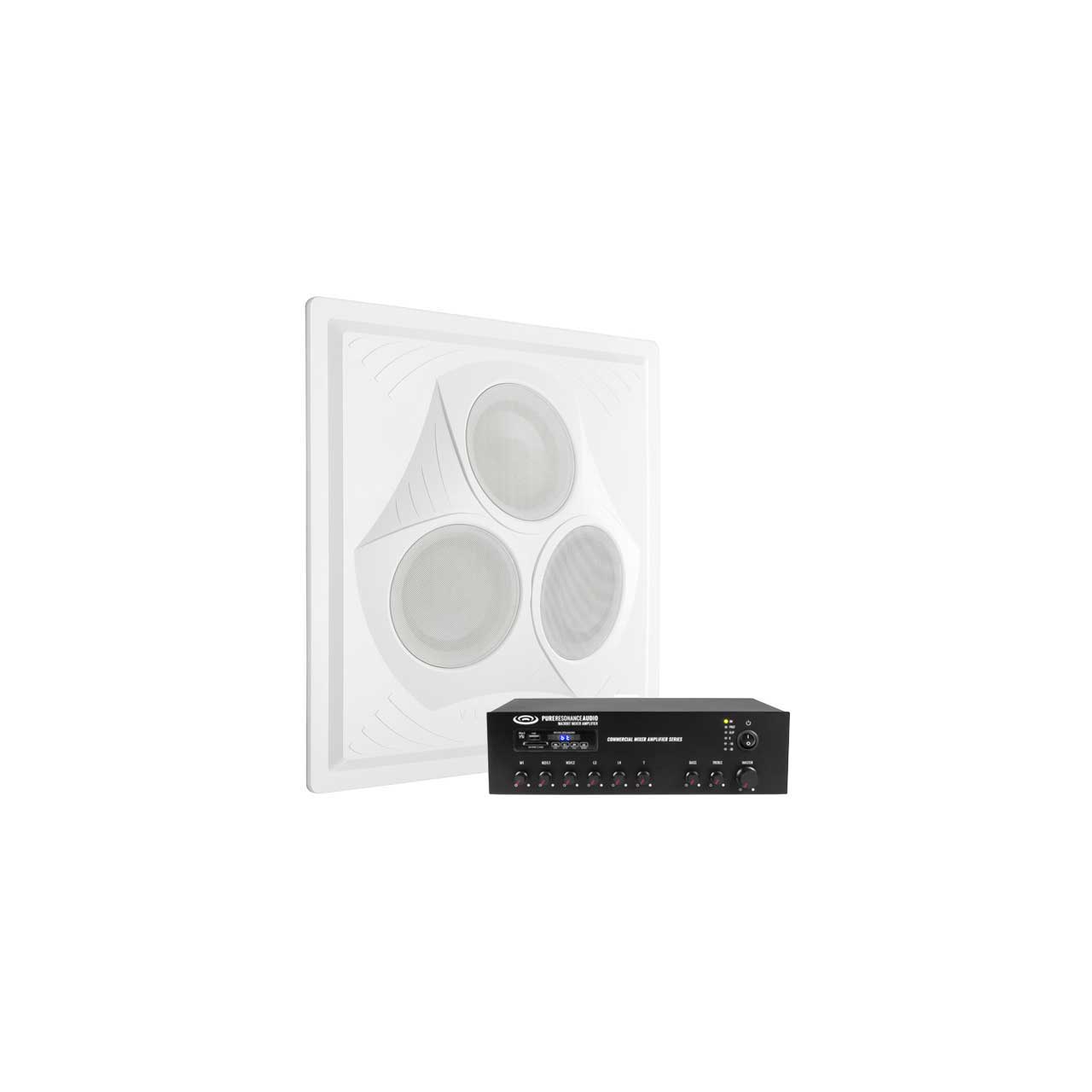

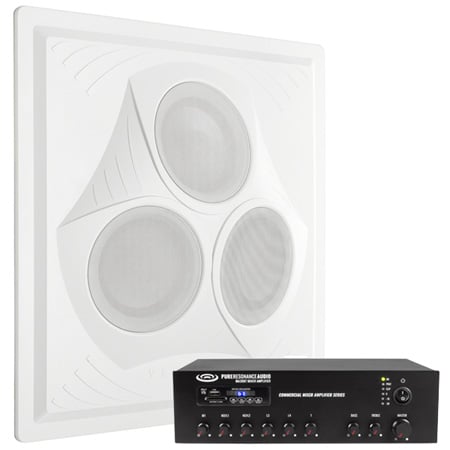

    This classroom speaker system includes our 2'x2' VCA8 vector 120-watt 8 ohm ceiling speaker array with amazing 360° coverage featuring three 6.5" full-range drivers that are placed in a uniquely designed fire-retardant ABS housing. Also included is our MA30BT 30 watt Bluetooth mixer amplifier. This mixer amplifier features 7-channels/6 inputs: a USB port, SD card slot, XLR, and 1/4" mic inputs, and RCA inputs to connect your laptop or projector. Providing total freedom and flexibility, the MA30BT also comes with an IR remote for full control of the MP3, FM Radio, and Bluetooth device input from across the room.

    • Features:

      • Pure Resonance Audio VCA8 Vector Ceiling Speaker Array:
      • Omni Directional Speaker Coverage 360° x 180° (hemispherical)
      • Infinite-baffle in-ceiling speaker's drops into standard ceiling tile openings
      • Powerful - 120W at 8Ω
      • 3 - 6.5" Full Range Drivers
      • Uniquely designed fire retardant ABS housing may be painted to match any décor

        Pure Resonance Audio MA30BT 7-Channel Mixer Amplifier with Bluetooth:
      • 7-channel powered mixer amplifier (6 inputs + Bluetooth Media Player)
      • Volume Controls for Mic 1-3, Line 1-2, MP3/FM Radio, Bass, Treble and Master
      • MP3 Player, FM Radio & Bluetooth (with IR remote control)
      • USB and SD inputs on front panel
      • Power output rating 30 Watts
      • Built-in 70V/100V transformer
      • Speaker outputs: 70V, 100V, 4, 8 and 16 Ohms
      • Mic 1 of balanced XLR input (with phantom power)
      • Mic 2-3 microphone or line switchable
      • Line 1-2 input of RCA inputs
      • DIP switches for Mic/Line, phantom power and microphone priority
      • Unbalanced 6.3 mm phone jack input
      • One RCA line output (0.775 line level 0 dBV)
      • Telephone input (600 Ohm/100mV) with VOX priority and MOH (Music on Hold) (600 Ohm 1 Volt)
      • LED indicators for power clip, protect signal, Mic 1-3, Line 1-2 and telephone inputs
      • Short-circuit, clip, overload and high temp protection
      • 24 VDC Emergency backup supply
      • 115V 60 Hz & 24V DC both operation system

    • Specifications:

      • VCA8 Ceiling Speaker
      • Power Handling: 120 Watts
      • Frequency Response: 35 Hz - 20 kHz
      • Sensitivity: 92dB (half space)
      • Impedance: 8 Ohms
      • Woofers: 3 - 6.5" Aluminum
      • Dispersion: 180 x 360 Degrees (hemispherical)

        MA30BT Mixer Amplifier
      • Rated Power Output: 30W
      • Speaker Outputs: 70V, 100V and 4 Ohms, 8 Ohms or 16 Ohms
      • Connectors:
        Mic 1 input by balanced XLR with phantom power
        Input 2-3 Mic/Line switchable unbalanced 6.3 mm phone jack
        Line 1-2 inputs by RCA; Line output by RCA
      • Frequency Response: 60Hz - 15kHz (±3dB)
      • Protection: Short-circuit, clip, overload and high temp protection

    • Item Includes:

      • 1x Pure Resonance Audio VCA8 Vector Ceiling Speaker Array
      • 1x Steel Wire Safety Cable
      • 1x Pure Resonance Audio MA30BT 30W Bluetooth Mixer Amplifier
      • 1x IR Remote Control
      • 1x Power Cord
      • 1x (50') Free 18/2 Gauge Speaker Wire

    • Warranty:

      • Speakers: 2 Years
      • Amplifiers & Electronics: 1 Year
      • Microphones: 1 Year
      • Accessories: 1 Year
