Elation KL PAR FC IP 360W RGBMA IP65 LED Par Fixture - 360W LED Engine

ITEM #: ELAT-KL-PAR-FCIP MFG #: KLP528

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$2,000.00

Our Price:

$1,600.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


KLP528 - Overview

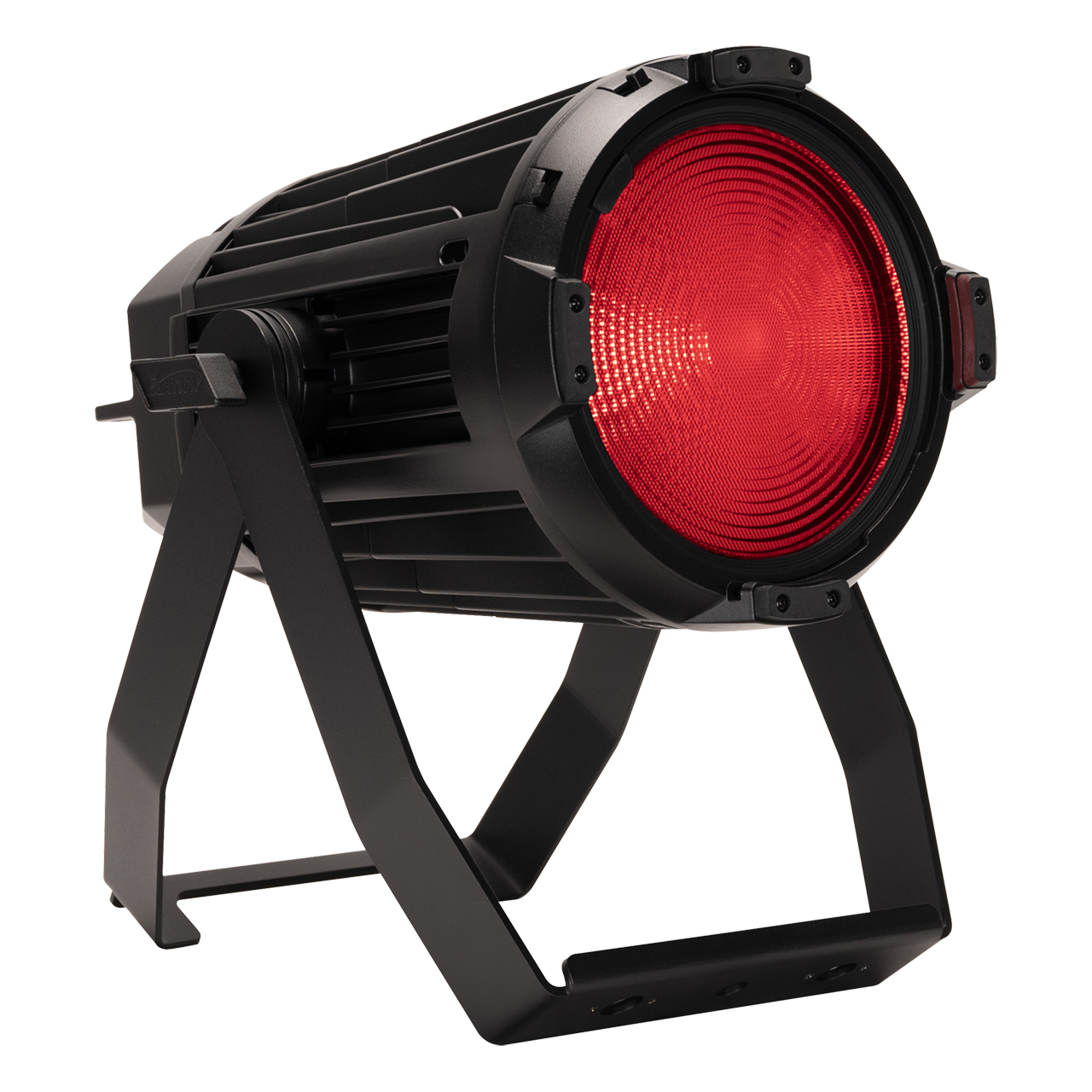

The Elation KL PAR FC IP is a compact full-color-spectrum IP65 rated LED fixture that provides high output, precise color temperature control, full-spectrum color rendering, and even wash coverage. Offering powerful color intensity and a wide array of saturated and pastel colors from its efficient RGBMA engine, it is also optimized for the tunable white light requirements of Film and Television.

The KL PAR FC IP is an ideal key, fill, and area wash light source for outdoor events and any production requiring outstanding performance, color quality and weather protection. It incorporates a highly efficient 5-in-1 (RGBMA) LED engine that produces up to 12.000 field lumens, brighter than existing 750W Tungsten PAR fixtures, and is delivered with multiple lens choices that are easy to replace in the field. With the new ColourTune Technology software the fixture offers outstanding color rendering with a high CRI of 93 and TLCI of 95, fully variable 16bit CCT control, and remotely adjustable LED refresh frequency makes this unit the perfect choice for today's fast-paced production environments. Rugged and portable, the fixture can be suspended using any standard clamp or floor mounted using the integrated stand. It is fully self-contained without the need for an external power supply and offers locking power pass-through for easy linking of multiple units.

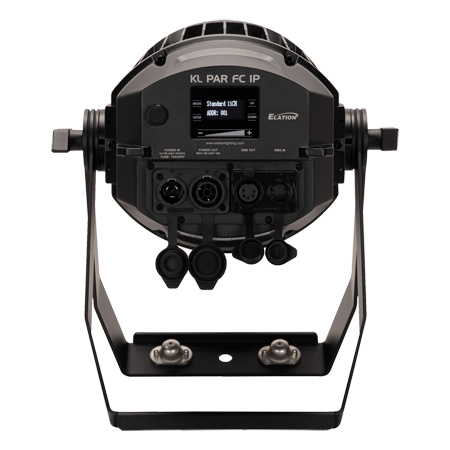

The KL PAR FC IP can be operated through industry-standard DMX protocols and has full RDM support. In addition, it offers manual access and standalone operation using the included touch bar encoder and display, providing instant control of Intensity, Color Temperature, Green shift, and other important settings. The display and encoder are conveniently positioned at the backside of the fixture to ensure unobstructed access when mounted.

  • Features:

    • ColourTune Technology Software Integration
    • 12,000 Total Fixture Lumen Output
    • Field Replaceable Lenses
    • Stand-Alone Control with Touch Encoder and OLED Display
    • Smooth 16-bit Selectable Dimming Modes and Curves
    • Remote LED Refresh Rate and Fan Speed Adjustment
    • Flicker Free Operation for TV and FILM
    • RDM (Remote Device Management)
    • 7.5" Gel Frame and Four Lenses (11°, 22°, 30°, 52°) Included
    • IP65 Rated

  • Specifications:

    • Source
    • 360W 6000K RGBMA LED Array
    • 50,000 Hour Average LED Life

      Included Lenses
    • VNSP (11°)
    • NSP (22°)
    • MFL (30°)
    • WFL (52°)

      Photometric Data
    • 12,000 Total Lumen Output
    • CRI 93
    • TLCI 95

      Effects
    • Electronic Dimmer and Strobe
    • Variable 16-bit Dimming Modes and Curves

      Color
    • High Brightness and High Fidelity Output Options
    • RGBMA Color Array
    • CMY Emulation
    • 16bit Fully Variable CCT 2400K - 8500K
    • Green/Magenta Shift
    • Dim-to-Warm Fade
    • Virtual Gel Swatch Book

      Control/Connections
    • 8 DMX Channel Modes (1, 6, 11, 18, 19, 9, 14, 15)
    • Manual and DMX Controlled Dimmer and Color
    • Single Touch Bar Encoder
    • 4 Button Control Panel, LED Display
    • RDM (Remote Device Management)
    • IP65 5pin DMX and IP65 Locking Power Cable In/Out

      Size/Weight
    • Length: 12.2 In (310mm)
    • Width: 8.54 In (217mm)
    • Vertical Height: 17.87 In (454mm)
    • Weight: 16.53 lbs. (7.5kg)

      Electrical/Thermal
    • AC 100-240V - 50/60Hz
    • 375W Max Power Consumption
    • 5°F to 113°F (-15°C to 45°C)
    • BTU/hr (+/- 10%) 1278.75

      Approvals/Ratings
    • CE | cETLus | IP65 | FCC | UKCA

  • Item Includes:

    • 1x 7.5 In Gel Frame
    • 4x Lenses (11°, 22°, 30°, 52°)
    • 1x IP65 Locking Power Cable

  • Warranty:

    • 2 Year Warranty

  • GTIN:

    0810008264188
