MPLY01 - Overview

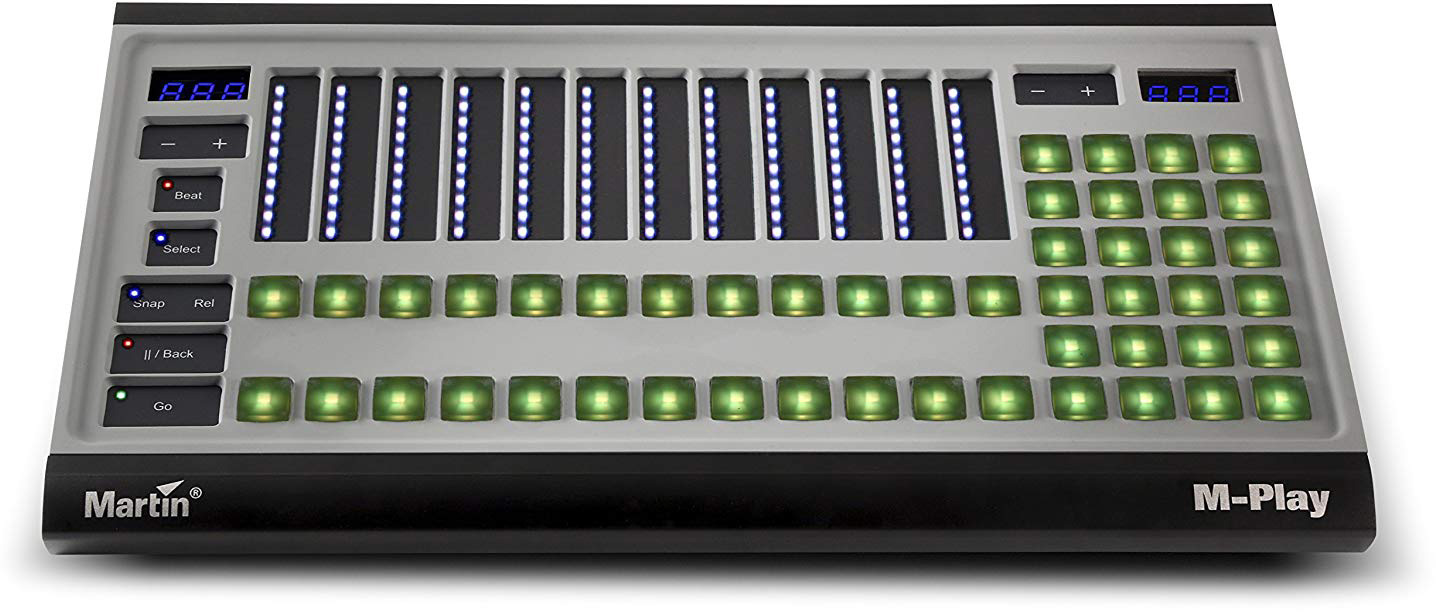

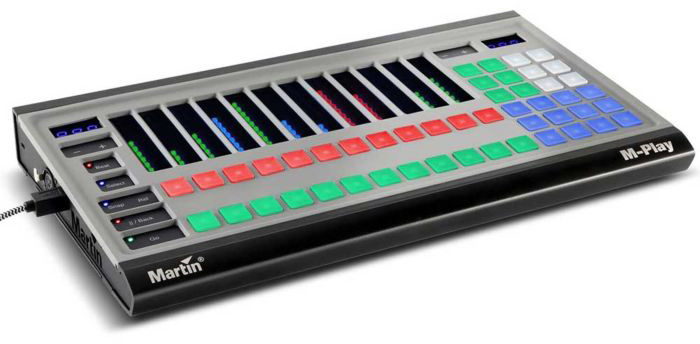

Fully compatible with all M-Series consoles and M-PC software, M-Touch, the Elation MPLY01 M-Play is a plug-and-play solution with an innovative control surface like no other lighting console.

Featuring a truly innovative control surface with 12 touch faders that let you control playbacks, while 48 velocity-controlled pads let you access playbacks and any function key. M-Play includes one DMX port for direct control of any compatible DMX device.

M-Series Licensing
1 DMX 5pin XLR port
M-PC Free 4 Universes (Artnet, sACN)
M-PC Pro - 64 Universes (Artnet, sACN) (optional M-PC kit required)

  • Features:

    • Compact playback surface for both smaller applications and professional use
    • Playback and Function button surface with innovative touch fader technology
    • Pressure sensitive flash buttons
    • 24 Playbacks, 24 multi-purpose function keys. Numerical keypad mode
    • Portable, rugged and lightweight design
    • USB connection for M-PC or as expansion wing for all M-Series consoles
    • Integrated DMX output, expandable up to 64 Universes
    • Plug and Play USB device without external power supply
    • Rackmount option


  • Specifications:

    • Physical
    • Length: 394 mm (15.5 in.)
    • Width: 219 mm (8.6 in.)
    • Height: 47 mm (1.9 in.)
    • Weight: 1.8 kg (4.0 lbs.)

      Control and User Interface
    • Bank navigation: Up/Down with numerical display (Section 1)
    • Bank navigation: Up/Down with numerical display (Section 2)
    • Main Go section: Snap, Release, Pause and Go buttons
    • Beat and Select button

      Playback
    • 12 Playback Touch faders with 1 button (Velocity Pad), Playback section 1
    • 12 Playback buttons (Velocity Pad), Playback section 1
    • 24 Playback buttons (Velocity Pad), Playback section 2

      Minimum System Requirements
    • Windows 7 or higher
    • Dual-core processor, 2.0 GHz (Intel i5 or better recommended)
    • 4 GB RAM
    • 2 GB available disk space (SSD recommended)
    • Widescreen monitor, minimum 1280x800 (capacitive touchscreen recommended)
    • USB 2.0 port for M-Play surface
    • 10/100 Ethernet port for Art-Net or sACN output
    • 100/1000 Ethernet port for MAXNET and Remote operation
    • Full administrator rights on PC

      Construction
    • IP Rating: IP20

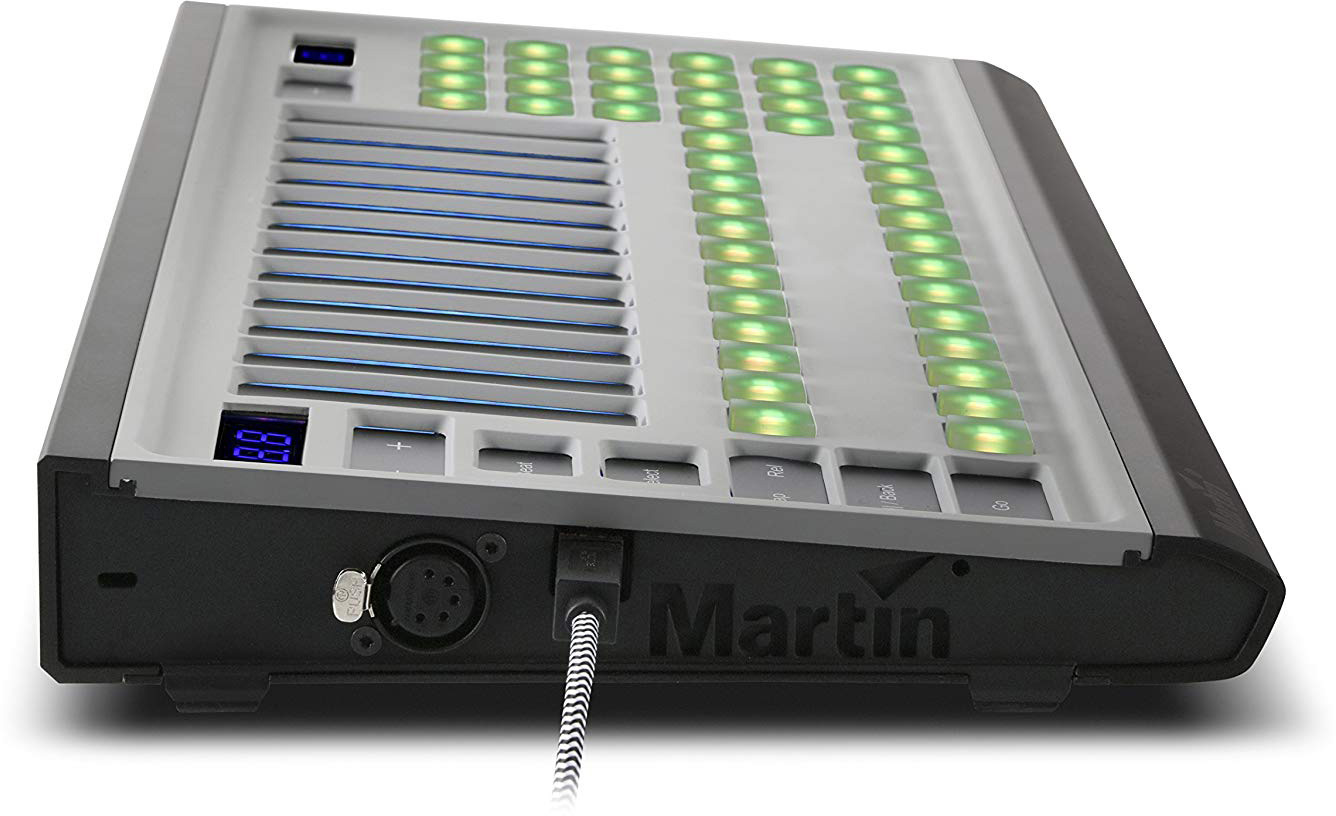

      Connections
    • 1 x DMX universe output: 5-pin locking XLR
    • 1 x USB 2.0 input

      Electrical
    • Power: 5 VDC over USB
    • Maximum current: 500 mA

      Thermal
    • Maximum ambient temperature (Ta Max.): 40° C (104° F)
    • Minimum ambient temperature (Ta min.): 0° C (32° F)


  • Item Includes:

    • USB cable 1.5 m (4.9 ft.)
