Elation Professional PSD108 Magmatic Prisma Driver 8 48 VDC Driver System

PSD108 - Overview

• Features:

  • 48VDC Power Driver for up to 8 PRISMA MINI UV LED Fixtures
  • 2pin Bare Wire Block Terminal Connections (x8)
  • DMX-512 and Manual Control


• Specifications:

  • Construction:
  • Rugged Aluminum Housing

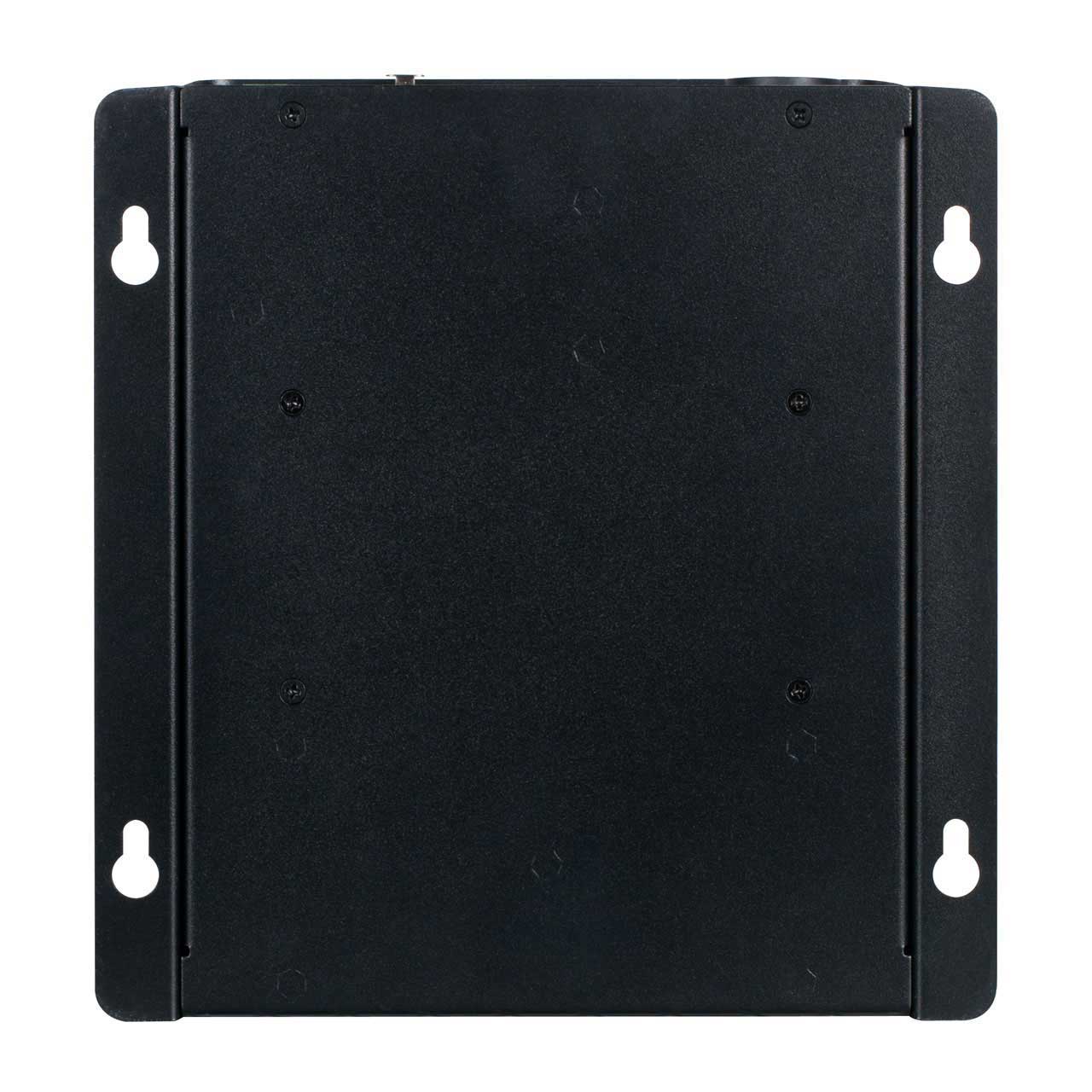

  • Easy Keyhole Slots for Wall/Surface Mounting

    Control:
  • Multiple DMX Channel Modes

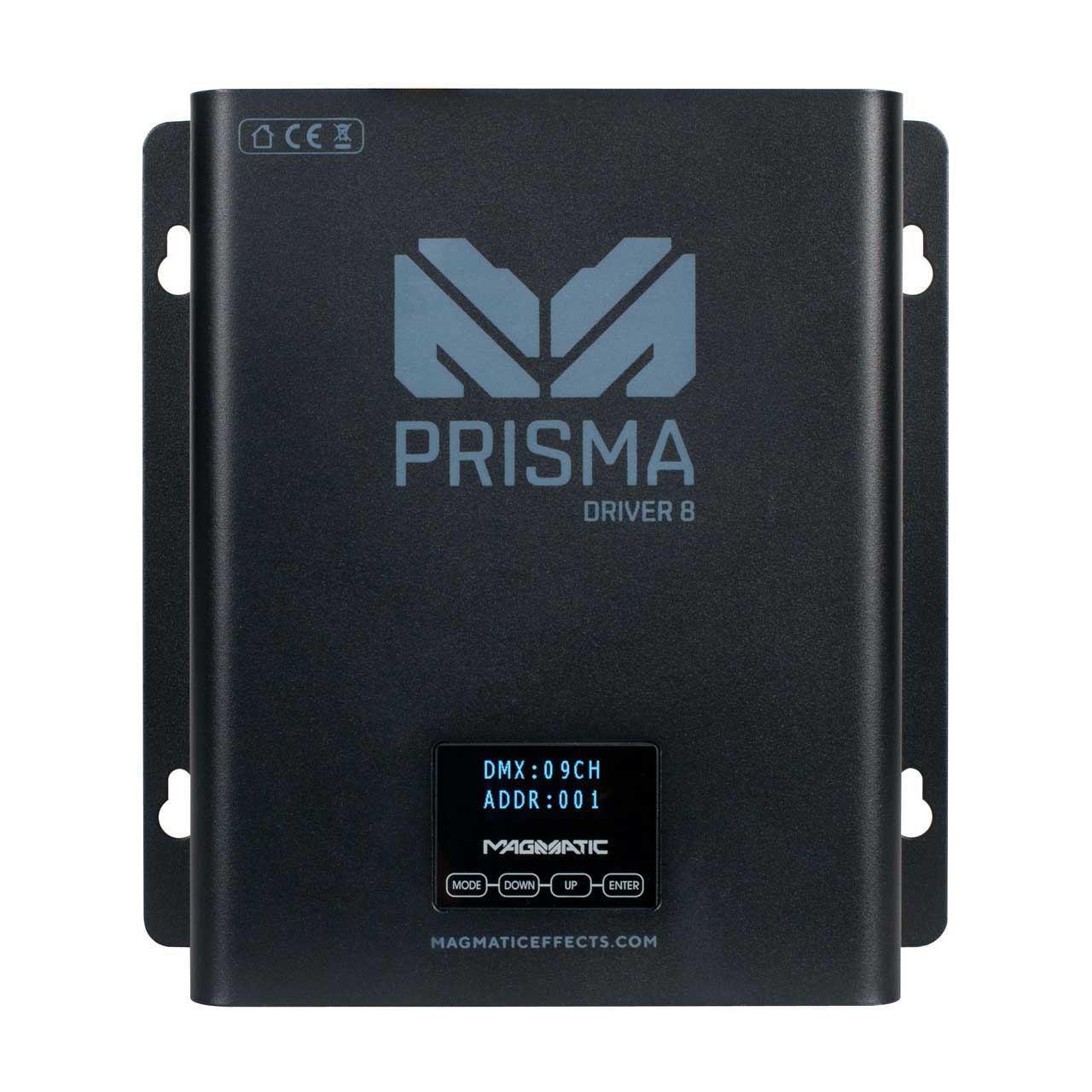

  • Onboard 4 Button Touch Control Panel
  • DMX-512 and RDM Protocol Support

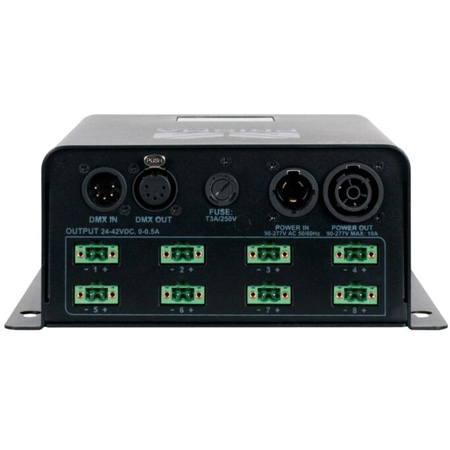

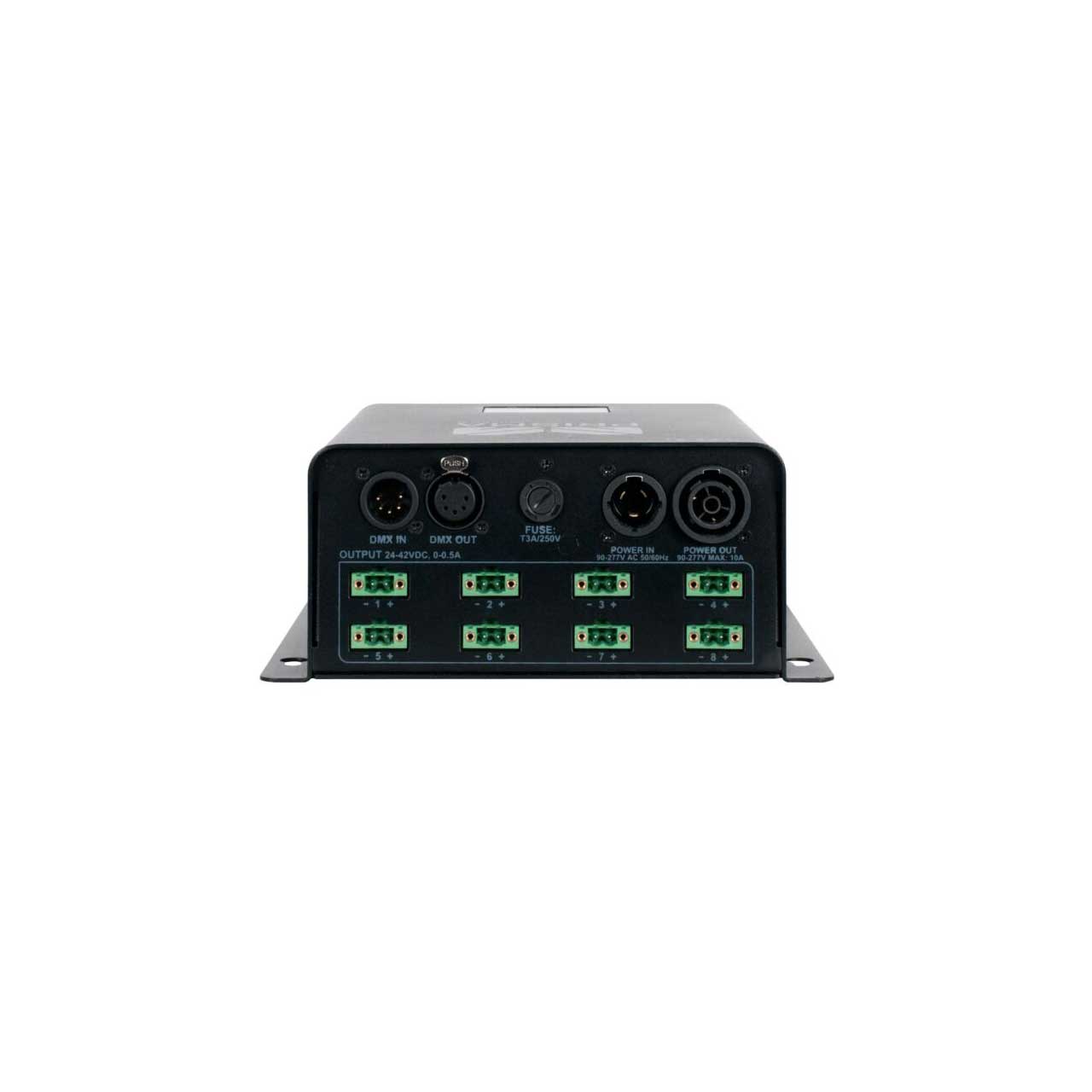

    Connections:
  • 8x 2pin Bare Wire Block Terminals (8 PRISMA MINI fixtures max)
  • Locking 5pin XLR Connector In/Out
  • IP65 Locking Power Connector In/Out
  • With Wired Digital Communication Network

    Size / Weight:
  • Length: 8.9 in. (225mm)
  • Width: 8.4 in. (212mm)
  • Vertical Height: 3.5 in. (88mm)
  • Weight: 5.7 lbs. (2.6 kg)

    Electrical:
  • AC100-240V 50-60Hz
  • 48VDC 8.3A
  • 167W Max Power Consumption

    Thermal:
  • Ambient Temperature (Ta max) 104°F (40°C)

    Approvals / Ratings:
  • CE
  • cETLus
  • IP20


• Item Includes:

  • 1x Power Cable


• Warranty:

  • 2 Year


• GTIN:

  0810008261194
