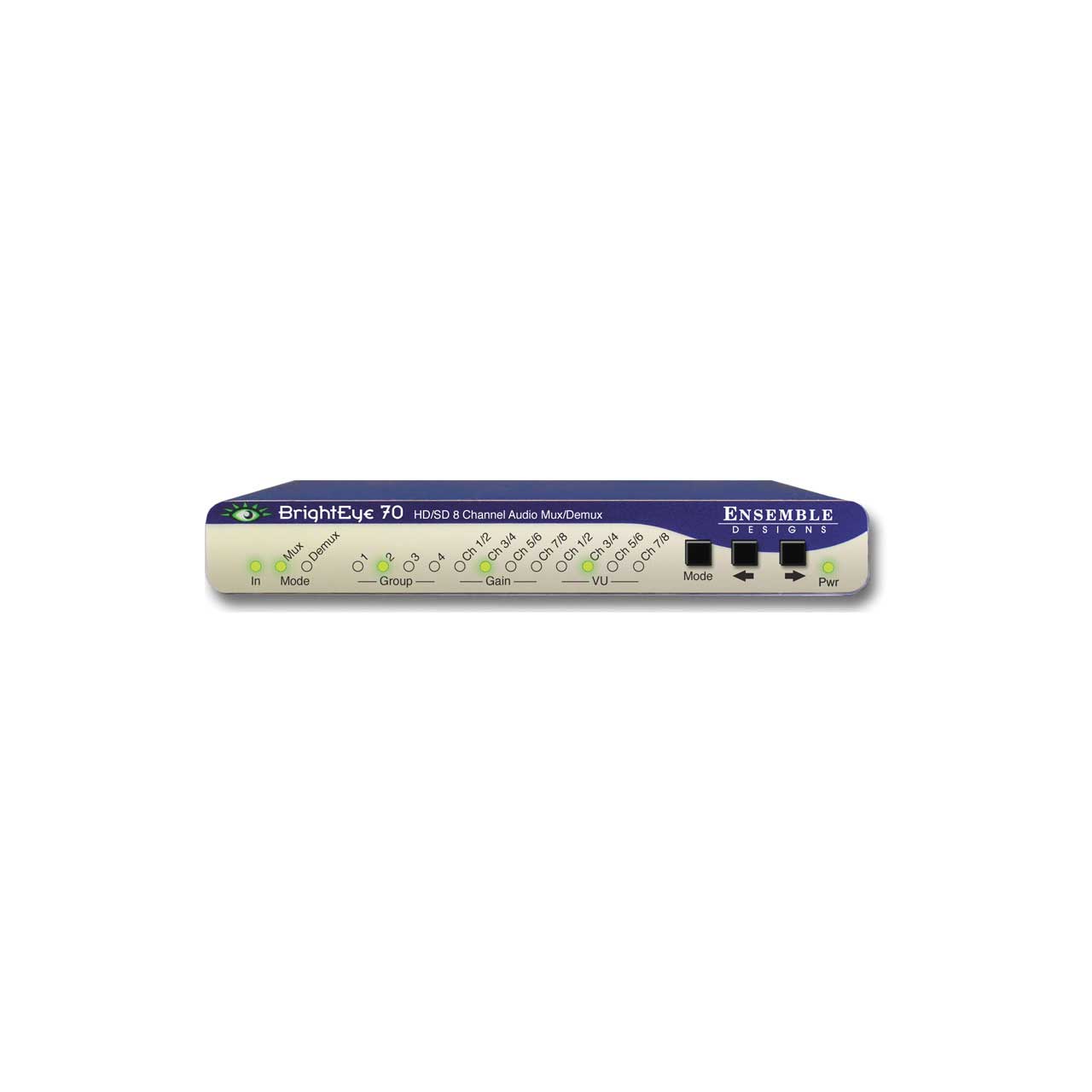

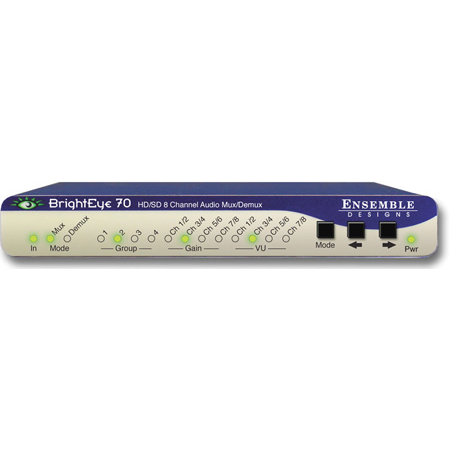

Ensemble Designs BrightEye 70 HD/SD AES Embedder/Disembedder
  • Ensemble Designs BrightEye 70 HD/SD AES Embedder/Disembedder
  • Ensemble Designs BrightEye 70 HD/SD AES Embedder/Disembedder
  • Ensemble Designs BrightEye 70 HD/SD AES Embedder/Disembedder
  • Ensemble Designs BrightEye 70 HD/SD AES Embedder/Disembedder
  • Ensemble Designs BrightEye 70 HD/SD AES Embedder/Disembedder

Questions? Ask a Markertek Expert:
800-522-2025 Email

Ensemble Designs BrightEye 70 HD/SD AES Embedder/Disembedder

Manufacturer: Ensemble Designs

Item #: ENDE-B70   •   MFG #: BE70



List Price:$1,600.00
Our Price:$1,520.00

free ship


Availability:
Direct Ship from manufacturer, contact us for availability
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The BrightEye 70 is a dual rate eight channel audio embedder or disembedder for 1.5 Gb/s high definition video signals or for 270 Mb/s standard definition signals. Four AES ports automatically configure as inputs or outputs depending if the module is configured as mux or demux.

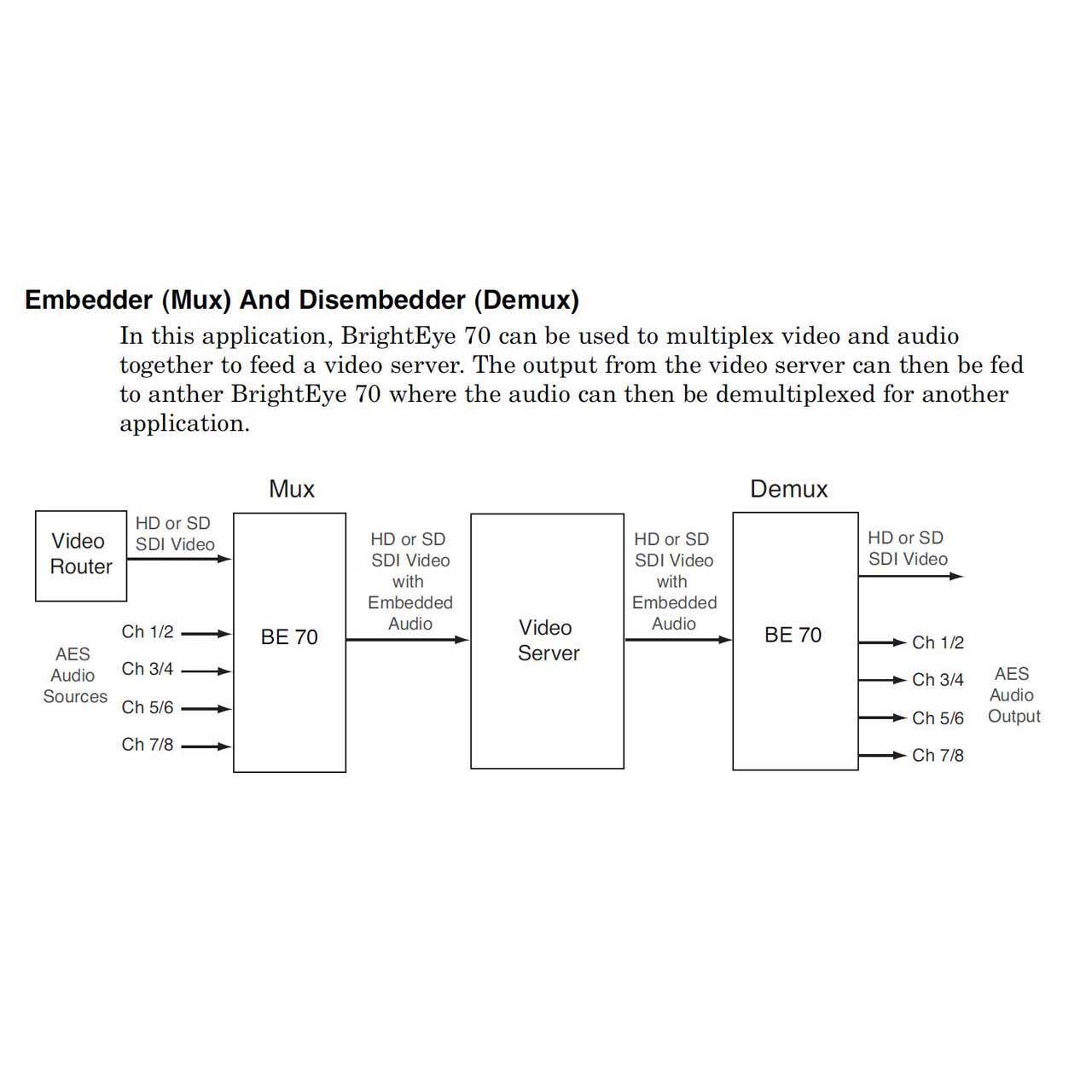

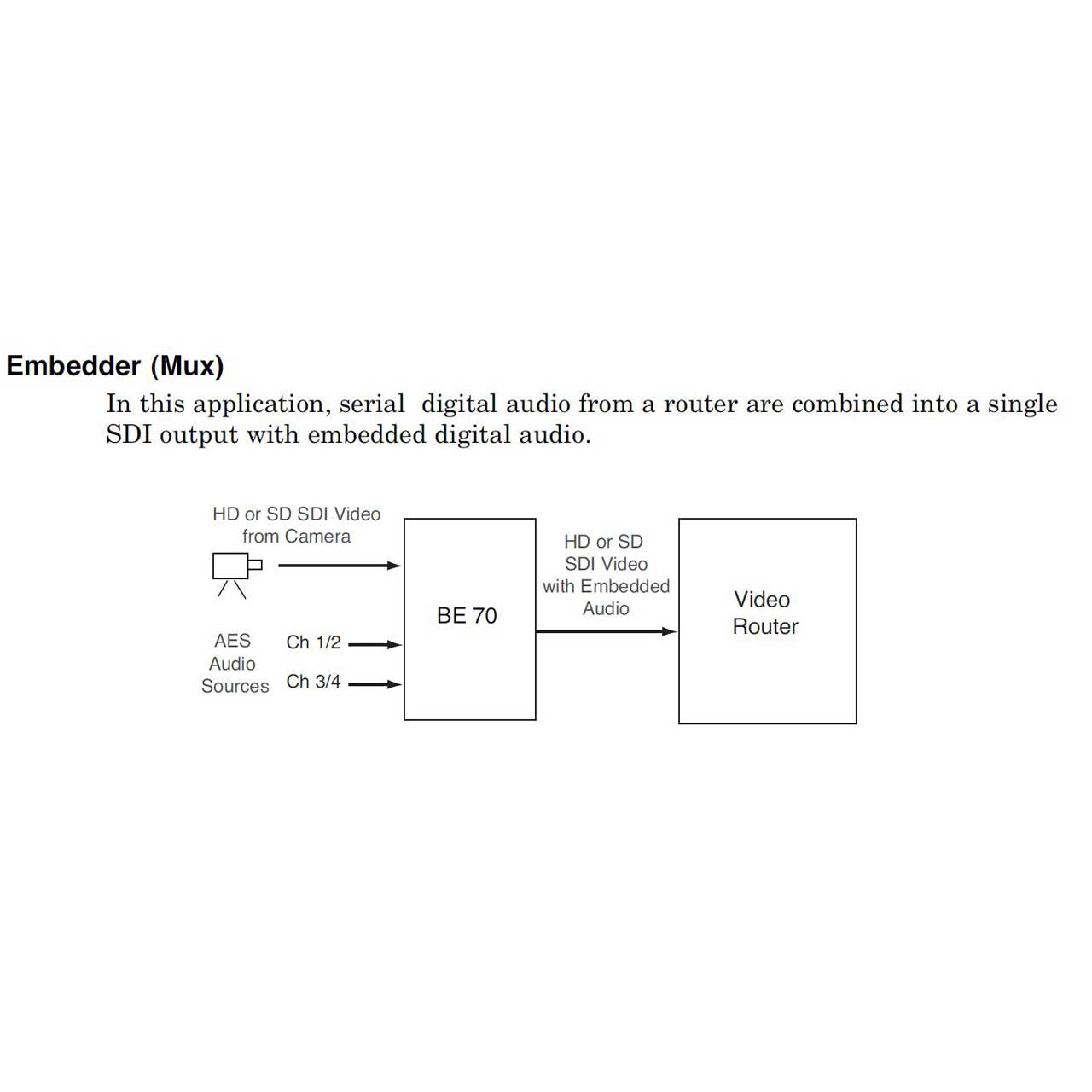

    When configured as a multiplexer, the BrightEye 70 has one serial digital video input and four AES audio inputs. These four AES streams are embedded into the video stream. AES inputs are sample rate converted, allowing the use of asynchronous audio. The output of the module is a digital stream that contains the original video signal and four AES pairs.

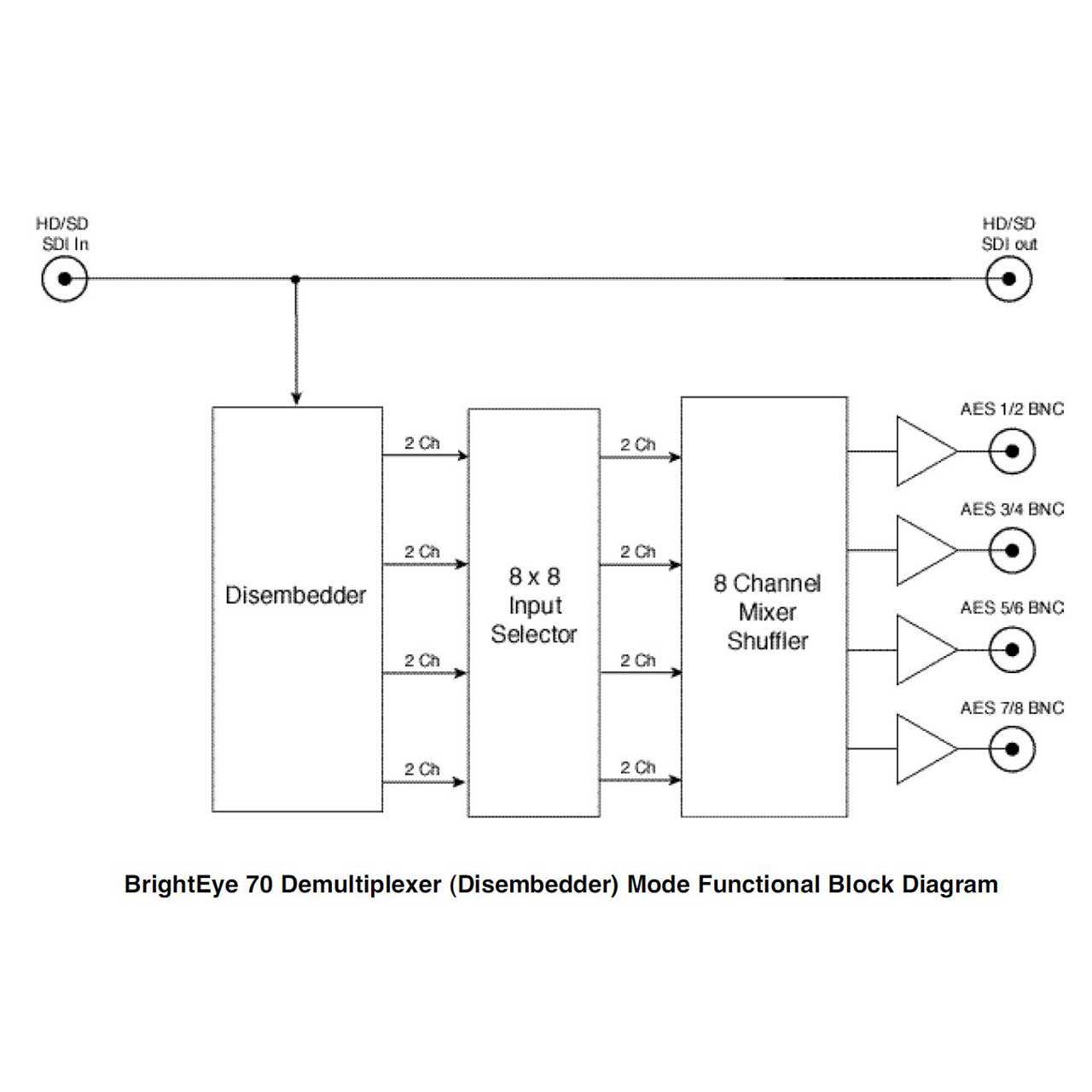

    When configured as a demultiplexer, audio signals present in the incoming video signal are extracted and delivered as standard AES digital audio streams.
    The BrightEye 70 includes an eight channel audio mixer with channel swap and shuffle capability that allows you to completely
    re-arrange and re-mix audio channels. It provides precise control over audio level, with up to 12 dB of gain to compensate for low level sources. All audio processing is performed at full 24 bit resolution by a digital signal processor (DSP). Delay is adjustable up to one second. The Data mode operation allows embedding or disembedding of Dolby E or AC-3 signals.


    • Features

      • Use with servers, workstations and satellite receivers
      • HD/SD audio embedder or disembedder
      • 8 channel audio mixing
      • Adjustable delay
      • Data mode for Dolby E and AC-3
      • Passes embedded audio

    • Specifications

      • Serial Digital Input
      • Number One
      • Type HD Serial Digital 1.485 Gb/s
      • SMPTE 274M, 292M or 296M or
      • SD Serial Digital 270 Mb/s SMPTE 259M
      • Impedance 75 U
      • Return Loss >15 dB
      • Max Cable Length 100 meters for HD
      • 300 meters for SD
      • (Belden 1694A)

        HD Standards Supported:
      • 1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60 Hz720p (SMPTE 296M -1,2,3) 50, 59.94 or 60 Hz1080p (SMPTE 274M -9,10,11) 23.98, 24, 25 Hz1080sF (RP211 -14,15,16) 23.98, 24, 25 Hz

        Serial Digital Output
      • Number One
      • Type Follows input
      • Delay < 1 Sec Audio is adjustable to 1 second
      • Impedance 75 U
      • Return Loss >15 dB
      • Output DC None (AC coupled)

        AES/EBU Digital Inputs
      • Number Four (total of eight channels)
      • Type AES3id
      • Connector Coaxial, 75 U
      • Bit Depth 20 and 24 Bit
      • Sample Rate 30 KHz to 100 KHz (sample rate converted
      • internally to 48 KHz)
      • Crosstalk <144 dB
      • Dynamic Range >144 dB
      • Reference Level -18 or -20 dBFS (selectable)
      • AC-3, Dolby-E
      • Supported when inputs are synchronous

        Embedded Inputs
      • Number Four AES Streams (from video input)
      • Eight channels from any two of four groups
      • Channels Eight
      • Bit Depth 20 and 24 Bit

        AES/EBU Digital Outputs
      • Number Four (total of 8 channels)
      • Type AES3id
      • Connector Coaxial, 75 U
      • Bit Depth 24 Bit
      • Sample Rate 48 KHz, synchronous to video output
      • Reference Level -18 or -20 dBFS (selectable)

        Embedded Output (In SDI Outputs)
      • Group Assign Cascade or replace any two of four groups
      • Channels Eight
      • Bit Depth 24 Bit

        General Specifications
      • Size 5.63" W x 0.8" H x 5.98" D
      • (143 mm x 21 mm x 152 mm)
      • including connectors and flange
      • Weight 15 oz
      • Power 12 volts, 3 watts
      • (100-230 VAC modular power supply)
      • Power Consumption 12 volts, 8 watts
      • Temperature Range 0 to 40° C ambient (all specs met)
      • Relative Humidity 0 to 95% non-condensing
      • Altitude 0 to 10,000 ft.




    Add Accessories for your BE70:
