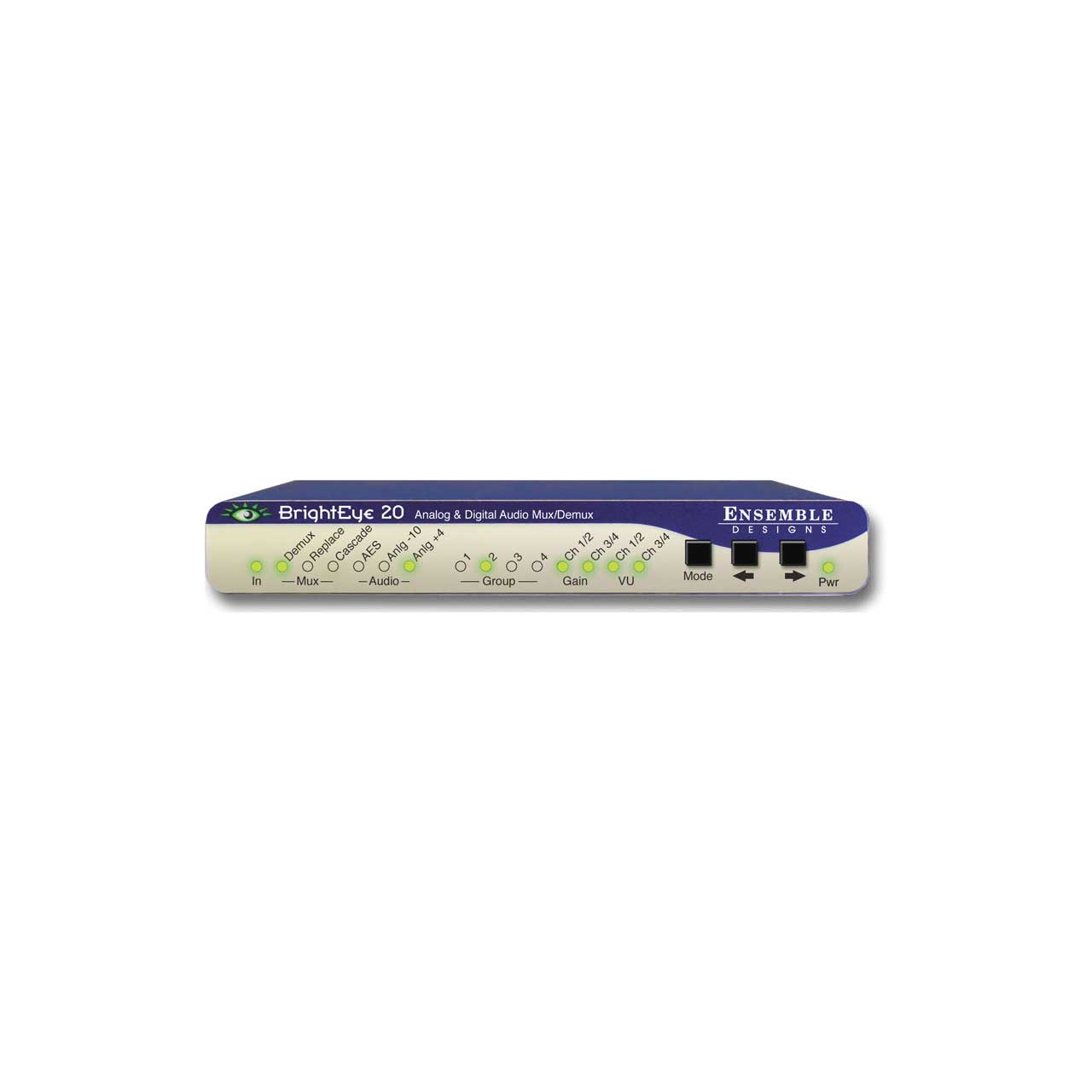

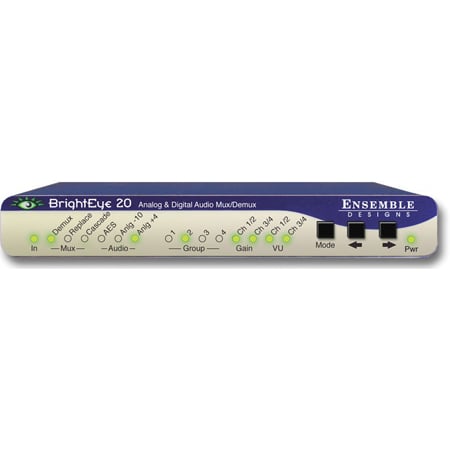

Ensemble Designs BrightEye 20 Analog Audio/AES Embedder or Disembedder *Standard Def Video Only

Manufacturer: Ensemble Designs

Item #: ENDE-BE20   •   MFG #: BE20



List Price:$1,000.00
Our Price:$950.00

free ship


Availability:
Direct Ship from manufacturer, contact us for availability
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    BrightEye 20 is a versatile audio Mux/Demux. With SDI video I/O, and both analog and AES I/O, it is field configurable for embedding or disembedding.

    When configured as a multiplexer, BrightEye 20 has one serial digital video input and two AES digital audio inputs. Alternately, the 4 channel analog audio input can be used. The audio is embedded into the 601 video stream. The output is a serial digital video stream that contains the original video plus the two AES streams or four analog audio channels.

    When configured as a demultiplexer, audio signals present in the incoming serial digital video signal are extracted and delivered simultaneously as two AES digital audio streams and as four analog audio channels.

    Audio mixing, level adjustments, and channel shuffling can be applied to both the multiplexer and demultiplexer modes, and are accessed through BrightEye PC. Audio group selection is also made through BrightEye PC. A variety of audio connectors and adapters are available for integrating BrightEye 20 to any type of system.

    Use in desktop and broadcast applications.

    Power supply is included.


    • Features

      • Audio embedder or disembedder
      • Analog and digital inputs
      • Analog and digital outputs
      • Use in desktop and broadcast applications

    • Specifications

      • AES/EBU Digital Inputs:
      • Number: Two (Total of four channels, selectable as inputs or outputs)
      • Type: AES3id
      • Connectorization: Coaxial, 75 U
      • Bit Depth: 20 and 24 bit
      • Sample Rate: 30 kHz to 100 kHz (Sample Rate Converted internally to 48 kHz)
      • Reference Level: -18 or -10 dBFS (selectable)
      • AC-3, Dolby-E: Supported when inputs are synchronous

      • AES/EBU Digital Outputs:
      • Number: Two (Total of four channels)
      • (selectable as inputs or outputs)
      • Type: AES3id
      • Connectorization: Coaxial, 75 Ohm
      • Bit Depth: 20 and 24 bit
      • Sample Rate: 48kHz (Synchronous to video output)
      • Reference Level: -18 or -10 dBFS (selectable)

      • Video Input:
      • Number: One
      • Signal Type: 270Mb/s SD Serial Digital
      • (SMPTE 259M)
      • Impedance: 75 Ohm
      • Return Loss: > 15 dB
      • Max. Cable Length: 300 meters

      • Video Output:
      • Number: One
      • Signal Type: 270Mb/s SD Serial Digital
      • (SMPTE 259M)
      • Impedance: 75 Ohm BNC
      • Return Loss: >15 dB
      • Output DC: None (AC Coupled)

      • Analog Audio Inputs:
      • Number: Four
      • (selectable as inputs or outputs)
      • Type: Balanced
      • Impedance: >15K Ohm
      • Max. Input Level: 24 dBu
      • CMRR: >60 dB, 20 Hz to 10 kHz
      • Quantization: 24 bits, 128x Oversampling
      • Sample Rate: 48 kHz
      • Reference Level: -10 dBu or +4 dBu
      • Frequency Response: ±0.1 dB, 20 Hz to 20 kHz
      • Crosstalk: <102 dB
      • Dynamic Range: >106 dB

        Analog Audio Outputs:
      • Number: Four (selectable as inputs or outputs)
      • Type: Balanced, transformerless
      • Impedance: 30 Ohm
      • Max. Output Level: 24 dBu
      • Resolution: 24 bits, 128x Oversampled
      • Reference Level: -10 dBu or +4 dBu
      • Frequency Response: ±0.1 dB, 20 Hz to 20 kHz
      • Crosstalk: <102 dB
      • Dynamic Range: >106 dB

      • General Specifications:
      • Size: 5.625" W x 0.8 " H x 5.5" D
      • (143 mm x 20 mm x 140 mm)
      • including connectors
      • Power: 12-24 volts, 7 watts
      • Temperature Range: 0 to 40 degrees C ambient
      • Relative Humidity: 0 to 95% noncondensing
