Ensemble Designs BrightEye Mitto 2 Pro Scan Converter with HDCP
  • Ensemble Designs BrightEye Mitto 2 Pro Scan Converter with HDCP
  • Ensemble Designs BrightEye Mitto 2 Pro Scan Converter with HDCP
  • Ensemble Designs BrightEye Mitto 2 Pro Scan Converter with HDCP
  • Ensemble Designs BrightEye Mitto 2 Pro Scan Converter with HDCP

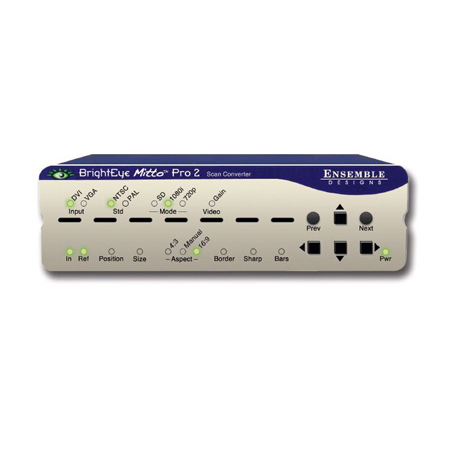

Ensemble Designs BrightEye Mitto 2 Pro Scan Converter with HDCP

Manufacturer: Ensemble Designs

Item #: ENDE-BEM-4-H   •   MFG #: BEM-4-H


This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.



Item unavailable. Please select another option.

Items similar to the ENDE-BEM-4-H

California Residents:
Cancer and Reproductive Harm -


When is a scan converter not just a scan converter...? When it's an Ensemble Designs BrightEye Mitto 2 Pro Scan Converter!

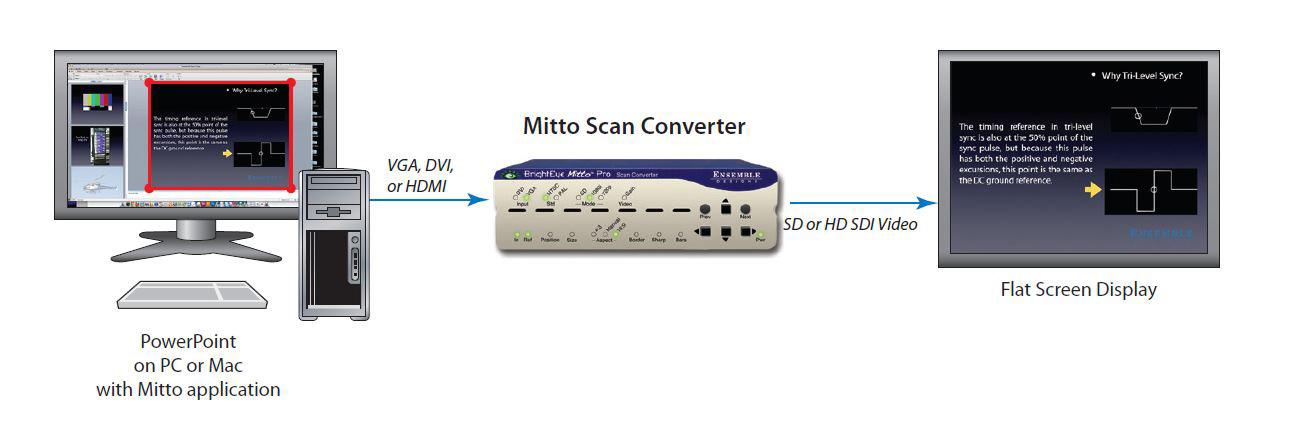

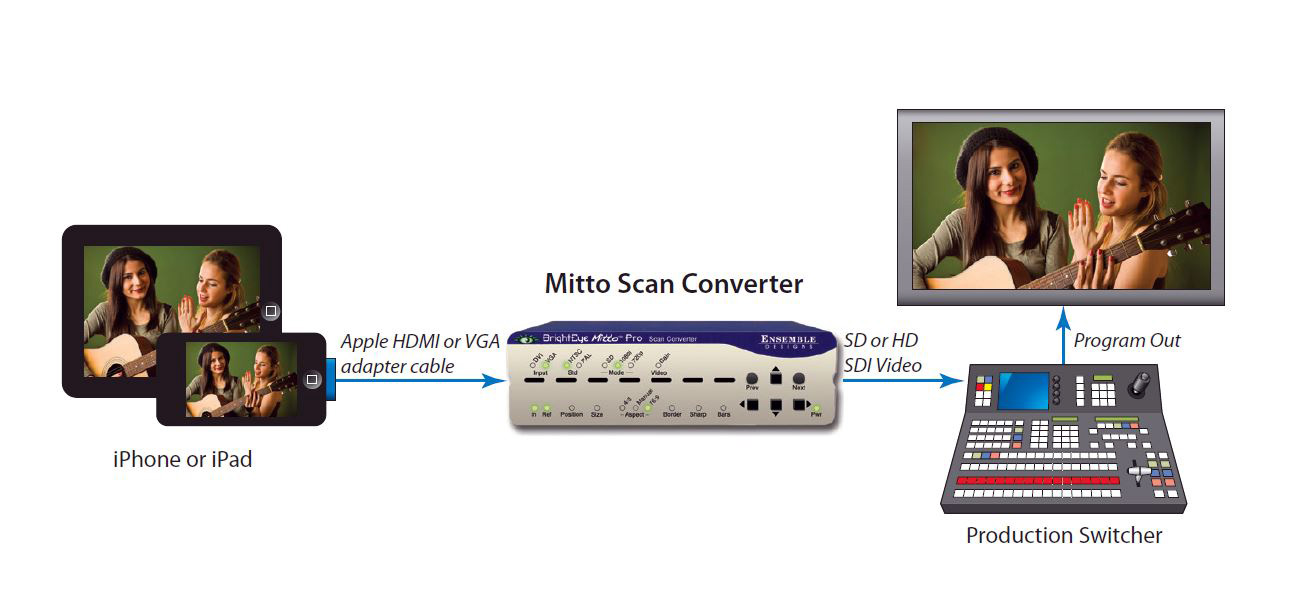

Don't let the title fool you! Ensemble Designs has created something greater than the sum of all it's parts. Were you aware that you can use the BrightEye Mitto 2 Pro for Character Generation.... or use Skype, iChat and Facetime in your production or live show! Facebook and YouTube interviews can be brought directly into your video production with ease! You can also convert video from your mobile devices like your iPhone and iPad into SDI digital video. It's also Ideal for PowerPoint and Keynote presentations. The possibilities are endless.

The BrightEye Mitto family of high performance scan converters provides a new way to take just about any source to 3G, HD or SD SDI video. Computer video can now be used for the most demanding applications including broadcast, high-end military, medical, classroom, church and corporate. All Mitto units accept VGA, DVI and HDMI input signals from PC and Mac computers.

With six different BrightEye Mitto units to choose from, each with varying types of outputs and capabilities, you have the freedom to explore the best one for your particular video application. All BrightEye Mitto units convert YouTube, Skype video, weather radar, emails and maps to video. Just a small part of the screen, such as a Skype window, can be selected with a mouse and converted to full screen HD. Ensemble uses the latest technology in its proprietary upconversion and filtering and that means you have the best looking video. Compare Mitto to any other scan converter and see the difference!

  • Features

    • High Performance Scan Converter for PC and Mac
    • Best way to bring YouTube, Skype, Weather Radar, Maps and Emails to Video for Production Use
    • Superior Quality - Proprietary Scaling and Filtering System Provides Maximum Detail, Flicker-Free Video Output
    • Use with all Types of Macs and PCs including Laptops, iPhone and iPad
    • Intuitive Front Panel Controls
    • Output Choices: 1.5 and 3 Gb/s HD, SD SDI, Composite Video, Fiber Optic
    • DVI I/O, VGA and HDMI Support with an Adapter
    • Auto senses DVI or VGA
    • Choose a Mitto with Adjustable Audio Delay for Skype and Broadcast Applications
    • Use a Mouse to Select the Part of the Video You Want to Output
    • Easily Adjust Video Parameters and Select Video Output Format
    • Genlock and Time to House Reference, Fully Timeable
    • Rackmountable
    • Memory Presets for Your Favorite Settings
    • 5-Year Warranty and Free Software Upgrades
  • Specifications

    • Computer Input
    • Number One
    • Type DVI (Supports HDMI or VGA with adapter)
    • Connector DVI-I
    • Resolution Up to 1920 x 1200
    • Reference Input
    • Number One, BNC
    • Type 1 V P-P Composite Video
    • PAL, NTSC, Tri-Level Sync
    • Impedance 75 U
    • Return Loss >40 dB
    • Note: When no reference is provided, Mitto runs from an internal
    • "sync gen grade" precision frequency reference.
    • Analog Audio Inputs
    • Number One stereo pair
    • Connector 1/8" mini jack
    • Impedance >15K U
    • Max Input Level 24 dBu
    • Quantization 24 bits, 128 x oversampled
    • Sample Rate 48 KHz
    • Reference Level -10 dBu or +4 dBu
    • Frequency Response ±0.1 dB, 20 Hz to 20 KHz
    • Crosstalk <106 dB
    • Dynamic Range >106 dB
    • AES/EBU Digital Inputs (BEM-1, 1F, 2, 2F)
    • Number Two (four channels)
    • Type AES3id, S/PDIF
    • Connector 1/8" mini jack
    • Bit Depth 20 and 24 Bit
    • Sample Rate 30 KHz to 192 KHz (Sample Rate Converted
    • Internally to 48 KHz)
    • Serial Digital Output
    • Number Two, BNC
    • One for BEM-1F and 2F
    • Signal Type 270 Mb/s SD SDI, SMPTE 259M
    • 1.485 Gb/s HD SDI,SMPTE 274M, 292M, 296M
    • 2.97 Gb/s HD SDI (BEM-1 and BEM-1F only)
    • SMPTE 424M, 425M
    • Processing 16 bit processing
    • 12 and 14 bit upconversion
    • Delay Adjustable from 16 msec to 40 msec
    • Note: Output is fully timeable with respect to the reference input.
    • Audio Embedded
    • Impedance 75 U
    • Return Loss >15 dB to 1.485 GHz
    • >10 dB to 2.97 GHz
    • Output DC None (AC coupled)
    • Standards Supported
    • 1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60 Hz
    • 720p (SMPTE 296M -1,2,3) 50, 59.94 or 60 Hz
    • 525i, 625i (SMPTE 259M)
    • 1080p (SMPTE 424M, 425M), 50, 59.94, 60, Level A (BEM-1 and BEM-1F only)
    • Optical Output (BEM-1F, 2F)
    • Number One, LC/UPC
    • Type Follows SDI configuration
    • Wavelength 1310 nm (non-CWDM)
    • Wavelengths 170 nm -1610 nm
    • at 20 nm CWDM spacing available.
    • Call factory for price and details.
    • Power -7 dBm
    • Max Cable Length 20 km (For greater distances, or higher
    • power and larger loss budgets,
    • please contact the factory)
    • Fiber Type Single Mode
    • Multi-mode compatible with
    • attenuation at transmit end
    • Analog Video Output
    • Number One, BNC
    • Type Composite PAL or NTSC
    • (when SD is selected on the SDI output)
    • Return Loss >40 dB
    • Output DC <100 mV
    • Computer Monitor Output
    • Number One, looping
    • Type DVI (Supports HDMI or VGA with adapter)
    • Connector DVI-I
    • Format Follows input
    • Control (BEM-1, 1F, 2, 2F)
    • Number One
    • Connector 9 pin D
    • Type RS-232, GPI
    • General Specifications
    • Size 5.63" W x 0.8" H x 5.98" D
    • (143 mm x 21 mm x 152 mm)
    • including connectors and flange
    • Weight 1 lb 6 oz
    • Power 12 volts, 12 watts
    • (100-230 VAC modular power supply)
    • Temperature Range 0 to 40° C ambient (all specs met)
    • Relative Humidity 0 to 95° non-condensing
    • Altitude 0 to 10,000 ft.
  • Warranty

    • 5-Year
