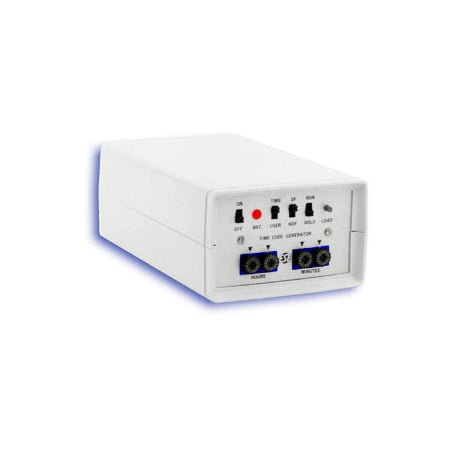

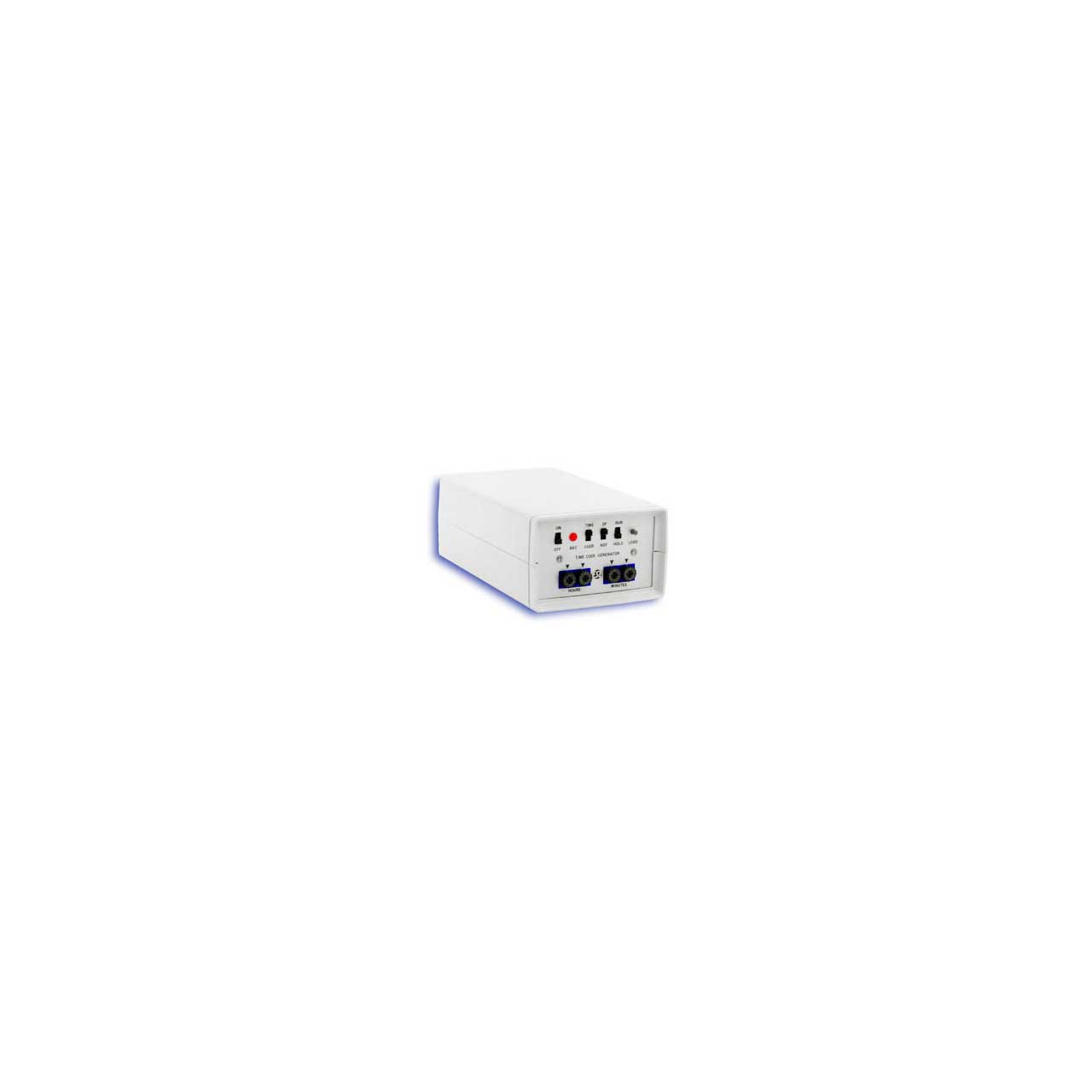

ESE ES-263 Portable SMPTE Time Code Generator

ITEM #: ES-263 MFG #: ES 263

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$395.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    ES 263 - Overview

    The ESE ES-263 is a portable, presettable SMPTE Time Code Generator. The microprocessor-based unit can be preset using the front panel mounted controls (only hours and minutes are presettable as seconds and frames are automatically set to 00:00). The ES-263 can generate Time Data or User Bits (User Bits are presettable with hexadecimal values "0 - F"). SMPTE Time Code (unbalanced) is output via a rear mounted RCA and the Video Sync Input (composite video or sync) is via a rear mounted BNC connector. The unit is housed in a small portable enclosure that includes a convenient belt clip. The internal battery provides up to ten hours of operation per charge. An AC/wall adapter/charger is also included. PAL and/or EBU operation can be optionally specified.

    • Features:

      • 2 VPP SMPTE Time Code output (RCA)
      • Video input for synchronization (BNC)
      • Presettable Hours & Minutes
      • Settable Hour & Minute User Bit groups
      • 10 Hour Rechargeable Battery
      • AC Adapter/Charger included
      • Drop-Frame/Non-Drop Frame modes
      • EBU Time Code optional
      • Enclosure includes Belt Clip
      • Dimensions: 3.6"W x 2.3"H x 6"D, 1 lb.
