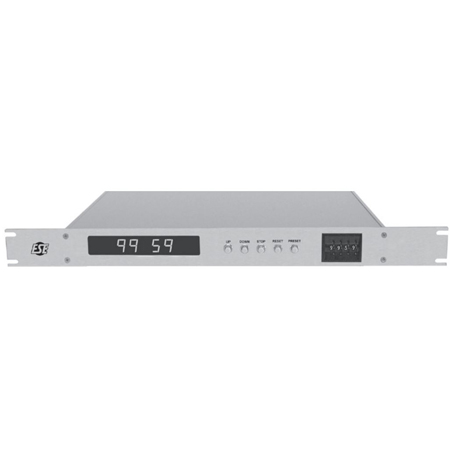

Primary Image
ESE
Free Shipping with $49 Minimum Order

List Price:

$620.00

Our Price:

$580.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

ES 362UE OPTIONS D/P - Overview

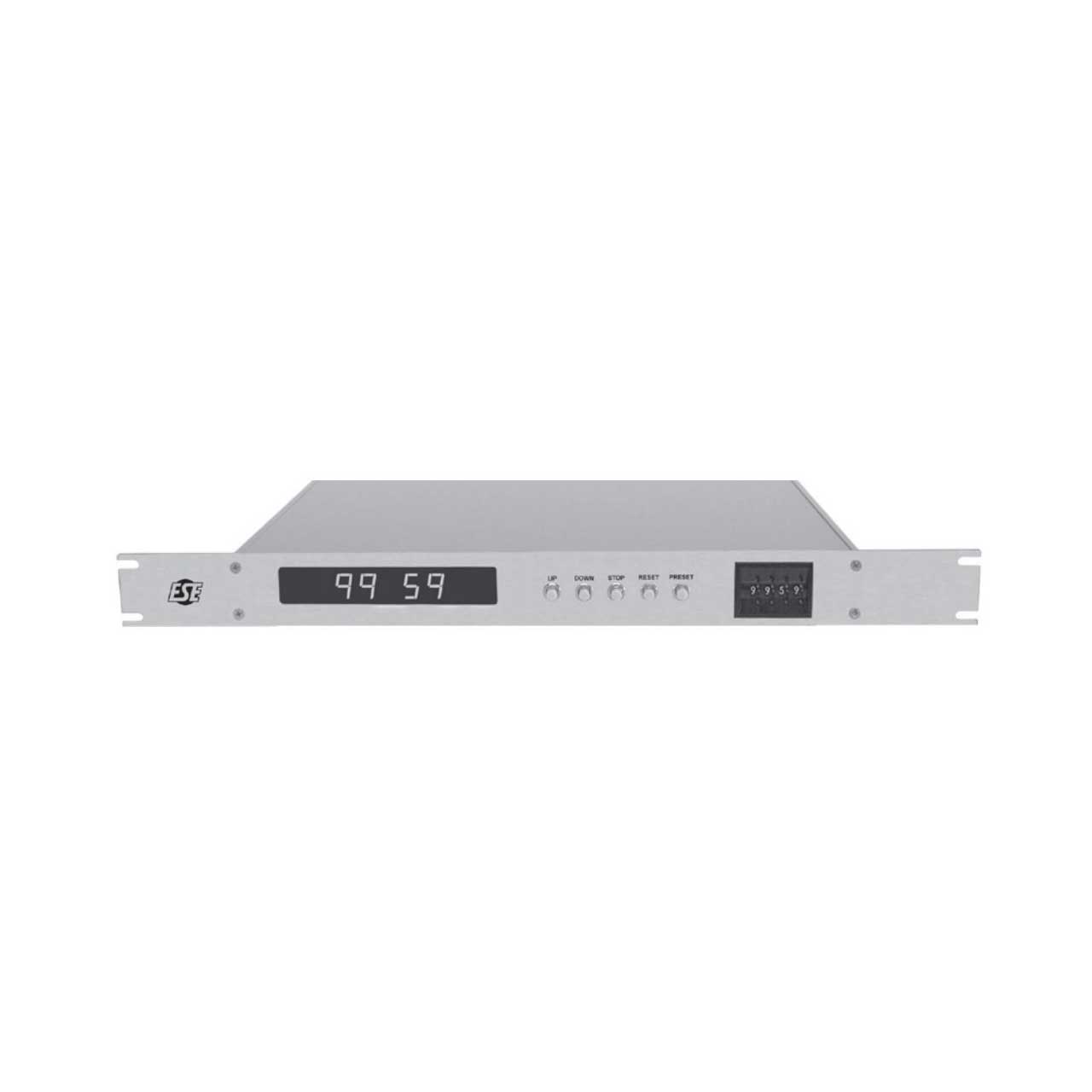

The ESE ES-362UE is a 100 Minute Up/Down Timer with Options D and P* factory installed. The ES-362UE is housed in an aluminum/plastic case. The timer is presettable via the front-mounted thumbwheel switch. Up, Down, Stop, Reset-to-zero, and Preset controls are provided on the top of the case. A rear-mounted BNC connector provides the ESE Timer Code for driving remote slave displays. Up to 100 slave displays may be driven, using up to 4000 feet of coaxial cable or twisted pair. A rear-mounted DB-9 connector provides access to remotely control the five pushbutton switch functions. If the relay contact closure option is ordered, the contacts are also accessible on this connector.

*Includes options:
D - Remote Control: This option consists of a connector wired to switches on a control plate via a six-foot cable.
P - 19" Front Panel (Rack Mount): Designed for mounting into a standard equipment rack. Panel is 1/8" black anodized Aluminum and chassis is 5" - 10" deep.

  • Features:

    • .56" Yellow LED Display
    • 100 Minute Up/Down count range (00:00 - 99:59)
    • Thumbwheel Preset
    • ESE Timer Code™ output
    • Remote Control input
    • Optional relay-contact closure output at zero
    • Optional Stop at zero
    • Optional Tenths of Seconds display
    • Optional 1.75" Rackmount enclosure (Option "P")
    • 220-240 VAC (110-120 VAC is standard) & UL options available


  • Specifications:

    • Power: 5 Watts
    • Line Cord: 3-wire
    • Electrical: 117 VAC, 50/60 Hz
    • Enclosure: Anodized Aluminum/Walnut Grain Sides & Top
    • Mechanical: 10" W x 2.5" H x 6" D
    • # of digits: Four (Minutes & Seconds)
    • Display Height: .56" Yellow LED
    • Viewing Distance: 20 Feet
    • Output: ESE TC-89; BNC
    • Inputs: Up, Down, Stop, Reset, Preset; DB-9


  • Item Includes:

    • 1x ESE ES 362U -D-P 100 Minute Up-Down Timer with Rackmount and Switch Plate Options with cable


  • Warranty:

    • FIVE YEARS
