    ES-943U/NTP-C/POE - Overview

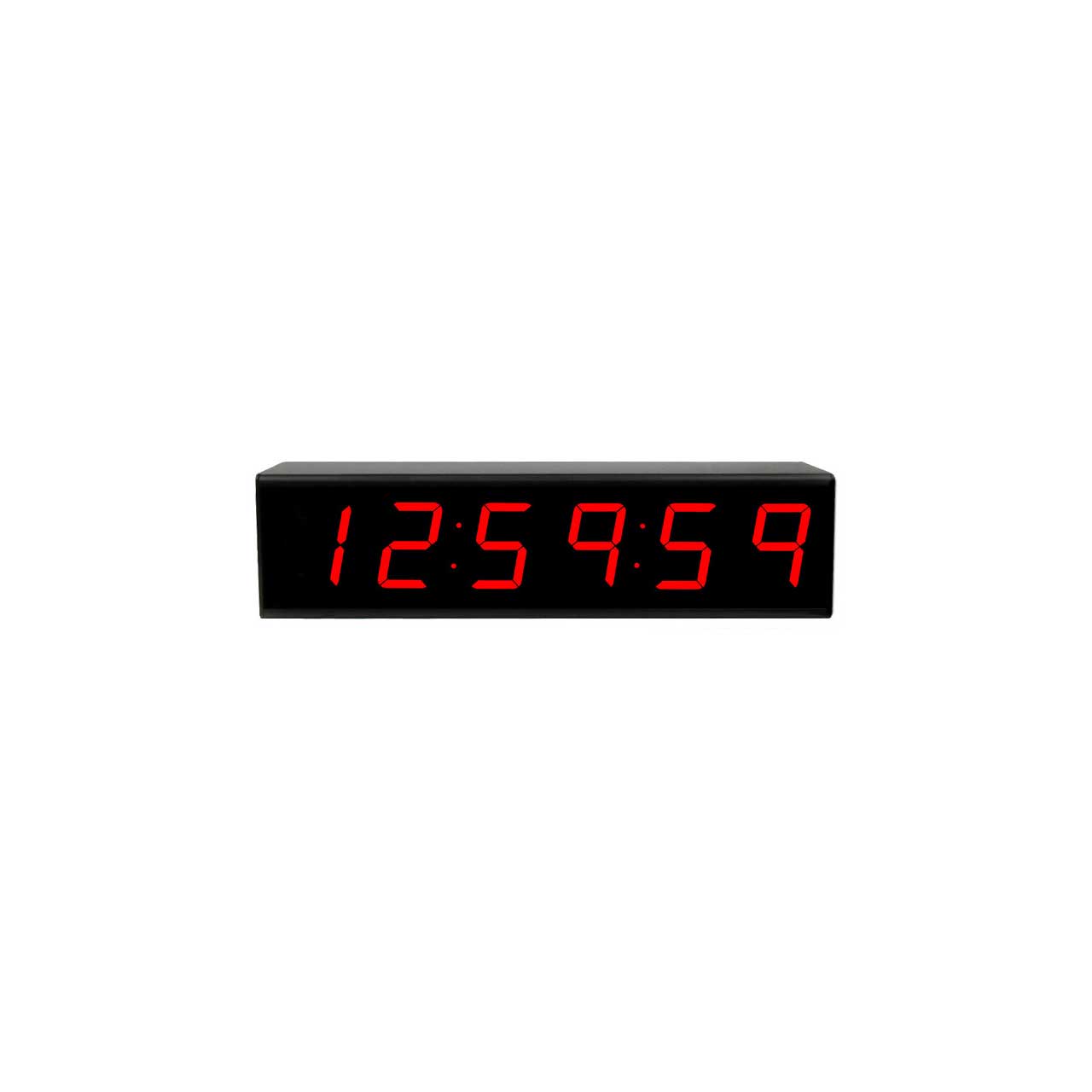

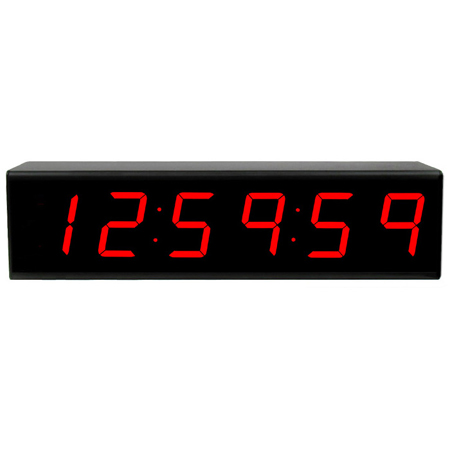

    The ESE ES-943U/NTP-C is a Time Code display featuring 4.0" bright red LED displays & Option NTP-C (. The unit is housed in a black-textured aluminum wall-mount enclosure (7" H x 26" W x 3.5" D). The unit accepts, via the rear-mounted terminal block, either ESE Time CodeT (TC76T, TC89T, or TC90T), SMPTE/EBU Time Code (Time of Day only) or RS-232C ASCII Time Code(format "0", "1" or "A" at 9600 baud). The ES-943U will automatically determine which code is being received. A rear-mounted DIP switch is used to configure the display for 12 or 24 Hour format, or to display the Date instead of time-of-day (if incoming time code contains Date information, such as ESE TC90, date-encoded SMPTE/EBU or ASCII formats "1" or "A"). If the Time Zone option is ordered, a rear-accessible DIP switch is installed for this function. If receiving ESE Time CodeT from a timer, the unit will display Minutes, Seconds and Tenths of Seconds (if the timer has the Tenths option).

    Please Note: Option NTP-C is the NTP Client. NTP Client Displays synchronize exclusively with an NTP server (replaces all standard inputs)

    • Features:

      • Reads SMPTE/EBU, ASCII or ESE Time Code.
      • Error Detection & Correction.
      • Optional Time Zone Offset.
      • Optional ESE, & RS-232C Time Code Outputs.
      • Display Date or Time.
      • 0.4" To 7.0" Display Sizes.
      • 12/24 Hour Format.
      • Simple Installation & "Hands-Off" Operation.
      • Long-Life LED Displays.
      • Desk Top, Console, Wall & Rack Mount Enclosures.
      • Perfect Synchronization With Master Clock.
    • Specifications:

      • Display: 4.0" LED
      • Power: 8-10 Watts
      • Electrical: 117 VAC, 50/60 H
      • Viewing Distance: 120'
      • Time Code Input: ESE, SMPTE/EBU, ASCII
      • Enclosure: 4.0" 6-digit Wall
      • Style: Black Textured Aluminum
      • Dimensions: 7 x 26 x 3.5"
    • Item Includes:

      • 1x ES-943U/NTP-C NTP Time Display
