ETS PA203F InstaSnake Adapter - 3 FXLR 1 MXLR to RJ45 Jack All Pins

ITEM #: ETS-PA203F MFG #: PA203F

free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    PA203F - Overview

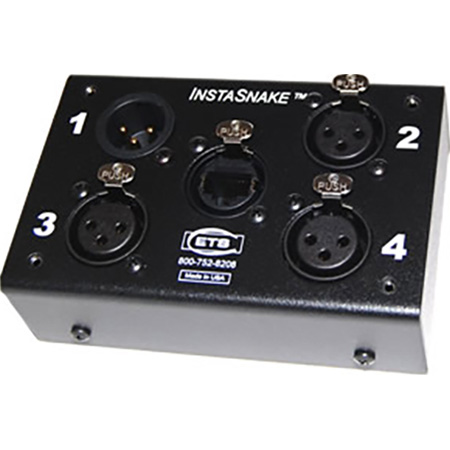

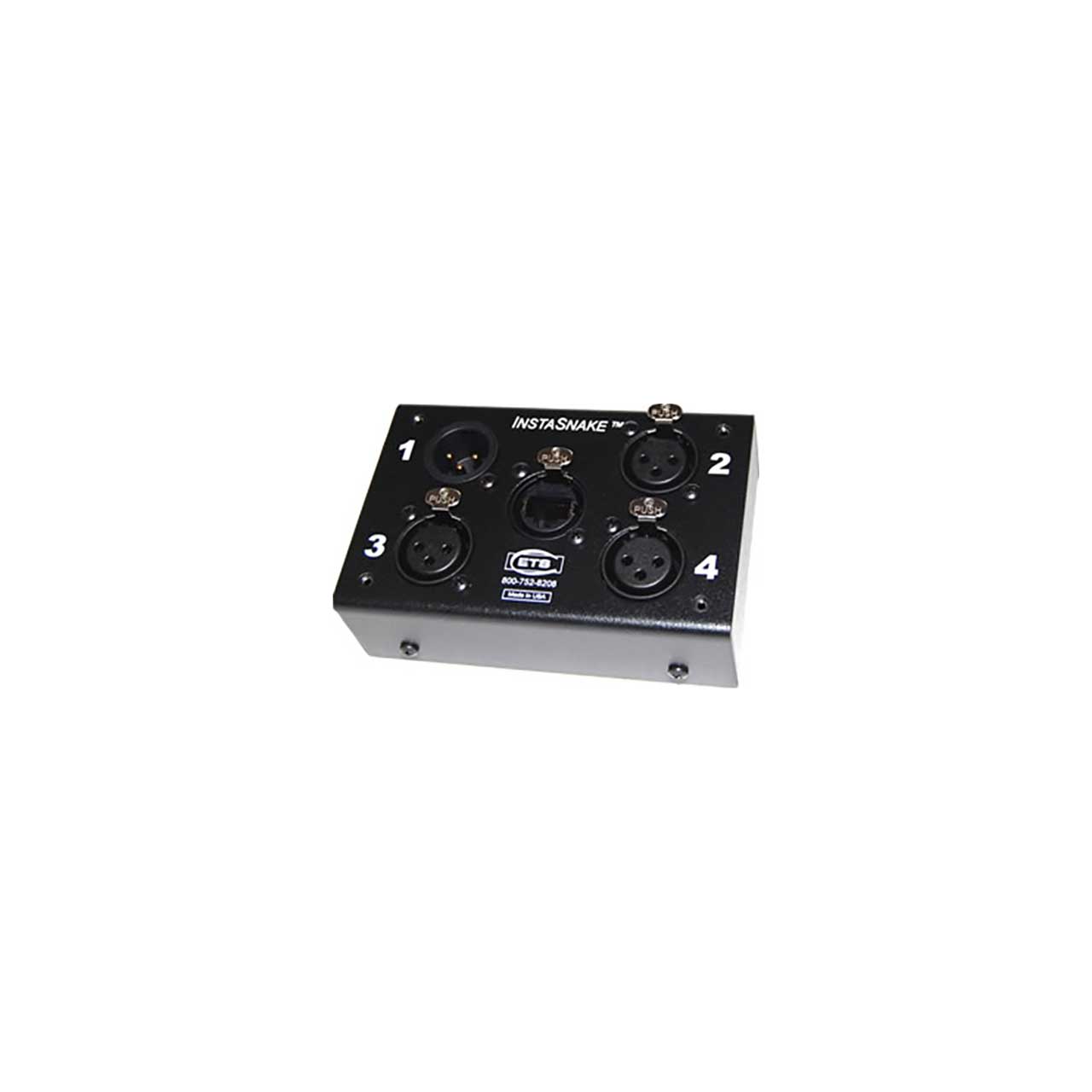

    The ETS InstaSnake PA203 Series is configured for 3 sends and 1 return. Each passive send unit (PA203F) features 3 Female XLR and 1 Male XLR to RJ45 jack, all pins. Each passive receive unit (PA203M) features 3 Male XLR and 1 Female XLR to RJ45 jack, all pins. The ETS-PA203P adds the convenience or an 18" XLR Pigtail at the receive end.

    The basic units are a pair of passive units with bi-directional capability which can be input directly into analog or digital consoles. Designed to the highest professional standards the InstaSnake has a wide, flat frequency response, low THD and residual noise. The InstaSnake has been factory tested to 1900 feet over CAT5 using low Z dynamic microphones. Phantom power has been tested to 850 feet over shielded cable. PA205 will send phantom power over standard Cat5 or 6 cables.

    You can mix and match Mic/Line, Line or AES/EBU configurations making the InstaSnake a versatile high quality solution at very affordable prices.

    • Features:

      • Very easy transport
      • Low cost
      • No ground loops
      • Add second unit to increase the number of channels
      • May be used for analog or digital audio
      • Supports 48V phantom power
      • Rugged, `road-ready' construction
      • RoHS compliant
      • USA Made
      • 100% tested
