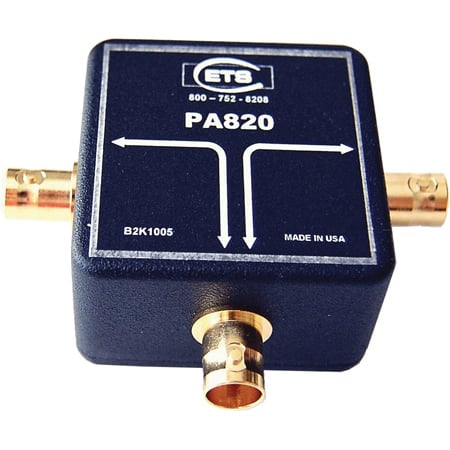

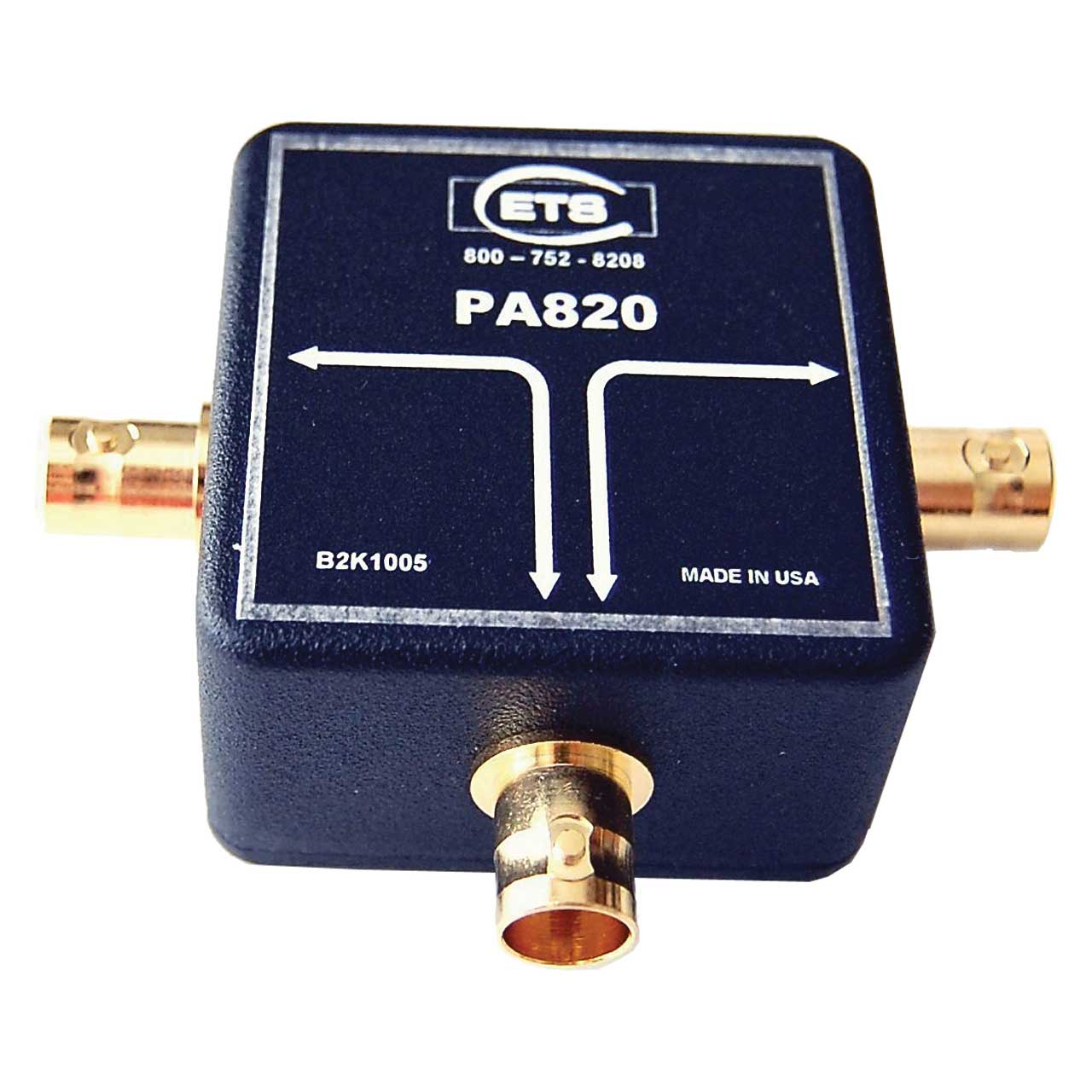

ETS PA820 AES/EBU 75 Ohm Digital Audio Splitter with BNC Connectors

ITEM #: ETS-PA820 MFG #: PA820

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$77.20

Our Price:

$66.14

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    PA820 - Overview

    The ETS PA820 RG59 Splitter is carefully designed to divide the energy from a single source into equal parts, maintaining precise impedance-matching. Return signals are routed back to the source with minimal crosstalk to the other port.

    This device is expressly crafted for AES/EBU standard for digital audio. It minimizes losses while preserving signal integrity. As an added benefit, ETS precision impedance-matching technology enables units to be non-symmetrically applied when being cascaded. Note that each cascade stage reduces the signal level by 3dB.

    • Features:

      • Enables two outputs from a single source without interference or impedance- mismatching
      • Can be cascaded non-symmetrically for multiple outputs
      • Metal case and chassis
      • 100% tested
      • Made in USA

    • Specifications:

      • Bandwidth: 10kHz - 50MHz
      • Connectors: 3x BNC female 75Ω (per chan. on panels)
      • Impedance: 75Ω ±2% 50kHz - 30MHz
      • Insertion Loss: 0.25dB 10kHz - 50MHz
        Note: Splitting reduces signal level by 3dB
      • Crosstalk: 35dB down, 50kHz - 30MHz
      • Dimensions: 2.72" x 2.72" x 1.30" (69mm x 69mm x 33mm)
      • Net Weight: 3.53oz (0.1kg)
