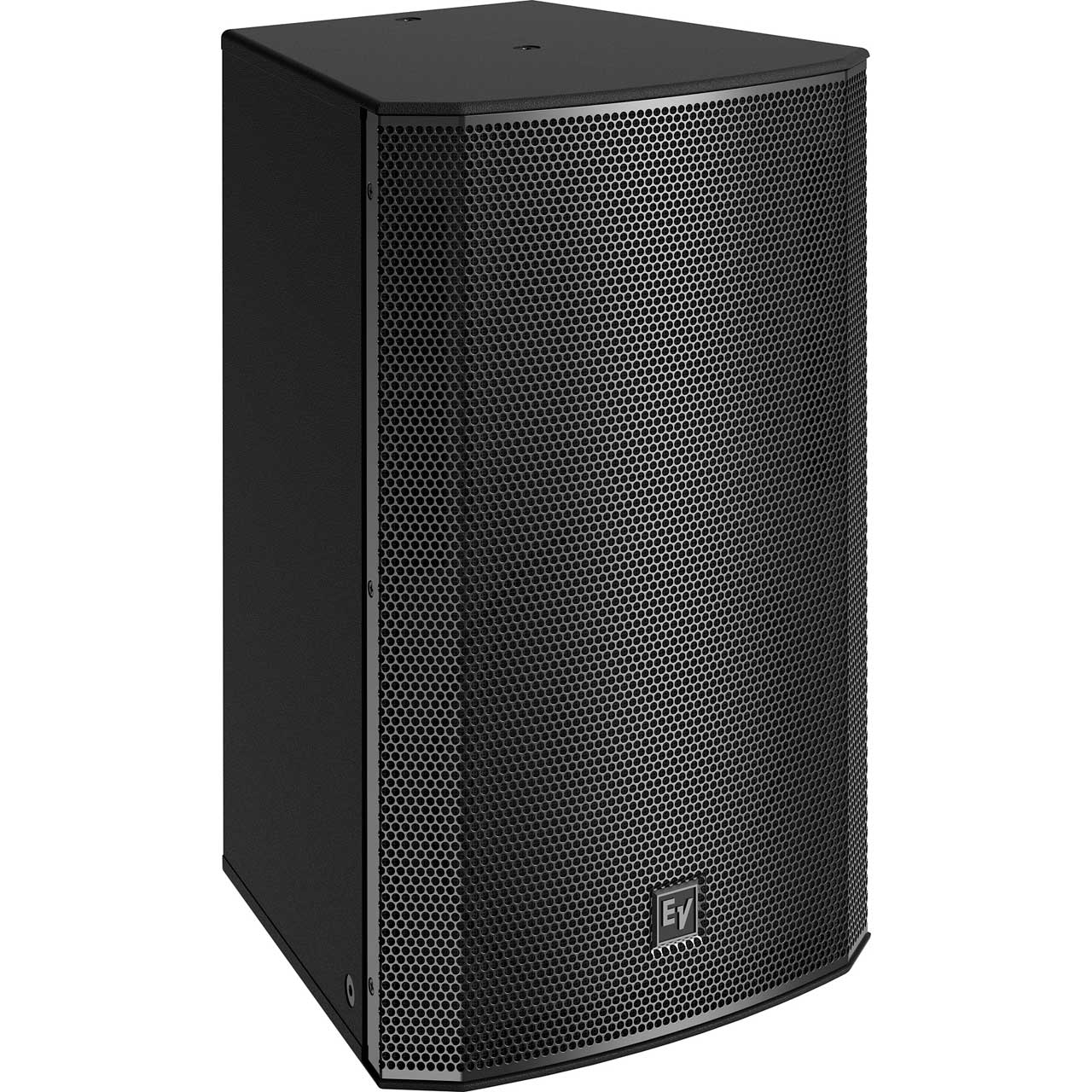

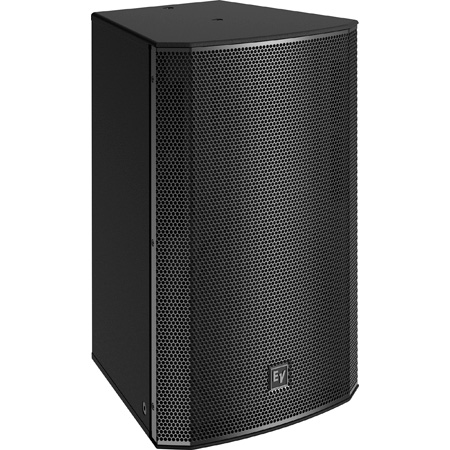

Electro-Voice EVC-1122-64PIB 12 Inch Speaker - 60x45 Weatherized - Black - Dual 4-Pin Connectors (Euroblock)

ITEM #: EV-EVC112264PIB MFG #: EVC-1122-64PIB

free ship

List Price:

$1,980.00

Our Price:

$1,528.68

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    EVC-1122-64PIB - Overview

    EVC Loudspeakers from Electro-Voice are two-way systems that can be used in a broad range of applications where wide bandwidth, vertical and horizontal directivity control, and high efficiency are required in a compact, cost-effective package. EVC Loudspeakers are voiced to complement other EV-Innovation models (EVF, EVH, EVA, and EVU).

    The high frequency section of EVC Loudspeakers comprises a single 1¼-inch pure titanium dome compression driver directly coupled to a rotatable constant directivity waveguide that delivers uniform pattern control and smooth, linear response. The low frequency section employs a high-output woofer that was developed using state-of-the-art, computer aided optimization to provide low distortion, high efficiency, and maximum intelligibility at high sound pressure levels. The passive crossover implements a modified fourth-order design with slopes of 24 dB per octave for smooth off axis response and improved definition through the critical vocal range.

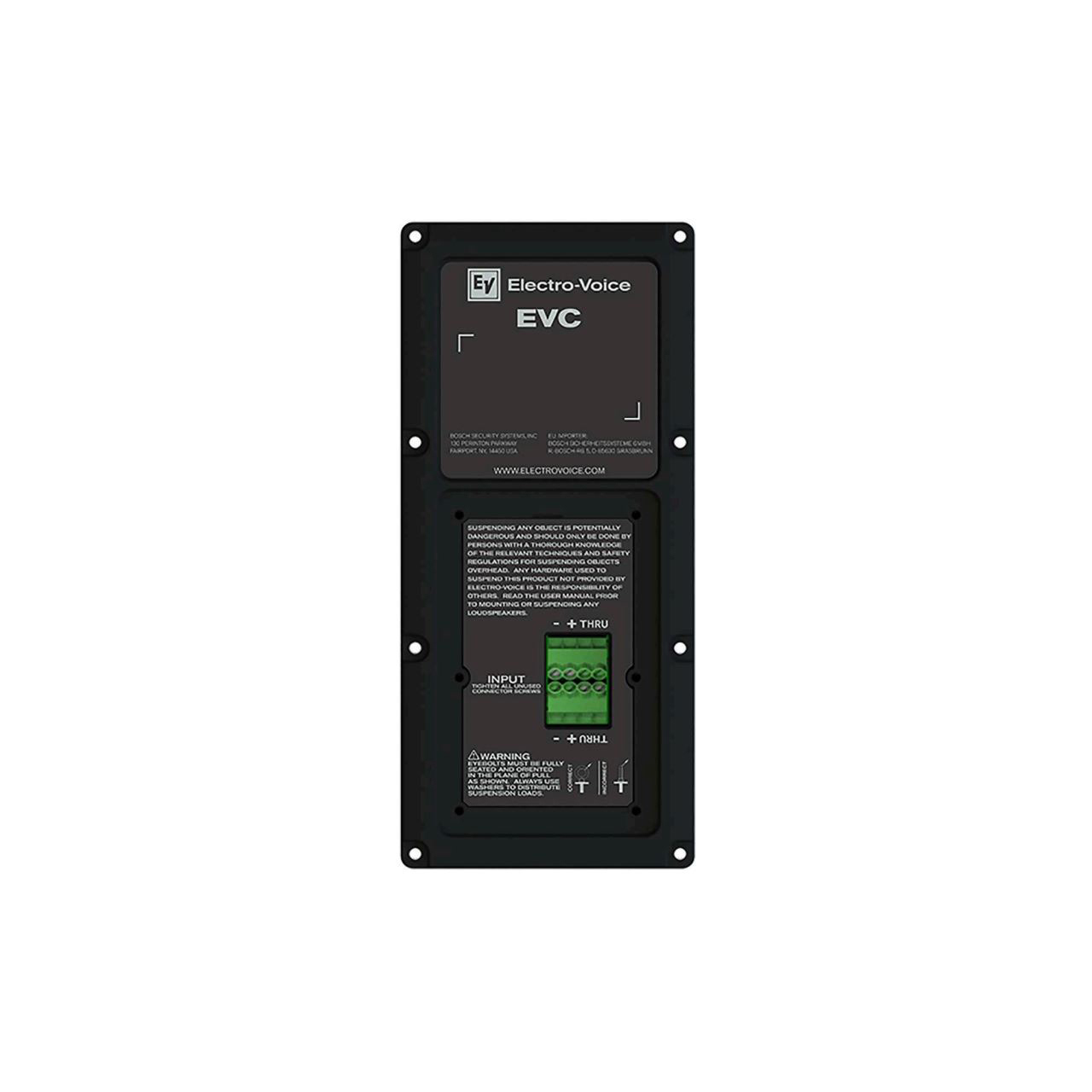

    The EVC series is an extremely cost-effective solution for many fixed-install applications. The enclosures are constructed of 15-mm plywood and finished with EVCoat for enhanced durability. The loudspeakers have been designed with multiple M10 suspension points as well as attachment points for an optional U-bracket or multi-mount style pan/tilt wall mount. All EVC series loudspeakers accept wire gauges up to 10 AWG (6 mm). The input panel also accepts optional covers with NL4-type connectors or weatherized gland-nuts.

    For 70V/100V operation, the input panel has an internal landing pad for mounting EV's high-quality TK-150 audio transformer. Adding a TK-150 to the EVC input panel engages EV's patented Automatic Saturation Compensation (ASC), which preserves low frequency performance while presenting a stable load to the amplifier regardless of how many loudspeakers are connected in parallel. An EVC loudspeaker with a transformer installed sounds virtually identical to the same model without a transformer.

    • Features:

      • 12-inch, two-way loudspeaker, with 60° x 45° constant directivity, rotatable waveguide
      • 300 W Continuous, (1200 Peak)
      • Passive system: 95 dB, 126 dB maximum
      • Optional high quality transformer and patented Automatic Saturation Control (ASC) preserve low end over 70V/100V lines

    • Specifications:

      • Frequency response (-3 dB): 70 Hz - 20 kHz
      • Frequency range (-10 dB): 50 Hz - 25 kHz
      • Rotatable coverage: 60° x 45°
      • Rec. high-pass frequency: 45 Hz
      • Passive crossover frequency: 1.6 kHz
      • Axial sensitivity: 95 dB (1 W/1 m)
      • Max. calculated SPL: 126 dB
      • Power handling: 300 W (Continuous), 1200 W (Peak)
      • Nominal impedance: 8 Ω
      • Minimum impedance: 7 Ω
      • LF transducer: EVS-12M
      • HF transducer: DH-3
      • Connectors: Dual four-pin 10 AWG Phoenix/ Euro Block screw-terminals
      • Enclosure: 15-mm plywood with EVCoat
      • Environmental: IEC 60529, IP44
      • PI version: IEC 60529, IP55
      • Suspension: (8) M10 suspension points
      • Color: Black or white
      • Dimensions (HxWxD): 616 mm x 395 mm x 401 mm, (24.26 in x 15.56 in x 15.77 in)
      • Net weight: 20.3 kg (44.7 lb)
      • Shipping weight: 22.7 kg (50.0 lb)

    • Item Includes:

      • 1x Loudspeaker
      • 1x Manual

    • Warranty:

      • 5 years

    • GTIN:

      0800549834049
