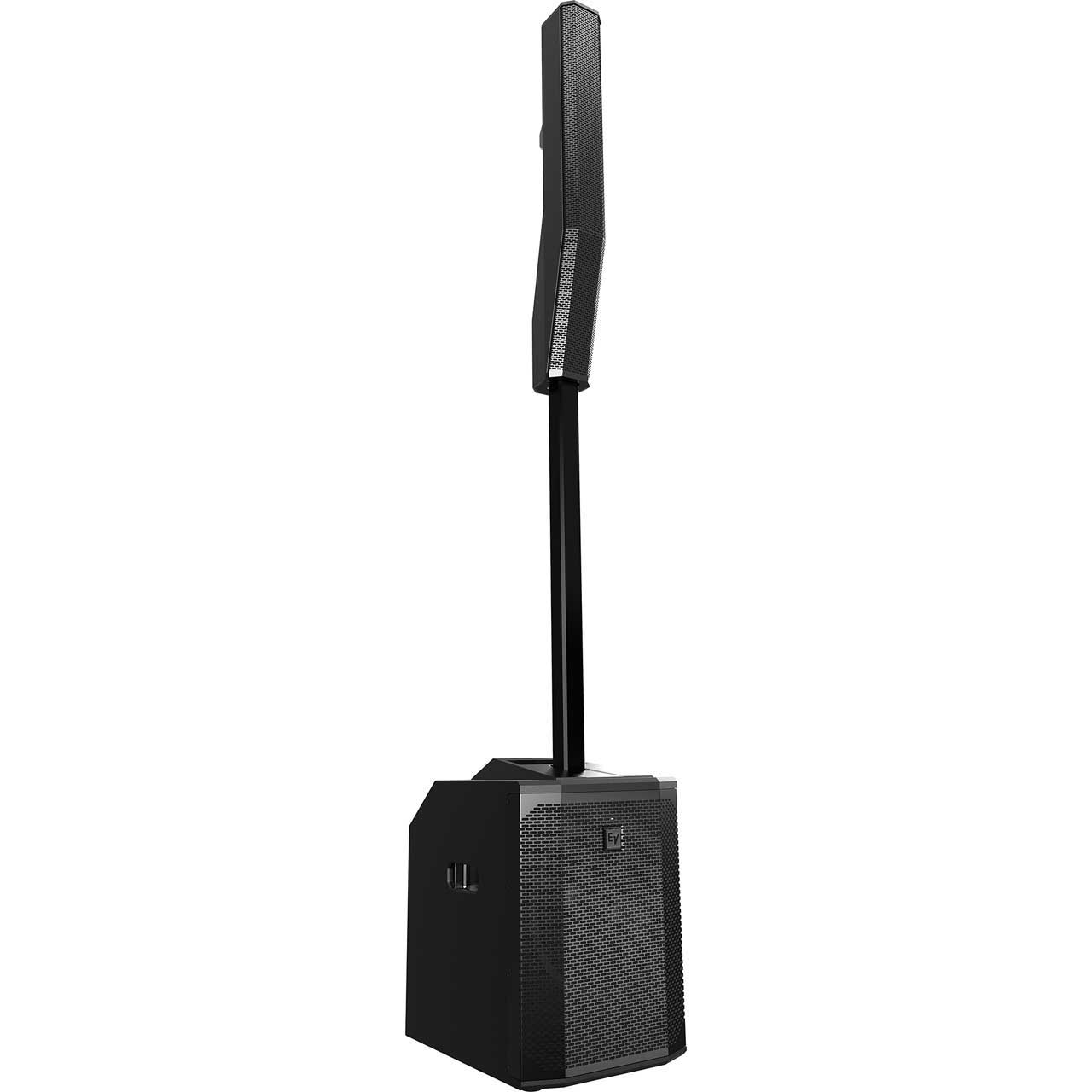

Electro-Voice EVOLVE50 1000 Watt Powered Column Speaker Array & 12 Inch Subwoofer System w/ Carry Case & Pole - Black

ITEM #: EV-EVOLVE50-KIT MFG #: BSH-EVOLVE50-KIT

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$3,326.00

Our Price:

$2,299.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.


BSH-EVOLVE50-KIT - Overview

Electro-Voice EVOLVE 50 is designed to quickly and easily be transported and assembled. The three handle design on the subwoofer and convenient included carry case for the sub pole and column array provide minimal resistance to getting excellent, professional sound anywhere you need it. Installation is made easier via the symmetrical aluminum subwoofer pole with an integrated wire assembly. The connection is secured by the magnetic assisted latching system, which magnetically locks the sub pole in place.

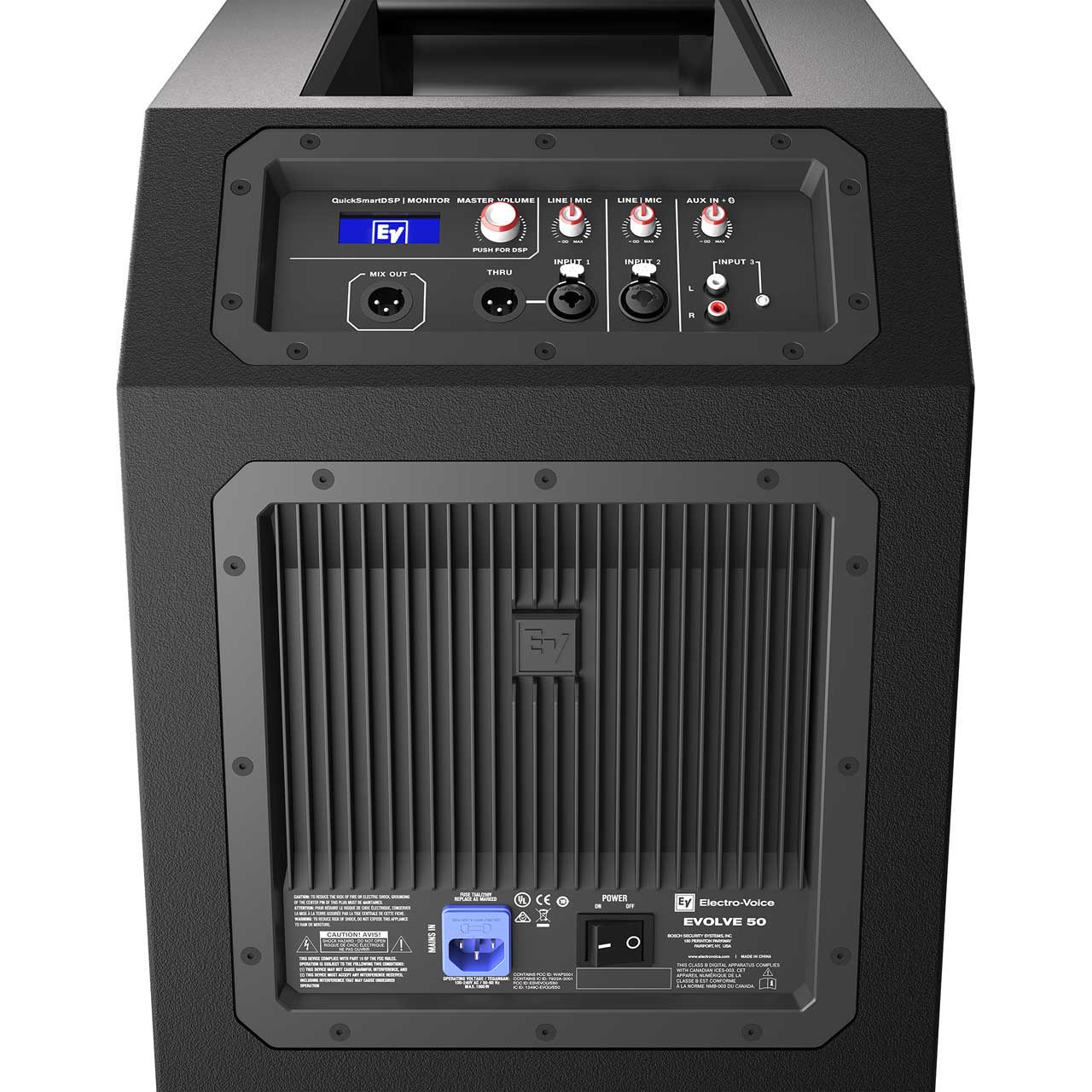

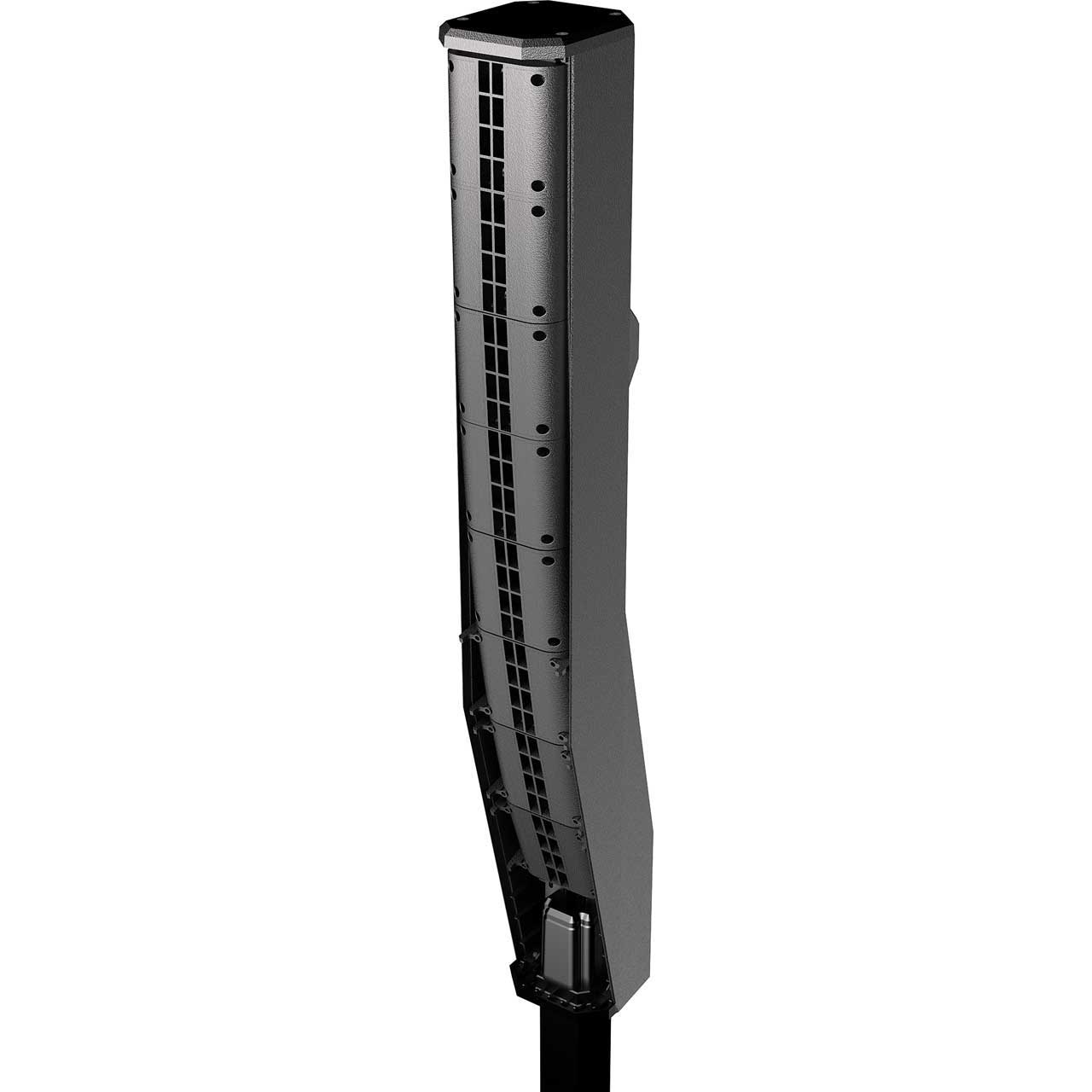

The full-range column array and its eight 3.5-inch neodymium drivers are directed using custom-designed waveguides for consistent 120° coverage. The ported subwoofer enclosure houses a 12-inch woofer that is supported by 18 mm wood for enhanced stiffness and acoustical performance. The Class-D amplifier provides up to 1000 watts of output power: 500 watts to the subwoofer and 500 watts to the column array. The input panel features EV's industry-leading QuickSmartDSP interface -- allowing intuitive navigation of system parameters via an LCD with single-knob control -- as well as multiple options for signal routing and inputs.

The Electro-Voice QuickSmart Mobile application utilizes Bluetooth® Low Energy (BTLE) technology for the wireless configuration, control, and monitoring of up to six EVOLVE 50 systems simultaneously. High-resolution Bluetooth® audio streaming adds convenience for wireless music playback in breakout rooms, intermission, and musical accompaniment. Bluetooth® is available in select countries.

Electro-Voice quality and testing procedures far exceed the industry norm to yield efficient and effective electro-acoustic performance; this creates components that deliver an accurate, linear response at the system's highest output levels. When applied to EVOLVE 50, this engineering philosophy results in a system that brings a new sonic benchmark to the column speaker segment, all packaged in a sleek and portable enclosure that blends into the background in any application from a lounge to a wedding reception.

Please note! The EVOLVE 50 powered column array is a complete system that includes a 12" powered subwoofer with a 3 channel, 1000W amplifier to also power the included array featuring (8) 3.5" full range drivers. Connection pole and carrying case for array / pole included. Compatible with EV Remote QuickSmartDSP app.

  • Features:

    • Clean, Compact Design - Built to Blend In
    • Easy Transport & Setup
    • Professional PA Performance
    • Wide, Even Coverage
    • QuickSmart DSP
    • Wireless Control & Monitoring
    • High-Quality Bluetooth* Audio

  • Specifications:

    • Frequency Response (-3 dB): 43 Hz-20 KHz
    • Frequency Range (-10 dB): 37 Hz-20 KHz
    • Maximum SPL2: 127 dB
    • Coverage (H x V): 120° x 40°
    • Amplifier Rating: 1000 W
    • LF Channel Rating: 500 W
    • HF Channel Rating: 500 W
    • Crossover Frequency: 200 Hz

      Connectors
    • 2x XLR/TRS Combo Jack Input
    • 1x 3.5 mm Input
    • 1x Stereo RCA Input
    • 1x Wireless Bluetooth Audio Input
    • 1x XLR THRU Output
    • 1x XLR MIX OUT Output

      Enclosure
    • Sub: 15 mm plywood
    • Column: Composite
    • Pole:Aluminum
    • Grille: Steel with black or white powder coat
    • Color: Black or white

      Dimensions (HxWxD)
    • Sub: 20.9 x 13.6 x 18.5 inch
    • Column: 32.5 x 4.0 x 6.9 inch
    • Pole: 36.6 x 1.9 x 2.2 inch

      Weights
    • Sub: 44.66 lb (20.3 kg)
    • Column: 10.34 lb (4.7 kg)
    • Pole: 2.75 lb (1.25 kg)
    • Sub Cover: 0.9 lb (0.4 kg)
    • Bag for Column and pole: 1.87 (0.85 kg)
    • Shipping Weight: Sub box: 50.71 lb (23 kg)
    • Column Box: 18.30 lb (8.3 kg)

    • Power Consumption: 100-240 V AC, 50-60 Hz, 1.5-0.6 A

  • Item Includes:

    • 1x Electro-Voice EVOLVE50-TB Column Array
    • 1x Electro-Voice EVOLVE50-SB-US Subwoofer
    • 1x Sub Pole
    • 1x Carry Bag
    • 1x Power cord
    • 1x Installation manual
    • 1x Warranty card
    • 1x Safety manual
