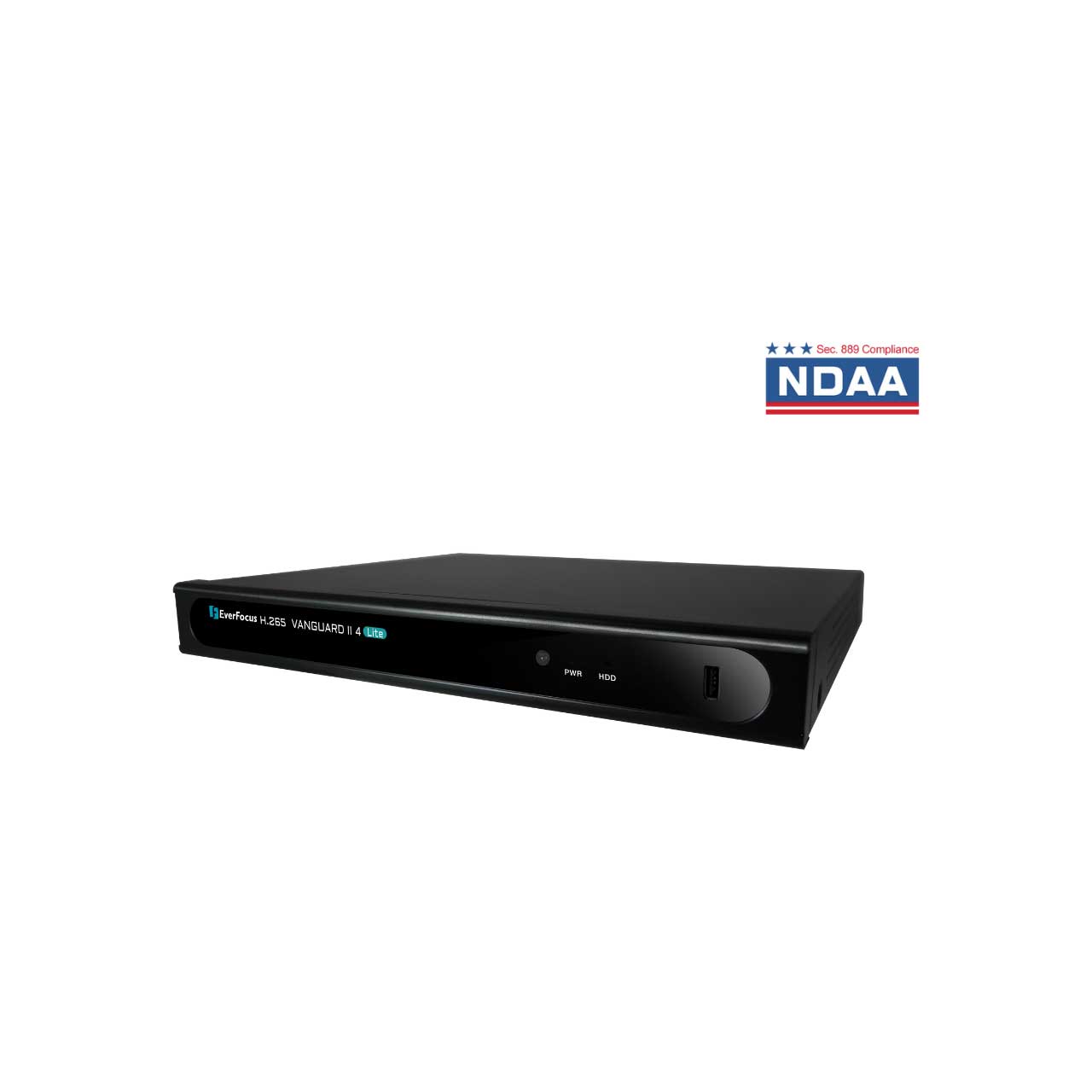

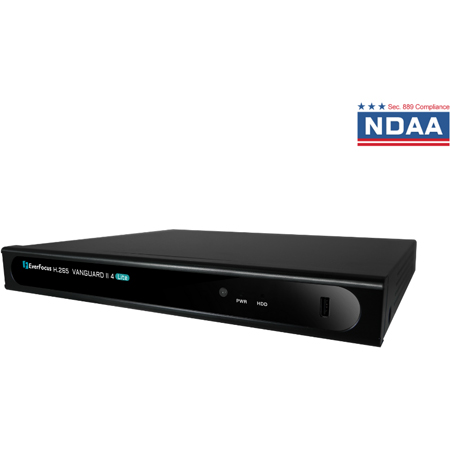

Everfocus VANGUARDII4 LITE 4 Channel 5 MP Lite AHD/TVI/CVBS CCTV Camera Hybrid XVR Digital Video Recorder

ITEM #: EVF-VANGRDII4LTE MFG #: VANGUARDII4 LITE

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the EVF-VANGRDII4LTE

VANGUARDII4 LITE - Overview

Everfocus VANGUARDII4 LITE supports hybrid mode: Analog: Up to 4CH 5MP Lite AHD/TVI/CVBS cameras IP: Up to 2CH 5MP IP cameras (up to 6CH if only IP cameras are connected) Supports H.265 / H.264 compression format.

  • Features:

    • Supports hybrid mode: Analog: Up to 4CH 5MP Lite AHD/TVI/CVBS cameras IP: Up to 2CH 5MP IP cameras (up to 6CH if only IP cameras are connected)
    • Supports H.265 / H.264 compression format
    • Supports cloud storage with Dropbox (Snapshot)
    • Supports ONVIF 2.0 IP cameras
    • Control methods: mouse / IR remote controller
    • Remote configuration from built-in web interface
    • Supports video analytics
    • Integrates with EverFocus CMS
    • Supports multi-language
    • Supports mobile App: eFVMS App

  • Specifications:

    • Operating System: Embedded Linux
    • Number of Channels: Analog: Up to 4CH 5MP Lite AHD/TVI/CVBS cameras IP: Up to 2CH 5MP IP cameras (up to 6CH if only IP cameras are connected)
    • RAM: 1GB
    • Watchdog: Supported
    • Dual Stream: Supported
    • OSD Menu: Supported
    • System Control: Mouse, IR remote control
    • Multiplex Operation: Live display, record, playback, backup and network
    • PTZ Protocol Supported: Pelco D, Pelco P
    • Compression Format: H.265 / H.264
    • Video Format: NTSC / PAL

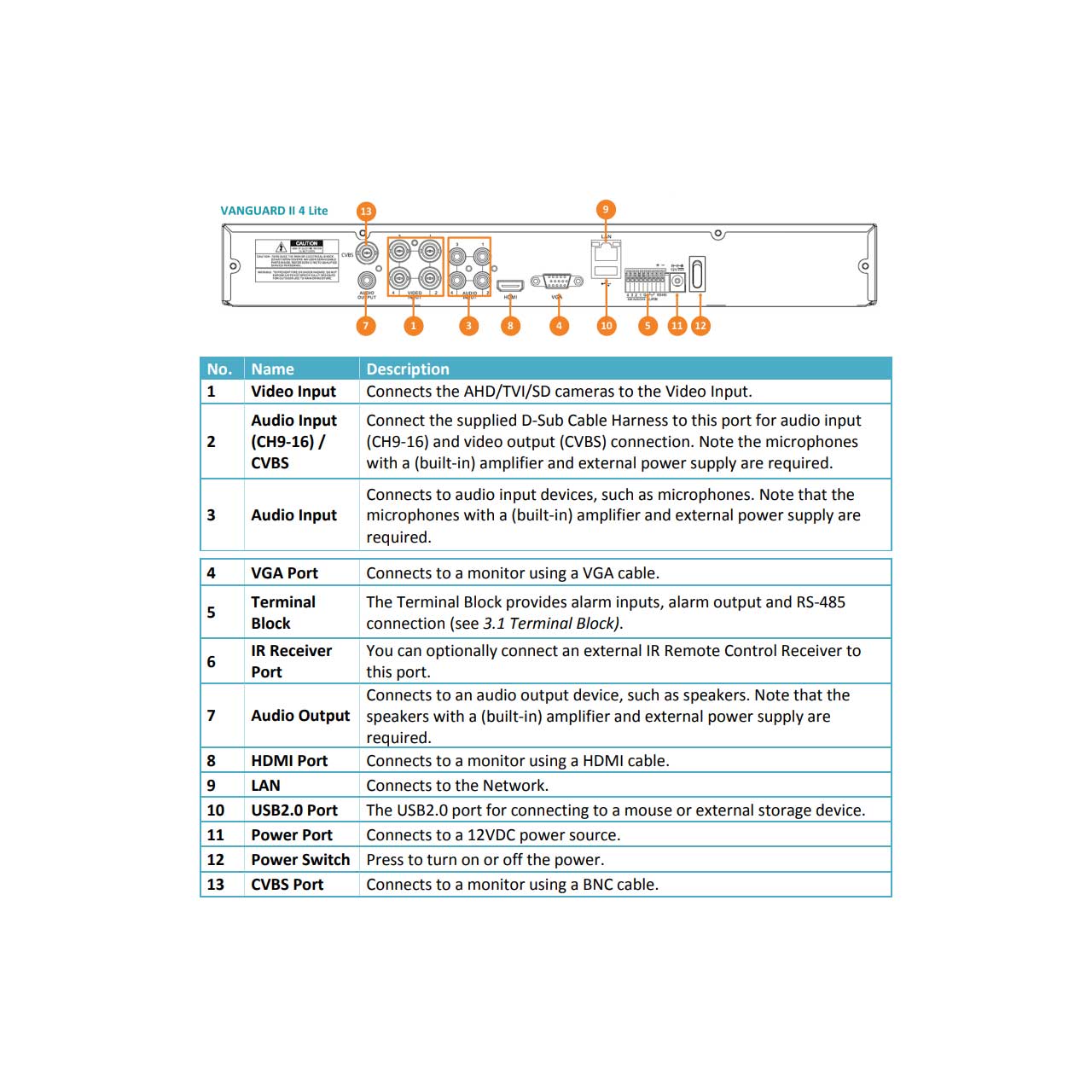

    • Video Inputs: Analog: 4 x BNC IP: Up to 2CH 5MP IP cameras (up to 6CH if only IP cameras are connected)
    • Video Looping Outputs: Unsupported
    • Video outputs: HDMI/VGA/CVBS: 704x576 (CVBS only), 1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080 (1080P), 2560x1440 (2K HDMI only), 3840x2160 (4K, HDMI only)
    • IP Bandwidth Incoming: Max. 8Mbps ~ 24Mbps (default is 8Mbps, decrease one Analog channel can increase 4Mbps )
    • IP Bandwidth Outgoing: Max. 48Mbps
    • Live Resolution / Frame Rate: Analog: 5MP Lite: 20fps/CH; 1080P/720P/960H: 30fps/CH IP: 5MP/1080P/720P
    • Recording Resolution / Frame Rate: Analog: 5MP Lite: 12fps/CH; 1080P: 12fps/CH (PAL); 15fps/CH (NTSC) IP: 5MP/1080P/720P: 25fps/CH (PAL); 30fps/CH (NTSC)
    • Recording Modes: Continuous/Manual/Motion Detect
    • Synchronized Playback: 4CH
    • Playback Performance: 5MP Lite:48fps 1080P: 60fps(Max 4CH playback) 720P:120fps(Max 4CH playback)
    • Search Modes: Time, Event, Motion in Recorded Video
    • Audio Input: 4
    • DVD Burner: Not supported
    • Ethernet: 10/100 Ethernet
    • Ethernet Protocol: TCP-IP / DHCP / PPPoE / DDNS / SMTP / NTP
    • USB: 1 x USB2.0 (for mouse and backup/upgrade); 1 x USB2.0

      RS
    • 485: 1 x RS-485 (for PTZ Control)
    • Ethernet: 1 RJ-45
    • Power Input: 12VDC / 5A
    • Power Consumption: 60W max.
    • Operating Temperature: 32°F ~ 104°F (20 ~ 80% humidity)
    • Dimensions (W x D x H): 14.9" x 12.5" x 2"
    • Weight (without HDDs): 2.3kg / 5.07lb
    • Language: English, Japanese, Traditional Chinese, German, Russian, Dutch, Italian
    • Regulatory: CE,FCC
    • Video Pause: Yes
    • Video Loss Detection: Yes
    • Motion Detection: Yes
    • Event Log: Yes
    • User Interface: GUI (Graphical User Interface)
    • Control PTZ via OSD: Yes (via both local and remote interfaces)
    • Schedule Setting: Yes
    • User Access: 2 Levels of User Access Defined
    • Video Analytics: Perimeter Intrusion Detection, Line Crossing Detection, Foreign/Missing Object Detection, Pedestrian Detection, Face Detection, Cross-Counting Detection, Sound Detection, Tamper Detection
    • Operating System: Win7 (32 and 64-bit) / Win10 (32 and 64-bit)
    • CPU: Intel Core I3-2100
    • RAM: 2GB
    • VGA: Intel HD 2000
    • LAN Speed: 10 / 100 / 1000 Mbps (RJ45)
    • Web Browser: IE11 and later
    • Other Remote Application: 1. EverFocus CMS 2. EverFocus eFVMS (mobile app)

  • Item Includes:

    • 1x Everfocus VANGUARDII4 LITE 4 Channel 5 MP Lite AHD/TVI/CVBS Camera Hybrid Digital Video Recorder
    • 1x DVR
    • 1x Power Cord + Adaptor
    • 1x Mouse
    • 8x HDD Screw
