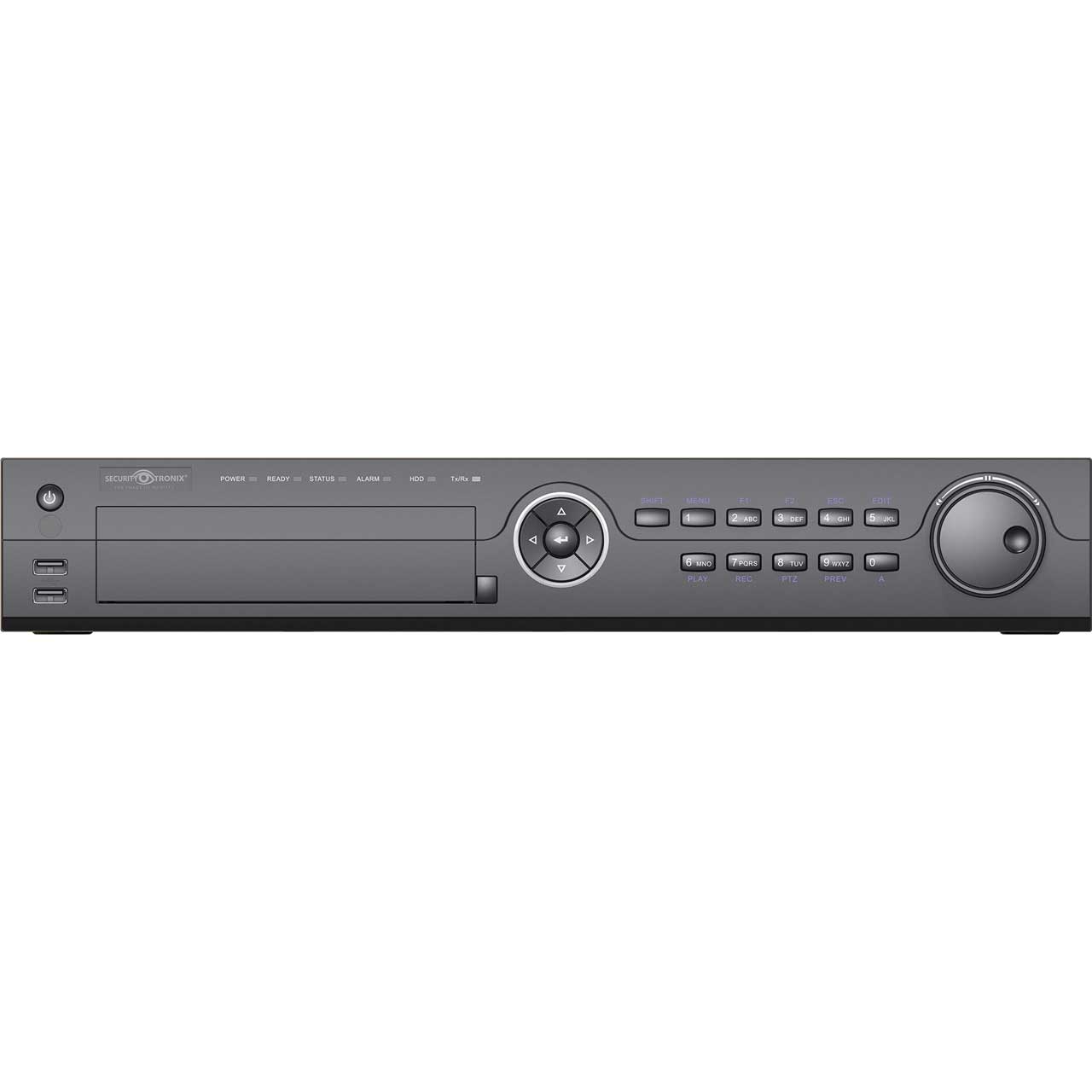

SecurityTronix ST-EZ32 32-CH Network Video Recorder with Built-In 16 port PoE without HDD

ST-EZ32 - Overview

• Features:

  • Plug and Play-Auto detect
  • SecurityTronix IP cameras
  • CMS (Centralized Management Software)
  • Ability to view and manage multiple NVR’s and IP cameras
  • Easy Smartphone setup with P2P QR scan
  • Third-party network cameras supported
  • Built in 16 PoE ports (AF/AT Standard)
  • HD Input
    H.265/H.264/MPEG4 video formats
    ONVIF Compatible
    12MP maximum recording resolution
  • HD Output
    HDMI and VGA outputs provided
    HDMI Video output at up to 4K (3840 x 2160) resolution
  • HD Storage
    Up to 4 SATA interfaces connectable for recording and backup Max 24TB
  • Network Interface
    1 self-adaptive 10M/100M/1000M network interface
    16 independent PoE network interfaces (802.3AT)


• Specifications:

  • Video/Audio Input
  • IP Video Input: 32-ch, Up to 12 MP resolution
  • Two-Way Audio Input: 1-ch, RCA (2.0 Vp-p, 1kΩ)

    Network
  • Incoming Bandwidth: 256 Mbps
  • Outgoing Bandwidth: 256 Mbps
  • Remote Connection: 128

    Video/Audio Output
  • Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • HDMI Output Resolution: 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 1920 x 1080p/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
  • VGA Output: 1920 x 1080p/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
  • Audio Output: 1-ch, RCA (Linear, 1kΩ)

    Decoding
  • Decoding Format: H.265/H.264/MPEG4
  • Live View/Playback Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous Playback: 16-ch
  • Capability: 4-ch @ 4K, or 16-ch @ 1080p

    Hard Disk
  • SATA: 4 SATA interfaces for 4HDDs
  • eSATA (optional): 1 eSATA interface
  • Capacity: Up to 24TB total capacity

    External Interface
  • Network Interface: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet Interface
  • Serial Interface: 1 RS-485 (half-duplex), 1 RS-232
  • USB Interface:
    Front Panel: 2 x USB 2.0
    Rear Panel: 1 x USB 3.0
  • Alarm in/out: 16/4

    POE Interface (for /P series NVR only)
  • Interface 16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
  • Power: ≤200W
  • Supported Standard: IEEE 802.3 af/at


  • Others
  • Power Supply: 100~240V AC
  • Power: ≤300W
  • Consumption (without enabling PoE): ≤20W
  • Operating Temperature: 14° to 131°F (-10° to 55°C)
  • Operating Humidity: 10 to 90%
  • Chassis: 19-inch rack-mounted 1.5U chassis
  • Dimensions (WxDxH): 17.5 x 15.3 x 2.8"
  • Weight (without hard disk): 11Lbs
