LevelOne NVR-0508 GEMINI 8-Channel PoE Network Video Recorder - 8 PoE Outputs - H.265

ITEM #: LVL1-NVR-0508 MFG #: NVR-0508

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup

    NVR-0508 - Overview

    The LevelOne NVR-0508 NVR enables live view, recording and playback for up to 8 IP network cameras at the same time, featuring up to 8-megapixel resolution and H.265/H.264+/H.264/MPEG4 video compression. Operation is easy and intuitive via the web browser interface (IE), enabling remote monitoring and functionality. Mobile device operations are also supported (iOS/Android), with remote viewing via the LevelOne NVR app.

    The NVR also features built-in HDMI, VGA and USB ports for peripheral devices such as a monitor, mouse or keyboard, allowing users to operate directly from the NVR without the cost of adding a PC to the deployment. 2 HDD bays complete the package, with a disk capacity of up to 6TB making the LevelOne NVR-0508 a powerful, smart and cost-effective solution for managing your security network.

    An integrated 8-port 802.3at PoE switch enables the NVR to run both power and data on the one cable to power up connected PoE cameras.

    Central Management System (CMS) software is included for free, with no license fees. The CMS is capable of managing up to 256 NVRs, making it suitable for large scale surveillance applications.

    Please Note HDD Drives sold separately.

    • Features:

      • Supports video resolutions up to 8 megapixels
      • Supports 4k2k HDMI local display
      • Built-in 8 PoE ports for PoE devices
      • 2 x 3.5" HDD bays support disk capacity of up to 6TB
      • Video compression: H.265, H.264, MPEG4
      • Free CMS (Central Management System) software with 64-channel license
    • Specifications:

      • Standards & Protocols: TCP,UDP,IPv4,IPv6,Http,Https,SMTP,NTP,SNTP,SNMP,RTSP,FTP,DHCP,DDNS, PPPoE, SSL, RTP
      • Embedded System: Linux based

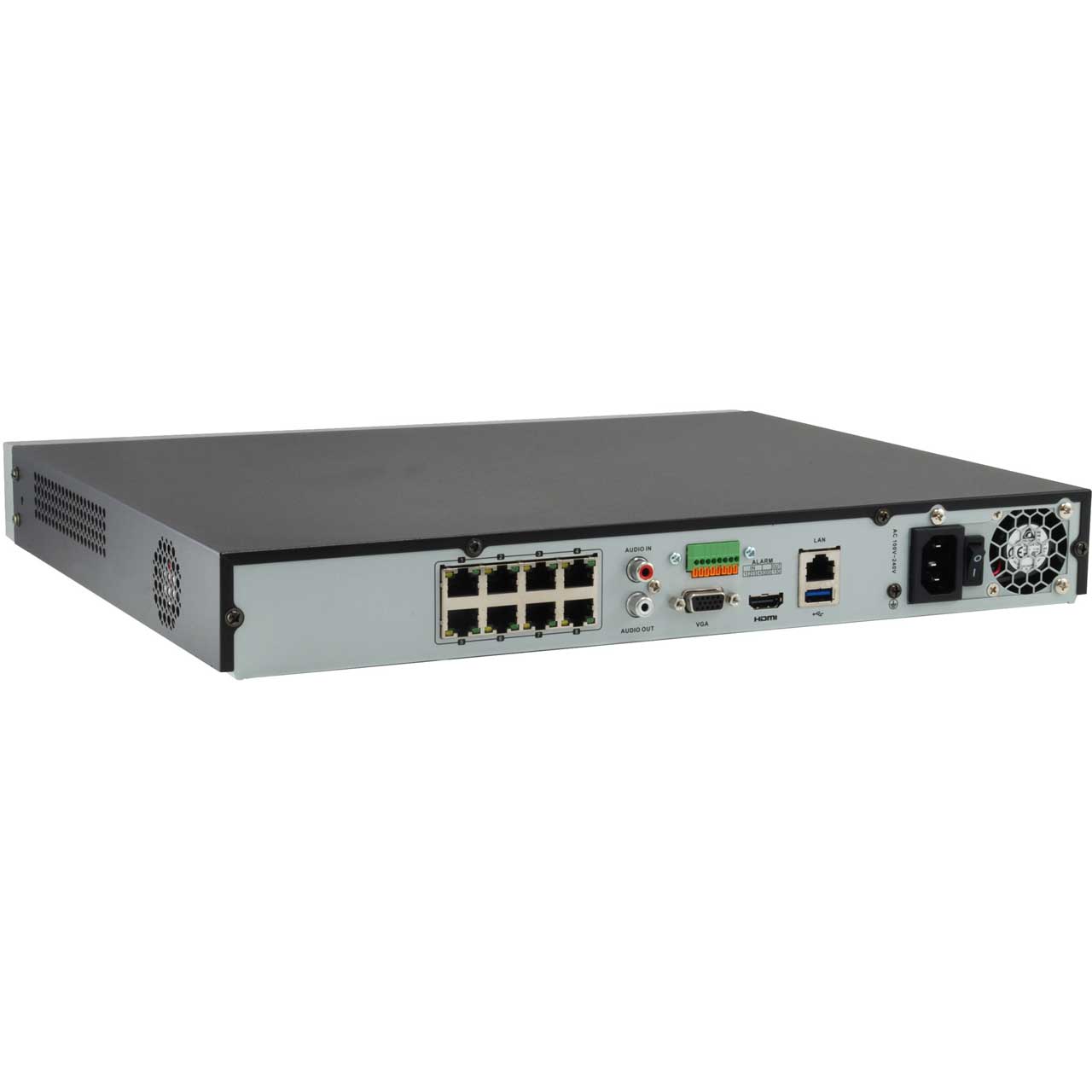

      • Port:
        8x 10/100 Mbps PoE
        1x AUDIO IN
        1x AUDIO OUT
        1x VGA Interface
        1x HDMI Interface
        2x USB 3.0
        10/100/1000 Mbps network interface
      • Button/Knob: Power Switch
      • Indicator: Power, Alarm, H.D.D.
      • Video Format: H.265/H.264/H.264+/MPEG4 video formats
      • Resolution: Recording at up to 8MP resolution
      • Recording Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/CIF/QCIF
      • Capability: 2-ch @ 4K, or 8-ch @ 1080p
      • HDMI Video Output: up to 4K (3840 +2160) Resolution
      • Power Input: 110to230 VAC
      • Power Consumption: Total:180 W
      • PoE: 120W
      • Storage Capacity: 2 SATA each Up to 6TB capacity for each disk
      • Operating Temperature: 14° to 131°F (-10° to 55°C)
      • Humidity: 10 to 90% (non-condensing)
      • Number of Clients: 64
      • Network Throughput:
        Incoming bandwidth: 80 Mbps
        Outgoing bandwidth: 160 Mbps
      • Dimensions (WxDxH): 15.2 x 12.4 x 2.0" (385 x 315 x 52mm)
      • Weight: 6.6Lbs (3kg)
      • Approval and Compliance: EMI/EMS: CE/FCC,uL
      • Others: Manufactured in ISO-9001 and ISO-14001 certified factory
      • Supported Browsers: Internet Explorer 9.0 or above
      • Compatibility: Onvif camera
    • Item Includes:

      • x1 NVR-0508
      • x1 Power Adapter
      • x1 Power Cord
      • x1 Resource CD (User Manual, Utility)
    • GTIN:
