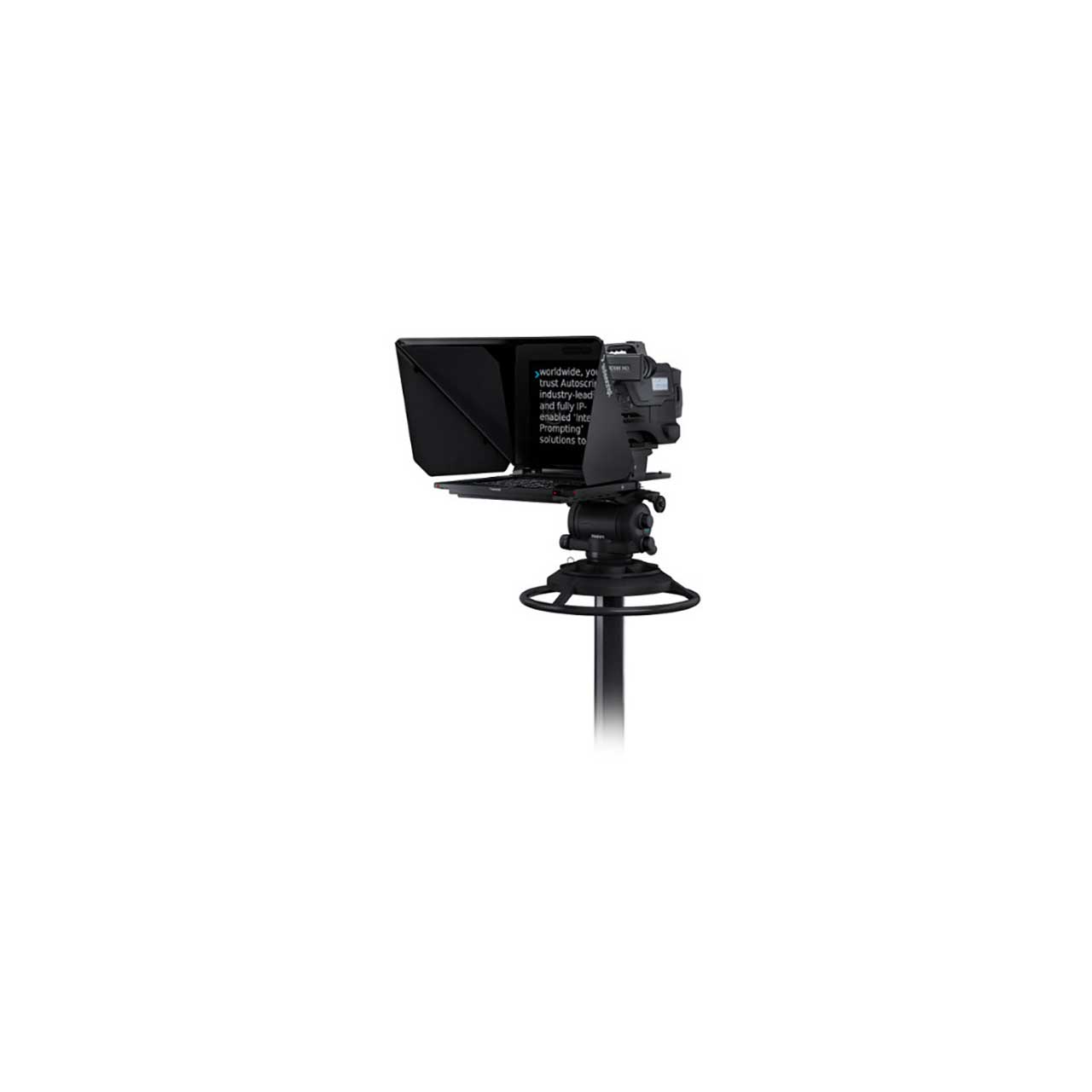

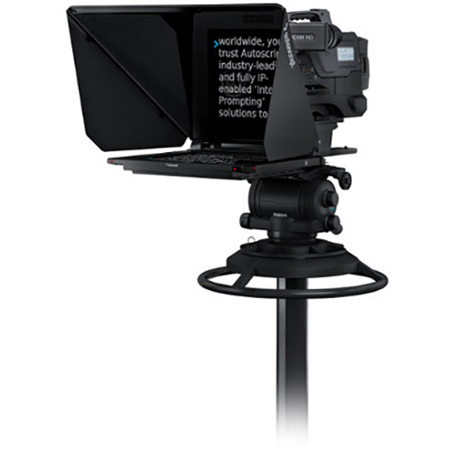

EVO-IP15 On-Camera Package with 15 Inch Prompt Monitor


Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    EVO-IP15 - Overview

    The new EVO-IP15 prompt monitor is the slimmest broadcast prompt monitor available, with a depth of just 41.5mm. Its sleek, lightweight design is perfect for productions using even small robotic camera supports and the 15" version is the most compact in the range.

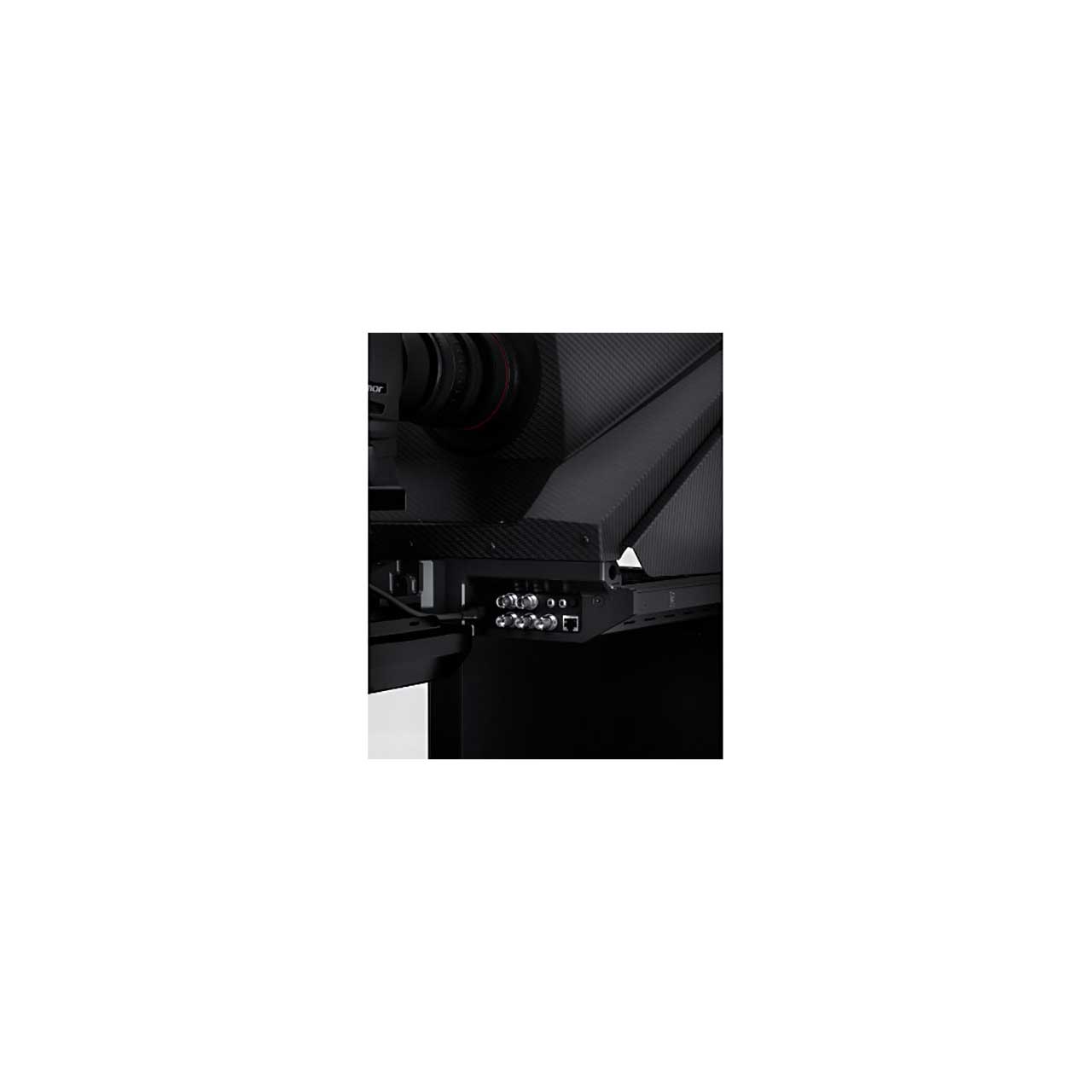

    As an Intelligent Prompting device, the monitor includes IP connectivity and scroll engine functionality so that it can connect directly to the WinPlus-IP software application via an IP network; displaying smooth scroll prompter video without the need for an additional scroll engine. HD-SDI and Composite inputs are also included. A new rear panel for all connections improves cable management, and the integral back plate houses a quick release mechanism that allows rapid attachment/detachment of the monitor to/from the Intelligent Prompting mounting system.

    The EVO-IP on-camera system comes with Autoscript's new Intelligent Prompting mounting and carbon fibre hood. The complete monitor, hood and mounting assembly has been carefully calculated to minimise the number of parts, vastly improve setup time and reduce the lens opening at the back of the hood. The lens is sealed using a flexible ring, giving greatly improved access for direct control via hand grip, or for connection of pan bar z/f control.

    The CLOCKPLUS-IP time code, tally and camera number display (not included), can be simply attached to the front of the EVO-IP, giving an attractive, unified appearance.

    The EVO-IP offers a high-bright, high-contrast solution in a smart new package. It ensures the script is clearly readable in any light while improving setup time and integration into modern broadcasts.

    • Features:

      • Lightest on-camera system available, minimises camera support issues
      • Networks directly to WinPlus-IP for simple integration and perfect synchronisation without a scroll box
      • Folding hood design massively reduces setup for time-critical applications and protects glass during transportation
      • Optimised mounting kit and hood geometry allowing use of widest lenses on the market (4.3mm)
      • No counterbalance needed for almost all camera/lens configurations, further reducing the weight
      • 4 integrated tally lights, giving 270 degrees of visibility around the teleprompter
      • Integration of CLOCKPLUS-IP clock and camera ID display (not included) creates attractive time, tally, camera ID solution
      • Upgrade to EPIC-IP with addition of ETM
      • Intelligent Prompting mounting system for rapid setup and guaranteed lens/prompt monitor alignment
    • Specifications:

      • Size: 15 inches
      • Monitor only weight: 3.0 kg / 6.6 lb
      • On-camera package weight: 10.5 kg / 23.1 lb
      • Aspect Ratio: 4.3
      • Brightness: 1500 nits
      • Resolution: 1024 x 768 SXGA
      • Contrast 700:1

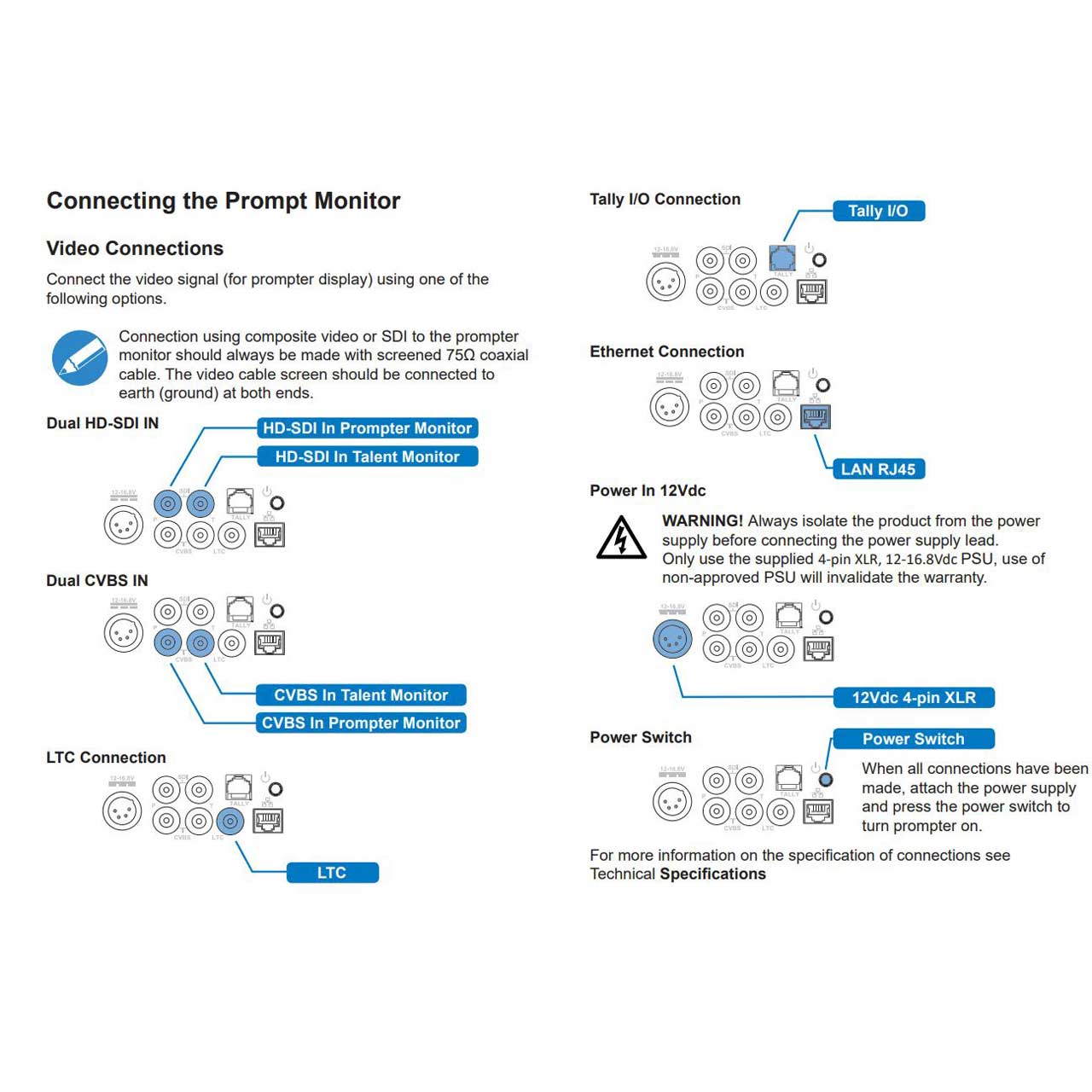

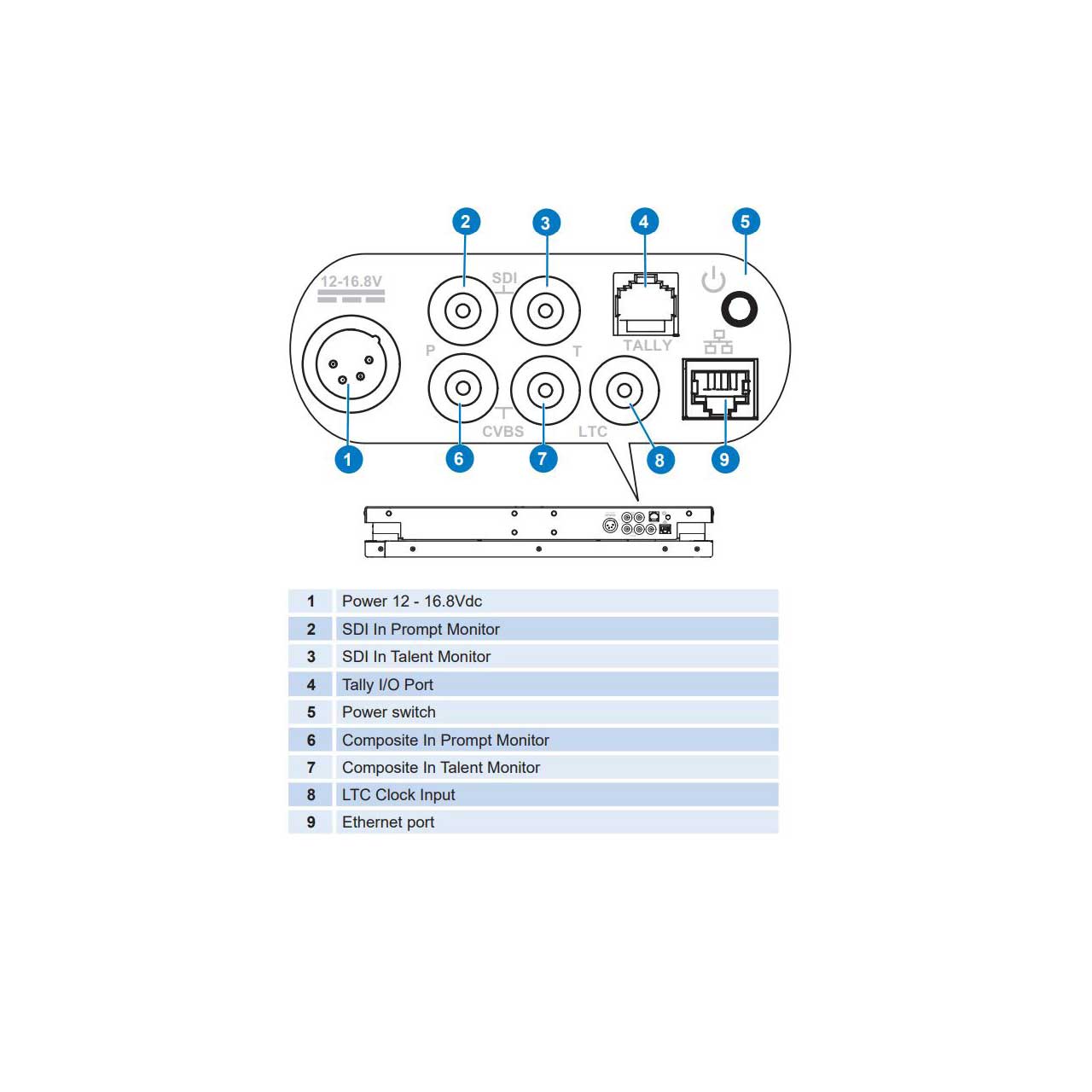

      • Script Inputs: LAN, 2x HD-SDI, 2x CVBS
      • Tally Input: Opto Sensor
      • Timecode Inputs: LTC, NTP (VITC, D-VITC optional)
      • Power consumption: 25W
      • Power Input: External 12V DC XLR
      • Outputs: Repeat Tally Output inc. 12V DC Out
      • Viewing Angle: H/V 160 Degrees/120 Degrees
      • Dimensions: 400 x 317 x 41mm / 15.7 in x 12.5 in x 1.6 in
      • Mounting: On-camera system with Intelligent Prompting backplate, carbon fibre hood and glass, rail and mounting bracket
    • Item Includes:

      • 15" high-bright prompt monitor
      • Carbon fibre hood and glass
      • Mounting system and camera carriage assembly (to suit ENG cameras and camcorders)
      • Tally sensor and cable
      • Cable tray
