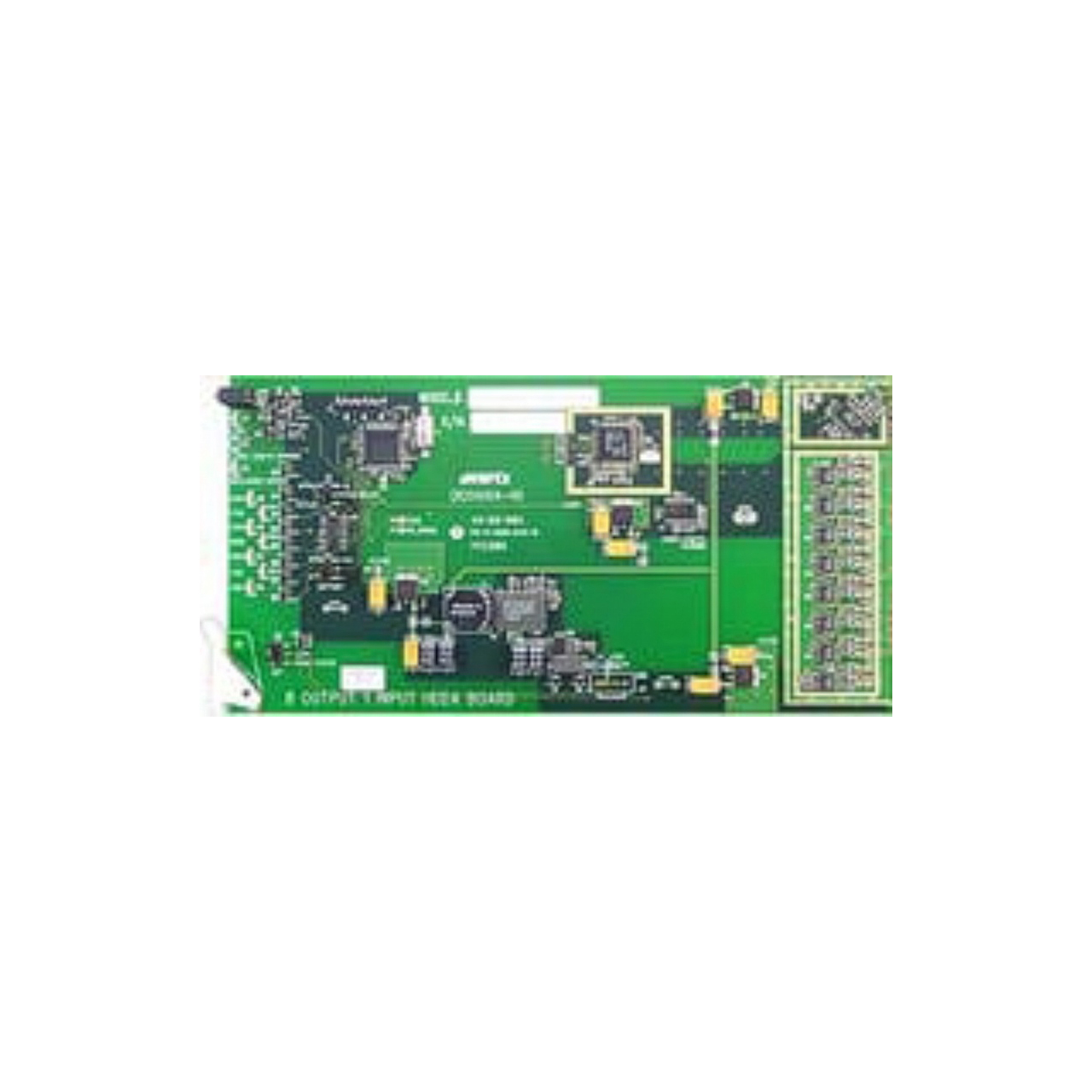

Evertz 500DA-HD HD/SD-SDI Dual Reclocking Distribution Amplifier - 1x8

500DA-HD - Overview

• Features:

  • Normal mode for SMPTE ST 259 (143 - 540Mb/s) or SMPTE ST 292-1 (1.5Gb/s) signals - autodetects correct bitrate
  • Jumper Selectable mode for DVB-ASI
  • Jumper selectable non-reclock mode for SMPTE ST 310 (19.4Mb/s) signals or any other SDI signal within the 143Mb/s to 1.5Gb/s range
  • Fully hot-swappable from front of frame with no BNC disconnect required
  • Independent isolated output drivers to ensure no cross channel loading effects (i.e. no need to terminate unused outputs)
  • Tally output on Frame Status bus upon loss of input signal for quality monitoring
  • VistaLINK® capable for remote monitoring via SNMP (using VistaLINK® PRO) when installed in 500FR frame with 500FC VistaLINK® Frame Controller


• Specifications:

  Serial Video Input
  • Standard: SMPTE ST 292-1 (1.5Gb/s), SMPTE ST 259 (143 to 360Mb/s), SMPTE ST 344 (540Mb/s), DVB-ASI
  • Connector: BNC per IEC 61169-8 Annex A
  • Equalization:
    - Automatic to 110m @ 1.5Gb/s with Belden 1694A (or equivalent)
    - Automatic to 350m @ 270Mb/s with Belden 1694A (or equivalent)
  • Return Loss:
    - >15dB up to 1.0Gb/s
    - >10dB up to 1.5Gb/s

    Serial Video Output
  • Number of Outputs: 8 (optionally reclocked)
  • Connector: BNC per IEC 61169-8 Annex A
  • Signal Level: 800mV nominal
  • DC Offset: 0V ±0.5V
  • Rise and Fall Time: 200ps nominal
  • Overshoot: <10% of amplitude
  • Return Loss: >10dB up to 1.5Gb/s
  • Wideband Jitter: <0.2UI

    Electrical
  • Voltage: +12V DC
  • Power: 5W
  • EMI/RFI: Complies with FCC Part 15 Class A, EU EMC Directive
