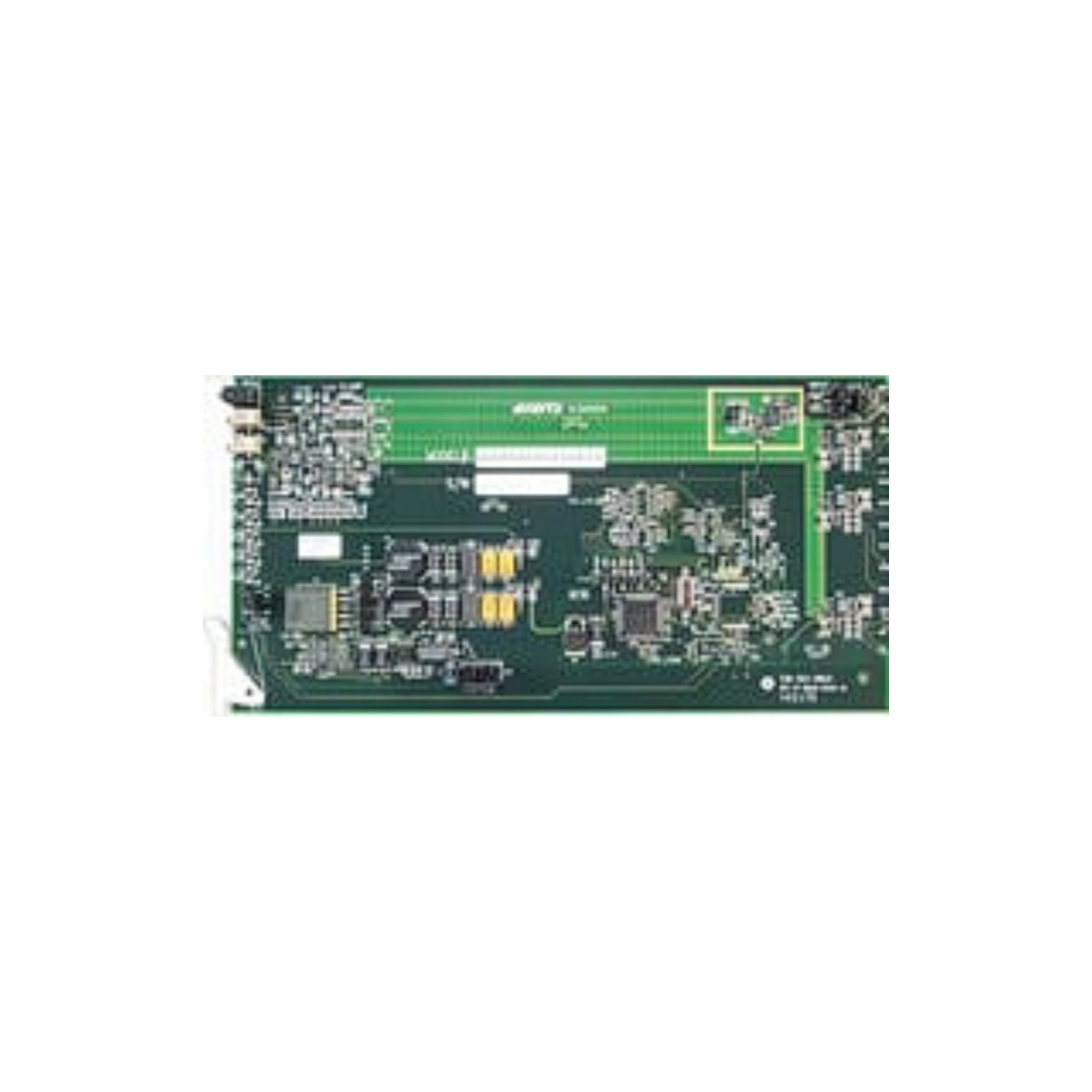

Evertz 500ADA Analog Video Distribution Amplifier 1x9 with Module and Power Status/Fault LEDs

500ADA - Overview

Analog Video Distribution Amplifier for 3RU Evertz 500FR Exponent Frame

• Features:

  • 75Ω or high impedance input (jumper selectable)
  • High common mode range and common mode rejection ratio (CMRR)
  • Gain Control
  • Jumper selectable AC or DC coupling
  • Looping feature with extenal "T" connector
  • Consistent input impedance if card power is lost
  • VistaLINK® capable for remote monitoring via SNMP (using VistaLINK® PRO) when installed in 500FR frame with 500FC VistaLINK® Frame Controller
  • Card Edge LEDs:
    - Module Status/Local Fault
    - Power Supply Status


• Specifications:

  Analog Video Input
  • Standards: Any analog video format, up to 2V p-p, and 30MHz bandwidth
  • Number of Inputs: 1
  • Connector: BNC per IEC 61169-8 Annex A
  • Common Mode Range: > 6V p-p
  • CMRR: 70dB to 1kHz
  • Signal Amplitude: 2.5V p-p max
  • Impedance: 75Ω terminated, 35kΩ Hi-Z (jumper selectable)
  • Coupling: AC or DC (jumper selectable)
  • Return Loss: > 40dB to 10MHz, > 30dB to 30MHz

    Analog Video Output
  • Number of Outputs: 9
  • Connector: BNC per IEC 61169-8 Annex A
  • Impedance: 75Ω
  • Gain Control Range: ±5dB
  • Frequency Response: < ±0.05dB (to 5.5MHz)
  • Differential Gain: < 0.17%
  • Differential Phase: < 0.19°
  • C/L Gain Inequality: < ±0.1%
  • C/L Delay: < ±2ns
  • Isolation: 42dB to 10MHz, 32dB to 30MHz
  • Return Loss: >40dB to 30MHz
  • Noise Performance:
    - NTC7 Weighting RMS: < -78dB
    - 15kHz - 5.5MHz RMS: < -70dB

    Electrical
  • Voltage: +12V DC
  • Power: 1.2W
  • EMI/RFI: Complies with FCC Part 15 Class A, EU EMC Directive
