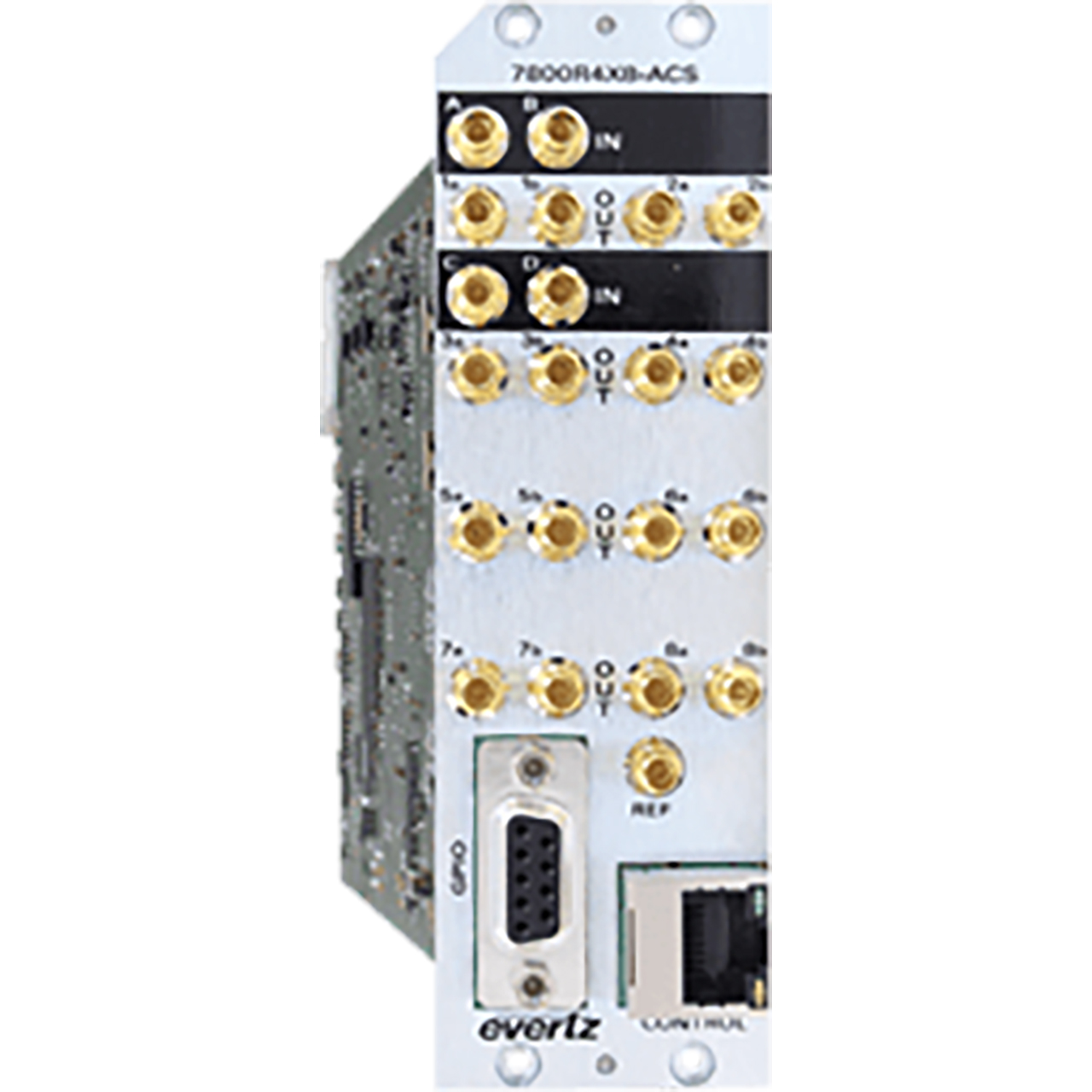

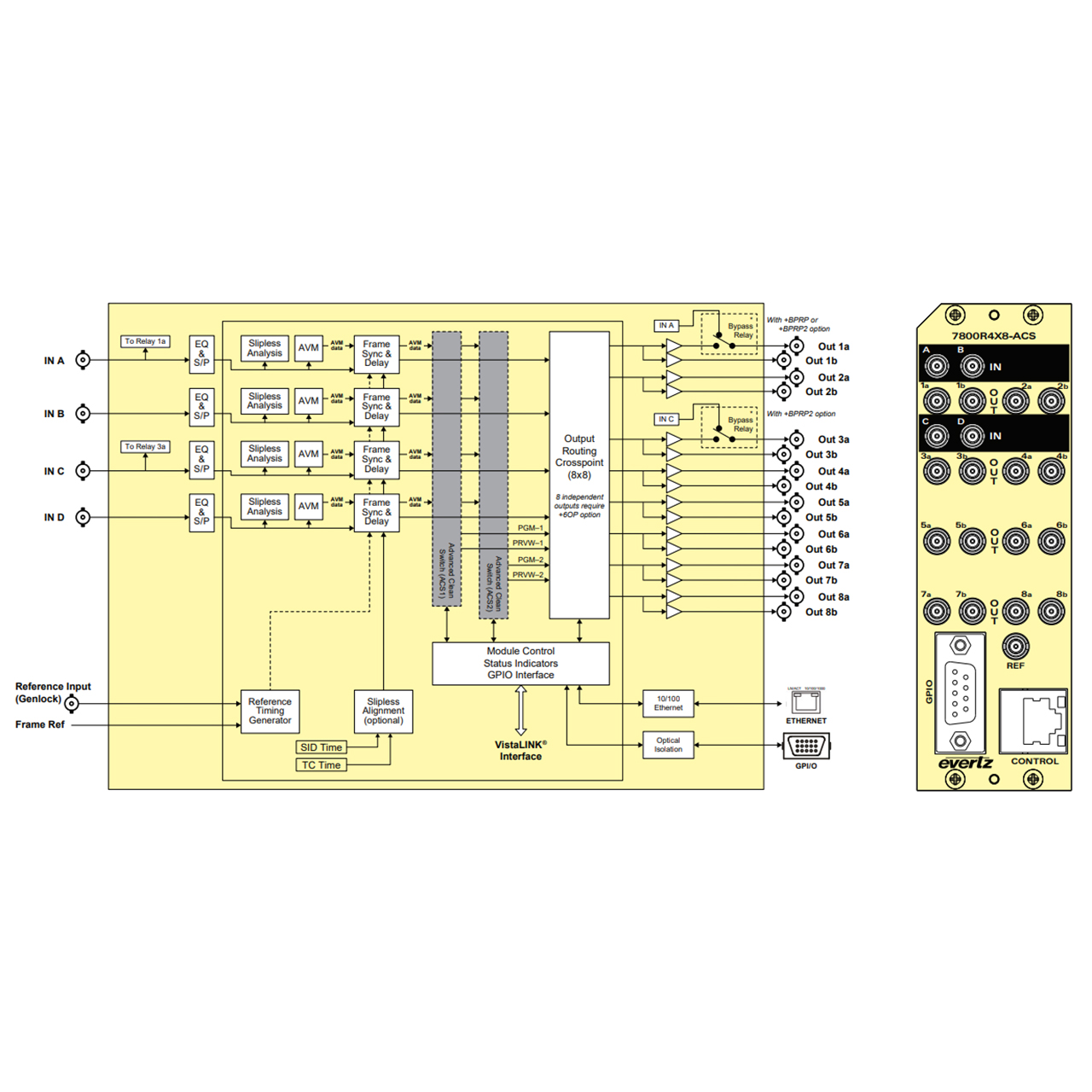

The Evertz 7800R4x8-ACS-HD/3G is a protection switch that performs this task with excellence. A configurable set of advanced Audio Video Monitoring (AVM) parameters is used to determine an input's validity. The Advanced Clean Switch (ACS) uses this information to choose a valid input video source for the output. This determination is done on each frame, and the ACS ensures a change between input sources is not detectable. The 7800R4x8-ACS-3G starts out as a 4x2 configuration. The +6OP option (sold separately) unlocks the ability to individually select which input feeds each of eight individual outputs. Two copies of each signal are provided in this case. With a total of 4 inputs, the card can be operated as a single protection switch with quad inputs operating as primary, secondary, and tertiary, or as dual 2x1 protection switches.
Monitoring capabilities include the ability to detect SDI errors. The AVM parameters include frozen picture detection, black picture detection, picture and audio level monitoring as well as Ancillary Data monitoring. Many of these AVM metrics have user-adjustable thresholds and time periods to suit any application.With the optional +DLY feature (sold separately), the 7800R4x8-ACS-3G's delay buffers make it possible to completely avoid allowing an error through. The delay for each input is also independent, allowing the video content to be temporally aligned before switching. Once aligned, a change in the output video source will happen without a temporal "slip" in the content, making the switch visually undetectable. Additionally, Evertz SoftSwitch technology ensures "popless" switching of embedded audio, making the switch audibly undetectable.
In many of today's systems, main and backup paths could go through different networks and communication technologies, and so the skew between signals cannot be assumed to be fixed. The +TCA option (sold separately) enables the module to use the embedded time code information (ATC) to automatically adjust internal delay buffers so that there is no skew between the inputs to the 7800R4x8-ACS-3G's crosspoint. With this powerful feature, all input video signals are both synchronized in phase and aligned in time.
The 7800R4x8-ACS-3G can also pass time-sensitive GPI information across the switch. The GPIs are delayed and aligned to ensure that the GPO state during a particular output frame matches the state of the GPI when that frame arrived at the input. Advanced features like these allow for the ultimate in protection for important content. When downtime is costly, the 7800R4x8-ACS-3G ensures maximum uptime and uninterrupted delivery of revenue-generating content.
