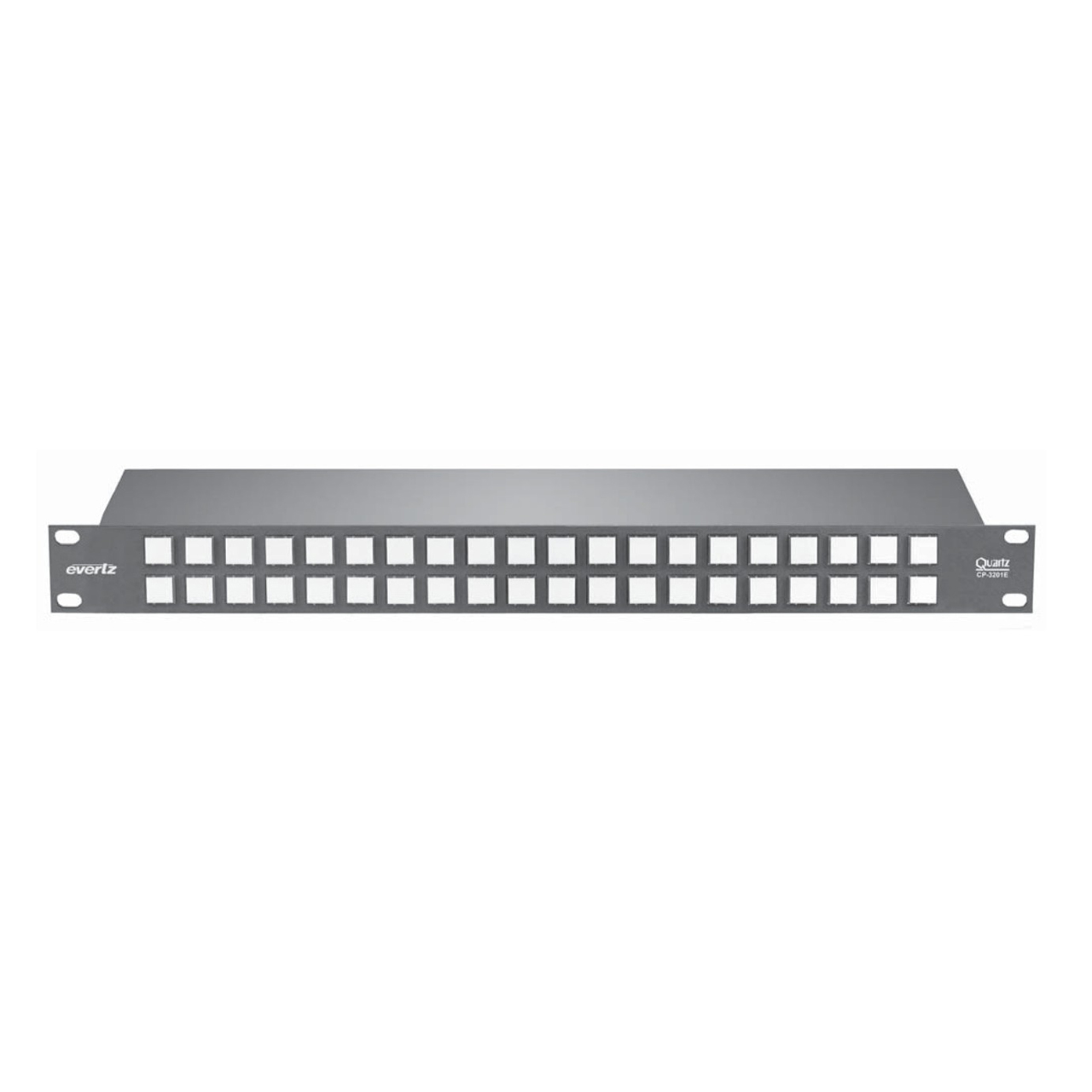

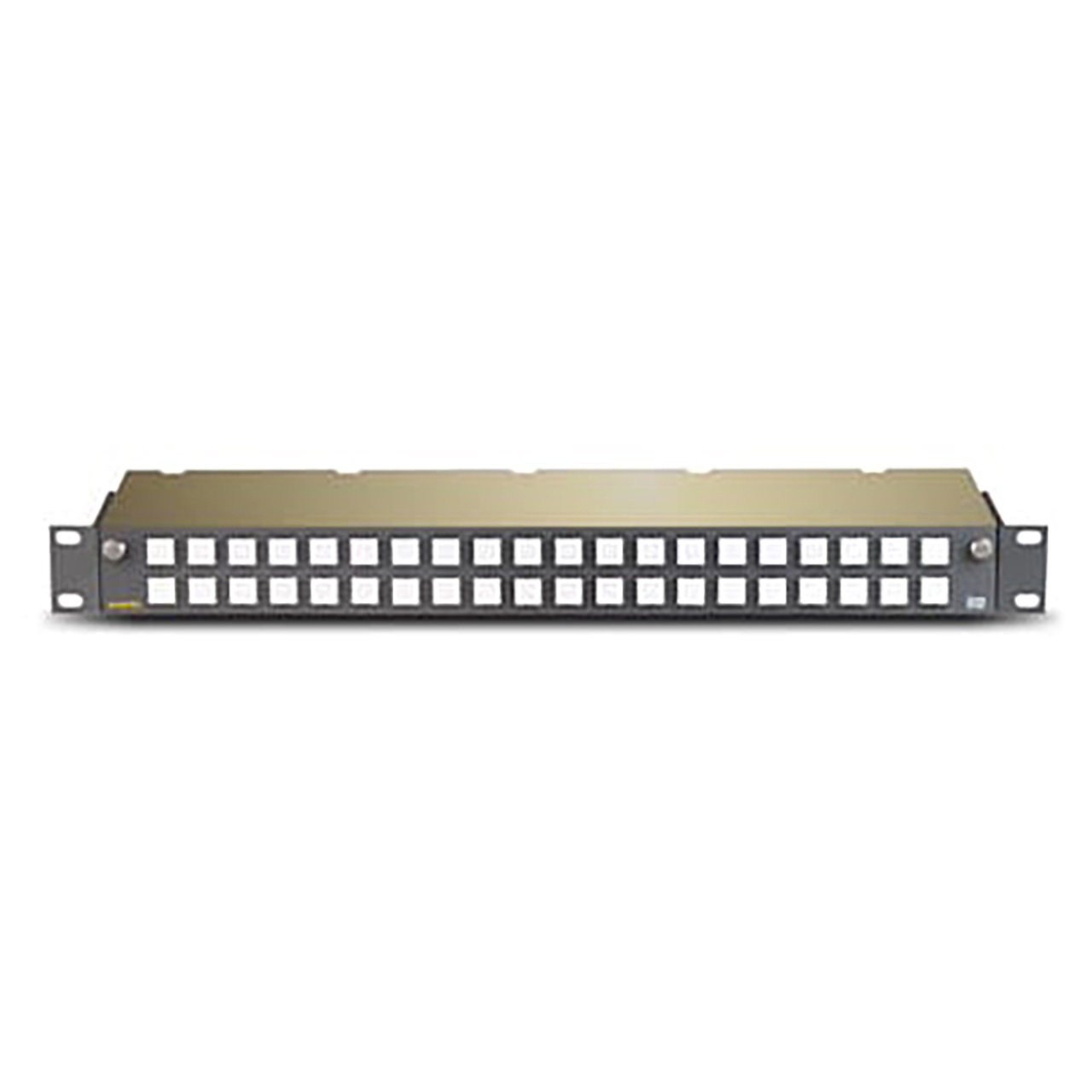

Evertz CP-3201E 1RU RJ45 Rack-mountable Remote Panel with 40 Illuminated Front-facing Push Buttons

CP-3201E - Overview

• Features:

  • 0.59" (15mm) square buttons suitable for film legends with green LED illumination, uniform over whole legend surface
  • Buttons with high quality positive action
  • All panels are fully programmable to operate in a number of modes
  • Split panels can be programmed in many ways, for instance, permitting two separate destinations to be controlled using two rows of source buttons
  • Buttons can be programmed for breakaways
  • Optional Lock button protects against accidental or unauthorized selections
  • Camera joystick override on any eight inputs, with momentary or latching action
  • Supports Qlink for legacy router control. Directly connects to most Evertz routers for simple router control. Contact factory to ensure support.
  • Supports Ethernet for connection to MAGNUM Router Control system.


• Specifications:

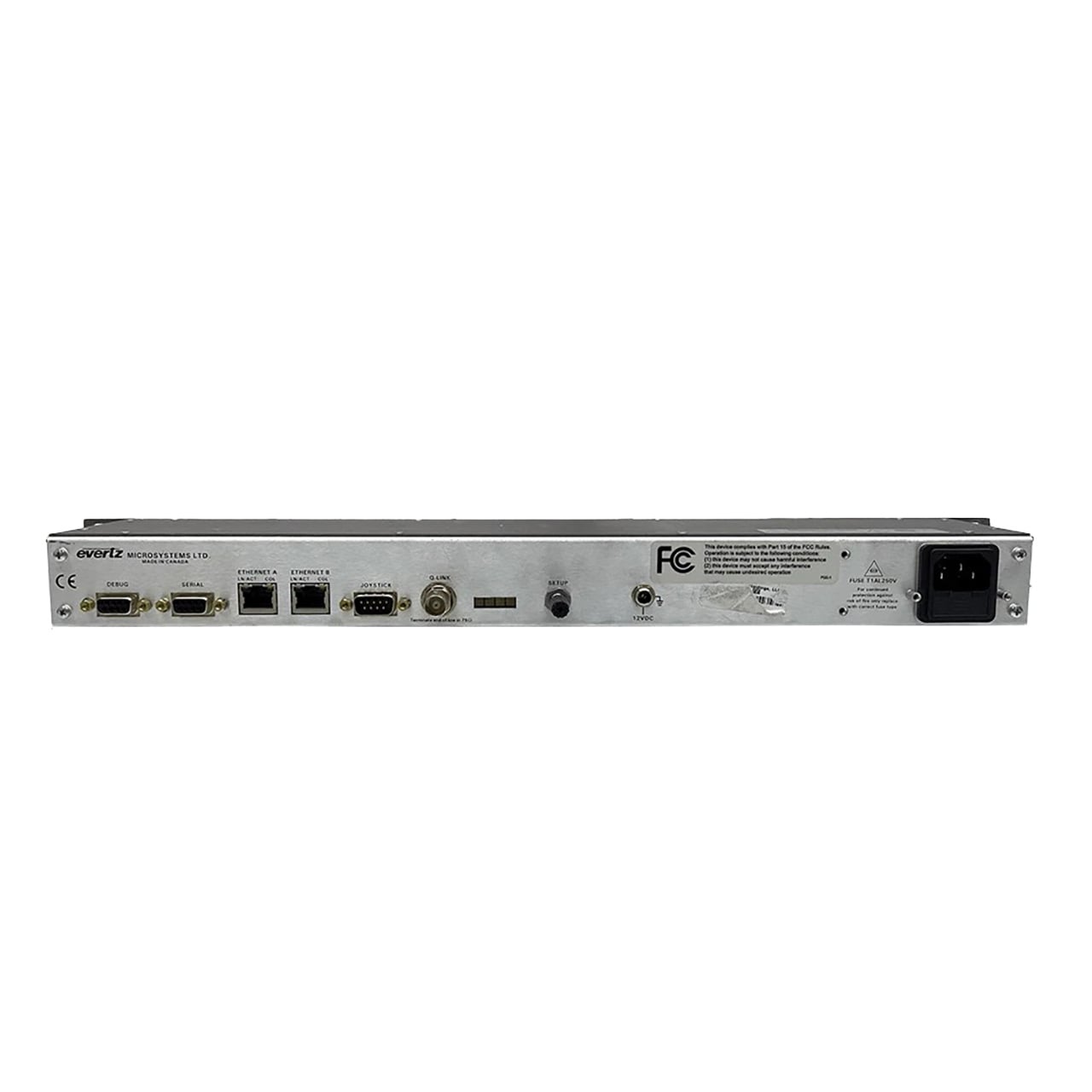

  Control
  • Joystick: 8 Parallel contact closures, TTL levels (GPI) D9 male
  • Qlink: 75Ω coaxial connection for direct connection to routers. BNC, "T" adapter and termination required
  • Ethernet: Standard Ethernet interface for connection to MAGNUM Router Control system. RJ45

    Electrical
  • Voltage: Autoranging 100V - 240V AC, 50/60Hz or 12V DC, 3A
  • Power: 40W
  • Fuse Rating: 250V, 1A, time delay

    Physical
  • Dimensions (LxWxH): 3.5" x 19" x 1.75" (89mm x 483mm x 45mm)
  • Weight: 3lbs (1.36kg)
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)

    Compliance
  • Safety: ETL Listed, complies with EU safety directives
  • EMI/RFI:
    - Complies with FCC Part 15 Class A regulations
    - Complies with EU EMC directive
