Wohler eVAM1-1 1RU 16 Channel Single Screen 3G-SDI / AES3 & Analog Audio & Video Monitor

ITEM #: WOH-EVAM1-1 MFG #: 8300-0500

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup

    8300-0500 - Overview

    The Wohler eVAM1-1 is a well featured, easy to use, competitively priced baseband only, 16 channel video and audio monitor which ships standard with 3G-SDI (2 inputs), AES3 (1 pair) & Analog Inputs & Outputs (2 selectable pairs on XLR or RCA). With touch screen operation included as well as 8 presets, the eVAM1-1 is the perfect solution for any application that requires a compact product for monitoring of baseband signals.

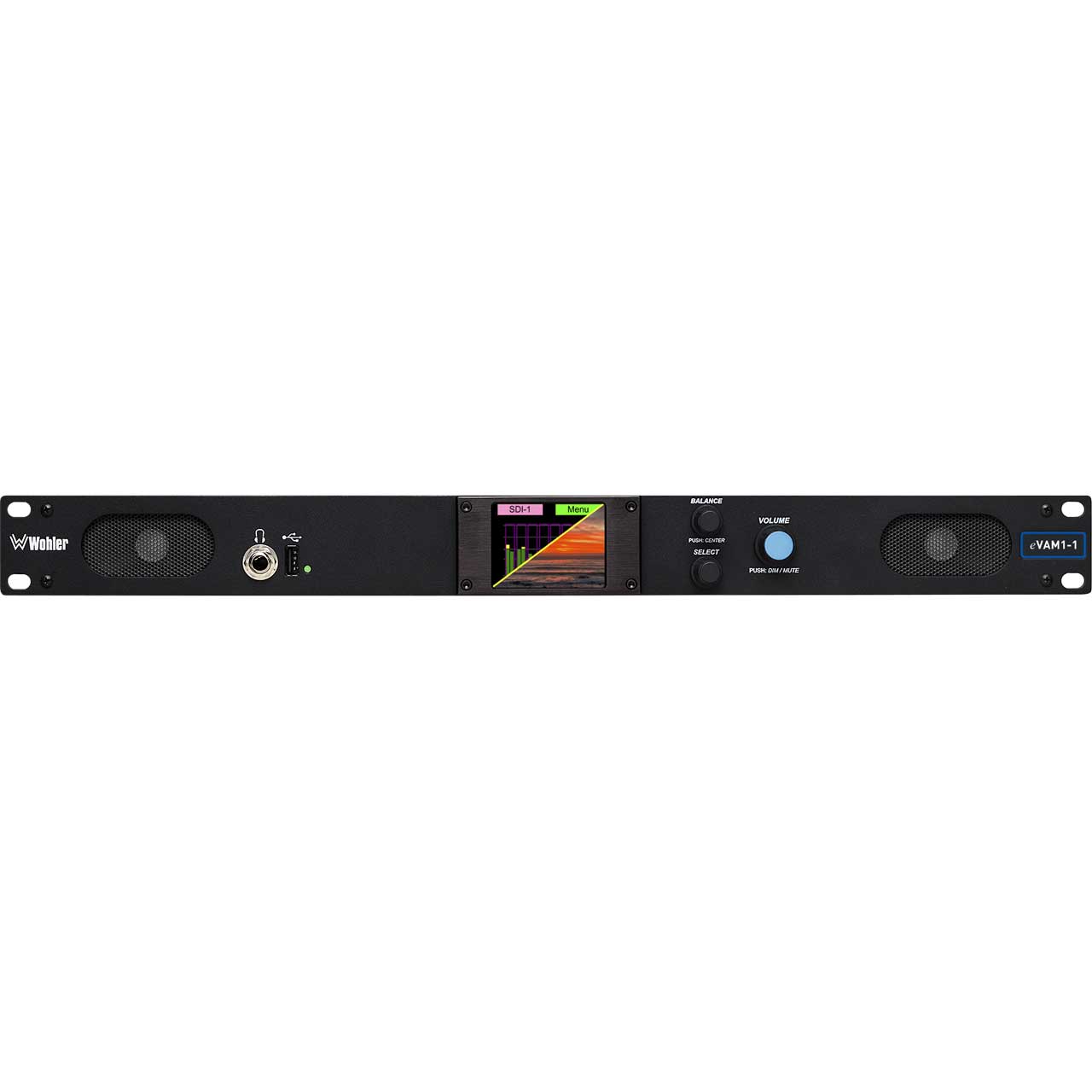

    A single 2.4" touch screen front panel utilizes mature design philosophies from previous Wohler products, while physical front panel controls provide access to main volume, balance, and auxiliary controls to supplement the touch controls. Individual audio channels may be summed, soloed or muted by touch or mechanical control, also in line with other Wohler units (e.g. iAM AUDIO+, iAM SUMs, iAM-12G-SDI).

    A front mounted USB port is provided for software updates and a network interface allows for remote management, while APIs allow for easy integration with 3rd party controllers - the perfect solution for any application that requires a compact and budget friendly baseband-only unit for monitoring

    • Features:

      • Video and audio monitoring (up to 16 channels) from multiple sources

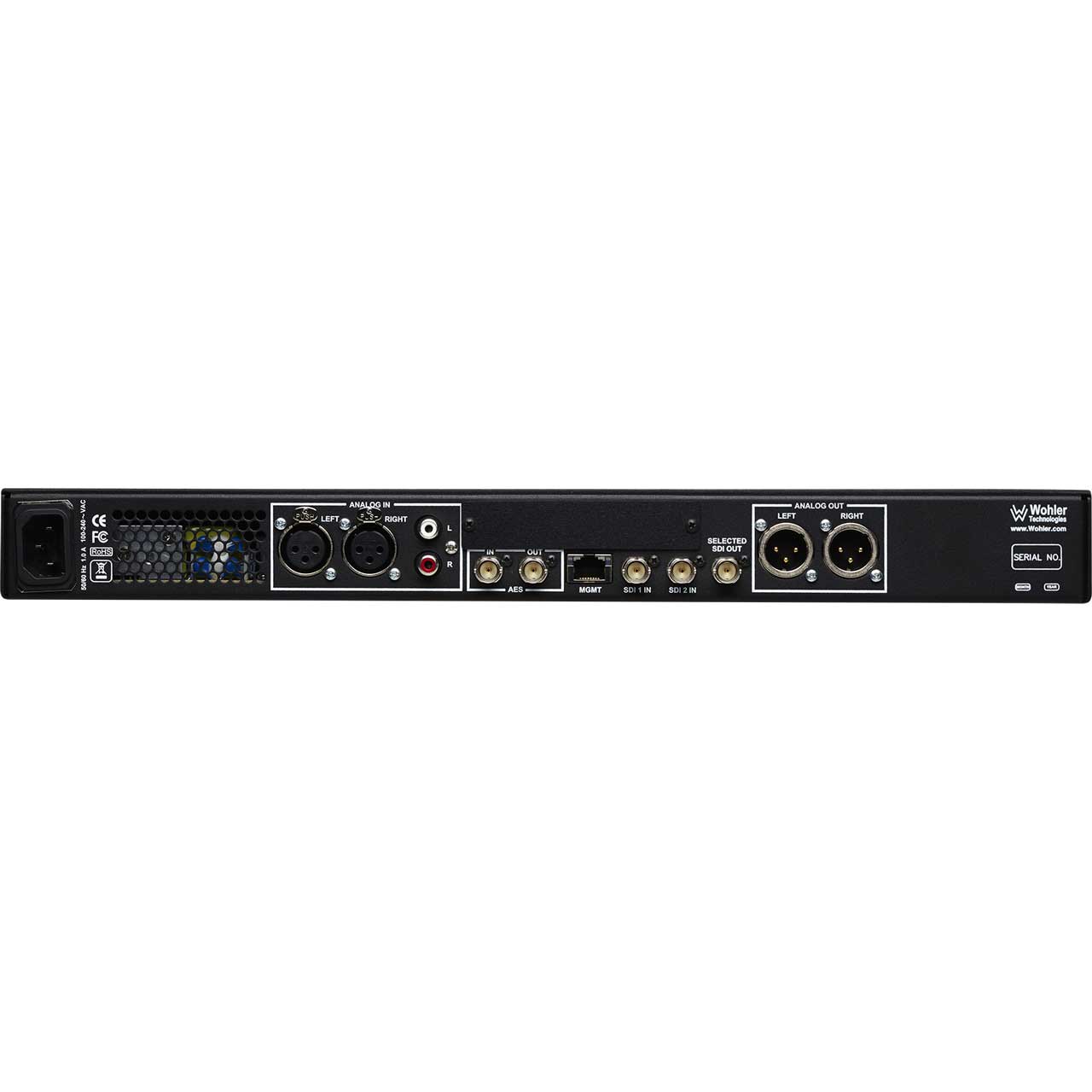

      • 2 x 3G-SDI Inputs on BNCs with selected output on BNC, 1 pr AES3 In/out on BNC, 1pr balanced Analog I/O on XLR + 1 pr unbalanced Analog inputs on RCA
      • Quick, intuitive push-button or touch selection of any channels or pairs to sum, mute or solo
      • Monitor through built-in speakers, headphones or analog outputs with optional muting for internal speakers
      • 8 presets
      • Stereo phase indicators
      • Adjustable Volume and Balance
      • Automatic frame rate detection and selection
      • Selectable line level or front panel volume control and outputs
      • Shallow chassis depth for easy installation in OB vehicles and consoles
      • Software upgradeable via USB or network
      • Remote GUI for preset creation and web meters
      • APIs for remote management
    • Specifications:

      • Display Type / Resolution: 2.4" (60mm) LCD Capacitive Touchscreen, 320H x 240V6 Max
      • Viewing Angle: 160 (H) x 160 (V)
      • Audio Channels: 16 Max
      • Hum and Noise: Better than -68 dB below full output
      • Peak Acoustic Output: 90 dB SPL @ 2 feet
      • Speaker Power Output: 5W RMS per side, 12W Peak
      • Upgrades: Front panel USB for software updates
      • APIs: Provide easy integration with 3rd party control systems
      • Power Consumption / Supply: 15W Typical, 100 to 240 VAC ± 10%, 50-60 Hz, CE & UL approved
      • Dimensions (W x H x D): 1RU in standard 19" rack: 19" x 1.75" x 4.8" (483 mm x 45 mm x 120 mm). Shipping dims: 23"x 6"x 12"
      • Shipping Weight / Net Weight: 6.0 lbs. (2.7 kg) / 3.3 lbs. (1.5 kg)
    • Item Includes:

      • 1x Wohler eVAM1-1 1RU 16 Channel Single Screen 3G-SDI / AES3 & Analog Audio & Video Monitor
